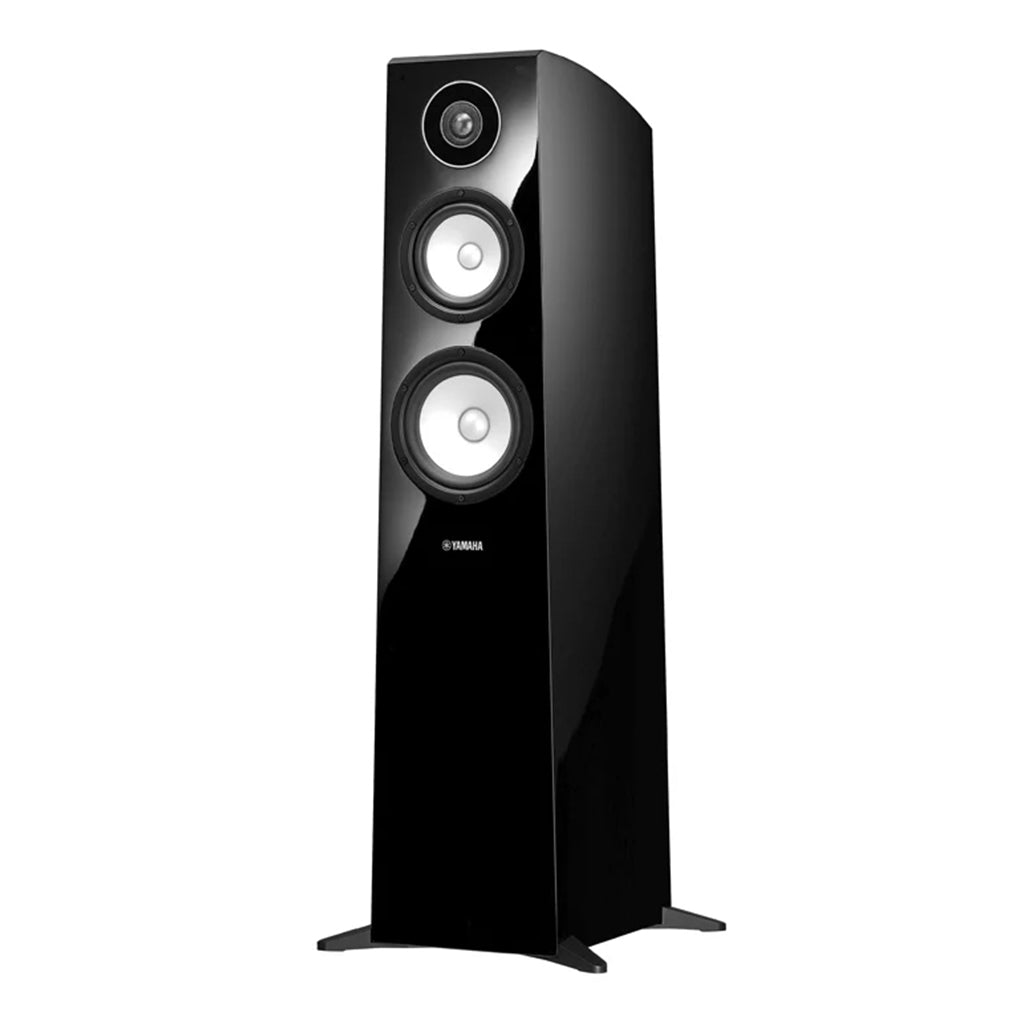

The Yamaha NS-F500 floorstanding speaker has been engineered to deliver a deeply immersive high-fidelity listening experience rooted in the acclaimed Soavo design philosophy. A natural balance of transparency, warmth, and depth is achieved, allowing music to be reproduced with remarkable realism and emotional impact. Each listening session is shaped to feel inviting and familiar, while still revealing fine details that keep the sound engaging over time.

A refined cabinet design and carefully selected materials have been combined to ensure that sound reproduction remains pure and free from unwanted resonance. Deep and controlled bass, expansive high frequencies, and a richly detailed midrange are presented in harmony, creating a soundstage that feels both spacious and intimate. An interior-friendly aesthetic with multiple color options allows seamless integration into modern or classic living spaces.

Key Features

Soavo-Inspired Acoustic Design
The NS-F500 has been developed in the tradition of Yamaha’s Soavo Hi-Fi speakers, where clarity, depth, and tonal accuracy are prioritized. Listening pleasure is emphasized through a sound signature designed to draw the listener back again and again.

DC-Diaphragm™ Tweeter for Expansive High Frequencies
A 3cm aluminum dome tweeter with DC-Diaphragm™ technology is used to reproduce high frequencies with exceptional smoothness and extension. By winding the voice coil directly onto the diaphragm, mechanical strain and adhesive interference are minimized, allowing subtle musical nuances to be preserved and spatial depth to be enhanced.

Advanced PMD Cones for Natural Midrange and Bass
Both the midrange and woofer drivers employ Advanced Polymer Injected Mica Diaphragm cones. This material combines the light responsiveness of paper with the rigidity of resin, resulting in warm, natural sound with excellent control. Solid rubber surrounds and large magnet structures contribute to tight, deep, and detailed bass performance.

Square Voice Coil for Dynamic Low Frequencies
A square voice coil design is used in the woofer to increase driving power and efficiency. A greater surface area and improved space factor are achieved, allowing bass reproduction to remain dynamic and authoritative without sacrificing clarity.

Rigid Aluminum Diecast Basket Construction
The midrange and woofer drivers are mounted in solid aluminum diecast baskets derived from Yamaha’s flagship designs. High rigidity is ensured, reducing vibration and enabling the speaker to reproduce sonic detail and accuracy beyond its class.

Musical Instrument-Inspired Cabinet Engineering
The cabinet structure has been crafted with techniques inspired by violin and piano construction. Three-way mitered joints, internal bracing, slanted partitions, and wooden blocks modeled after violin bass bars are used to suppress resonance. The result is clean, focused sound with impressive tonal purity.

Elegant, Interior-Friendly Design
Rounded cabinet edges eliminate harsh lines and create an organic visual presence. A lustrous glossy front baffle, reminiscent of a piano finish, adds refinement, while multiple color options allow the speaker to complement a wide range of interiors.

Specially Designed Spikes for Acoustic Stability
Newly designed spikes are included to ensure a stable connection between the speaker and the floor. Improved footing contributes to clearer sound and more precise bass by minimizing unwanted vibration.

Specifications

Type: 3-Way Bass-Reflex Floor-Standing Speaker System
Woofers: 16cm Advanced PMD cone
Midrange Driver: 13cm Advanced PMD cone type
Tweeter: 3cm aluminium dome with DC-Diaphragm™
Frequency Response: 40 Hz – 50 kHz
Nominal Input Power: 40 W
Maximum Input Power: 160 W
Sensitivity: 88 dB
Crossover Frequencies: 580 Hz, 4.1 kHz
Impedance: 6 ohms
Dimensions (W × H × D): 224 × 981 × 349 mm
Weight: 19.1 kg per unit

Conclusion

The Yamaha NS-F500 floorstanding speaker is presented as a refined blend of acoustic engineering, musical instrument-inspired craftsmanship, and elegant design. A rich, natural sound signature with expansive detail is delivered through advanced driver technologies and a highly rigid cabinet structure. As a result, an immersive and emotionally satisfying listening experience is achieved, reflecting the enduring audio heritage of Yamaha.
