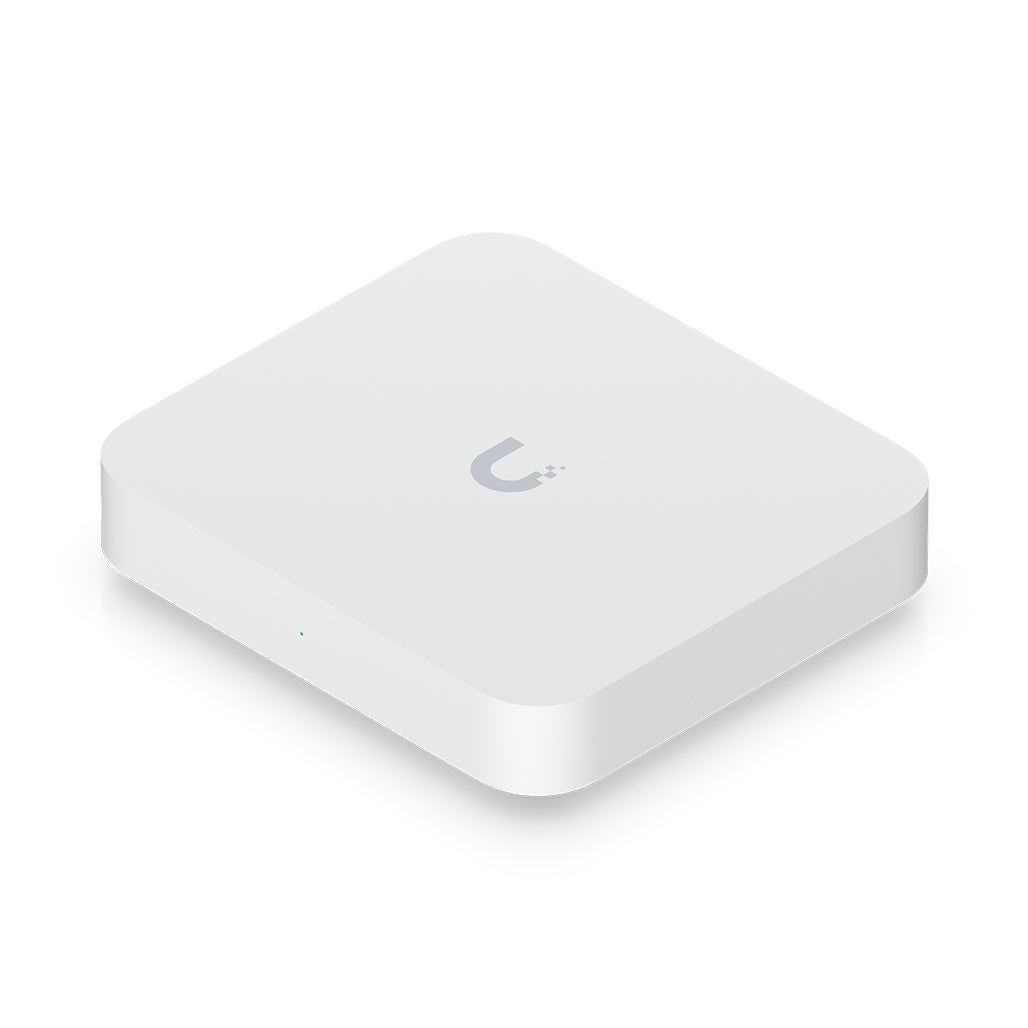

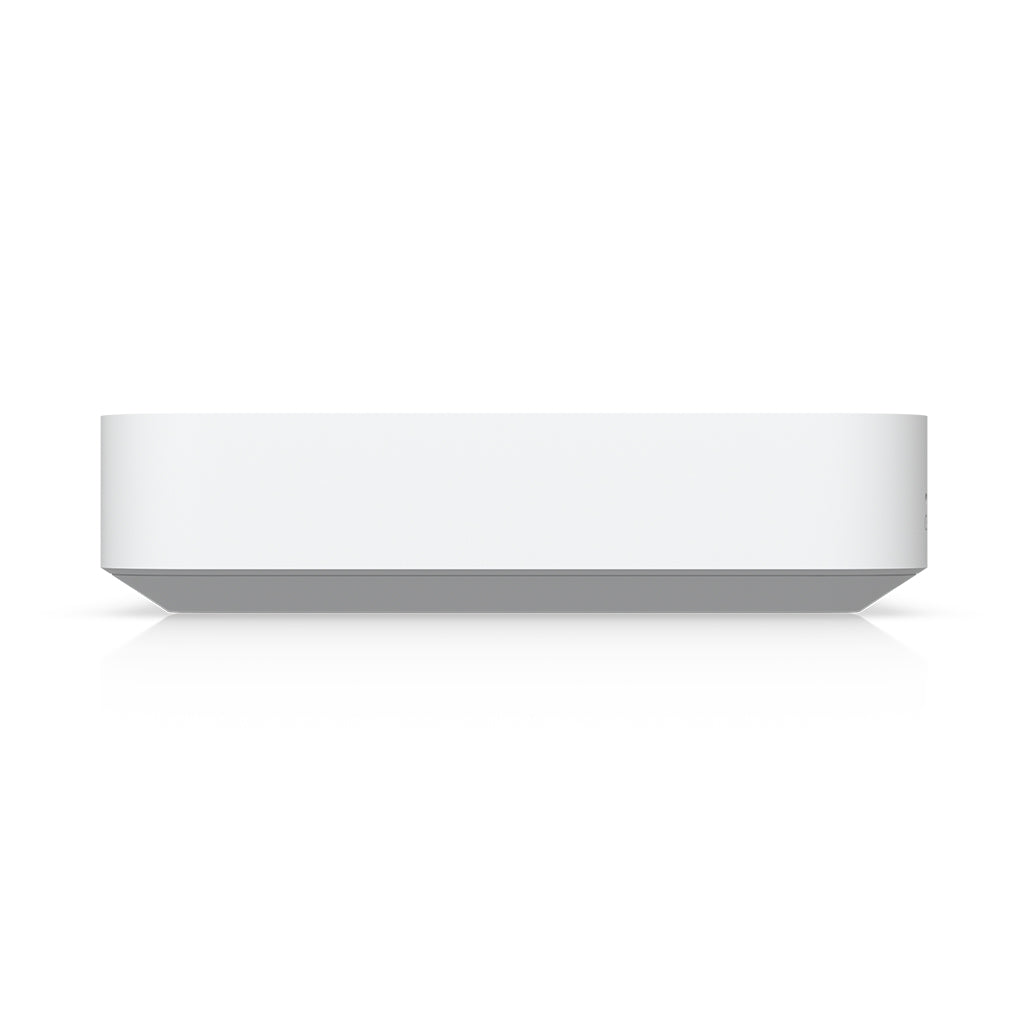

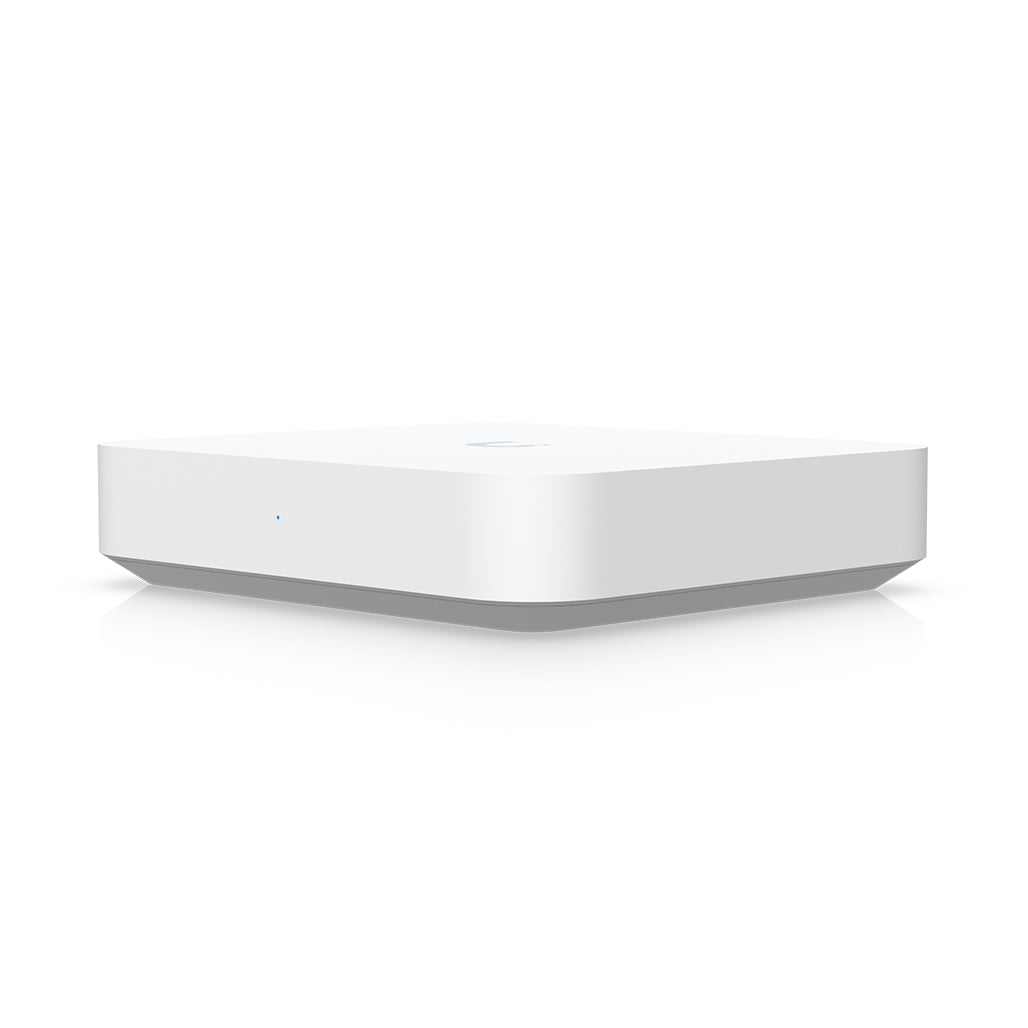

The Ubiquiti UXG Max is a compact, high-performance gateway designed to deliver flexible routing, advanced security, and multi-WAN support for small to medium sites. Built with full 2.5 GbE connectivity, it provides one dedicated WAN port and four LAN ports (one of which is remappable), allowing adaptable network architectures. With throughput to handle full IDS/IPS capabilities at up to 2.3 Gbps, this gateway ensures traffic filtering and protection do not bottleneck your network.
Managed via a CloudKey, Official UniFi Hosting, or UniFi Network Server, UXG Max integrates seamlessly into the UniFi ecosystem. USB-C power ensures easy deployment without bulky adapters. The device supports the latest UniFi Network software (version 8.1.113 and later) and includes options for extended UI Care coverage and optional security services. Rugged yet compact, it fits when space is limited but demands are high.
Multi-WAN Support with 2.5 GbE Ports – One dedicated WAN and four LAN ports (one remappable) at 2.5 GbE speeds
High Throughput Security – Up to 2.3 Gbps IDS/IPS performance even with security features enabled
Advanced Firewall & Filtering – Stateful firewall, application-aware layer 7 rules, DPI, content filtering, and ad blocking
VPN & SD-WAN – License-free SD-WAN, site-to-site VPN, Teleport, WireGuard, OpenVPN, L2TP and policy-based routing
Dynamic Networking Features – OSPF dynamic routing, VLAN segmentation, multi-WAN load balancing, QoS, NAT, DHCP support
Compact & Efficient Design – USB-C powered (5 V/3 A), minimal footprint, low 9.6 W max power usage
Flexible Management – Works with CloudKey, UniFi Hosting, or UniFi Network Server, with firmware requirements of version 8.1.113 or later
Robust Hardware – Quad-core ARM Cortex-A53 CPU, 2 GB DDR4 memory, polycarbonate housing, factory reset button, and ESD protection
Dimensions: 141.8 × 127.6 × 30 mm (5.6 × 5 × 1.2 in)
Weight: ~ 520 g (1.1 lb)
Enclosure Material: Polycarbonate
Power Method: USB-C (5 V DC / 3 A) — adapter included
Supported Voltage Range: 100–240 V AC
Max Power Consumption: 9.6 W
Operating Temperature: –10 to 40 °C (14 to 104 °F)
Operating Humidity: 5% to 95% non-condensing
ESD/EMP Protection: ± 8 kV air, ± 4 kV contact
CPU: Quad-core ARM Cortex-A53 @ 1.5 GHz
System Memory: 2 GB DDR4
Management: Ethernet, Bluetooth
LED Indicators: Ethernet, System
Button: Reset / factory default

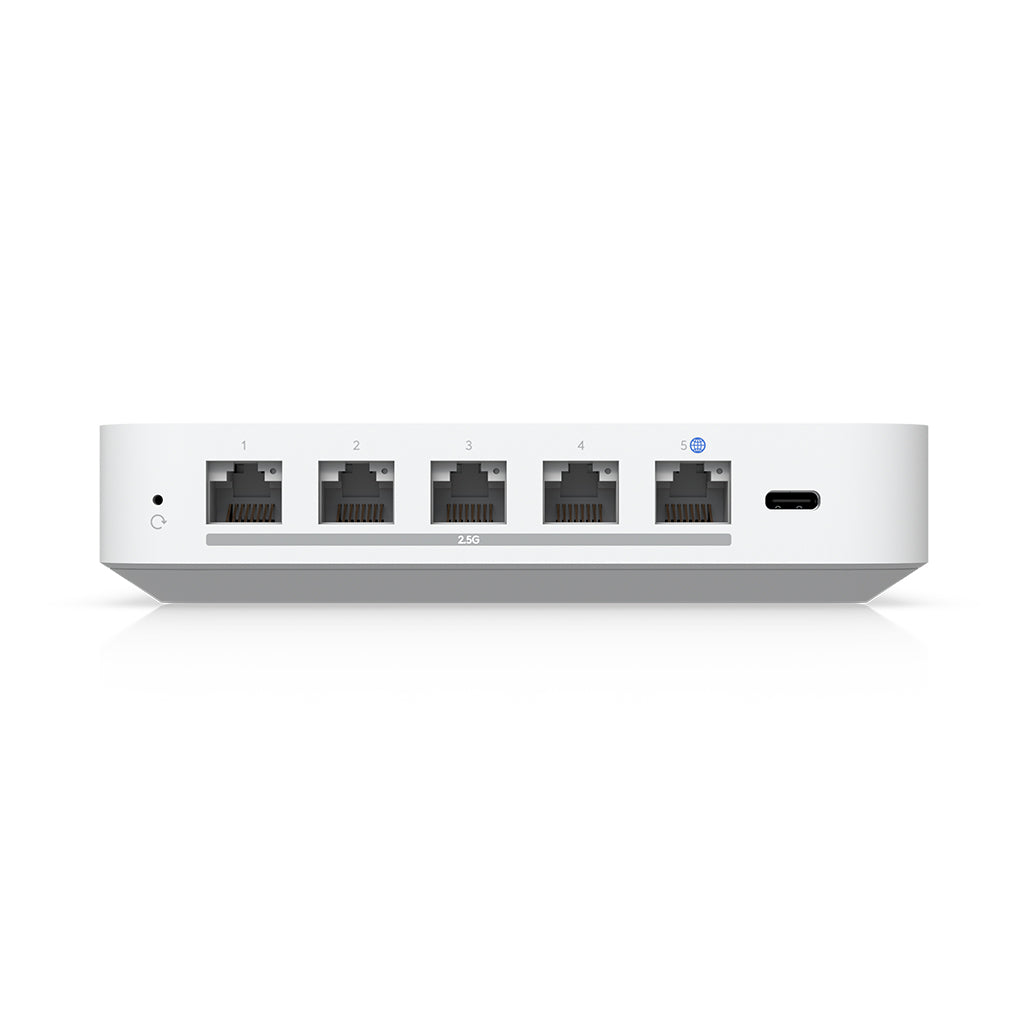

WAN Ports: 1 × 2.5 GbE RJ45
LAN Ports: 4 × 2.5 GbE RJ45 (one may be remapped to WAN)
Total Ports: 5 multi-gig Ethernet
IDS/IPS Throughput: Up to 2.3 Gbps
Stateful Firewall
Application / Domain / Region-based filtering
DPI & traffic identification
Zone-based firewall rules
Intrusion Prevention / Detection (IPS/IDS)
Content Filtering & Ad Blocking
SD-WAN (license-free)
VPN support: Teleport, WireGuard, OpenVPN, L2TP, IPsec
Policy-based WAN & VPN routing
Dynamic Routing (OSPF)
Multi-WAN load balancing and failover
VLAN / subnet segmentation
NAT Types: SNAT, DNAT, pool NAT, 1-to-1 NAT, masquerade
DHCP server and relay
IPv6 support
Integrated RADIUS over TLS
NDAA Compliant
Certifications: CE, FCC, IC
Software Requirement: UniFi Network version 8.1.113+
In the Box: UXG Max device, USB-C adapter
The UXG Max is a powerful edge gateway ideal for users already invested in the UniFi ecosystem who need advanced routing and security without the extra load of built-in controller functions. Its multi-WAN architecture, full 2.5 GbE connectivity, and robust security features let it handle demanding network roles in compact deployments. USB-C power, efficient design, and integration with UniFi Network make it a smart choice for modern infrastructures that demand performance and protection.
