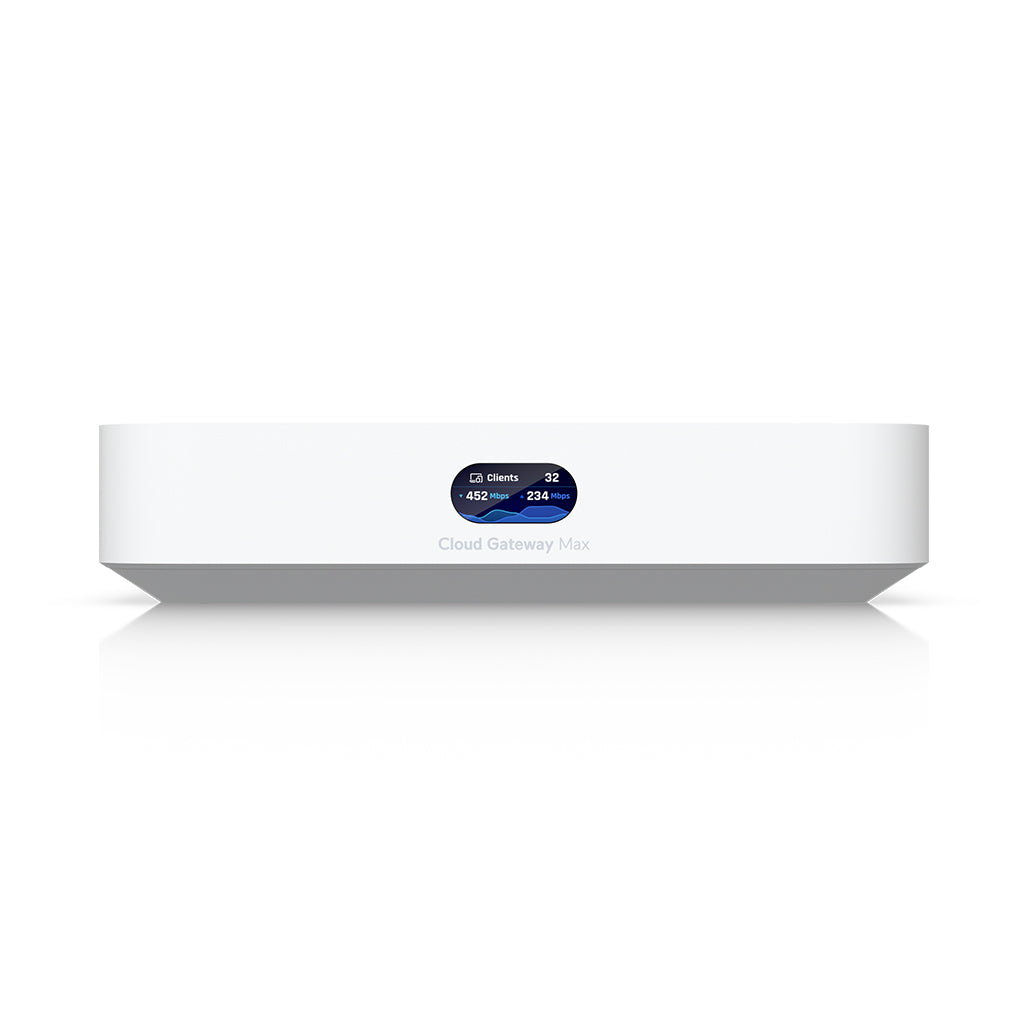

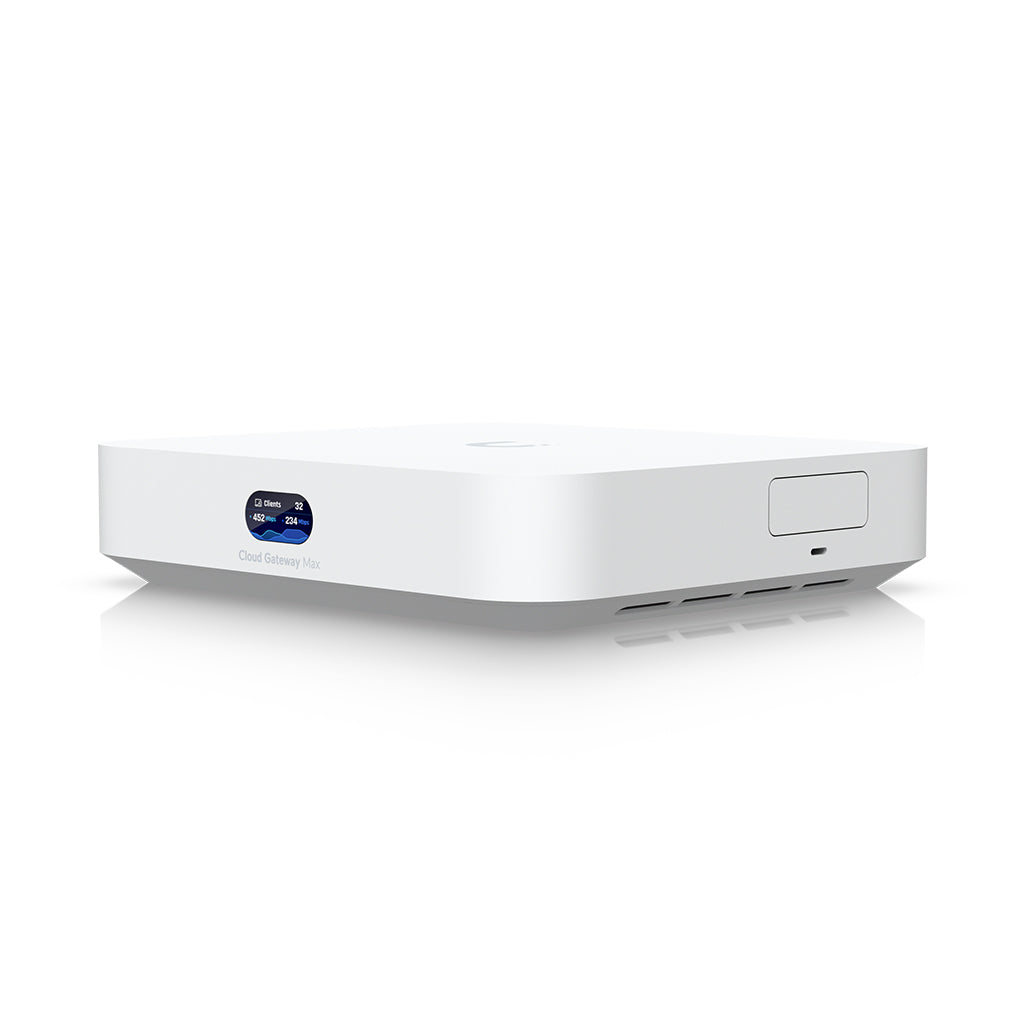

The Ubiquiti UniFi Cloud Gateway Max (UCG-Max) is a compact, high-performance gateway device built for modern networks. It supports multi-WAN, advanced security, and integrated gateway functions, all in a sleek desktop form factor. Designed to act as the nerve center of the UniFi ecosystem, it handles routing, VPN, firewall, and NVR storage tasks while supporting a substantial number of devices and clients.
With support for 30+ managed UniFi devices and over 300 connected users, the Cloud Gateway Max enables centralized control of network, Protect, Access, Talk, and Connect applications. It supports selectable NVMe storage, enabling it to serve as an NVR host for video surveillance. Advanced features such as stateful firewall, intrusion prevention (IPS/IDS), content filtering, SD-WAN, policy routing, and full VPN capabilities are built in. The gateway includes a 0.96" LCM status display, supports redundant WAN configurations, and draws just 16.1 W at full operation.
Multi-WAN & Load Balancing – Supports redundant WAN interfaces with failover and traffic distribution
Advanced Security & Filtering – Includes stateful firewall, application/domain filtering, IPS/IDS with over 55,000 signatures, and content filtering
Integrated VPN Suite – WireGuard, IPsec, OpenVPN (server & client), L2TP, Teleport, and policy-based routing
SD-WAN (License-free) – Enables secure site-to-site overlays and dynamic routing without extra licensing
Selectable NVMe Storage – Optionally install an NVMe SSD (up to 2 TB) to run Protect, Access, and Talk apps locally
High Throughput – up to 2.3 Gbps IPS routing performance in ideal conditions
Device & Client Support – Manages 30+ UniFi devices and 300+ concurrent client devices
Compact & Quiet Form Factor – Uses USB-C power, silent operation (fanless), and a 0.96" LCM display
Enterprise Features – VLANs, advanced NAT, DHCP relay, dynamic routing (OSPF), IGMP proxy, QoS management, and more
Dimensions: 141.8 × 127.6 × 30 mm (5.6 × 5 × 1.2 in)
Weight: 460 g without SSD, 519 g with SSD
Enclosure Material: Polycarbonate
Power Method: USB Type-C (5 V DC / 5 A)
Supported Voltage Range: 100 – 240 V AC
Max Power Consumption: 16.1 W
Ambient Operating Temperature: –10 to 40 °C
Ambient Operating Humidity: 5% to 95% non-condensing
ESD Protection: ± 8 kV air, ± 4 kV contact
CPU: Quad-core ARM Cortex-A53 at 1.5 GHz
System Memory: 3 GB DDR4
Storage: Optional NVMe SSD (selectable, up to 2 TB)
Display: 0.96" LCM status display
Interface: Factory-reset button
WAN Ports: 1 × 1/2.5 GbE RJ-45 (dedicated)
LAN Ports: 4 × 1/2.5 GbE RJ-45 (configurable)
Total Port Count: 5 multi-gig Ethernet ports
IDS/IPS Throughput: Up to 2.3 Gbps
Managed Devices: 30+ UniFi devices
Client Capacity: 300+ connected devices
Stateful Firewall
Application-aware Layer 7 filtering
DPI & traffic identification
Zone-based filtering (regions, domains, apps)
Intrusion Prevention / Detection (IPS/IDS)
Content Filtering & Ad Blocking
SD-WAN (license-free)
Multiple VPN types: WireGuard, OpenVPN (server & client), L2TP, IPsec
Teleport & Identity VPN
Policy-based WAN & VPN routing
Redundant WAN, failure detection, load balancing
Dynamic routing (OSPF)
VLAN & subnet segmentation
NAT (SNAT, DNAT, 1-to-1 NAT, NAT pooling)
IGMP proxy
IPv6 ISP support
DHCP server / relay
QoS, traffic shaping, application/device QoS
NDAA Compliant
Certifications: CE, FCC, IC, Anatel, SRRC
The Cloud Gateway Max (UCG-Max) is a powerful yet compact gateway solution, ideal for environments that require advanced routing, network security, VPN, and local storage capabilities. By supporting NVMe storage, high-speed multi-WAN routing, and a full UniFi application stack, it serves both as a central controller and a security-hardened network edge. Its blend of enterprise-grade features and modest power draw makes it well suited for small to mid-sized deployments, smart offices, or homes with advanced networking needs.
