Ubiquiti G2 Starter Kit - All-in-One Kit For UniFi Access - UA-G2-SK

$383.00
$383.00
Subtotal: $383.00
Order on Whatsapp
Vendor: Ubiquiti
SKU: UA-G2-SK-R1-J
Availability: Many In Stock
Product Type: Network Switches

Excluding VAT

A simple all-in-one kit for UniFi Access from Ubiquiti, designed to manage a single door with one reader. The kit supports setup for modern, secure access control and includes the components needed to deploy UniFi Access for that one-door use case. If you’re looking for an all-in-one solution centered on a G2 reader and a Door Hub, this starter kit brings the required items together in one package. The Door Hub and G2 Reader connect for networked operation and door control functions, including request to exit, request to enter, remote release, and door position sensor support. The included access cards support NFC card and keyfob access, with support for mobile unlock and handwave request to exit. With specified indoor and outdoor use, the system is built around polycarbonate and includes mounting options including DIN-rail (included).
Key Features
• Designed to manage a single door with one reader
• Supports seamless setup for modern, secure access control

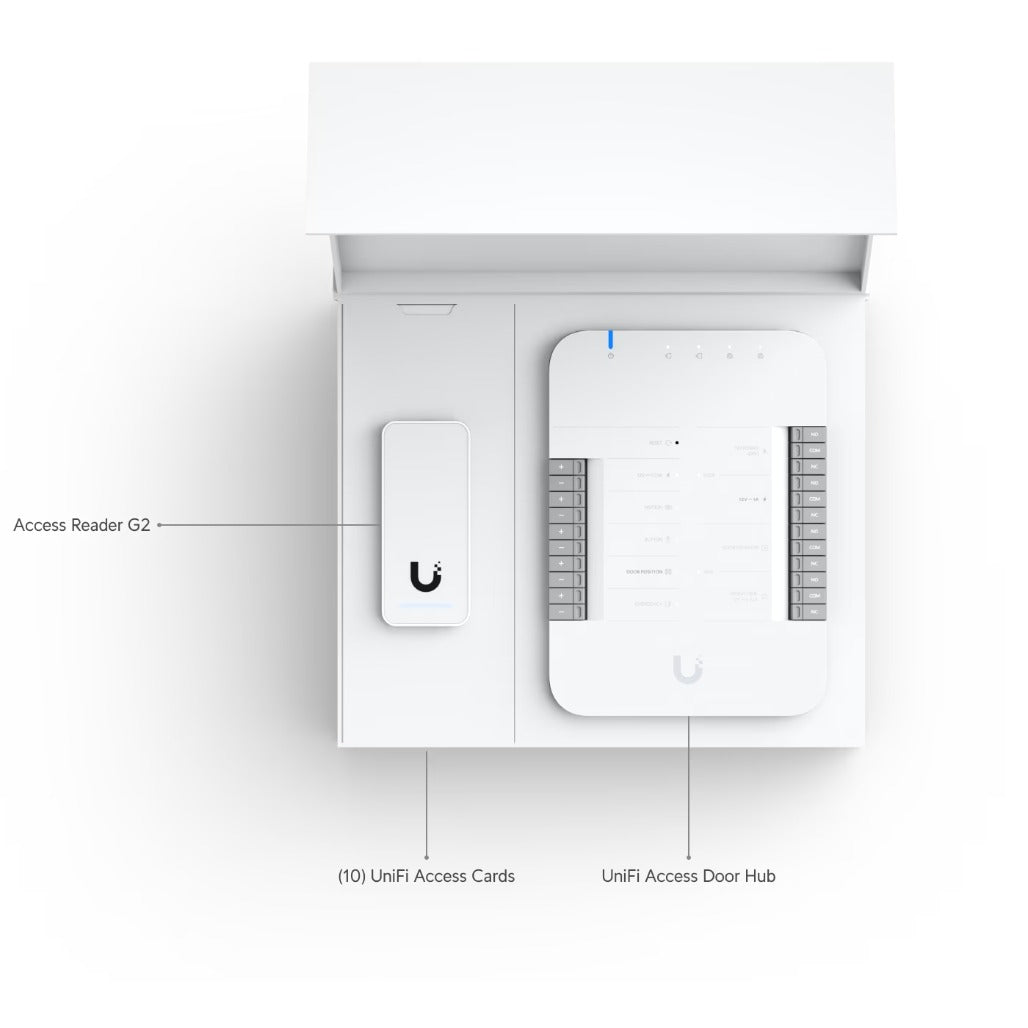

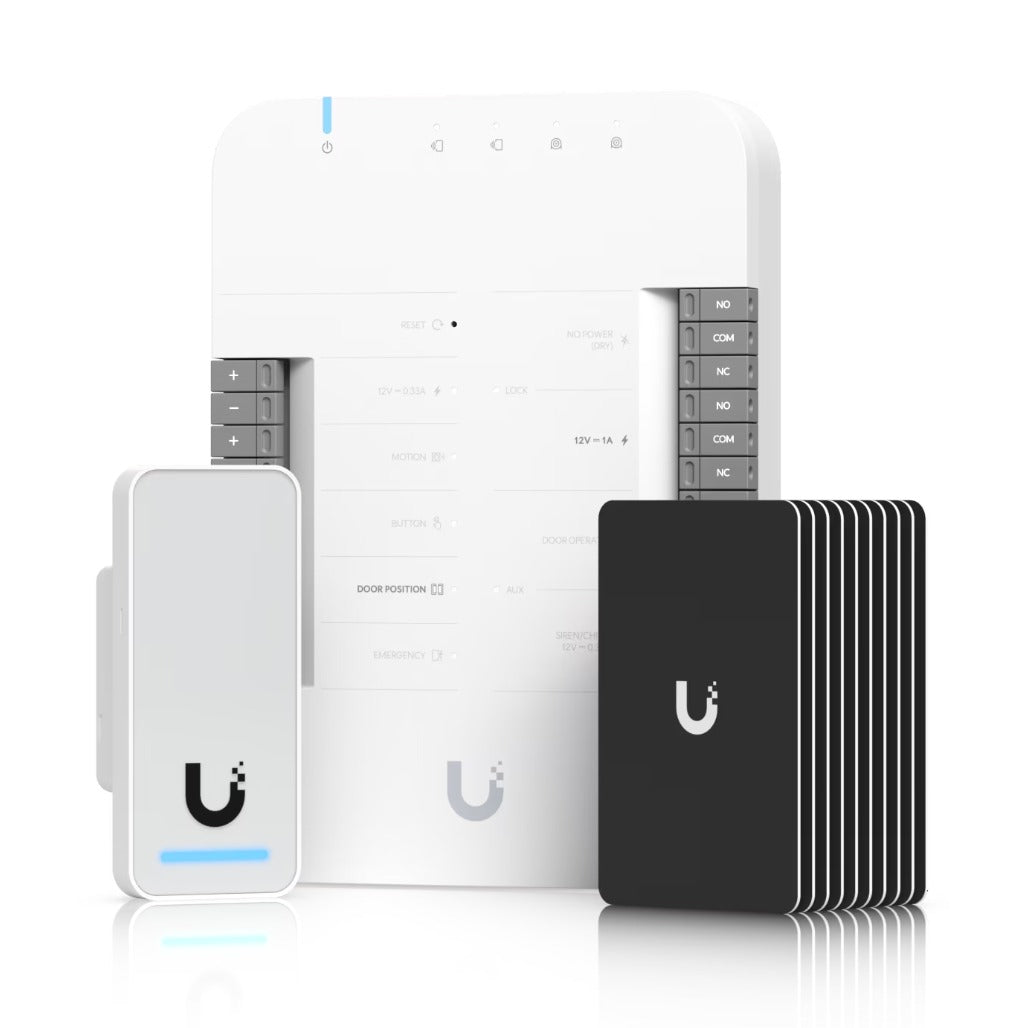

• In the Box includes (1) Door Hub, (1) G2 Reader, and (10) Access Cards
• Supported doors: 1
• Request to exit, request to enter, remote release, door position sensor
• LEDs and (1) factory reset button
• PoE++ support, including PoE++ input (50V DC, 1A) and (4) PoE outputs (50V DC, 30W per port)
• Request to exit/enter and door control support via digital input and relay outputs
• NFC card & keyfob access, including mobile unlock
• Handwave Request to Exit
• Indoor and Outdoor Use
• Weatherproofing uses polycarbonate, glass
• Proximity sensor and NFC capabilities
• NFC read range, NFC frequency: 13.56 MHz
• NFC technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
• NFC technology includes MIFARE Classic / MIFARE DESFIRE
• Sony FeliCa™ (ID only)
• NFC Forum tags: T1T, T2T, T3T, T4T and T5T
• ESD/EMP Protection
• NDAA Compliant
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Management application: UniFi Access
• Software information: UA-Hub-Door002, V01
• Power-limited class 2 PSU: UL 294 Power-limited Class 2 PSU
• DIN-rail (Included)
Specifications
• Brand: Ubiquiti
• Product name: G2 Starter Kit - All-in-One Kit For UniFi Access
• Model number: UA-G2-SK

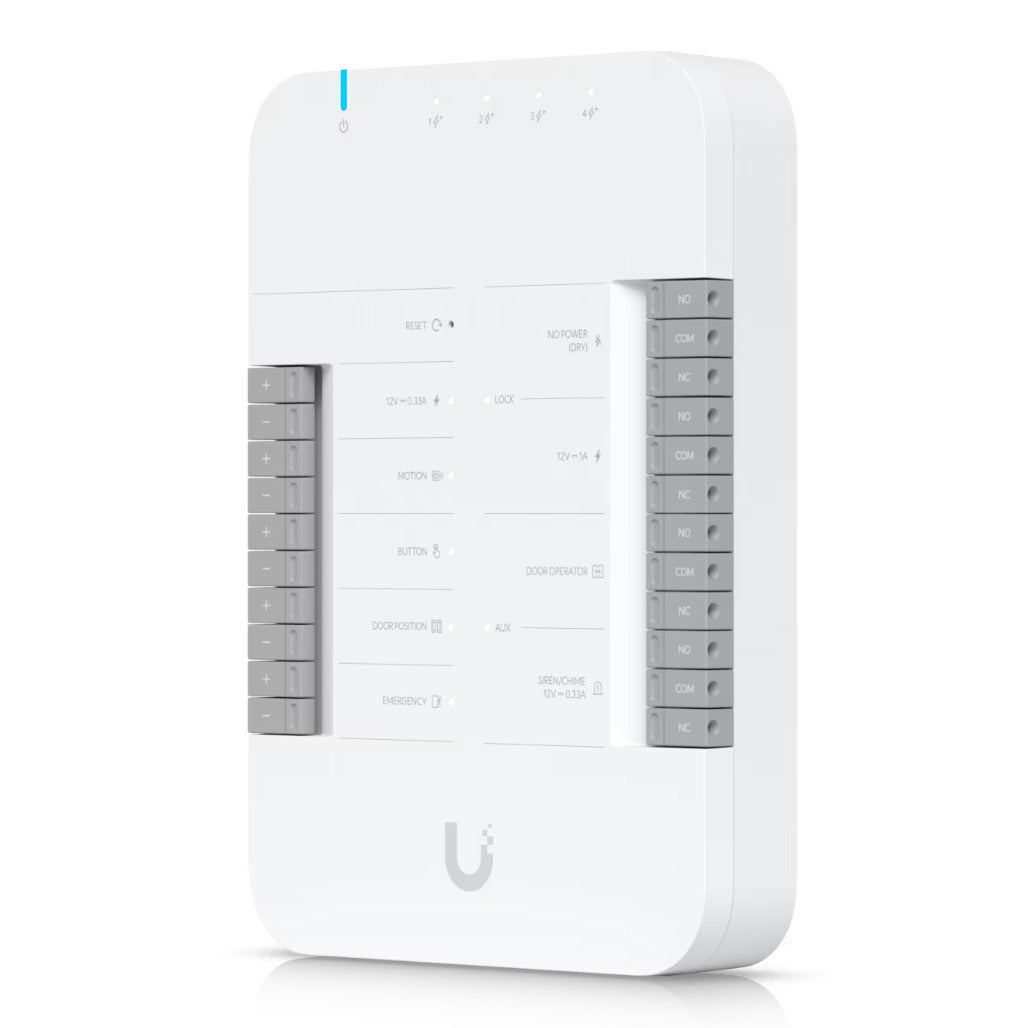

• In the Box: (1) Door Hub

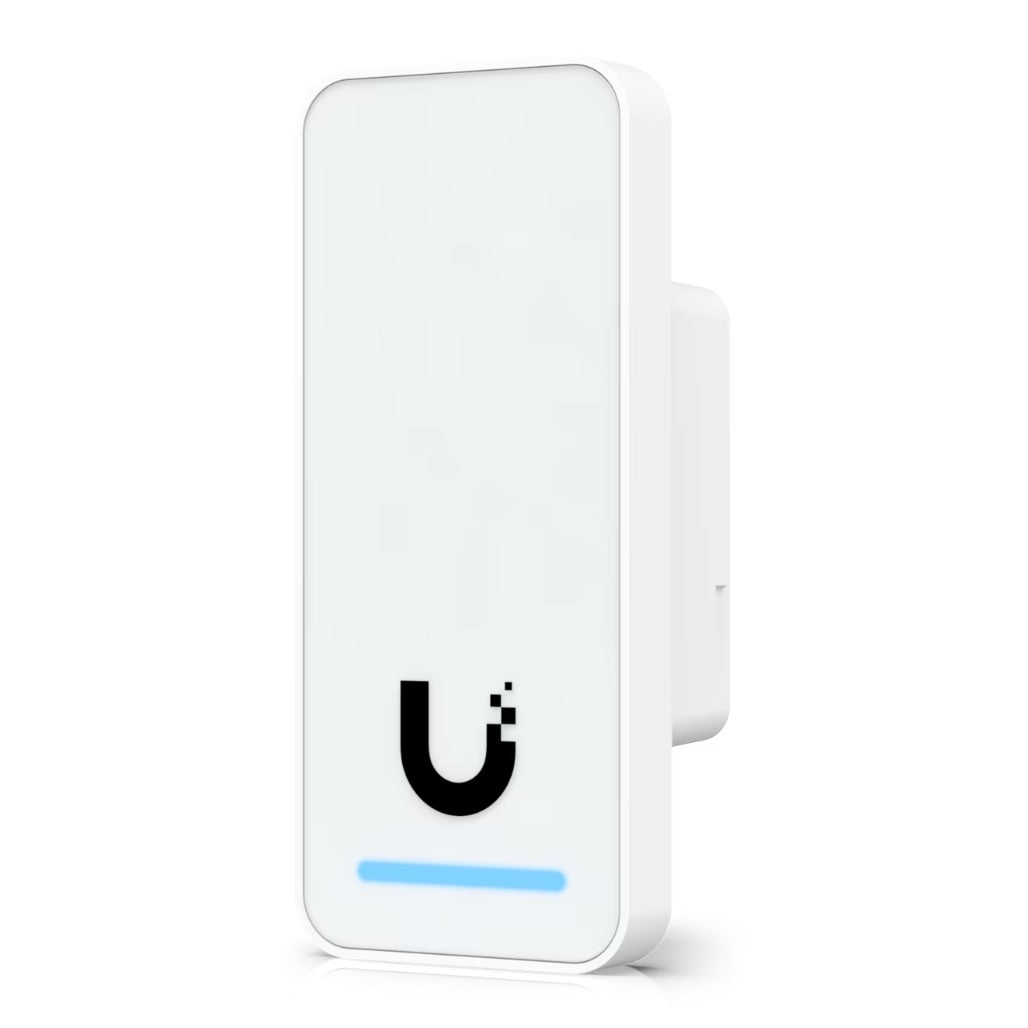

• In the Box: (1) G2 Reader
• In the Box: (10) Access Cards
• Door Hub dimensions: (6.9 x 5 x 1.3")

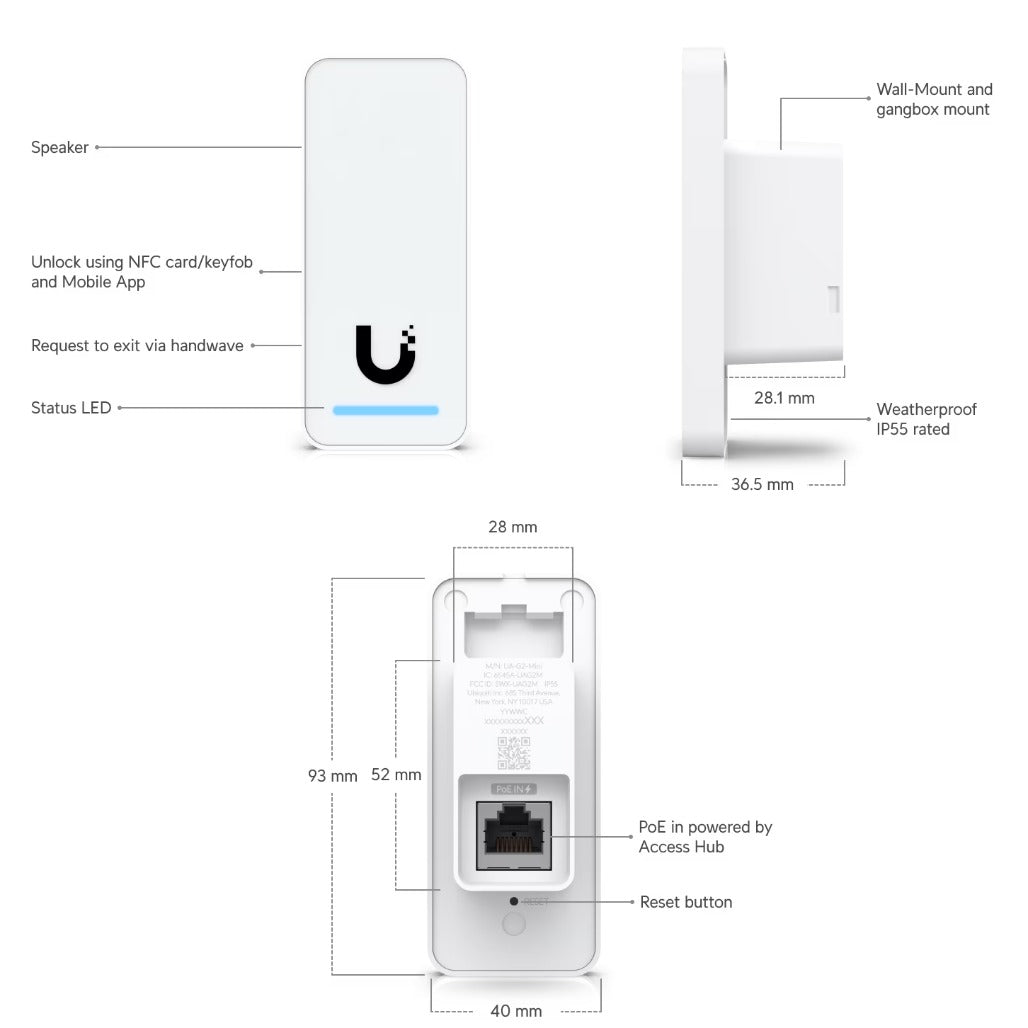

• G2 Reader dimensions: (3.7 x 1.6 x 1.4")
• Access Card dimensions: (3.37 x 2.13 x 0.03")
• Supported doors: 1
• Door control items: (2) Door exit request
• Door control items: (1) Door position
• Door control items: (1) Emergency
• PoE Interface items: PoE++
• Power requirement item: UL 60950-1/62368-1 LPS/PS2 PSU
• Enclosure material: Polycarbonate

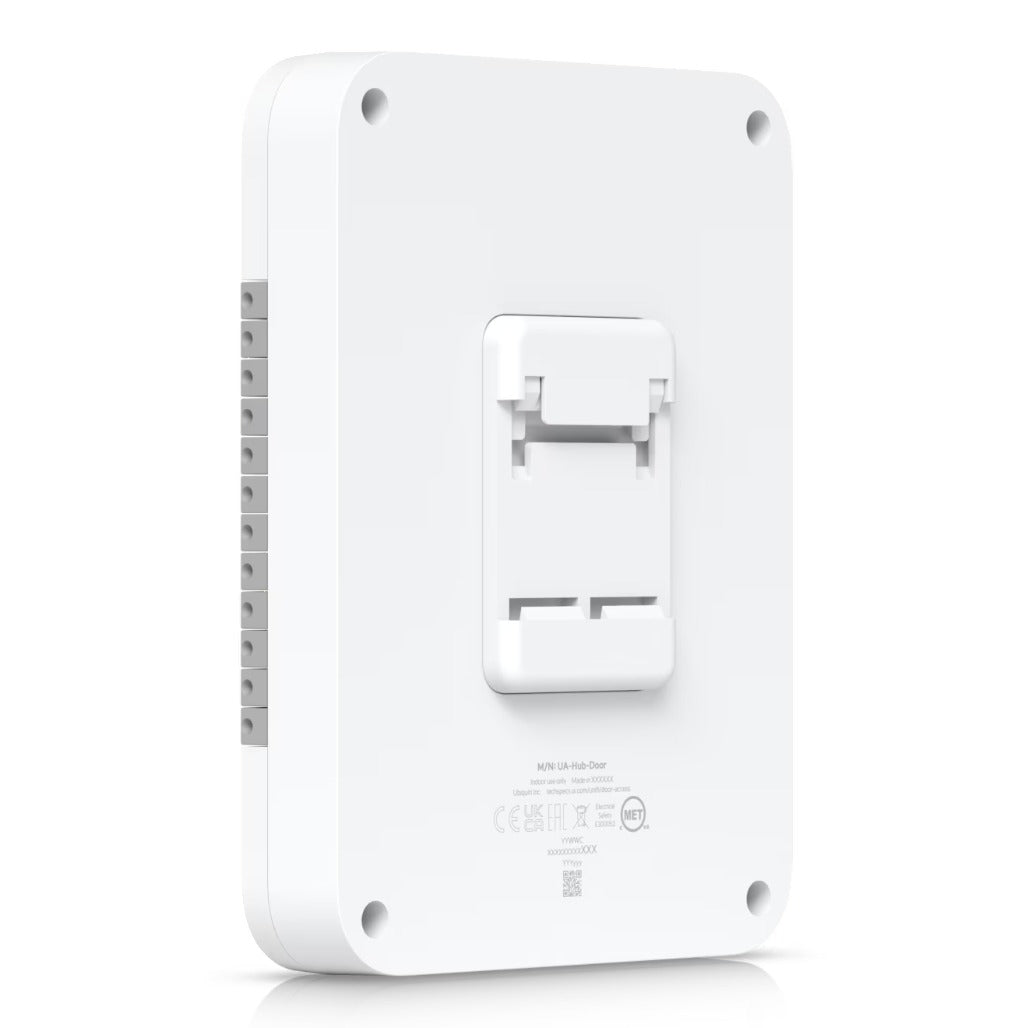

• Mounting: DIN-rail (Included)

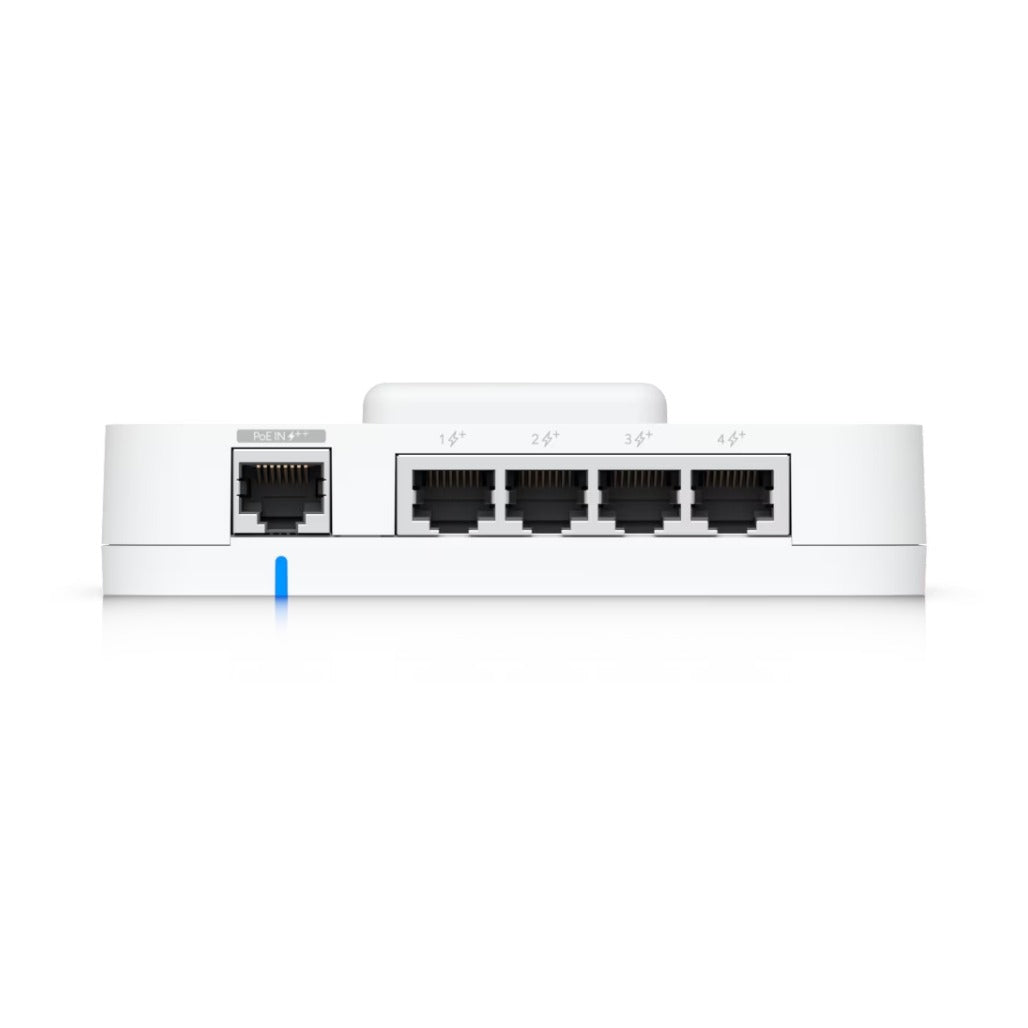

• Networking interface: (5) 10/100/1000 Base-T
• Request to exit: supported
• Request to enter: supported
• Remote release: supported
• Door position sensor: supported
• LEDs: R/G/B/W (as listed)
• Button: (1) Factory reset
• Supported lock / related items shown in description:
• UA-Lock-Electric (400mA)
• Other locks (1A)
• UA-Lock-Magnetic-540kg (500mA)
• UA-Lock-Magnetic-270kg (800mA)
• PoE cabling requirements: Cat 5e cabling is the minimum performance category recommended; match the performance category to the transmission speed required at the installation site
• UL 294: UL 294 Level; UL 294 Statement
• CAN/ULC-60839-11-1 Grade
• Ambient operating temperature (Door Hub): 0 to 40° C (32 to 104° F)
• Ambient operating humidity (Door Hub): 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Management application: UniFi Access
• Software information document details: UA-Hub-Door002, V01
• NFC card & keyfob access: NFC Card & Keyfob Access
• Mobile unlock: Mobile Unlock
• Handwave Request to Exit: Handwave Request to Exit
• Weatherproofing: Polycarbonate, glass
• Indoor and Outdoor Use: Indoor and Outdoor Use

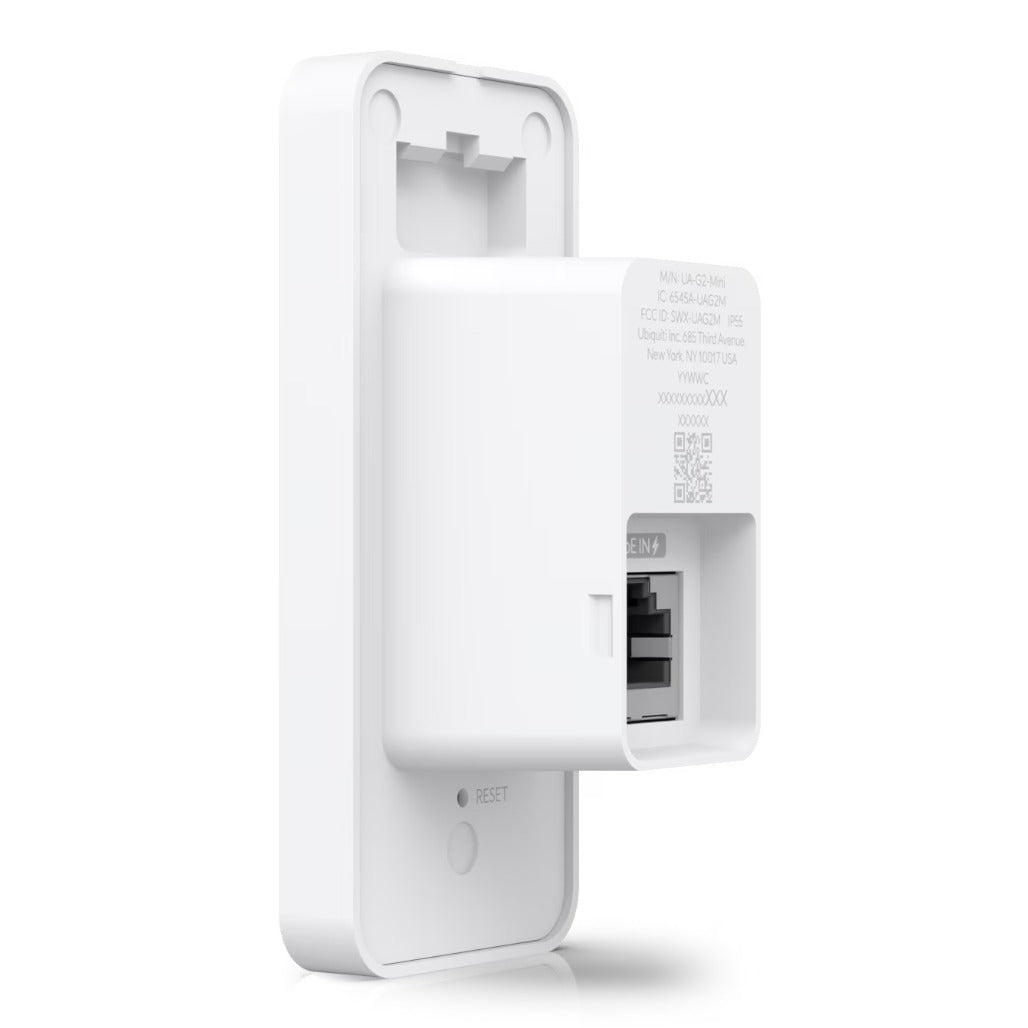

• G2 Reader connectivity items:

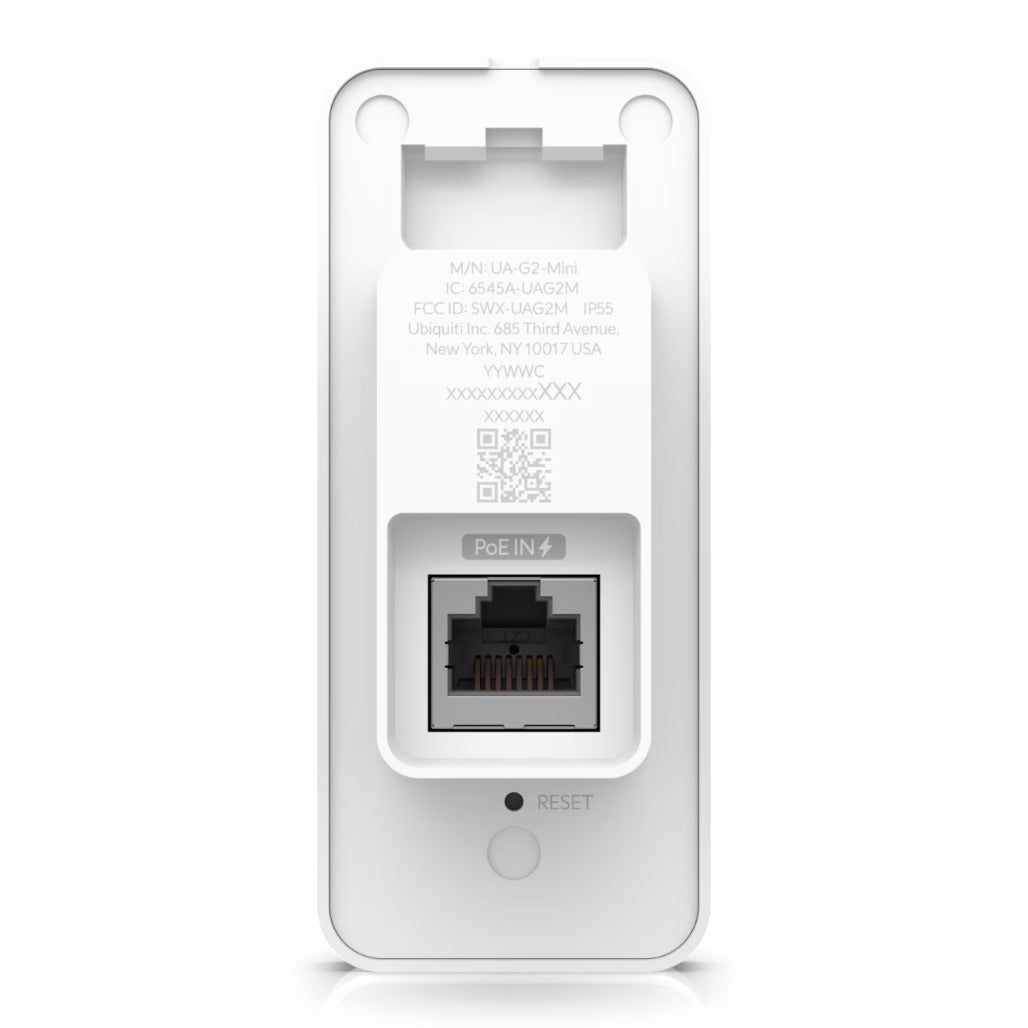

• (1) 10/100 MbE RJ45 port
• BLE 4.1
• NFC
• PoE
• ESD/EMP Protection
• G2 Reader sensors: Proximity sensor
• G2 Reader speaker: R/G/B/W listed under LEDs/speaker section (as provided)
• NFC read range: NFC Read Range (value not provided)
• NFC frequency: 13.56 MHz
• NFC technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)
• NFC technology: MIFARE Classic / MIFARE DESFIRE
• NFC technology: Sony FeliCa™ (ID only)
• NFC Forum tags: T1T, T2T, T3T, T4T and T5T
• Ambient operating temperature (G2 Reader): -30 to 45° C (-22 to 113° F)
• Ambient operating humidity (G2 Reader): 5 to 90% noncondensing
• G2 Reader model/version: UA-G2/UA-G2-Black, V02

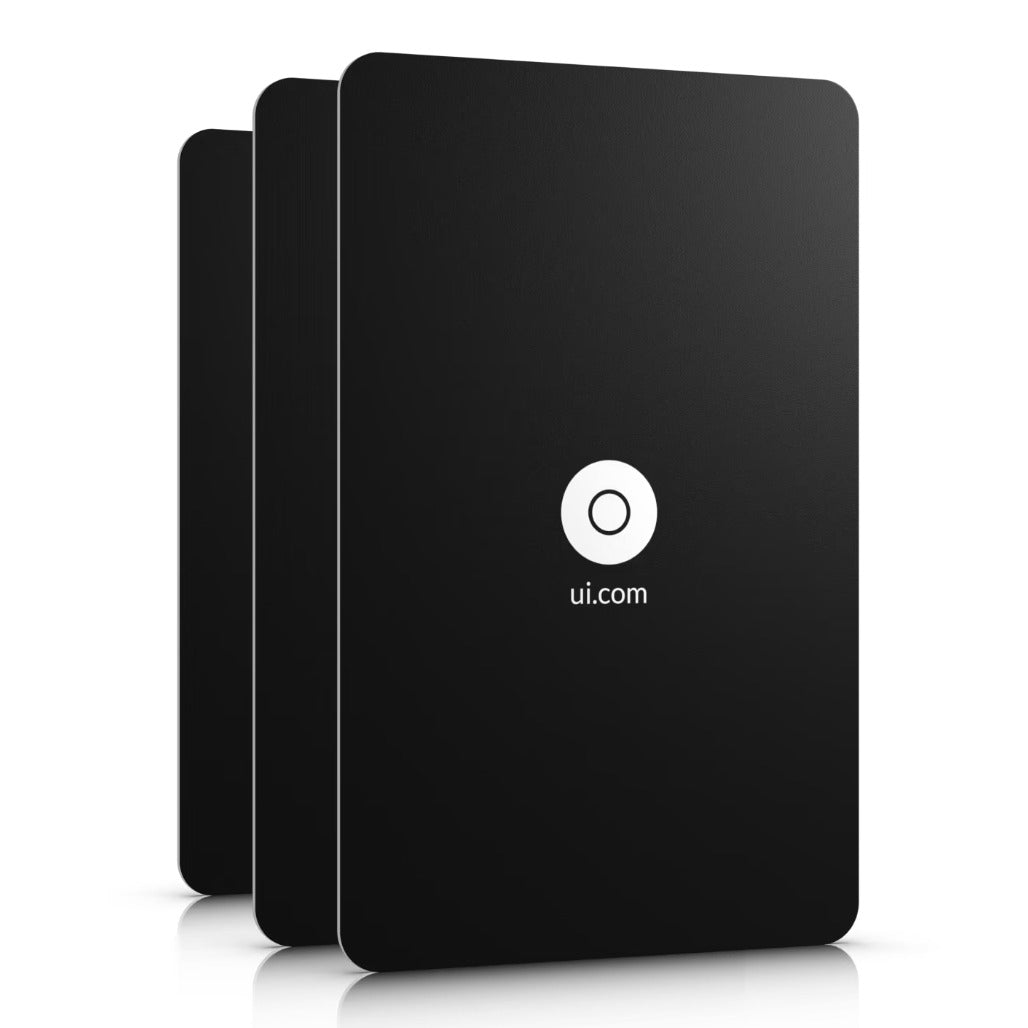

• Access card format: ISO 7810 ID-1
• Access card format/technology: ISO/IEC 14443 Type A
• Access card technology: MIFARE DESFire
• Security protocol: UniFi Access Proprietary Security Protocol

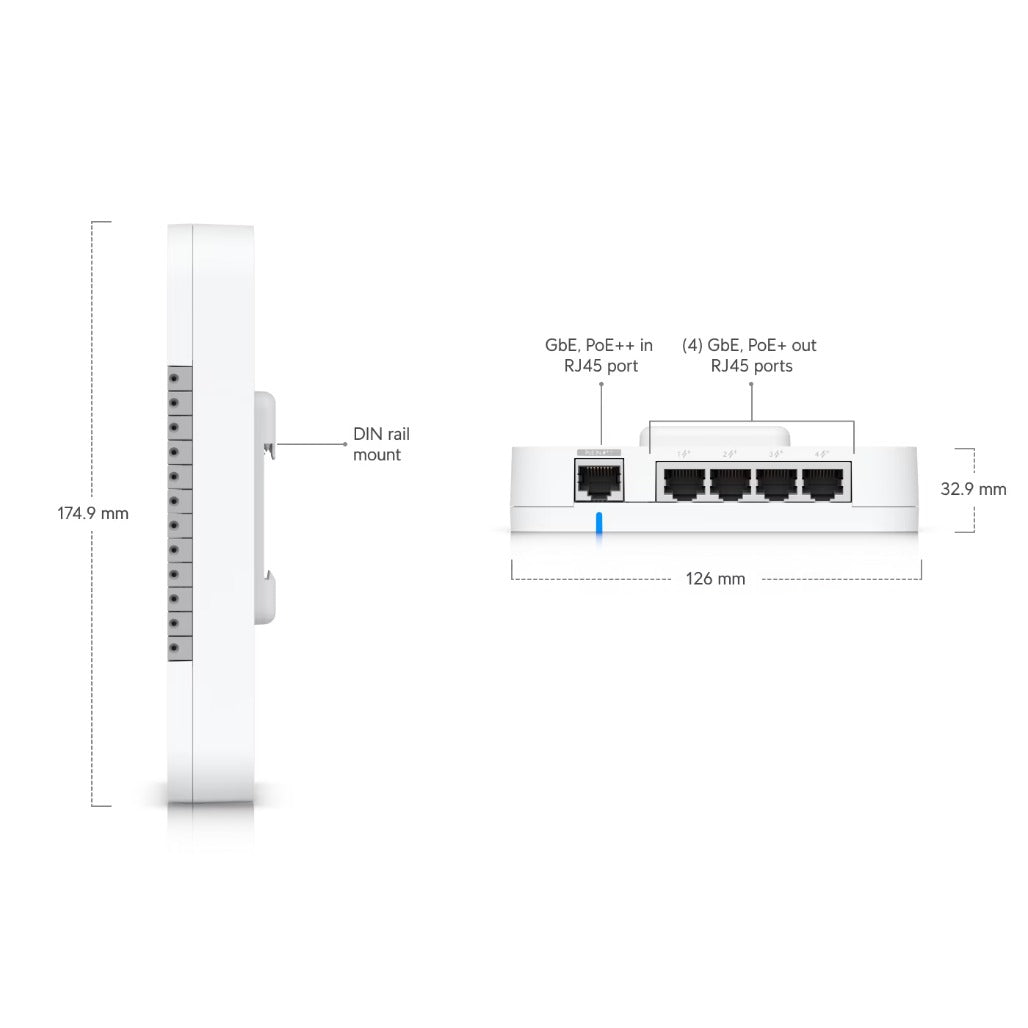

• Door Hub dimensions (technical): 174.9 x 126 x 32.9 mm
• Door Hub weight: 363 g (12.8 oz)
• Enclosure material: Mount Material (as listed in provided text)
• Input terminals: Input Terminals (details not provided beyond relay and power method sections)
• Power method: UL 294 Power-limited Class 2 PSU
• PoE input: (1) PoE++ input, 50V DC, 1A
• PoE outputs: (4) PoE outputs, 50V DC, 30W per port
• Max power (aggregated): (Max 45W aggregated)
• Max power consumption: 30W (Without PoE output)
• Max power consumption: 50W (With PoE output)

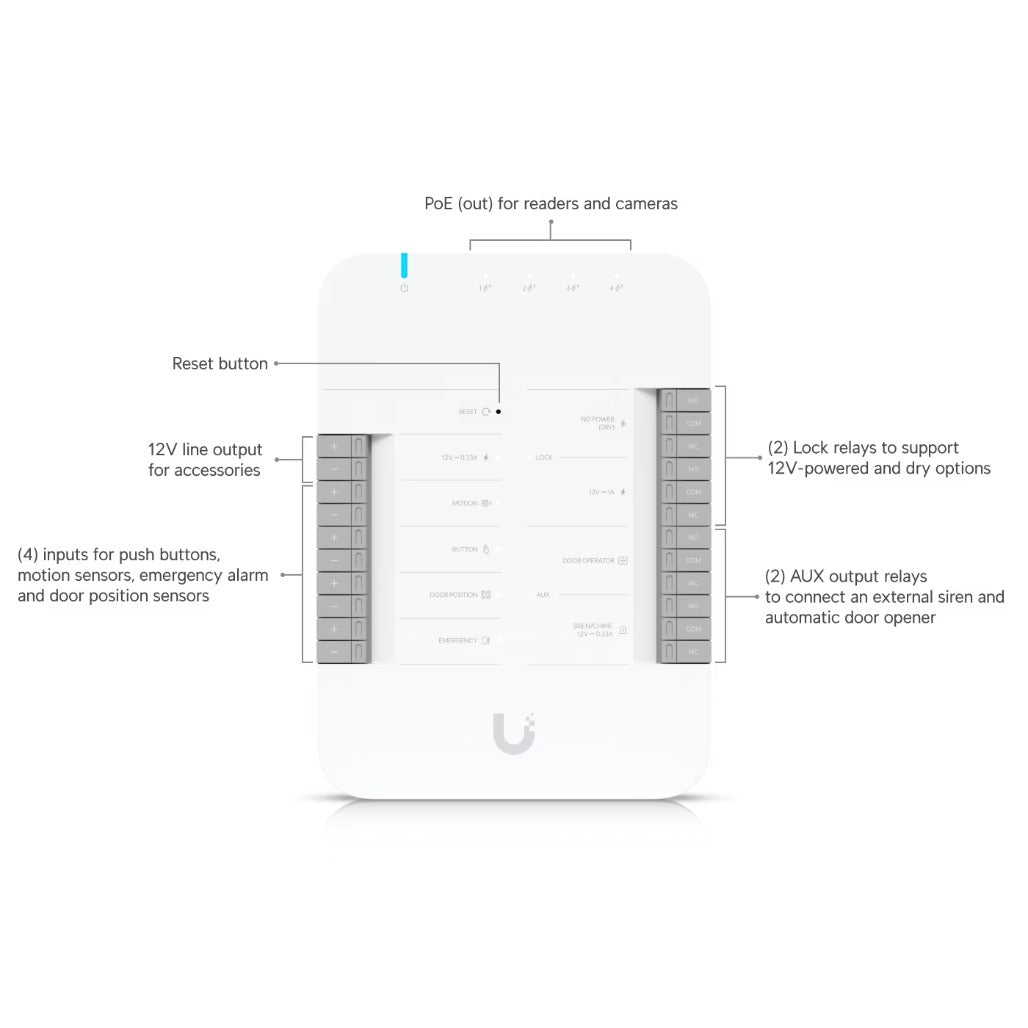

• Digital input: Dry Output Relay
• Relay outputs (listed):
• Lock: 30V DC, 1A
• Aux: 30V DC, 1A
• Powered output relay outputs (listed):
• Lock: 12V DC, 1A
• Aux: 12V DC, 0.33A
• 12V DC, 0.33A
• Recommend max cable length (by conductor gauge and lock type, as listed):
• 24 AWG length: 25 m (82 ft)
• 22 AWG length: 42 m (138 ft)
• 20 AWG length: 66 m (217 ft)
• 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
• 24 AWG length: 20 m (66 ft)
• 22 AWG length: 32 m (105 ft)
• 20 AWG length: 51 m (167 ft)
• 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
• 24 AWG length: 12 m (39 ft)
• 22 AWG length: 20 m (66 ft)
• 20 AWG length: 30 m (98 ft)
• 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
• 24 AWG length: 9 m (30 ft)
• 22 AWG length: 15 m (49 ft)
• 20 AWG length: 24 m (79 ft)
• 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
• Minimal conductor gauge permitted between PSE/power injector and PD:
• Patch cords: 26 AWG (0.13 mm²)
• Horizontal or riser cable: 24 AWG (0.21 mm²)
• Security/attack level statements (as listed):
• Destructive attack: Level I
• Line security: Level I
• Endurance: Level I
• Standby power: Level I
• Compliance note: Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294.
• Intended compliance: intended to comply with National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits
• Grade assignment: 1
• Software version check URL: https://unifi.ui.com
• Door Hub additional dimensions listed: 93 x 40 x 36.5 mm
• Door Hub IP rating: IP55
• Door Hub weight (additional): 82 g (2.9 oz)
• Lock / gang box dimensions and enclosure notes (as provided): In-wall, gang box (Included)
• Connectivity (power/usage note as listed): 5W
• Supported voltage range: 48V DC
• Air/contact ESD levels: Air: ± 15kV, contact: ± 8kV
• (1) Yes, 0.7W (as listed)
• Compliance note: Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
• Grade assignment: I
• Additional listed measurements: 85.6 x 53.98 x 0.84 mm
• Additional listed weight: 5 g (0.18 oz)
• Access card/NFC block additional value not provided: NFC Read Range (value not provided)
• NFC read range field:
• NFC frequency field: 13.56 MHz
• NFC technology fields: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340); MIFARE Classic / MIFARE DESFIRE; Sony FeliCa™ (ID only)
• In-wall, gang box: (Included)
• Junction box: Junction box (Optional)
• BLE version: BLE 4.1
• ESD/EMP protection: ESD/EMP Protection
