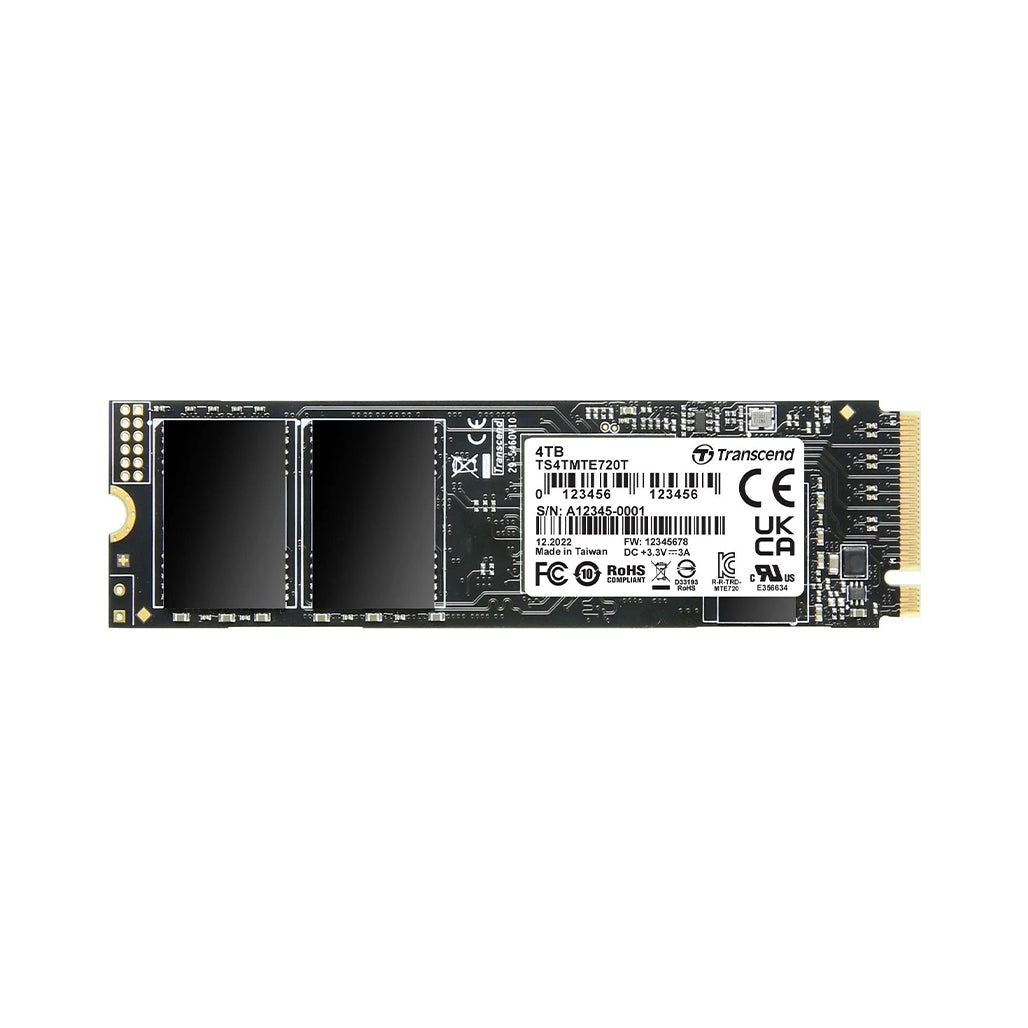

The Transcend MTE720T 4TB PCIe 4.0 NVMe M.2 SSD is engineered for ultra-fast data transfer, offering read speeds of up to 7,500MB/s and write speeds of up to 6,700MB/s. Built with 112-layer 3D NAND flash and an advanced PCIe Gen 4 x4 interface, this SSD delivers enhanced endurance and efficiency for gaming, content creation, and enterprise applications. Its 8-channel controller ensures high-speed processing, while the embedded DDR4 DRAM cache optimizes random read and write performance.

Designed for reliability in extreme conditions, the MTE720T 4TB SSD is equipped with anti-sulfur resistors, Corner Bond technology, and a durable 30µ” gold finger PCB. It supports LDPC ECC (Error Correction Code), dynamic thermal throttling, and S.M.A.R.T. monitoring to ensure long-term stability. With a robust endurance rating of up to 5,920TBW and an extended operating temperature range of -20°C to 75°C, this SSD is ideal for both high-performance computing and industrial environments.

Key Features:

• Blazing-Fast Performance – Achieves sequential read speeds of up to 7,500MB/s and write speeds of up to 6,700MB/s for seamless multitasking and rapid data access.
• High-Endurance 3D NAND Flash – Utilizes 112-layer NAND flash to improve durability and efficiency, offering a DWPD rating of 1.35 over three years.
• Advanced NVMe PCIe 4.0 Interface – Designed for modern workstations and gaming rigs, maximizing bandwidth for superior performance.
• Integrated DDR4 DRAM Cache – Enhances random read/write speeds and reduces latency for demanding applications.
• Reliable Under Extreme Conditions – Features a rugged build with anti-sulfur resistors, a 30µ” gold finger PCB, and Corner Bond technology to withstand harsh environments.
• Comprehensive Data Protection – Supports LDPC ECC for data integrity, full-drive AES encryption (optional), and S.M.A.R.T. health monitoring.
• Optimized for Extended Use – Offers a 3,000,000-hour MTBF and up to 5,920TBW, ensuring longevity for data-heavy workloads.

Specifications:

Appearance

• Dimensions: 80 mm x 22 mm x 3.58 mm (3.15" x 0.87" x 0.14")
• Weight: 9 g (0.32 oz)
• M.2 Type: 2280-D2-M (Double-sided)
• Form Factor: M.2 2280

Interface

• Bus Interface: NVMe PCIe Gen4 x4

Storage

• Capacity: 4TB
• Flash Type: 112-layer 3D NAND flash

Operating Environment

• Operating Voltage: 3.3V±5%
• Operating Temperature (Extended): -20°C (-4°F) ~ 75°C (167°F)
• Storage Temperature: -55°C (-67°F) ~ 85°C (185°F)
• Humidity: 5% ~ 95%
• Shock Resistance: 1500 G, 0.5 ms, 3 axis
• Vibration Resistance (Operating): 20 G (peak-to-peak), 7 Hz ~ 2000 Hz

Power Consumption

• Operation: 5.8W
• Idle: 0.8W

Performance

• Sequential Read/Write (CrystalDiskMark):
  • Read: Up to 7,500MB/s
  • Write: Up to 6,700MB/s
• 4K Random Read/Write (IOmeter):
  • Read: Up to 540,000 IOPS
  • Write: Up to 440,000 IOPS
• MTBF (Mean Time Between Failures): 3,000,000 hours
• Terabytes Written (TBW): Up to 5,920 TBW
• Drive Writes Per Day (DWPD): 1.35 (3 years)

Conclusion:

The Transcend MTE720T 4TB PCIe 4.0 NVMe M.2 SSD is designed to provide exceptional speed, reliability, and endurance for demanding users. With next-generation PCIe Gen 4 performance, advanced thermal management, and a robust build, this SSD ensures optimal operation in both consumer and industrial environments. Whether for high-performance gaming, data-intensive workloads, or enterprise storage solutions, it remains a dependable choice for users seeking ultra-fast, high-capacity storage.
