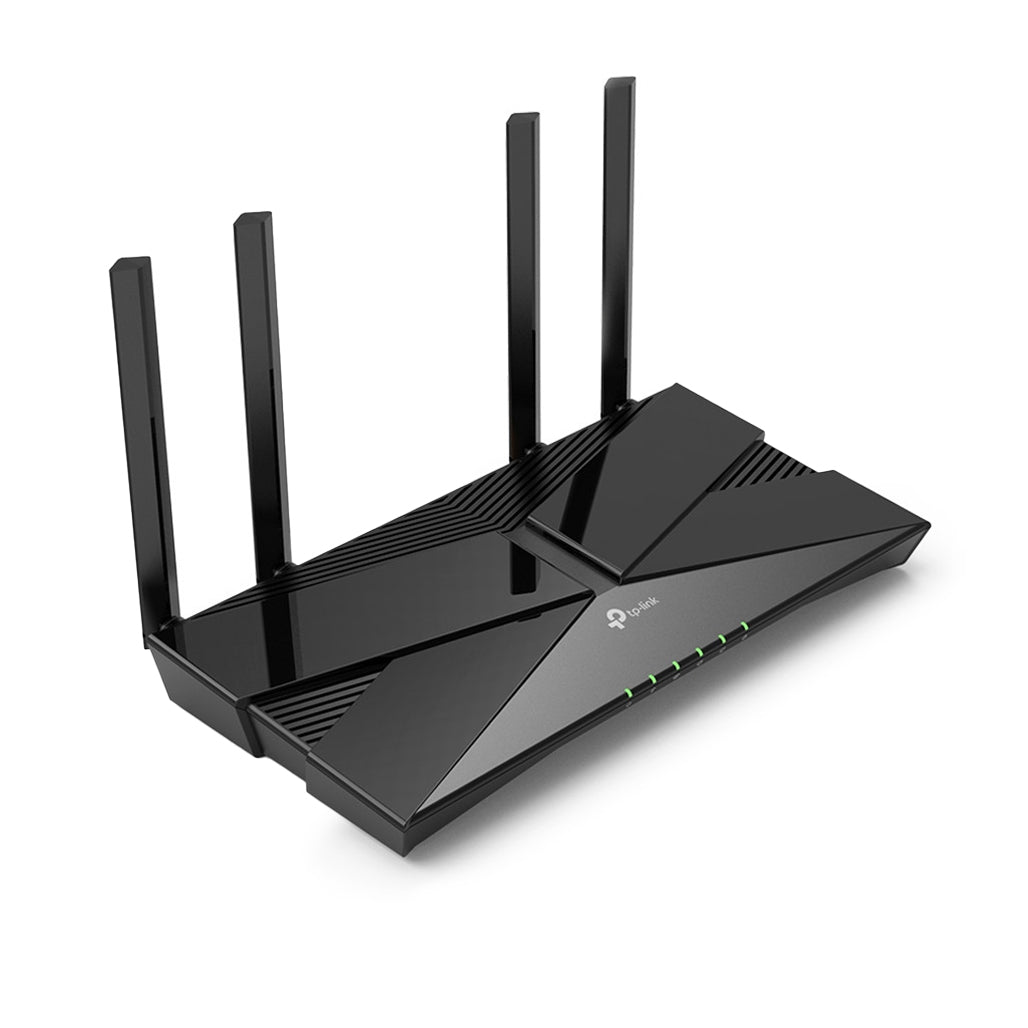

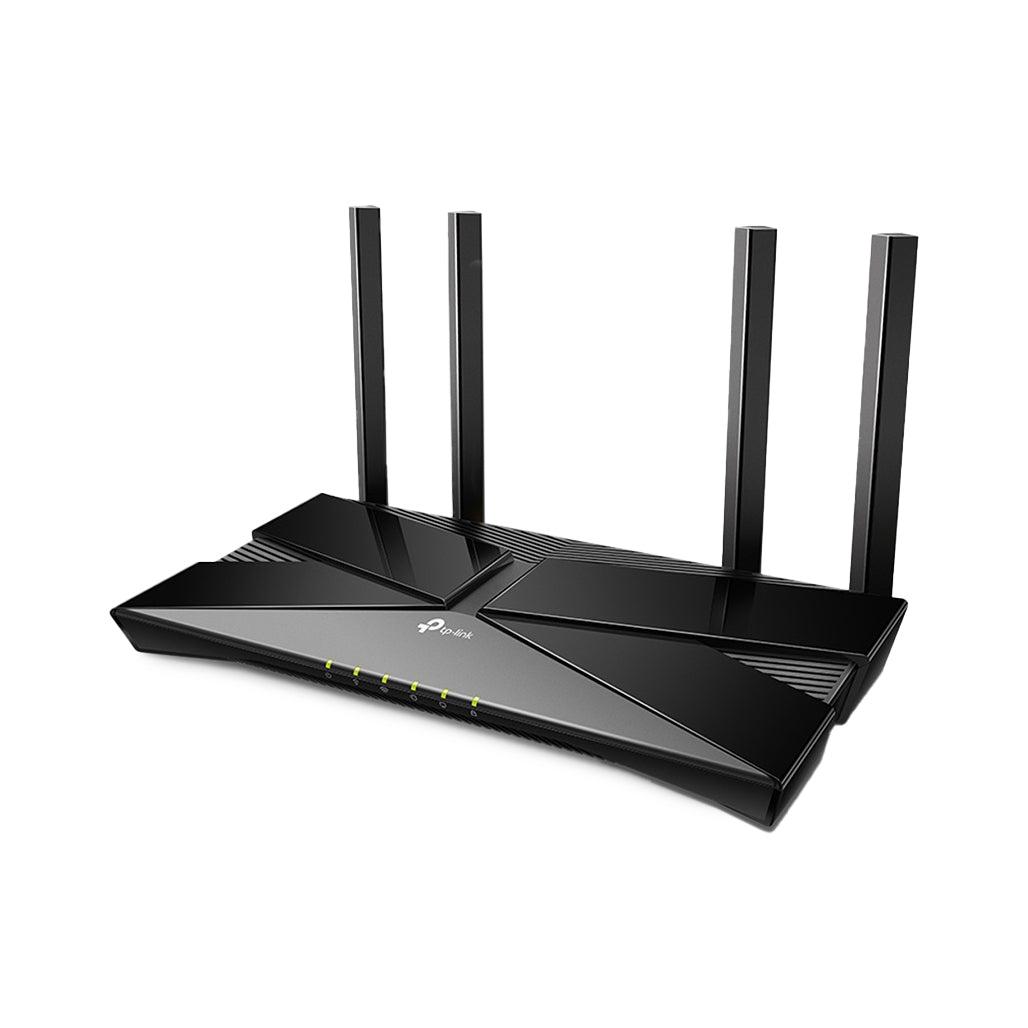

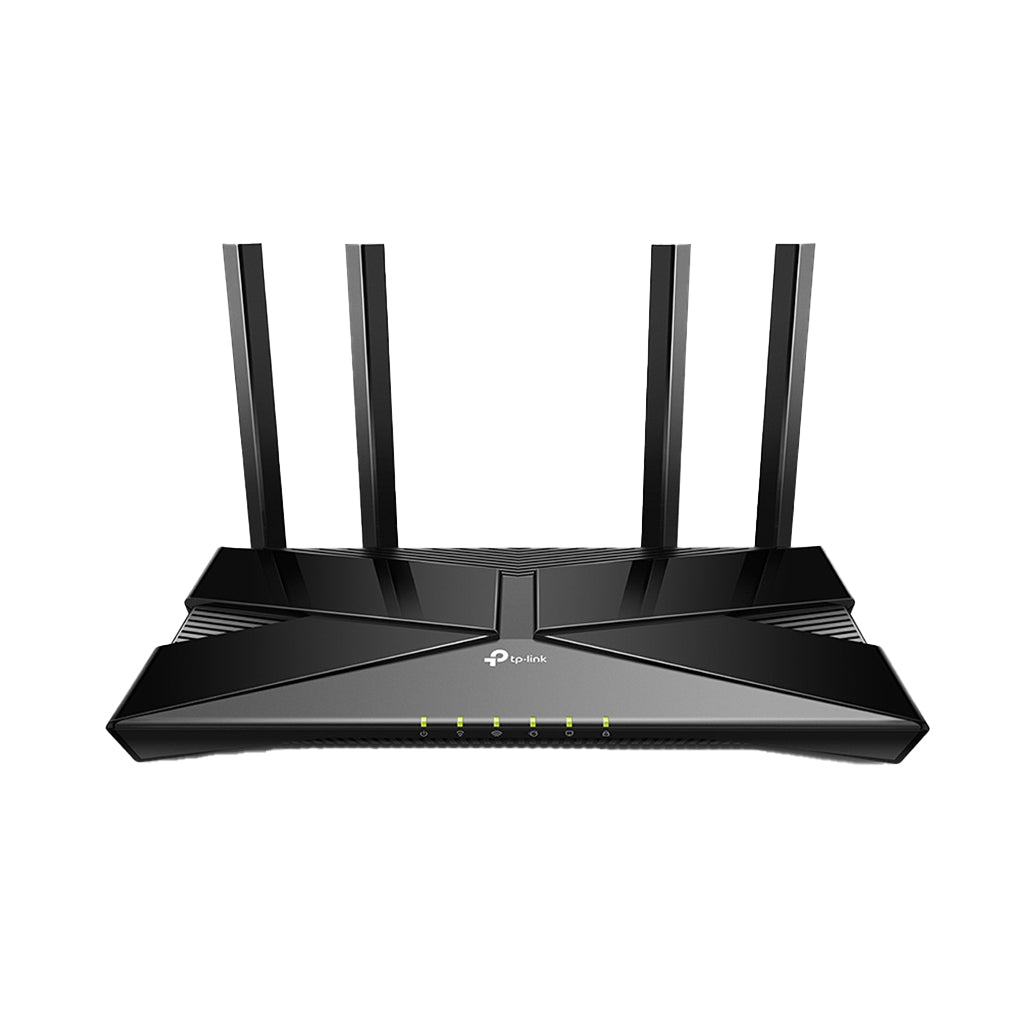

Next-generation wireless performance is delivered by the AX1800 Dual Band Wi-Fi 6 Router EX220, providing combined speeds of up to 1.8 Gbps across 2.4 GHz and 5 GHz bands. Faster data transmission, greater network capacity, and reduced latency are enabled through Wi-Fi 6 technology, making smooth streaming, fast downloading, and responsive online gaming possible for multiple connected devices at the same time.

Extensive home coverage is achieved through beamforming technology and four external antennas that focus signal strength toward connected devices. Whole-home connectivity can be expanded using EasyMesh compatibility, while refined wireless security is ensured with support for WPA3 encryption. Flexible management options are provided through the TP-Link Aginet App, web interface, and TR-069 remote management support, making the router suitable for both home users and ISP deployments.

Key Features

• AX1800 Dual Band Wi-Fi 6 Performance – Combined wireless speeds of up to 1.8 Gbps are supported, enabling fluid performance for streaming, gaming, and downloads.

• OFDMA & MU-MIMO Technology – Network efficiency is increased and latency is reduced by allowing multiple devices to share bandwidth simultaneously.

• EasyMesh Compatibility – Whole-home mesh WiFi coverage is supported when used with compatible EasyMesh devices.

• Extensive WiFi Coverage – Beamforming technology and four external antennas are used to direct signal strength toward connected devices.

• Advanced Wireless Security – WPA, WPA2, and WPA3 encryptions are supported to help protect network access.

• Full Gigabit Wired Connections – Gigabit Ethernet ports are provided for high-speed wired connections to PCs, TVs, and gaming consoles.

• TR-069 Remote Management Support – Remote configuration and management are enabled for ISP environments through supported TR protocols.

• Easy Setup & Management – Network setup and control are simplified through the Aginet app and web interface.

Specifications

• Antenna: Four External antennas

• External Power Supply: 12V/1A

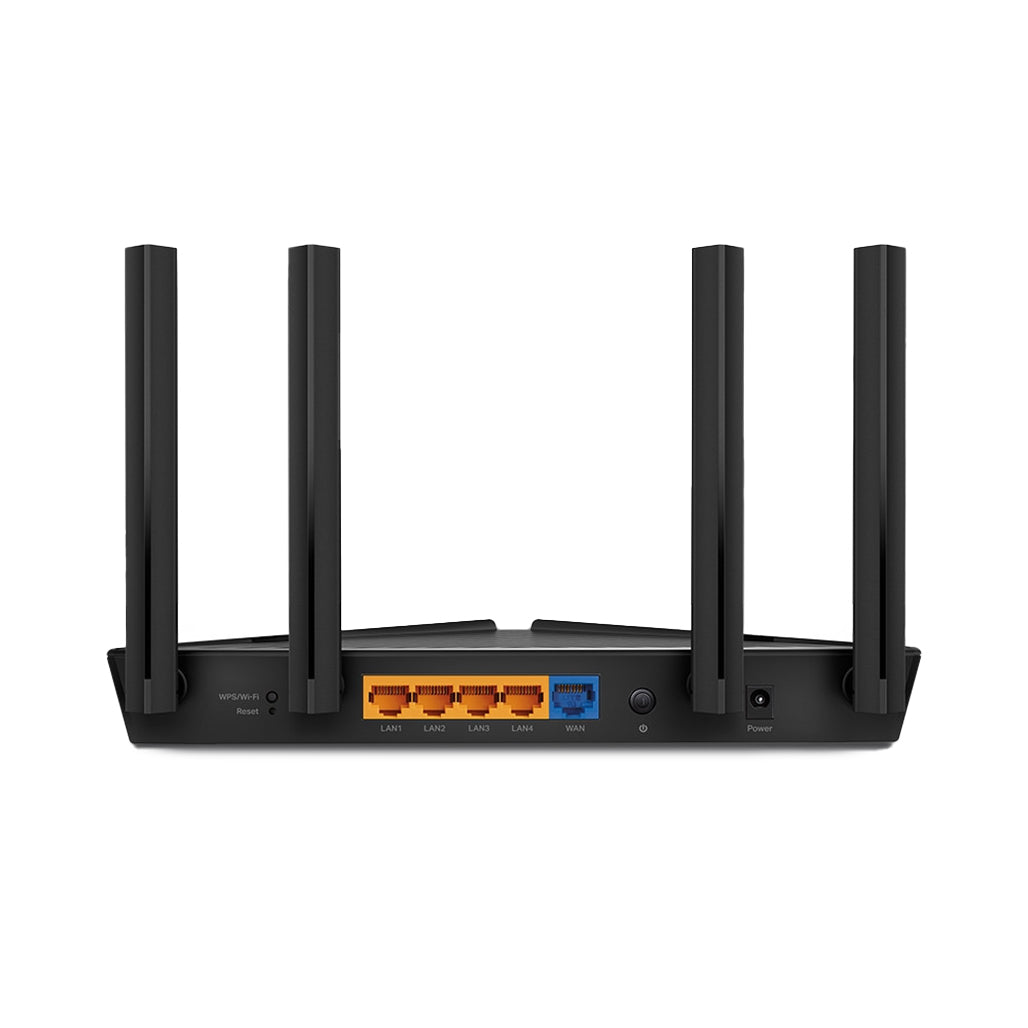

• Interface: 1 10/100/1000 Mbps RJ45 WAN Port, 4 10/100/1000 Mbps RJ45 LAN Ports

• Button: Power On/Off Button, Reset Button, WPS/Wi-Fi Button

• Dimensions ( W x D x H ): 10.2 × 5.3 × 1.6 in (260.2 × 135.0 × 41.6 mm)

• Antenna Gain: 2 x 4dBi for 2.4 GHz and 2 x 5dBi for 5 GHz

• Frequency: 2.4 GHz and 5 GHz

• Signal Rate: 1201 Mbps at 5 GHz, 574 Mbps at 2.4 GHz*

• Wireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics

• Wireless Security: WPA/WPA2/WPA3 encryptions

• Wireless Standards: IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/g/b 2.4 GHz

• Transmission Power: CE: <20dBm (2.4 GHz), <23dBm (5.17 GHz–5.71 GHz)

• FCC:<30dBm (2.4 GHz & 5.15 GHz–5.825 GHz)

• Wireless Schedule: Support 2.4 GHz and 5 GHz Wireless Schedule

• Mesh Technology: EasyMesh Compatible, and support 802.11k/v/r

• WAN Type: Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN)

• DHCP: Server, DHCP Client List, Address Reservation

• Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ

• Dynamic DNS: DynDns, NO-IP

• VPN Pass-Through: IPSec, PPTP, L2TP

• Access Control: Parental Controls, White List, Black List

• Firewall Security: DoS, SPI Firewall, IP and MAC Address Binding

• Management Features: Access Control, Remote Management, TR-069(TR-098/TR-181), TR-111, TR-143

• Advanced Features: Muti-SSID, TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness, Guest Network

• Protocols: IPv4, IPv6

• Operating Modes: Router, Access Point

• VPN Server: PPTP, OpenVPN, IPSec

Conclusion

High-speed connectivity, expanded device capacity, and enhanced security are delivered by the AX1800 Dual Band Wi-Fi 6 Router EX220. It is well suited for modern households and service provider deployments where multiple devices, broad coverage, mesh expansion, and centralized management are required, while maintaining reliable wired and wireless performance across diverse use cases.
