HARDWARE FEATURES | |
---|---|

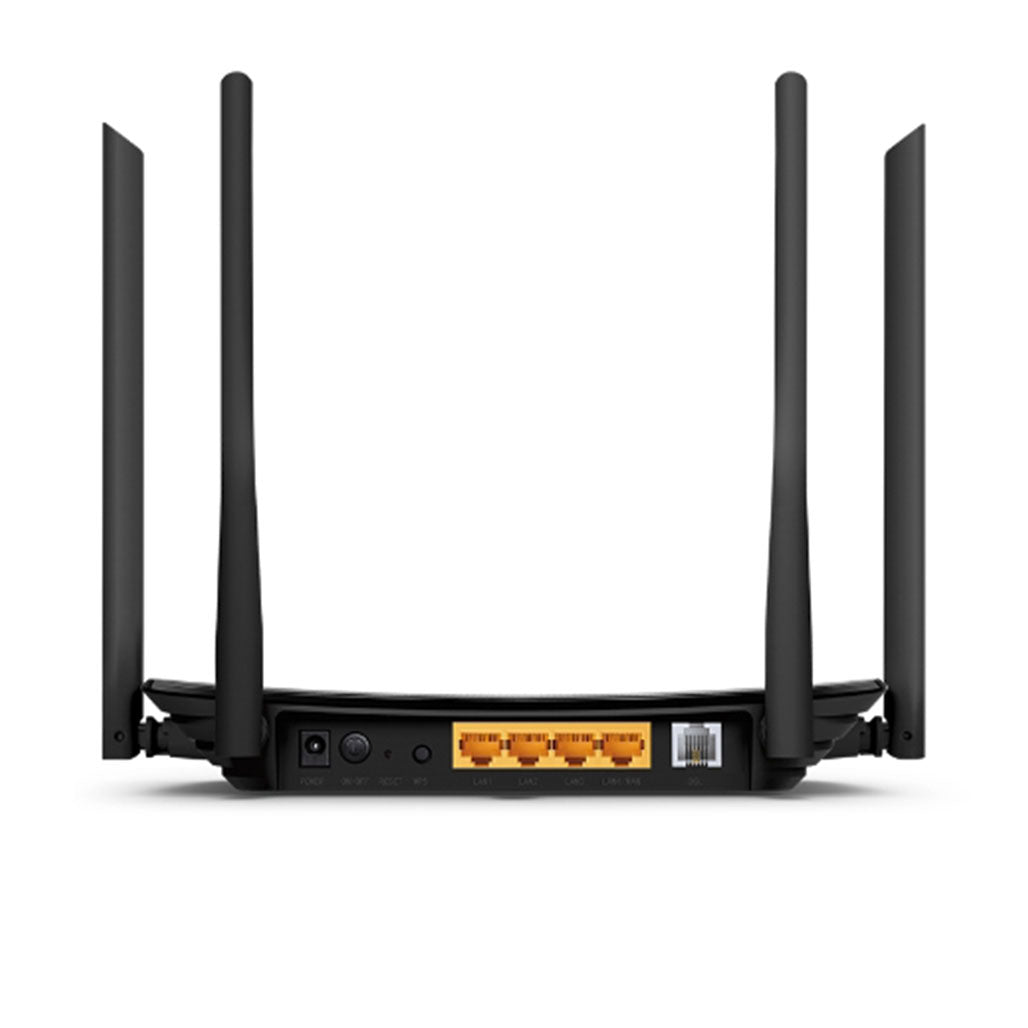

Interface | 3 10/100 RJ45 LAN Ports 1 10/100 RJ45 LAN/WAN Port 1 RJ11 Port |
Button | WPS Button Power On/Off Button Reset Button |
Power Supply | 12V/1A |
VDSL2 Standards | ITU G.993.2, Up to 17a pro¬le (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
ADSL Standards | Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.992.2(G.Lite), ITU-T G.994.1 (G.hs), ITU-T G.995.1 |
ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis), ITU-T G.992.4 (G.lite.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
Dimensions ( W x D x H ) | 385*290*76mm |
Antenna Type | 4 fixed external antennas |
WIRELESS FEATURES | |
---|---|
Wireless Standards | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
Wireless Speeds | 867Mbps at 5GHz 300Mbps at 2.4GHz |
Transmit Power | 2.4GHz <20dBm(EIRP) 5GHz <23dBm(EIRP) |
Wireless Functions | Access Point / Wireless Bridge, Wireless Enable/Disable, SSID Broadcast Enable/Disable |
Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS(WPS) |
SOFTWARE FEATURES | |
---|---|
Quality of Service | ATM QoS, Bandwidth Control |
Security | NAT Firewall, Access Control, IP and MAC Address Binding |
Operating Modes | VDSL/ADSL Modem Router, Wireless Router |
Management | Web Based Con¬guration(HTTP), Remote management, command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
DHCP | Server, Client, DHCP Client List, Address Reservation, DHCP Relay |
Port Forwarding | Virtual Server, Port Triggering, DMZ, ALG, UPnP |
Dynamic DNS | DynDns, NO-IP |
VPN Pass-Through | PPTP, L2TP, IPSec Passthrough |
Protocols | Supports IPv4 and IPv6 |
ATM/PPP Protocols | ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER/IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs |
Advanced Functions | Parental Control, Network Address Translation(NAT), Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay, DDNS, IGMP V1/V2/V3 |
Guest Network | 2.4GHz guest network, 5GHz guest network |
OTHERS | |
---|---|
Certification | CE, RoHS, RCM |

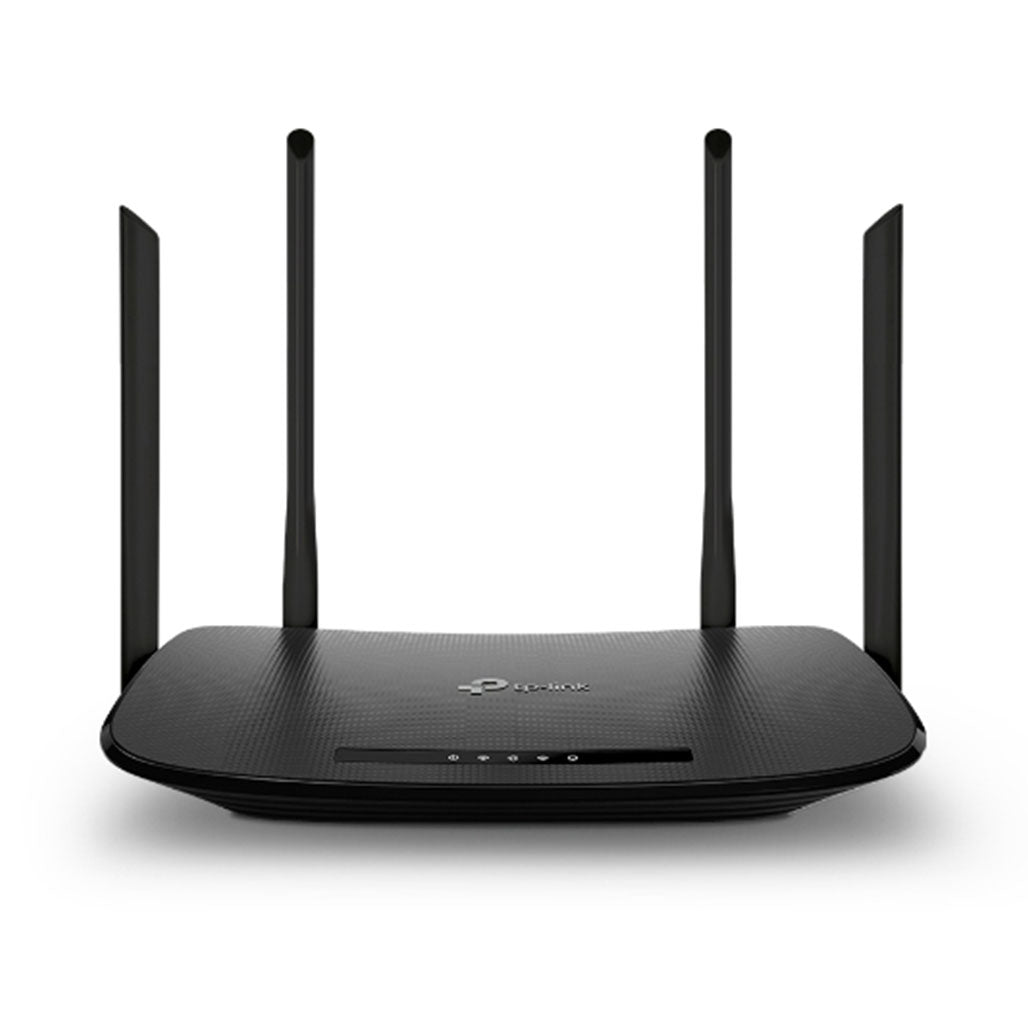

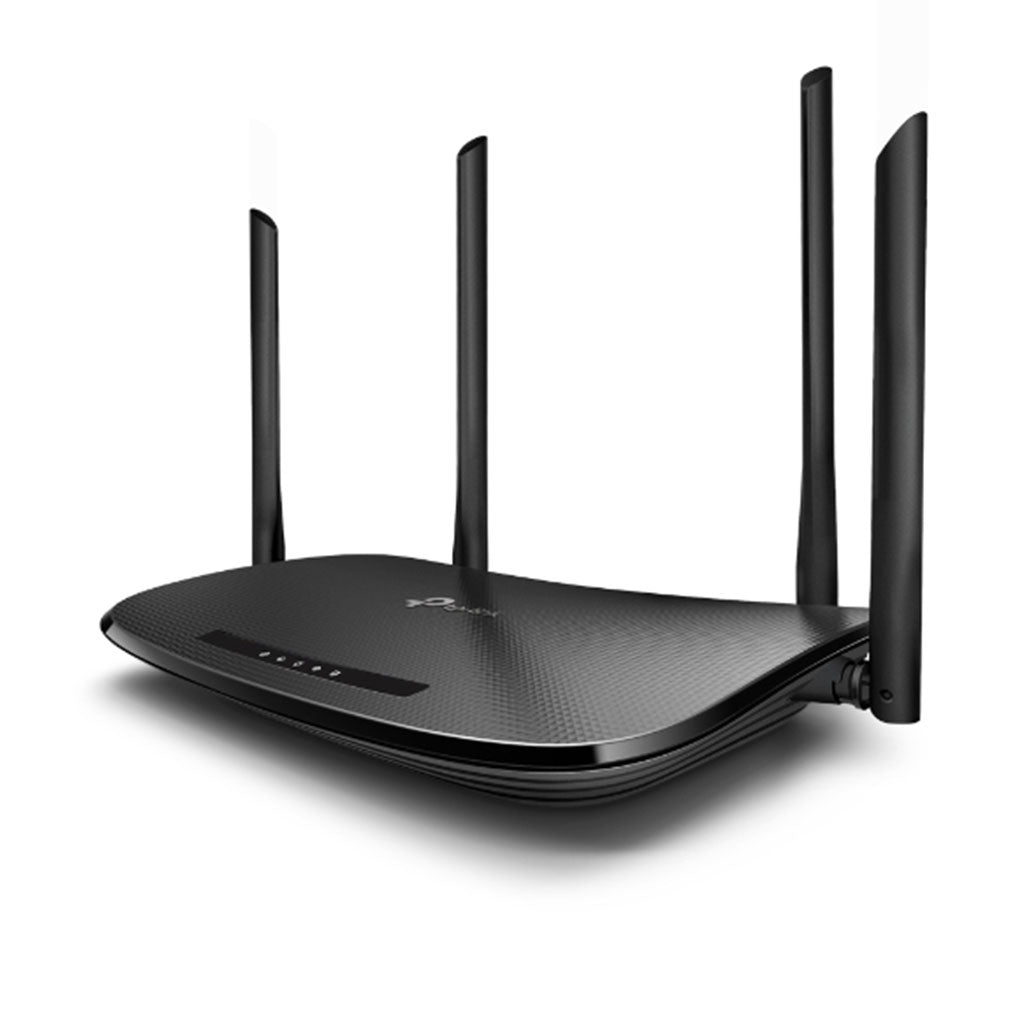

Package Contents | · AC1200 Wireless VDSL/ADSL Modem Router Archer VR300 · External Splitter · RJ11 DSL Cable · RJ45 Ethernet Cable · Power Adapter · Quick Installation Guide |
System Requirements | · Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux · Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser · Subscription with an Internet Service Provider (for Internet access) |
Environment | · Operating Temperature: 0℃~40℃ (32℉ ~104℉) · Storage Temperature: -40℃~70℃ (-40℉ ~158℉) · Operating Humidity: 10%~90% non-condensing · Storage Humidity: 5%~90% non-condensing |
