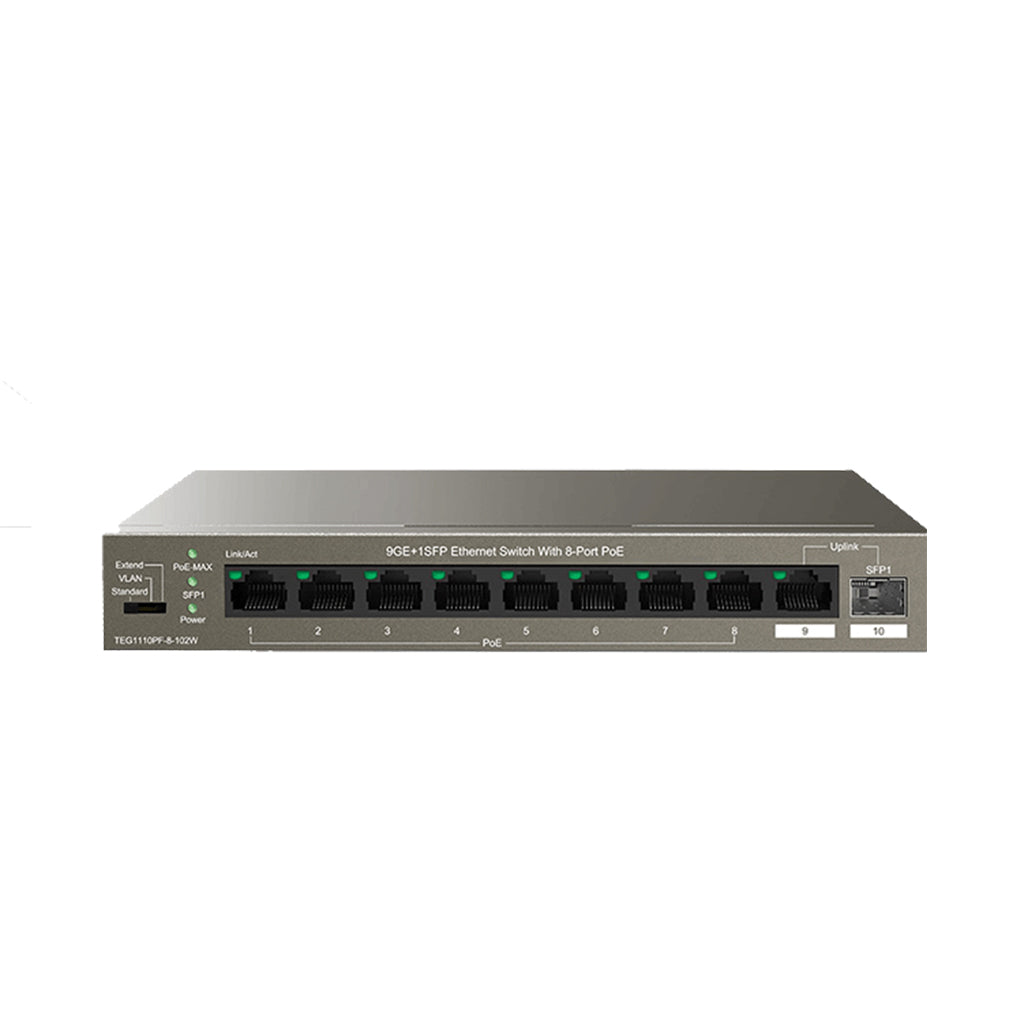

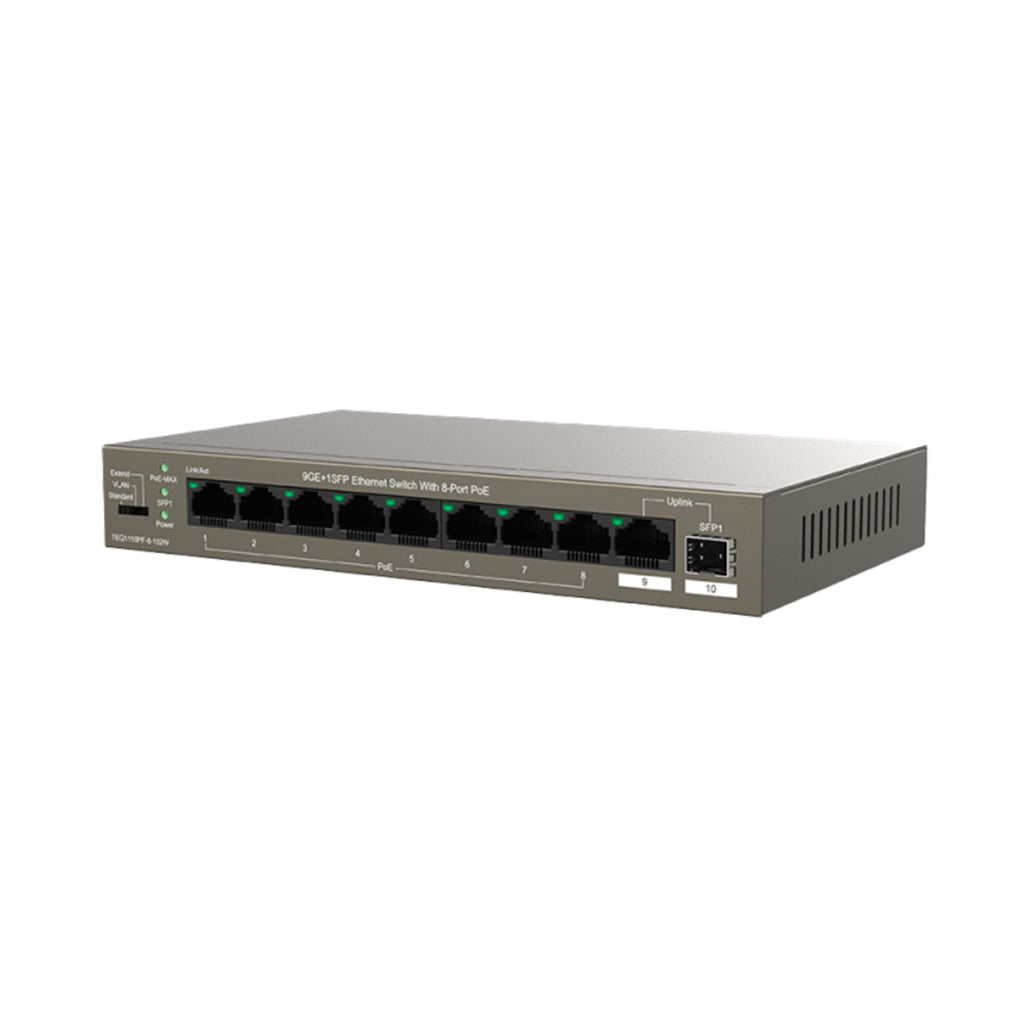

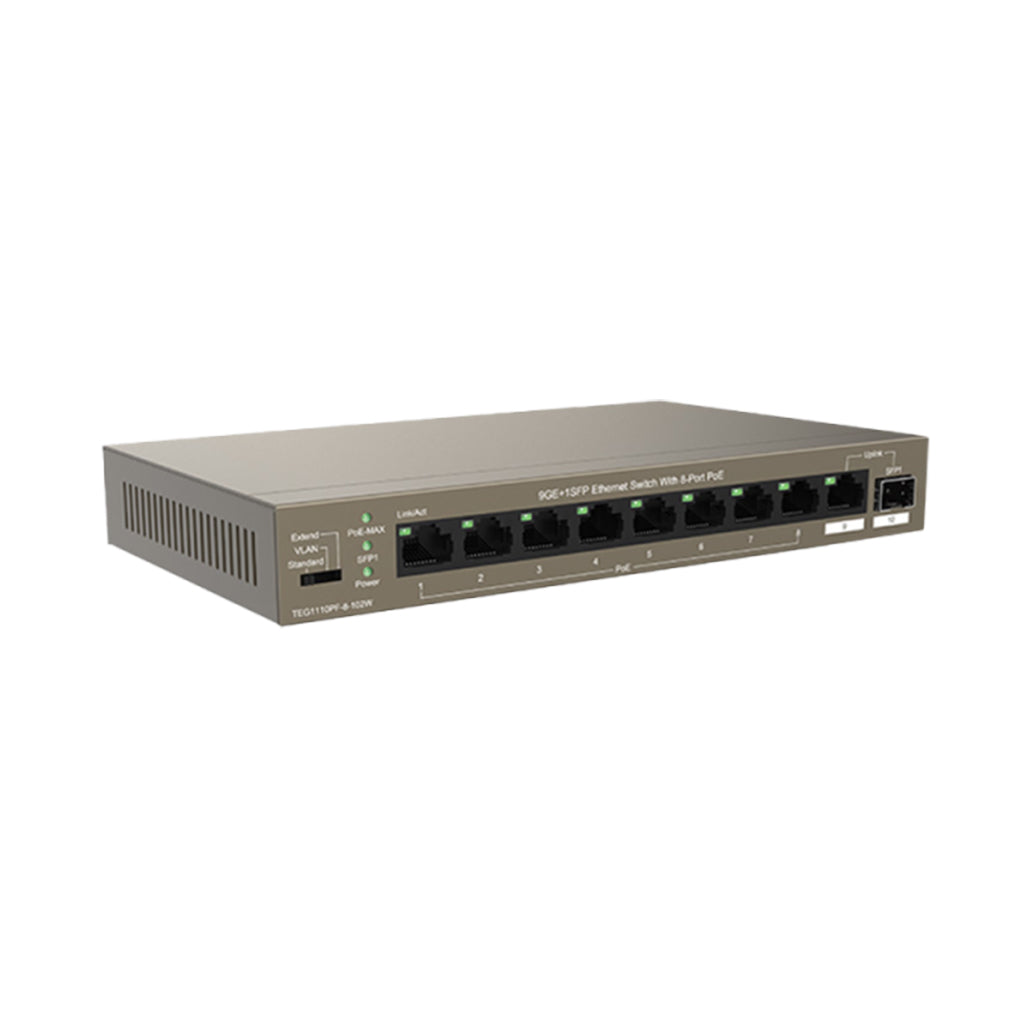

A high-capacity networking backbone is offered by the Tenda TEG1110PF-8-120W switch, designed to power multiple PoE devices such as IP cameras, WiFi access points, and VoIP phones with a single unit. Eight ports provide PoE power following IEEE 802.3af/at standards, while the remaining ports serve purely as uplink and SFP for flexible network expansion. This switch delivers Gigabit throughput on all RJ45 ports, and PoE power is managed intelligently so that load balancing and protection are provided in demanding wireless and surveillance environments.

Installation is simplified through its metal housing, desktop or wall-mountable design, and support for noisy environments is reduced by built-in surge protection and lightning resistance up to 6 kV. A three-mode toggle (Standard, VLAN, Extend) allows the switching behavior to be adapted for secure or long-distance deployments, and the switch is operated in an unmanaged mode so it becomes functional immediately when powered and cabled. Smart PoE management and LED status indicators help monitor power usage and port health.

Key Features and Explanations

• Eight PoE Output Ports + Uplink & SFP Flexibility: Data and power are delivered via eight ports, with one dedicated uplink RJ45 and one SFP uplink allowing network backbone expansion or fiber connectivity.

• Smart PoE Power Management & High Power Budget: A total power budget of up to 120W enables multiple high powered PoE devices to be used simultaneously, while an intelligent scheme ensures that lower-priority ports are disabled if power is exceeded, preserving system stability.

• Three Operating Modes (Standard / VLAN / Extend): VLAN mode isolates ports 1-8 from each other while allowing each to communicate with uplink; Extend mode allows longer cable runs (up to 250 m) at reduced speed; Standard mode allows full connectivity among all ports.

• Surge and Lightning Protection (6 kV): All Ethernet ports plus power input are safeguarded from voltage spikes and lightning surges, helping maintain reliable operation outdoors or in electrically noisy areas.

• Wire-Speed Gigabit Performance: Non-blocking switching fabric and a 20 Gbps capacity ensure that heavy data traffic (video, large uploads, streaming) does not suffer latency or bottlenecks.

• LED Status Indicators & Auto Features: Each port has link/activity LEDs; a PoE-MAX LED warns when PoE budget is near exhaustion; Auto-MDI/MDIX automatically adjusts to cable type reducing installation errors.

Specifications

• Number of Ports: 10 Gigabit Ethernet ports (8 PoE+ data & power; 1 uplink RJ45; 1 SFP uplink)

• PoE Standards Supported: IEEE 802.3af and IEEE 802.3at on PoE output ports

• Total PoE Power Budget: Up to 120 W

• Maximum PoE Output per Port: Up to 30 W

• Switching Capacity: 20 Gbps non-blocking

• Forwarding Rate: ~14.9 million packets per second

• MAC Address Table Size: ~8,000 entries

• Surge / Lightning Protection: 6 kV on Ethernet and power ports

• Operating Modes: Standard / VLAN / Extend (three-mode toggle)

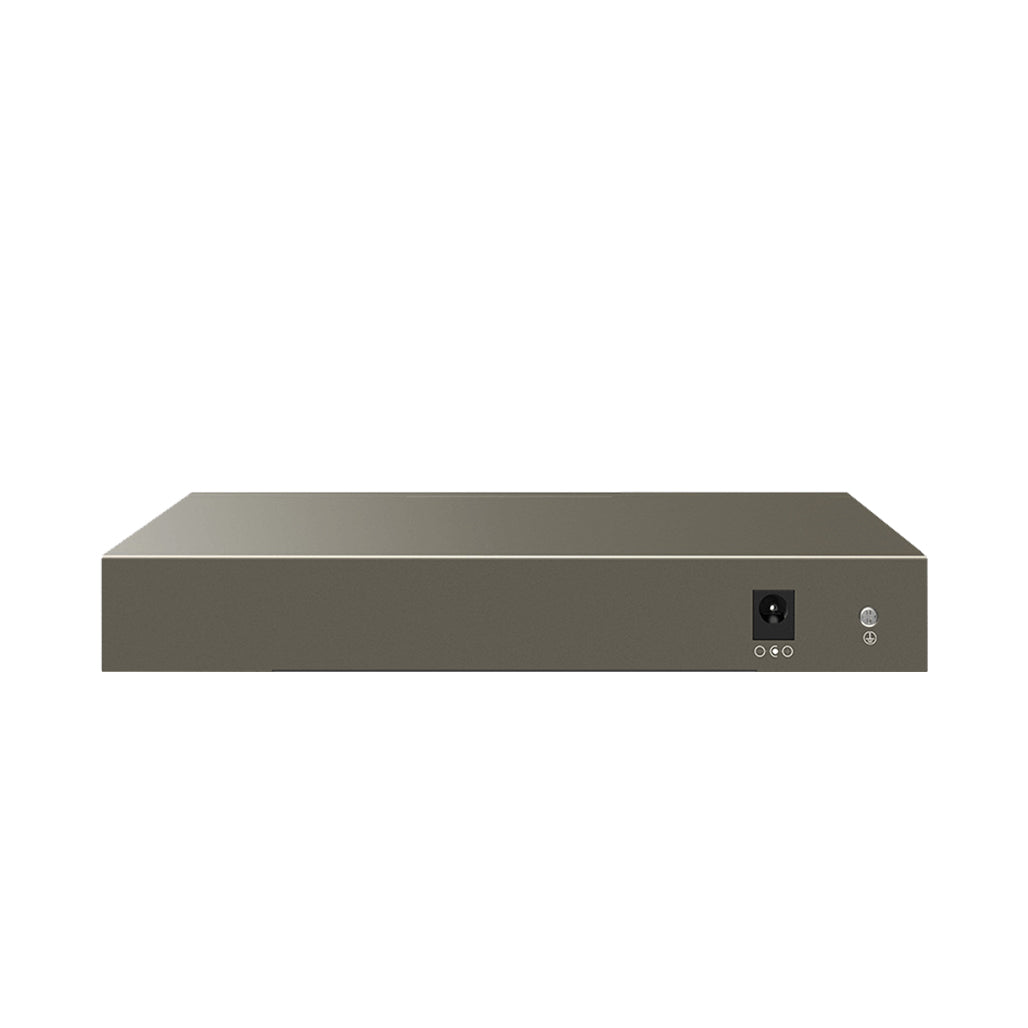

• Power Input: AC 100-240 V ~50/60 Hz

• Housing: Metal enclosure; desktop or wall mounting supported

• Operating Temperature: 0 °C to 45 °C

• Storage Temperature: -40 °C to 70 °C

• Operating Humidity: 10%–90% RH non-condensing

• Storage Humidity: 5%–90% RH non-condensing

Conclusion

Reliable PoE supply and high throughput network performance are achieved by the Tenda TEG1110PF-8-120W switch, making it a strong candidate for installations requiring many powered devices like surveillance systems or wireless networks. Long-distance capabilities, flexible uplink via SFP, and robust protection features combine to offer resilience in demanding environments. Steady Gigabit data transmission and smart power control make this switch ideal where stability and capacity are essential.
