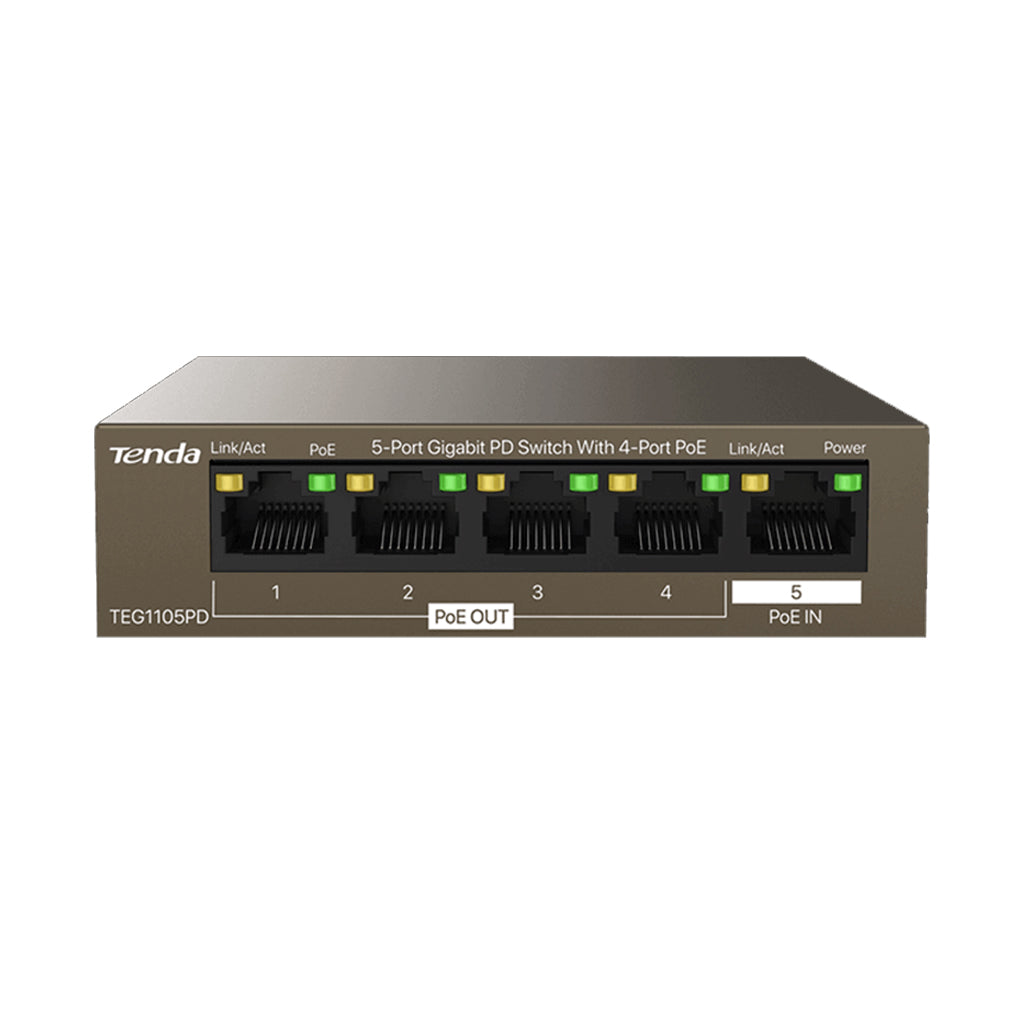

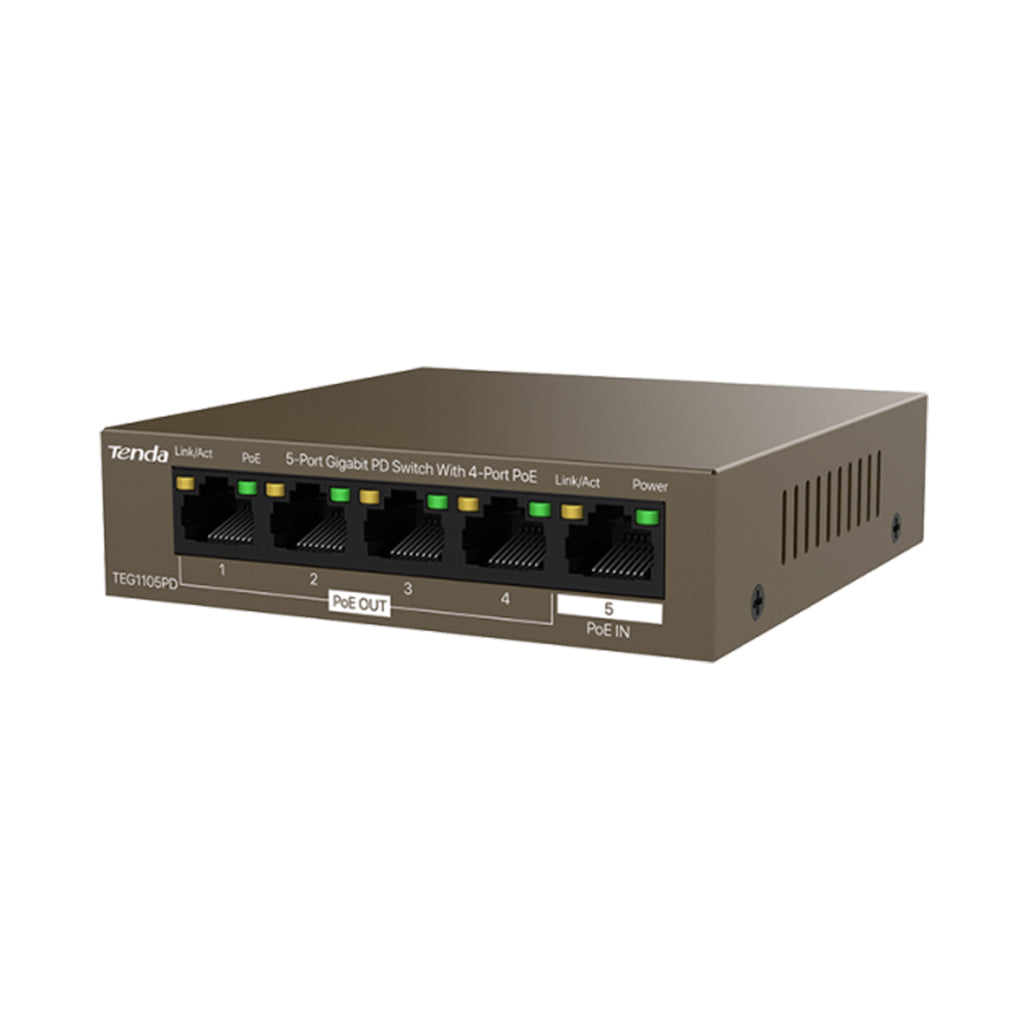

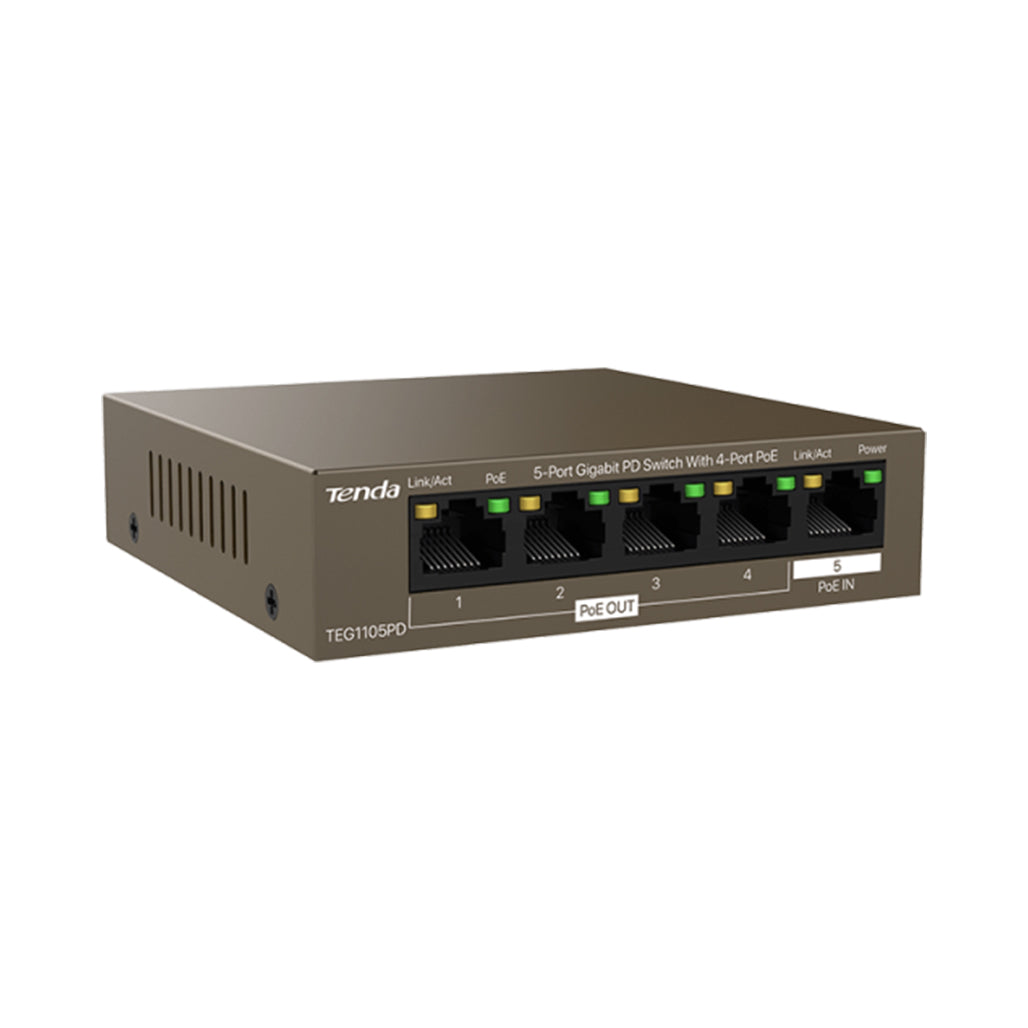

A compact Power over Ethernet (PoE) switch is provided by the Tenda TEG1105PD, suitable for deploying IP cameras, WiFi access points, or other low-power devices without needing separate power adapters. Four of its ports supply PoE power compliant with IEEE 802.3af, while one port accepts PoE power input, allowing the switch itself to be powered via Ethernet. Unmanaged operation is used, so the device becomes usable once its ports and cables are connected.
High performance and durability are ensured by the TEG1105PD’s five Gigabit RJ-45 ports, metal housing, and built-in protection features including lightning surge protection. Transmission is performed at full wire-speed, and support for jumbo frames and auto-MDI/MDIX is included. Designed for both indoor and outdoor-cabinet deployments, the switch delivers stable data and power supply in surveillance setups, remote AP installations, or compact network expansions.
Key Features and Explanations
Four ports (1-4) supply PoE (IEEE 802.3af) power to connected devices, eliminating need for separate power supplies for cameras or APs.
One port functions as PoE input (IEEE 802.3af/at compliant), enabling the entire switch to be powered via Ethernet from an upstream PoE source.
All five ports are Gigabit (10/100/1000 Mbps) with auto-MDI/MDIX, permitting high data throughput and automatic cable type handling.
Surge protection at 6 kV on all ports ensures the switch withstands electrical surges, especially in outdoor or exposed environments.
Metal casing and fanless design improve durability and reduce noise; compact form allows mounting inside weather-proof enclosures.
Support for jumbo-frames (up to 9K), store-and-forward switching, and a MAC address table (~2K entries) allow better handling of bulk data (e.g. video streams).
Specifications
Ports: 5 × Gigabit Ethernet RJ-45 ports
PoE Out: Ports 1–4 supply IEEE 802.3af PoE
PoE In: Port 5 accepts IEEE 802.3af/at input to power the switch
Total PoE Budget: 30 W (combined PoE output of ports 1-4)
Switching Capacity: Full wire-speed forwarding on all ports
MAC Address Table Size: ~2000 entries
Jumbo Frame Support: Up to ~9K bytes
Surge / Lightning Protection: 6 kV on all ports
Form Factor: Desktop or install inside an enclosure; metal housing
Operating Temperature: 0 °C to ~45 °C
Storage Temperature: -40 °C to ~70 °C
Operating Humidity: 10%-90% RH (non-condensing)
Conclusion
With its combination of PoE output and input on a compact, unmanaged gigabit switch, the TEG1105PD is well suited for network setups where powering remote devices is needed without additional power infrastructure. Stable performance, high throughput, and built-in protection make it an effective solution for surveillance systems, WiFi hotspots, or energy-conscious installations.
