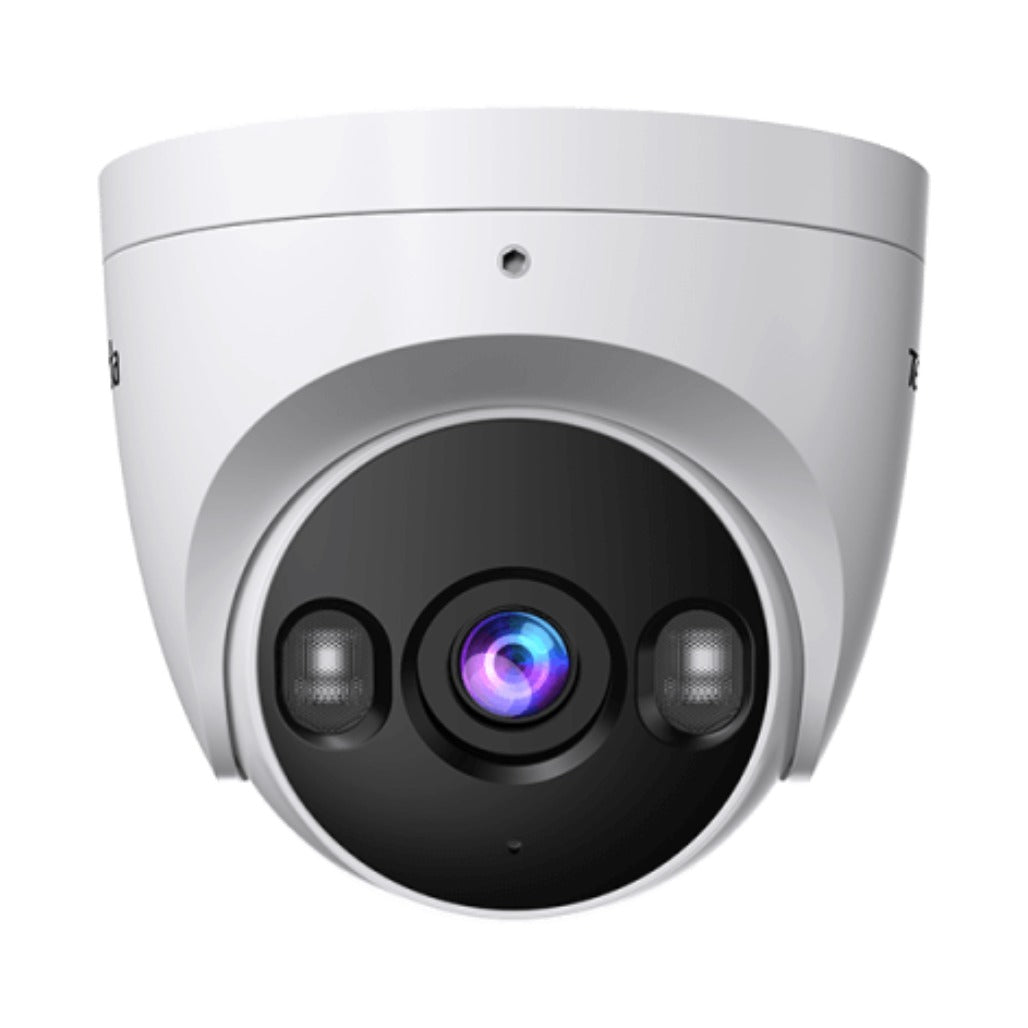

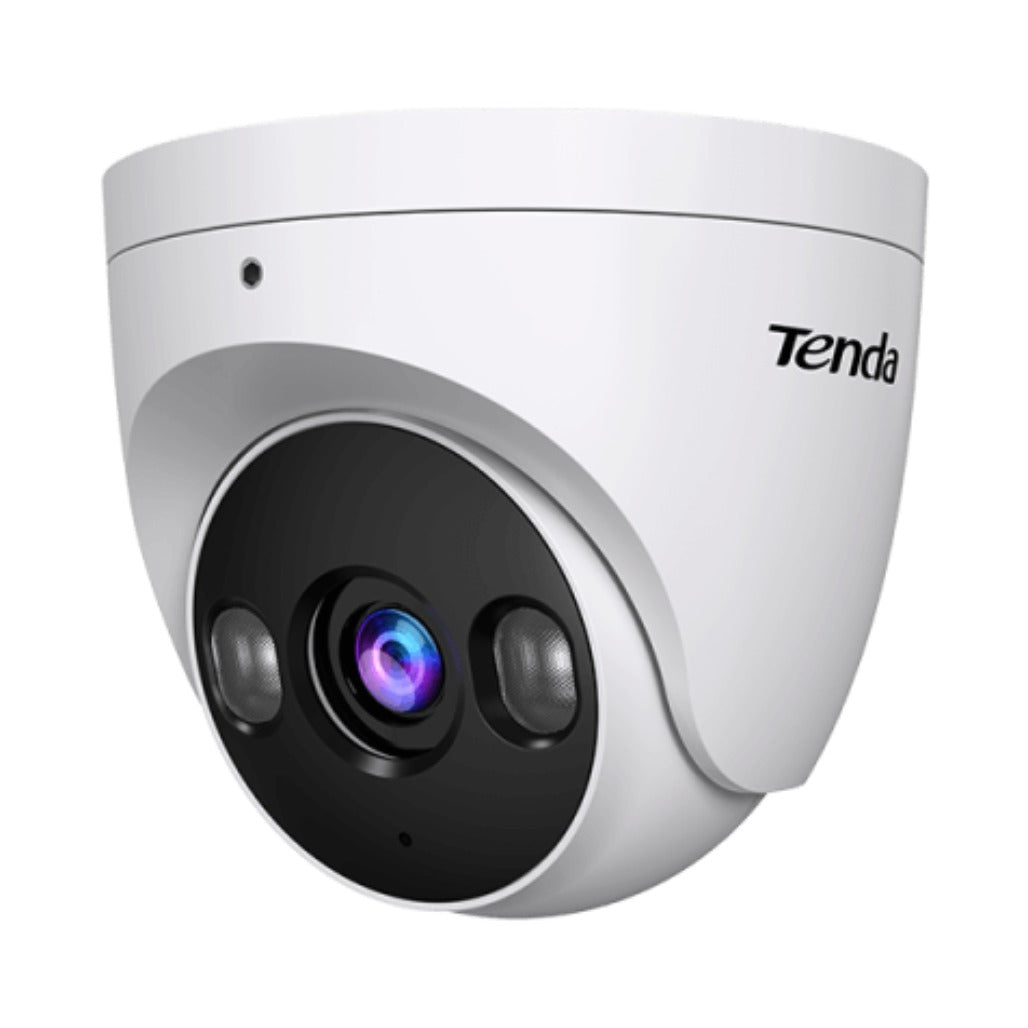

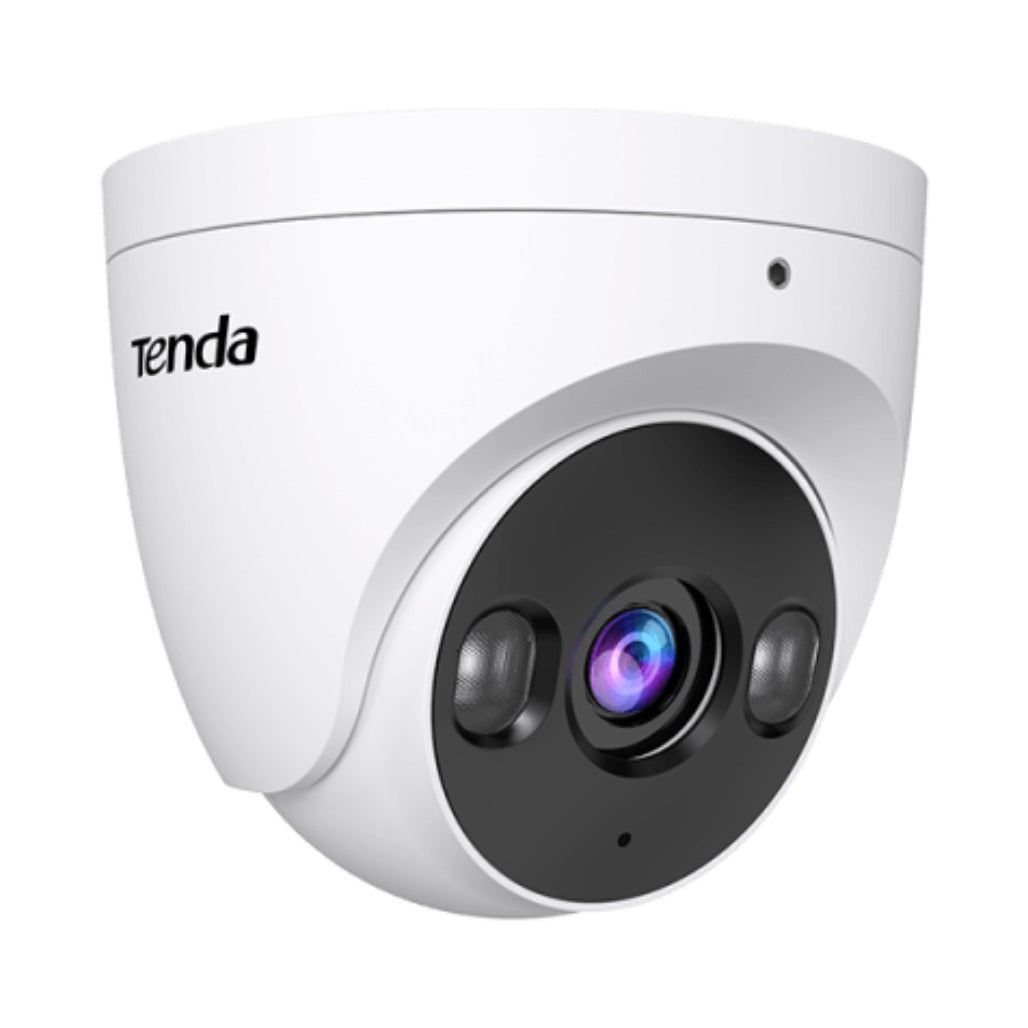

Meet the Tenda TC3T24C 4MP 4MM outdoor security camera designed for surveillance with night vision and built-in audio. It features a 1/3" Progressive Scan CMOS sensor and Day & Night performance with an ICR type. The camera supports supplemental lighting with 2 infrared and white light combined illuminators, including an IR wavelength of 850nm and a supplementary light distance of up to 30 m (depending on environment). For video delivery, it offers main stream resolutions up to 2560 x 1440 and supports video encoding formats H.265+, H.265, and H.264. Built for installation flexibility, the TC3T24C supports wall mounting and ceiling mounting. It includes a lens with F1.6 aperture and supports bracket angle adjustment. Audio is enabled with a built-in microphone and audio encoding formats including G.711A, G.711U, and AAC, with an audio sampling rate of 8 kHz. For smart monitoring, it includes motion detection, human detection, vehicle detection, line crossing detection, and intrusion detection. Network connectivity is handled through a 1 RJ45 Ethernet port (10Mbps/100Mbps auto-negotiation), plus ONVIF support, along with supported protocols such as TCP/IP, UDP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, and NTP.
Key Features
• 4MP/2.5K resolution sensor video
• Day & Night, ICR type
• Supplementary Light: 2 infrared and white light combined illuminators
• Supplementary Light Distance: up to 30 m (depending on environment)
• IR Wavelength: 850nm
• Night Vision Mode: Video
• Video Encoding Format: H.265+, H.265, H.264
• Main Stream Resolution: 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
• Sub Stream Resolution: 640 × 360, 352 × 288
• Bit Rate: 512kbps -- 4096kbps
• Bit Rate Control: CBR, VBR
• Audio Encoding Format: G.711A, G.711U, AAC
• Audio Sampling Rate: 8 kHz
• Image Enhancement: DWDR, BLC, HLC, 3D DNR
• Privacy Mask: 4 Areas
• Ethernet Port: 1 RJ45, 10Mbps/100Mbps auto-negotiation
• ONVIF Support
• Protocols: TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
• Client: TDSEE (mobile phone), TDSEE STUDIO (PC)
• Web Browser
• Smart Detection: Motion Detection, Human Detection, Vehicle Detection, Line Crossing Detection, Intrusion Detection
• Interface: Built-in MIC
• Metal casing material
• Protection Level: IP67

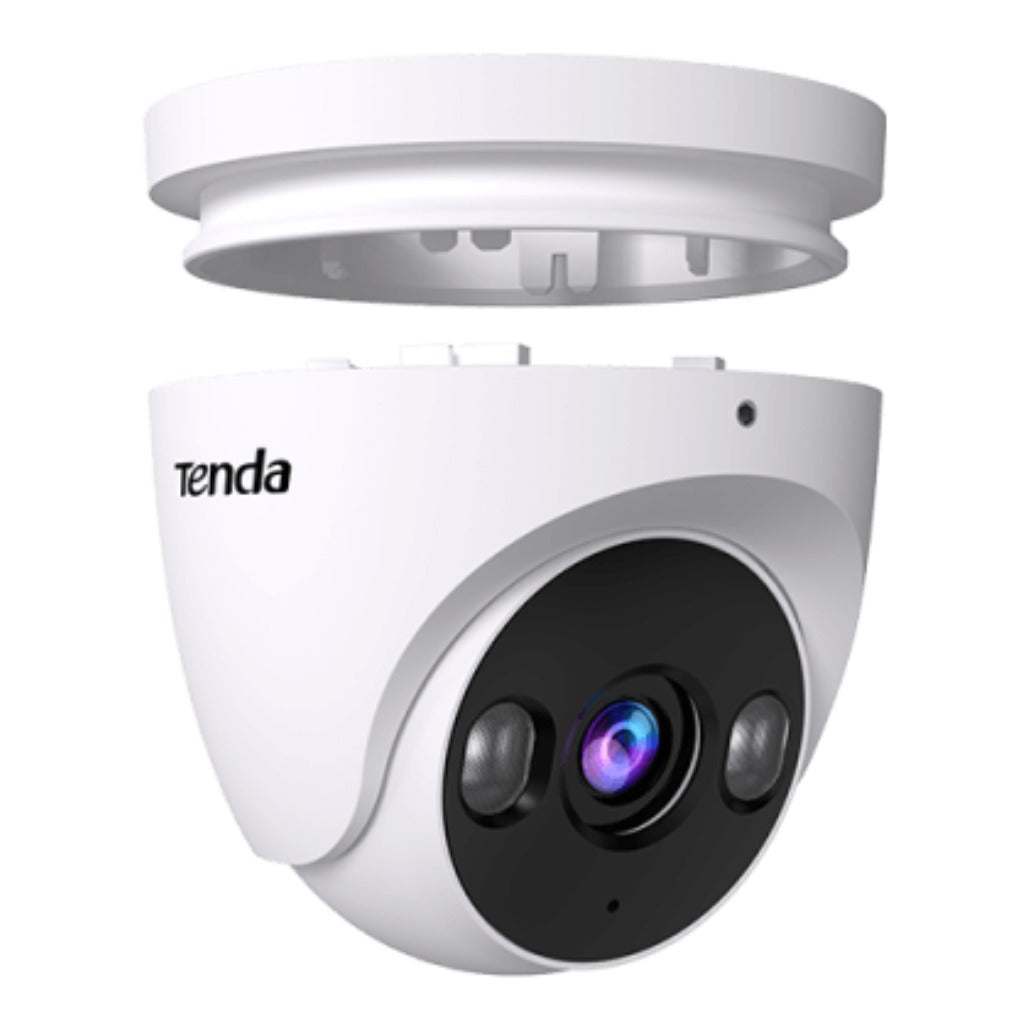

• Installation Method: Wall Mounting, Ceiling Mounting
• Certification: CE, FCC, RoHS, UKCA
• Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating Humidity: 10% ~ 95% RH (non-condensing)
• Storage Humidity: 3% ~ 95% RH (non-condensing)
• Installation Template
• Mounting Accessories Kit
• Quick Installation Guide
• Plug-in free live view: Chrome, Edge, Opera
• Smart Mode, Full Color Mode, Black & White Mode
• PAL: 1-25fps, Default 25fps
• NTSC: 1-30fps, Default 30fps
• Audio Input
• Power: 12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug, POE: IEEE 802.3af
• Focal Length: 4mm / 2.8mm
• Horizontal FOV (4mm): 79.1°, Vertical FOV: 43.3°, Diagonal FOV: 94.9°
• Horizontal FOV (2.8mm): 82.91°, Vertical FOV: 46.2°, Diagonal FOV: 97.3°
• Pan: 0° ~ 360°
• Tilt: 0° ~ 78°
• Rotation: 0° ~ 360°
• Light Distance: Up to 30 m
• Human/Vehicle/Intrusion Detection
Specifications
• Model/Reference: TC3T24C
• Camera Type: Camera
• Image Sensor: 1/3" Progressive Scan CMOS sensor
• Day & Night: ICR type
• Lens aperture: F1.6
• FOV: Horizontal FOV (4mm) 79.1°, Vertical FOV 43.3°, Diagonal FOV 94.9°; Horizontal FOV (2.8mm) 82.91°, Vertical FOV 46.2°, Diagonal FOV 97.3°
• Supplementary Light: 2 infrared and white light combined illuminators
• IR Wavelength: 850nm
• Supplementary Light Distance: up to 30 m (depending on environment)
• Night Vision Mode: Video
• Video Encoding Format: H.265+, H.265, H.264
• Main Stream Resolution: 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
• Sub Stream Resolution: 640 × 360, 352 × 288
• Frame Rate: PAL 1-25fps (default 25fps), NTSC 1-30fps (default 30fps)
• Bit Rate: 512kbps -- 4096kbps
• Bit Rate Control: CBR, VBR
• Image Enhancement: DWDR, BLC, HLC, 3D DNR
• Privacy Mask: 4 Areas
• Smart Detection: Motion Detection, Human Detection, Vehicle Detection, Line Crossing Detection, Intrusion Detection
• Interface: Built-in MIC
• Audio Input
• Audio Encoding Format: G.711A, G.711U, AAC
• Audio Sampling Rate: 8 kHz
• Network Ethernet Port: 1 RJ45, 10Mbps/100Mbps auto-negotiation
• ONVIF: Support
• Protocols: TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
• Client: TDSEE (mobile phone), TDSEE STUDIO (PC)
• Web Browser: Alarm
• Installation: Wall Mounting, Ceiling Mounting
• Metal casing material
• Protection Level: IP67
• Operating Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating Humidity: 10% ~ 95% RH (non-condensing)
• Storage Humidity: 3% ~ 95% RH (non-condensing)
• Pan: 0° ~ 360°
• Tilt: 0° ~ 78°
• Rotation: 0° ~ 360°

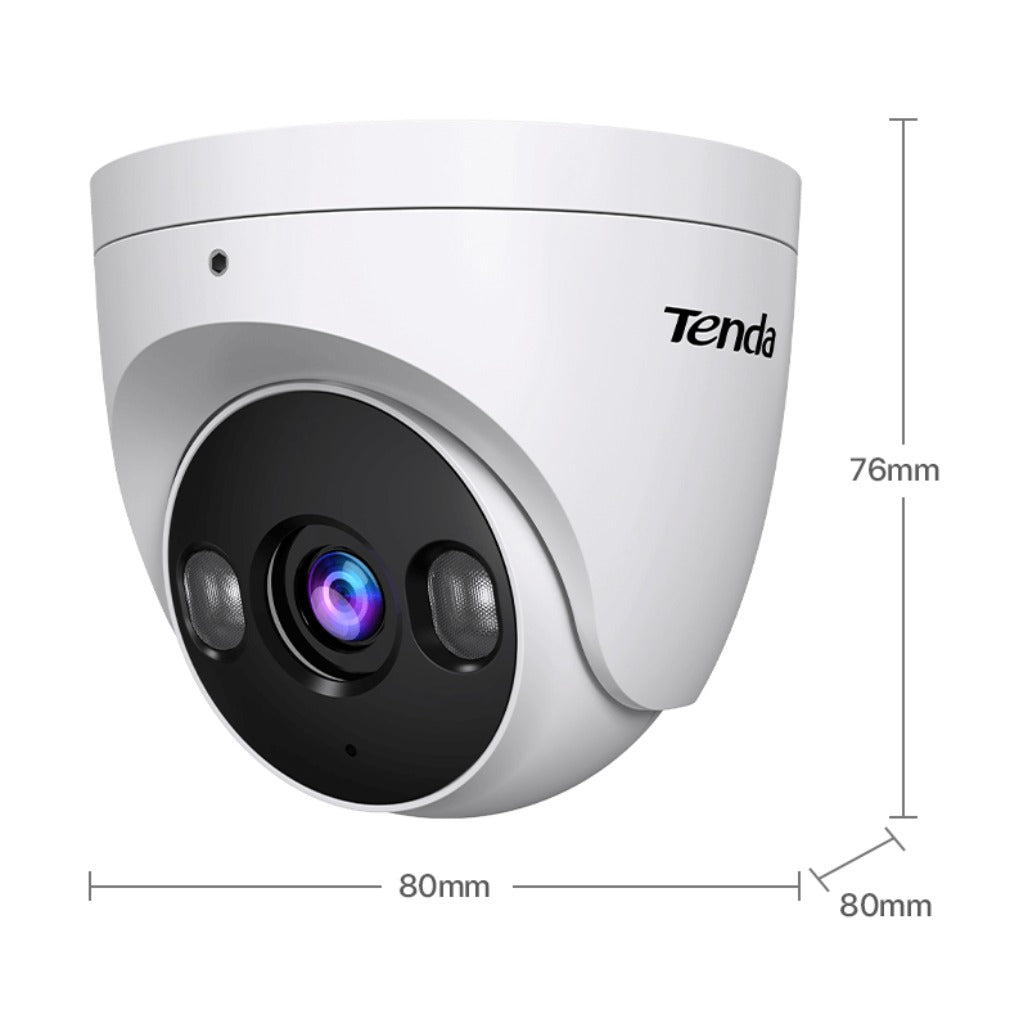

• Product Dimension: 80mm x 80mm x 76mm (3.15" x 3.15" x 3")
• Package Dimension: 125mm x 125mm x 107mm (4.9" × 4.9" × 4.2")
• Product Weight: 307g (0.68lb)
• With Package Weight: 412g (0.91lb)
• Focal Length: 4mm / 2.8mm
• Power: 12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug
• POE: IEEE 802.3af
• Certification: CE, FCC, RoHS, UKCA
• Installation Template
• Mounting Accessories Kit
• Quick Installation Guide
• Waterproof Kit
• Package Contents: Specifications
• Reference: NETWORK L124
• Mobile App: Yes
• CAM Type: Outdoor
• Power: POE
