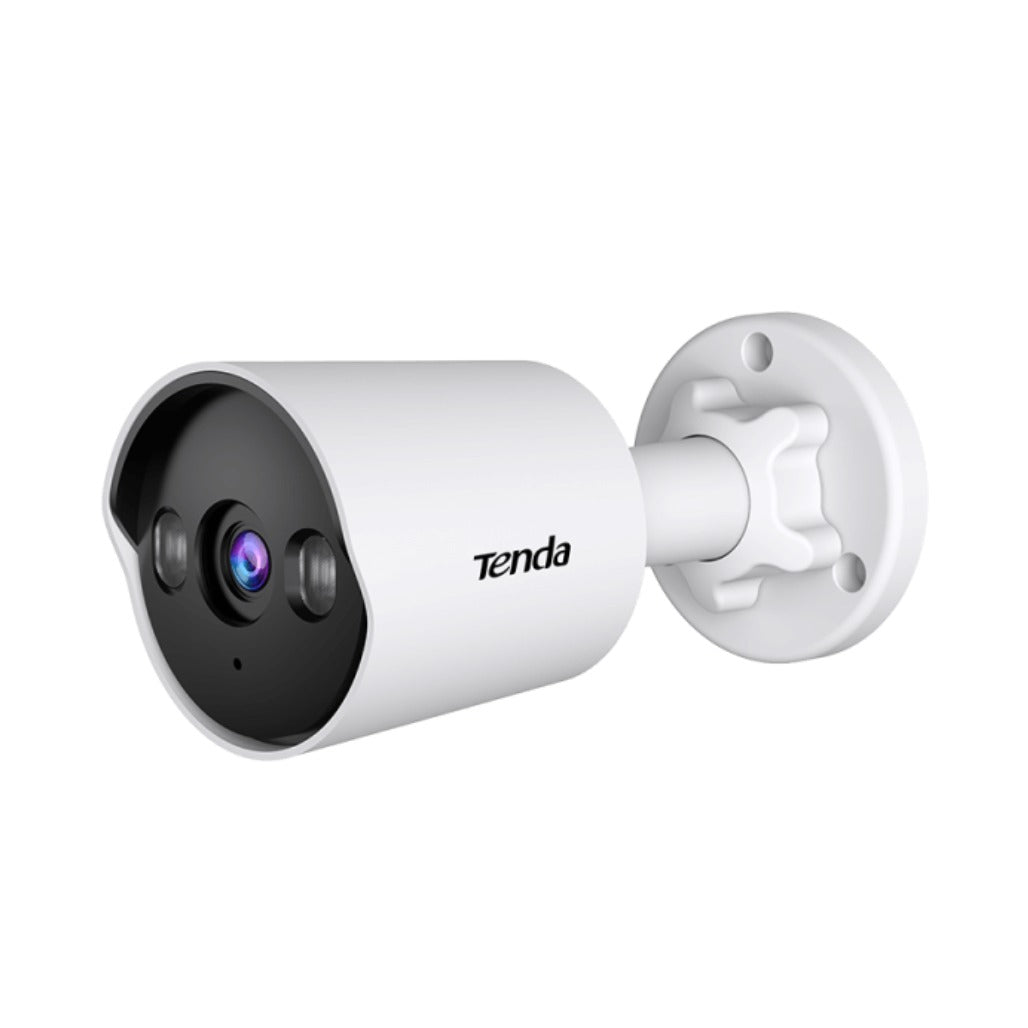

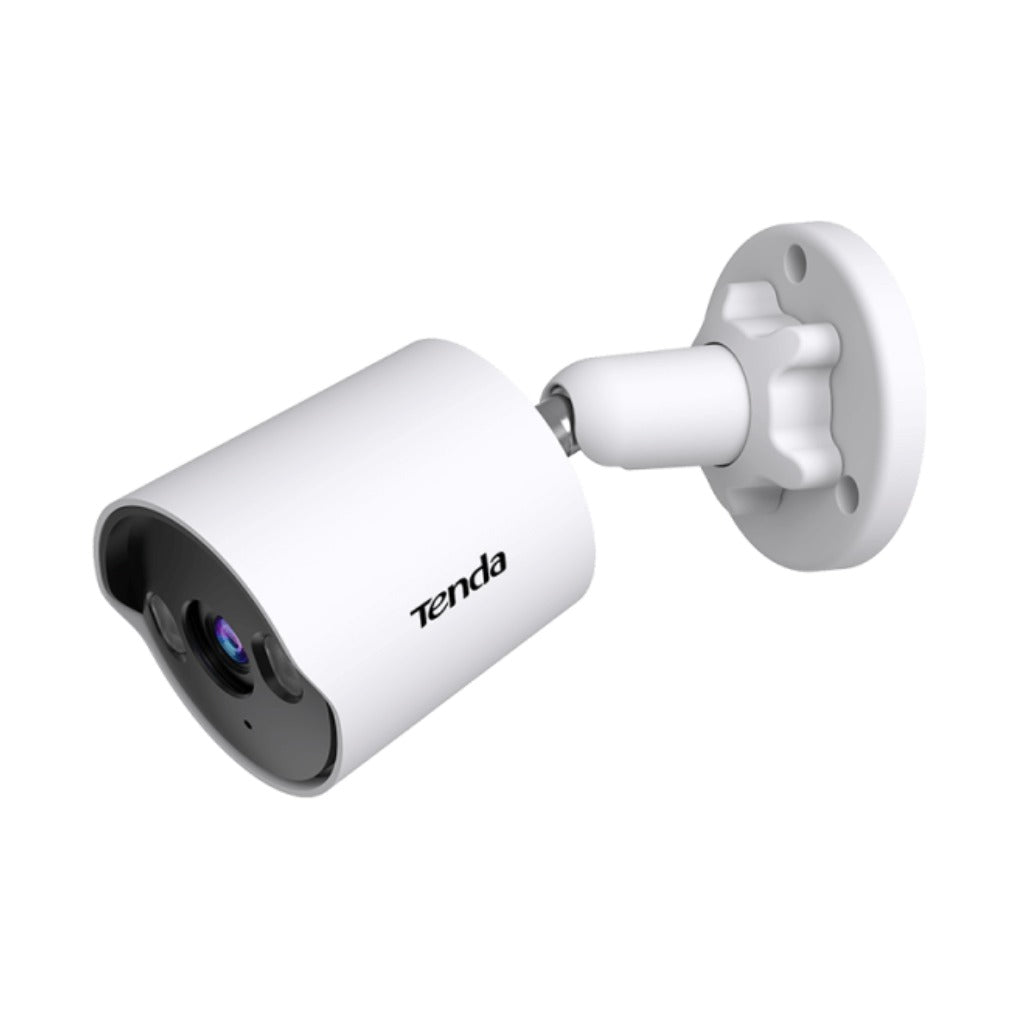

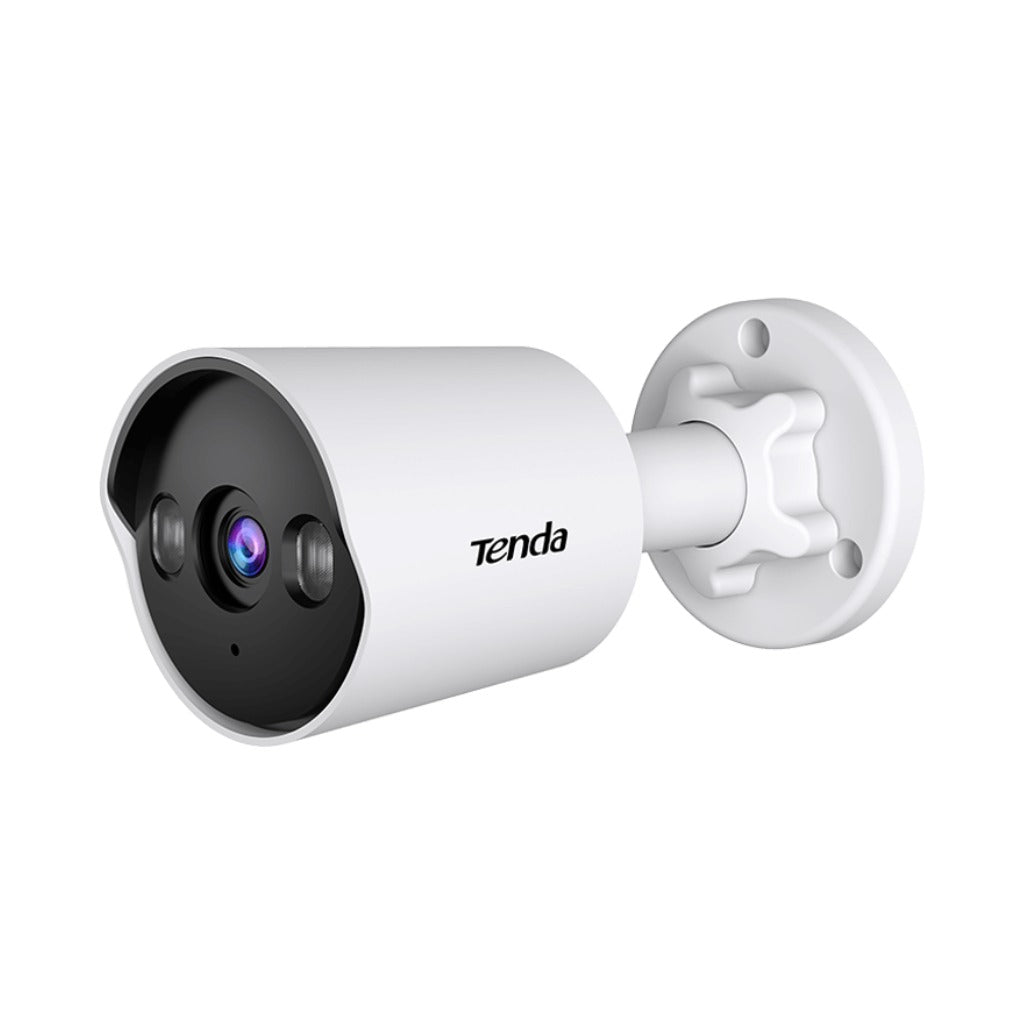

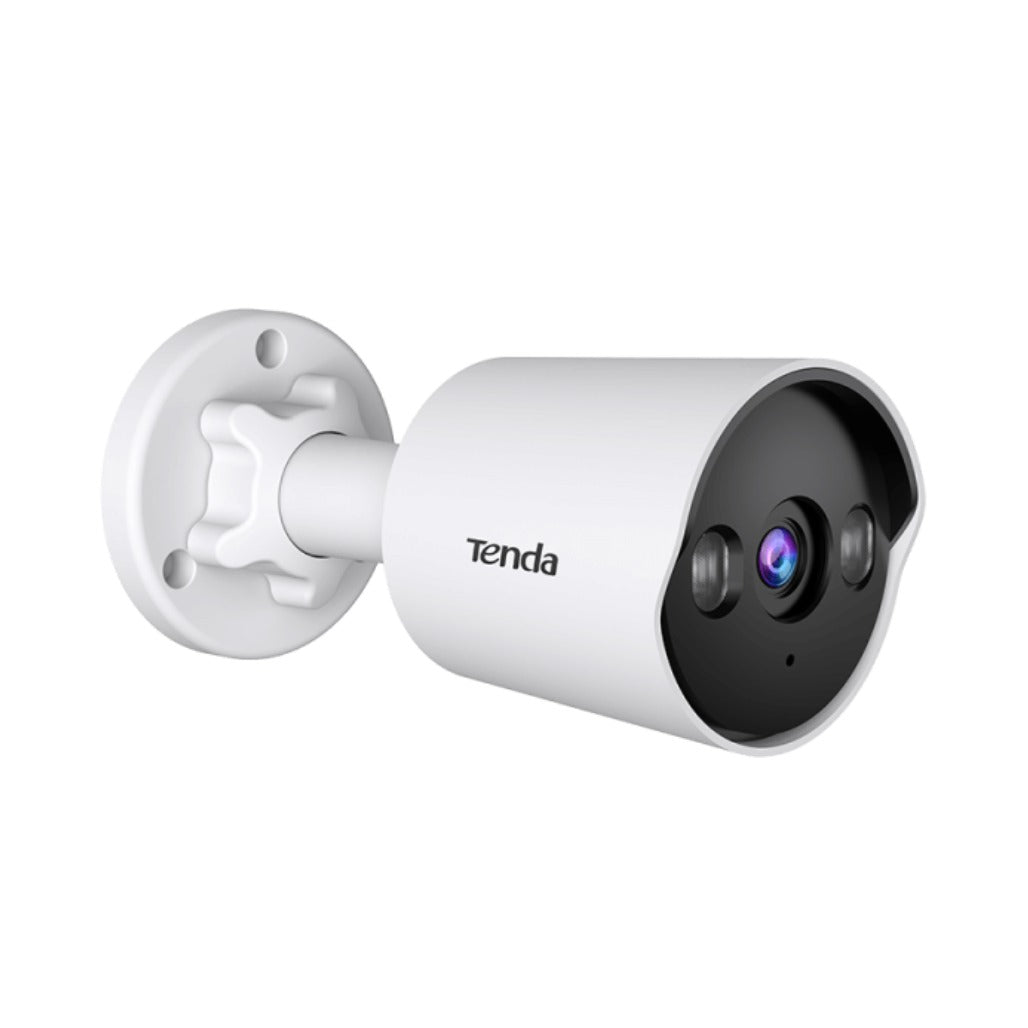

Tenda outdoor security camera POE TC3B24C delivers 4MP resolution video with a 4mm lens, designed for wall or ceiling mounting. It uses a 1/3" progressive scan CMOS sensor with ICR type day & night performance. For low-light viewing, it includes two infrared and white light combined illuminators with supplementary light distance up to 30 m, plus an IR wavelength of 850nm. The camera supports smart detection including motion detection, human detection, vehicle detection, line crossing detection, and intrusion detection.
Key Features
• 4MP/2.5K/4MP resolution sensor video
• 1/3" Progressive Scan CMOS sensor
• ICR type day & night
• 4mm focal length
• Aperture F1.6
• FOV: Horizontal 79.1°, Vertical 43.3°, Diagonal 94.9° (4mm)
• 2 infrared and white light combined illuminators
• Supplementary Light Distance: up to 30 m/100 ft (depending on environment)
• IR wavelength: 850nm
• Night vision mode: Video
• Night vision modes: Smart Mode, Full Color Mode, Black & White Mode
• Video encoding formats: H.265+, H.265, H.264
• Main stream resolution: 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
• Sub stream resolution: 640 × 360, 352 × 288
• Frame rate: PAL 1-25fps (default 25fps); NTSC 1-30fps (default 30fps)
• Bit rate: 512kbps -- 4096kbps
• Bit rate control: CBR, VBR
• Audio: built-in MIC
• Audio encoding format: G.711A, G.711U, AAC
• Audio sampling rate: 8 kHz
• Image enhancement: DWDR, BLC, HLC, 3D DNR
• Privacy mask: 4 Areas
• Smart detection: Motion Detection, Human Detection, Vehicle Detection, Line Crossing Detection, Intrusion Detection
• Protocols: TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
• Client: TDSEE (mobile phone), TDSEE STUDIO (PC)
• Web browser: Plug-in free live view: Chrome, Edge, Opera
• Alarm/Smart detection support: Motion Detection, Human Detection, Vehicle Detection, Line Crossing Detection, Intrusion Detection
• Installation: Wall Mounting, Ceiling Mounting
• Pan: 0° ~ 360°
• Tilt: 0° ~ 78°
• Rotation: 0° ~ 360°
• Bracket angle adjustment
• Supplementary Light: Supplementary Light
• Type/CAM: 4MP Smart Full-Color Bullet Camera
• Protection level: IP67
• Certification: CE, FCC, RoHS, UKCA
• Operating temperature: -40°C ~ 60°C (-40°F ~ 140°F)
• Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating humidity: 10% ~ 95% RH (non-condensing)
• Storage humidity: 3% ~ 95% RH (non-condensing)
Specifications
• Brand: Tenda
• Model/Reference: TC3B24C; Reference: NETWORK L114
• Camera type: Outdoor
• Image sensor: 1/3" Progressive Scan CMOS sensor
• Day & night: ICR type
• Lens focal length: 4mm (focal length also listed: 4mm / 6mm)
• Aperture: F1.6
• Horizontal FOV (4mm): 79.1°; Vertical FOV: 43.3°; Diagonal FOV: 94.9°
• Horizontal FOV (2.8mm): 82.91°; Vertical FOV: 46.2°; Diagonal FOV: 97.3°
• Illuminators: 2 infrared and white light combined illuminators
• Supplementary light distance: up to 30 m/100 ft (depending on environment)
• IR wavelength: 850nm
• Night vision mode: Video
• Night modes: Smart Mode, Full Color Mode, Black & White Mode
• Video encoding format: H.265+, H.265, H.264
• Main stream resolution: 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720
• Sub stream resolution: 640 × 360, 352 × 288
• Frame rate: PAL 1-25fps (default 25fps); NTSC 1-30fps (default 30fps)
• Bit rate: 512kbps -- 4096kbps
• Bit rate control: CBR, VBR
• Audio input: Built-in MIC
• Audio encoding format: G.711A, G.711U, AAC
• Audio sampling rate: 8 kHz
• Image enhancement: DWDR, BLC, HLC, 3D DNR
• Privacy mask: 4 Areas
• Ethernet port: 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
• ONVIF support
• Protocols: TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP
• Client: TDSEE (mobile phone), TDSEE STUDIO (PC)
• Web browser: Plug-in free live view: Chrome, Edge, Opera
• Smart detection: Motion Detection, Human Detection, Vehicle Detection, Line Crossing Detection, Intrusion Detection
• Pan: 0° ~ 360°
• Tilt: 0° ~ 78°
• Rotation: 0° ~ 360°
• Power: 12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug
• Power (POE): IEEE 802.3af
• Installation method: Wall Mounting, Ceiling Mounting
• Casing material: Metal
• Product dimensions: 80mm x 80mm x 76mm (3.15" x 3.15" x 3")
• Product weight: 307g (0.68lb)
• With package weight: 412g (0.91lb)
• Package dimensions: 125mm x 125mm x 107mm (4.9" × 4.9" × 4.2")
• Protection level: IP67
• Waterproof kit: Waterproof Kit
• Installation template: Installation Template
• Mounting accessories kit: Mounting Accessories Kit
• Quick installation guide: Quick Installation Guide
• Package contents: not specified (listed as "Package Contents" only)
• Mobile app: Yes
• Power spec: Power: POE
• Alarm/Smart detection: Motion Detection, Human Detection, Vehicle Detection, Line Crossing Detection, Intrusion Detection
• Reference/Link: Reference: NETWORK L114
• Certification: CE, FCC, RoHS, UKCA
• Operating temperature: -40°C ~ 60°C (-40°F ~ 140°F)
• Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating humidity: 10% ~ 95% RH (non-condensing)
• Storage humidity: 3% ~ 95% RH (non-condensing)
