Tenda Router SG04 UPC XPON ONT 4 GE Ethernet ports Gigabit

$45.00
$45.00
Subtotal: $45.00
Order on Whatsapp
Vendor: Tenda
SKU: SG04-UPC-R55-J
Availability: Many In Stock
Product Type: Network Switches

Excluding VAT

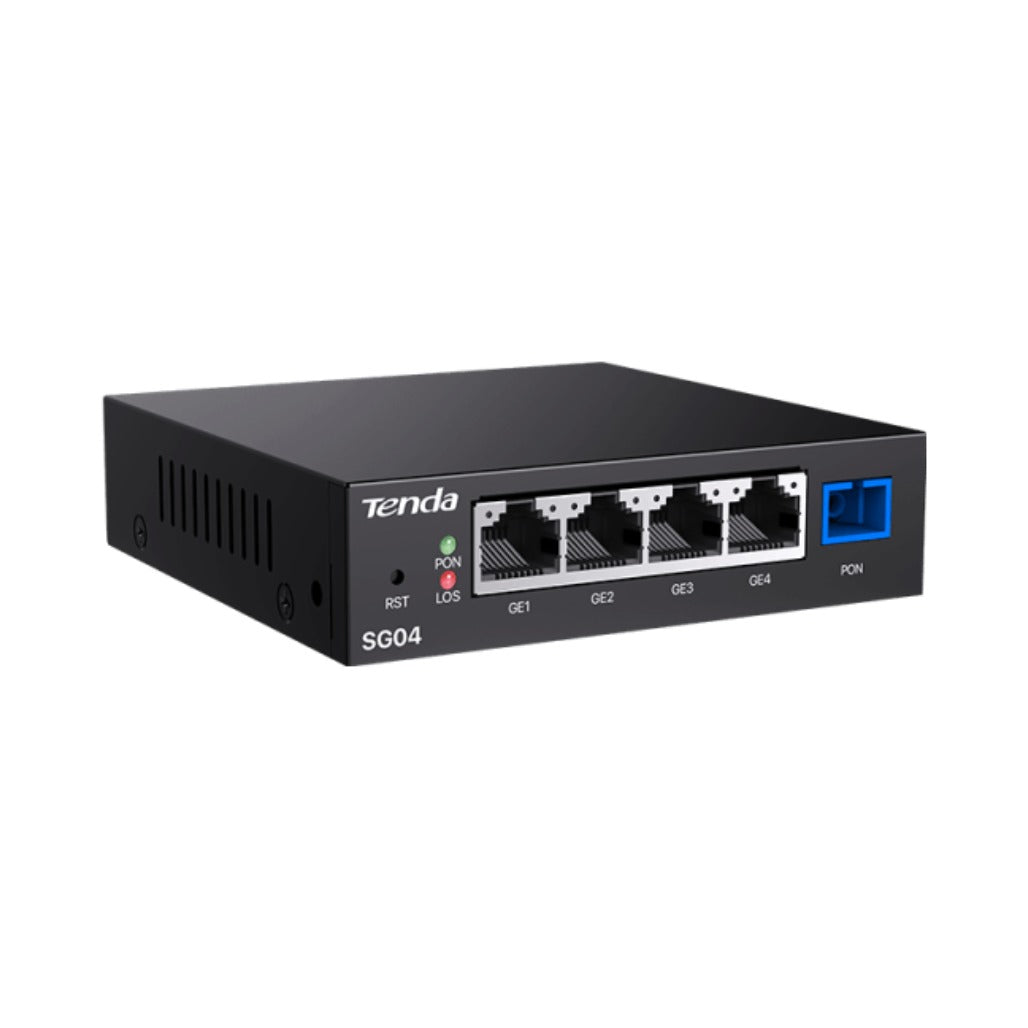

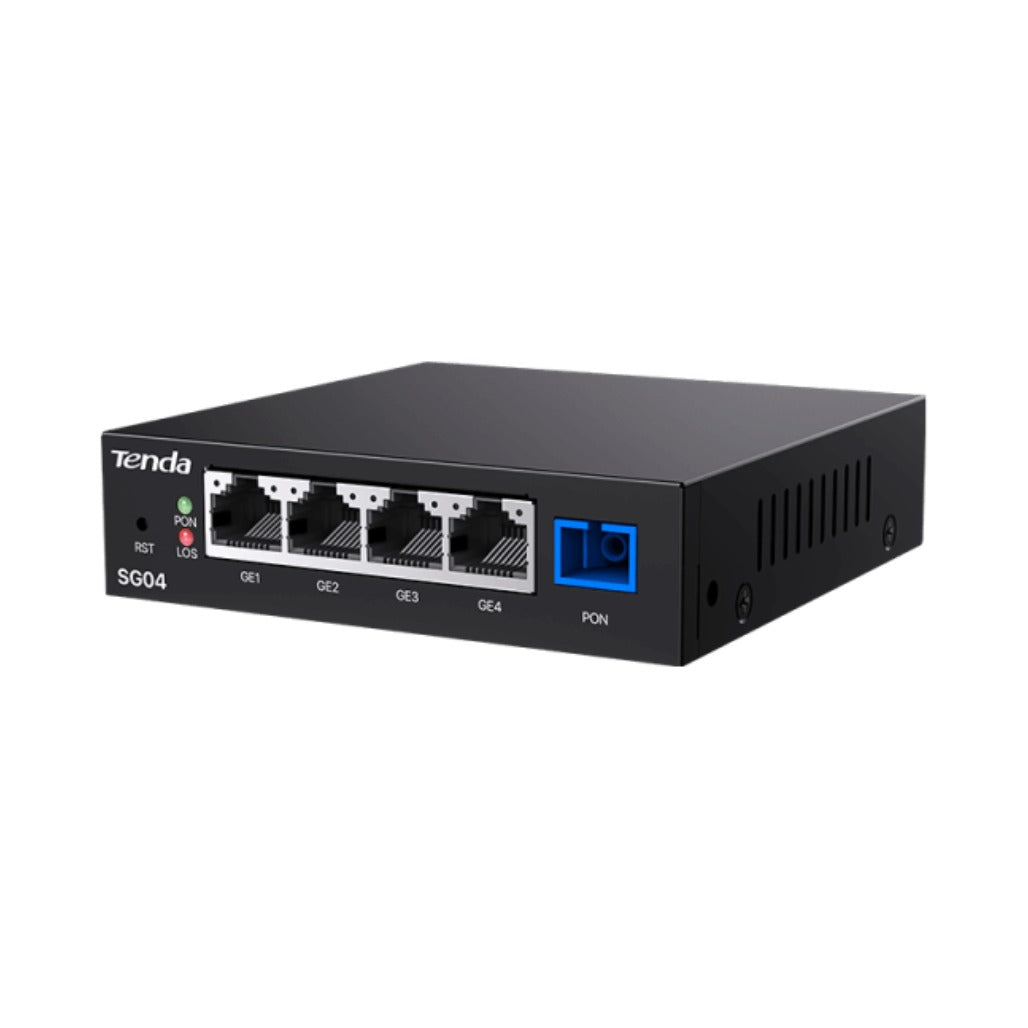

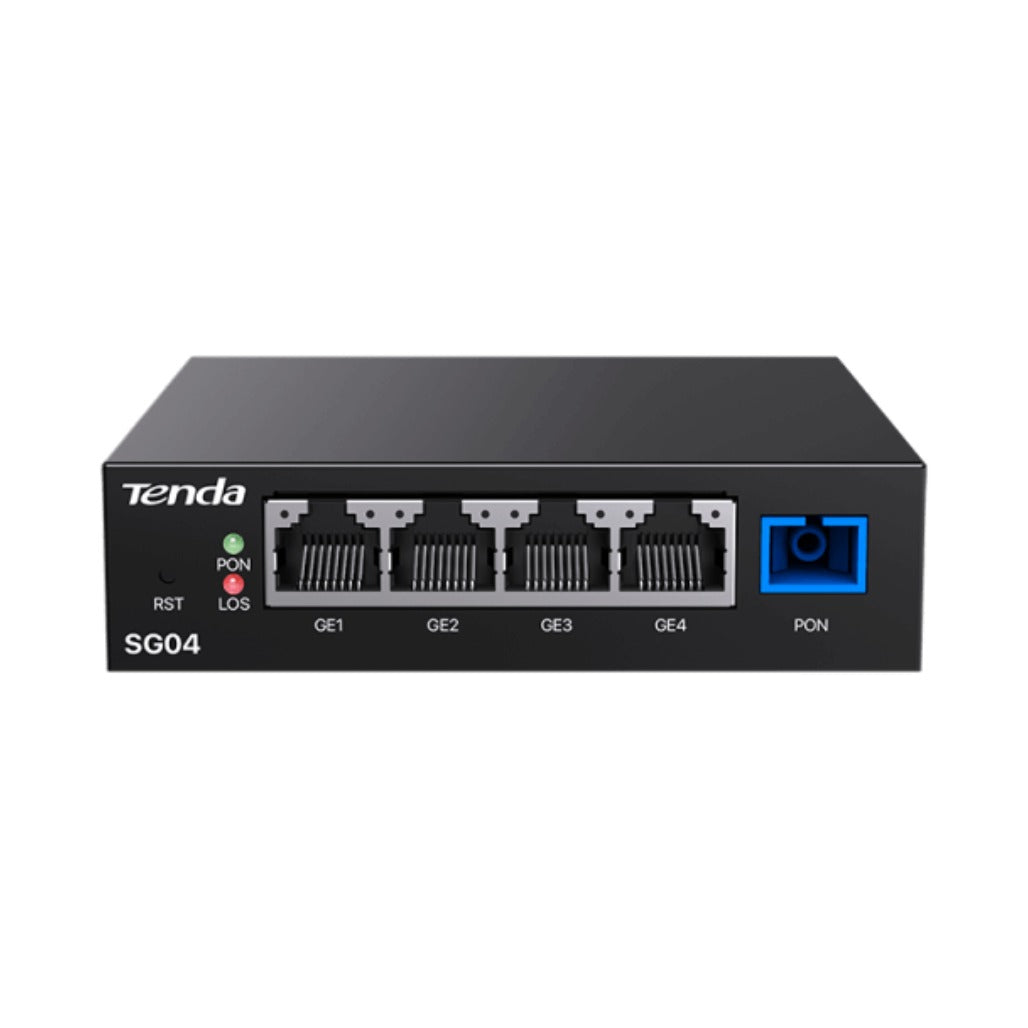

The Tenda SG04 is an xPON ONU router built for gigabit Ethernet connectivity with 4x 1000Mbps RJ45 LAN ports. It supports both GPON and EPON operation, with stated upstream and downstream maximum bandwidths for each mode. The SG04 includes a PON interface with 1*SC/APC or SC/UPC (optional) and shows status LEDs for PON, LOS, and LAN. Optical transmission uses wavelengths of transmit at 1310nm and receive at 1490nm, supporting a transmission distance of up to 20km Max. For management, the SG04 is listed with bridge mode access and supports Local Web management along with optical power monitors. It also uses an RST button and is described with lightning surge specifications and certification of CE and RoHS. The device is designed to operate in environments with an operating temperature range of 20℃ ~ 55℃ and storage temperature of -40℃ ~ 70℃, with operating humidity of 10% ~ 95% (non-condensing) and storage humidity of 5% ~ 90% (non-condensing). With a compact 100×100×26mm (L×W×H) form factor and green color, the SG04 is suitable for Internet business type applications and is specified with IPv4.
Key Features
• 4GE xPON ONU
• 4*1000Mbps RJ45 LAN Ports
• 1*SC/APC XPON Port (1*SC/UPC optional)
• LED indicators: PON, LOS, LAN
• 1*RST Button
• Supports bridge mode access
• Local Web management and optical power monitors
• WAN Connection: Bridge Mode
• Business Type: Internet
• IP Version: IPv4
• Standards: ITU G.984.1, ITU G.984.2, ITU G.984.3, ITU G.984.4
• Optical Mode: Class B+
• Optical Wavelength: Transmit at 1310nm; Receive at 1490nm
• Transmission Distance: 20km Max
• Bandwidth: EPON Upstream 1.244Gbps Max, Downstream 1.244Gbps Max; GPON Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
• TX Power: 0.5~5dBm
• Application: Analog/Video/RF/FTTX
• Interconnection: not compatible with UPC
• External Power Supply: DC 12V /1A
• Color: Green
• IEEE802.3ah
Specifications
• Model/Reference: SG04; Reference: NETWORK L42
• Speed: Gigabit
• Interface: 1*SC/APC or SC/UPC (optional) Port
• Interface: 4*1000Mbps RJ45 LAN Ports

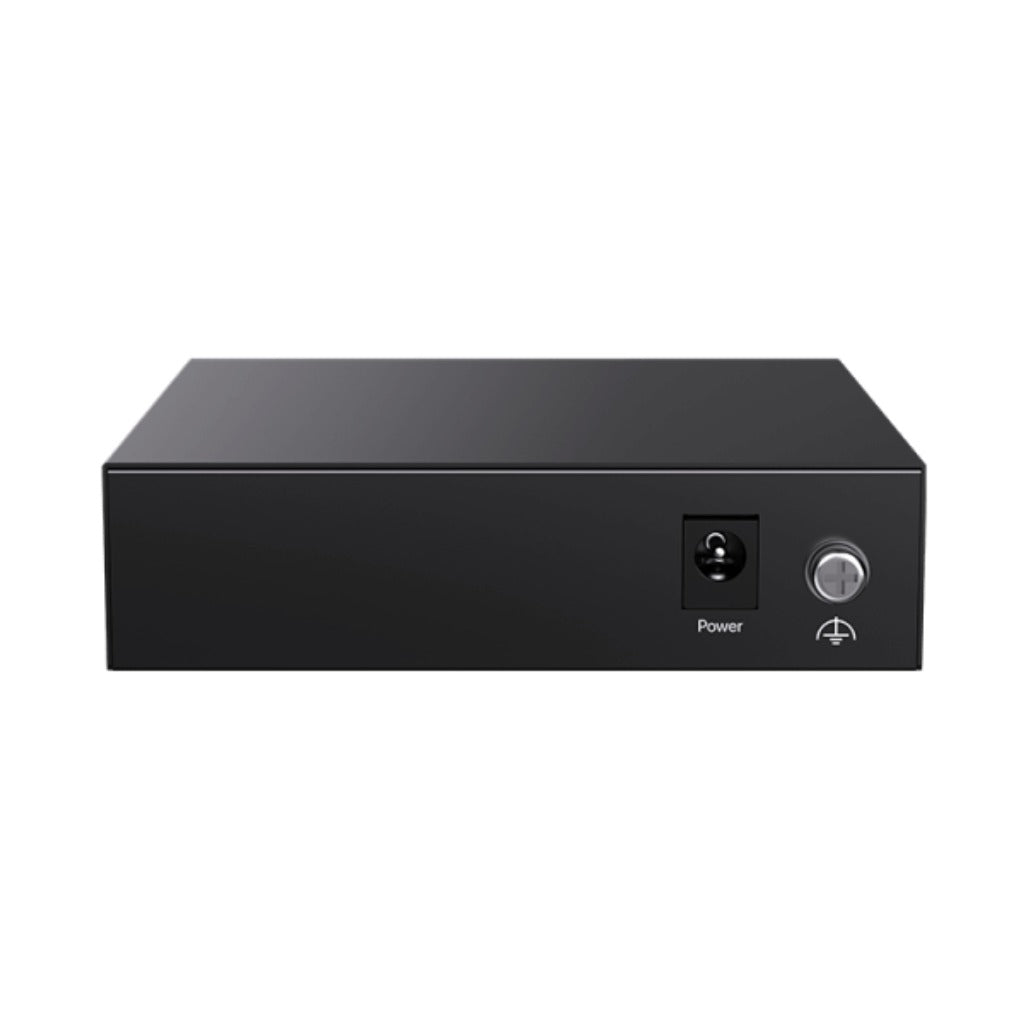

• Interface: 1*DC Port
• Optical parameters: End face: Angled 8 degree
• Optical parameters: Return loss: -60 dB or better
• Optical parameters: Insertion loss: slightly higher
• Optical power: TX Power 0.5~5dBm
• Optical power values listed: RX Power; 28~-8dBm
• Transmission distance: 20km Max
• Bandwidth: EPON Upstream 1.244Gbps Max, Downstream 1.244Gbps Max
• Bandwidth: GPON Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
• Power supply: External Power Supply DC 12V /1A
• Power supply connector listed: 1*DC Power
• Power consumption: ≤3w
• Lightning surge: GE: Differential mode 1KV; Common mode 6KV
• Lightning surge: AC Power: Differential mode 4KV; Common mode 4KV
• Operating temperature: 20℃ ~ 55℃
• Storage temperature: -40℃ ~ 70℃
• Operating humidity: 10% ~ 95% (Non-condensing)
• Storage humidity: 5% ~ 90% (Non-condensing)
• Dimensions (L×W×H): 100×100×26mm
• Interface detail: 1*SC/APC XPON Port, 1*1000Mbps RJ45 LAN Port, 1*DC Port
• Optical mode/technology: Class B+
• External power supply listed: DC 12V /1A
• Software feature: Bridge Mode
• Management/monitoring: Local Web management and optical power monitors
