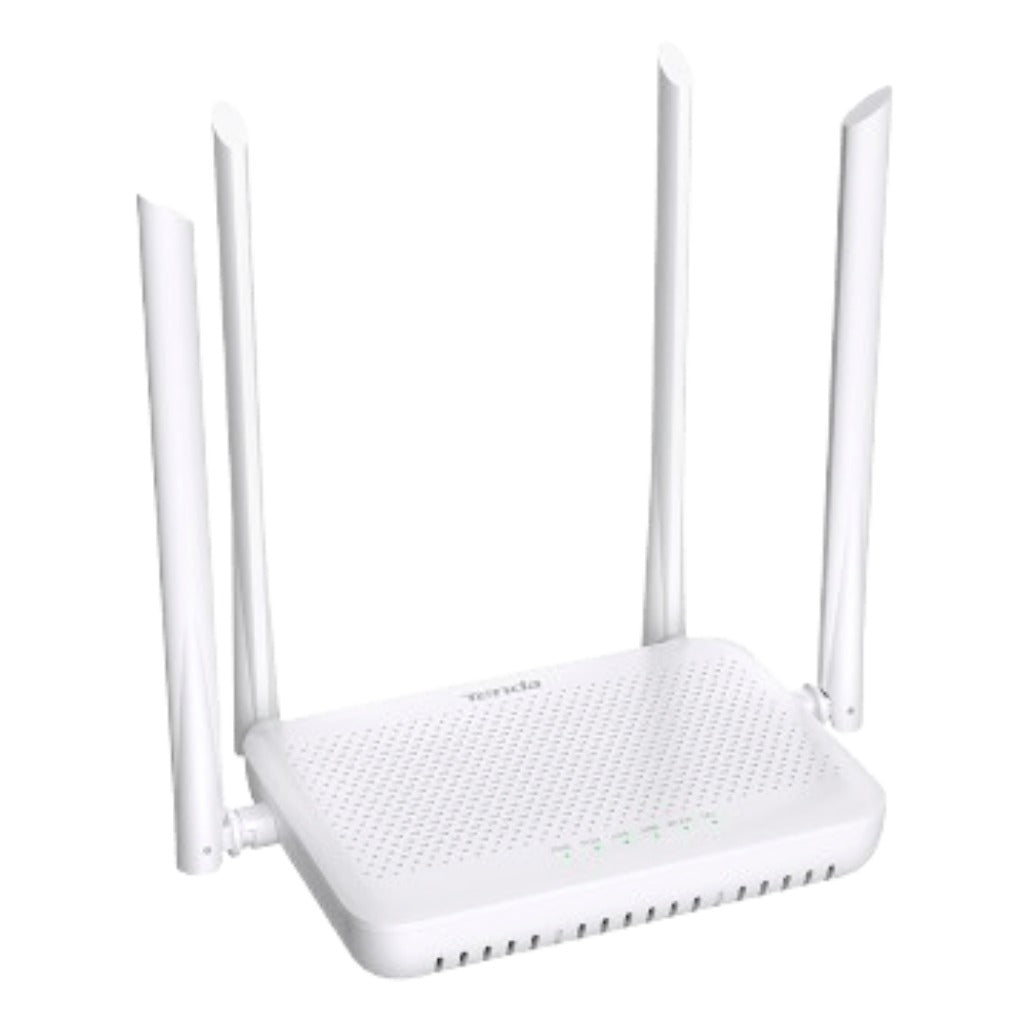

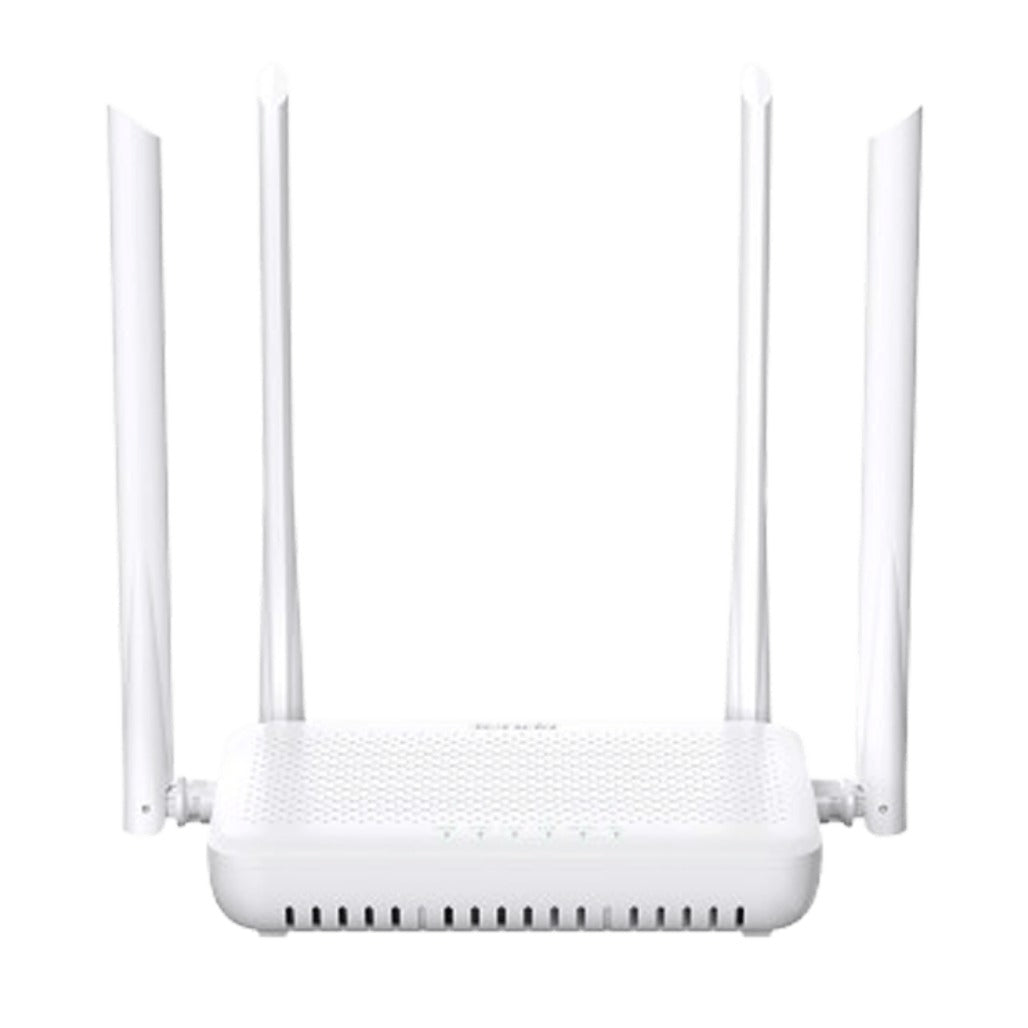

Meet the Tenda HG15 AX1500 Wi-Fi6 VoIP XPON ONT, designed for AX1500 Wi‑Fi6 networking over 2.4GHz and 5GHz. It supports IEEE 802.11 wireless standards and includes a VoIP business setup with TR069, Internet, IPTV, and VoIP listed as business types. With 4×1000Mbps RJ45 LAN ports and a TEL port, it fits home or business network needs where wired devices and VoIP connections are required. You also get local web management and optical power monitors, plus LED indicators for PWR, PON, LOS, LAN, WLAN, and TEL. For fiber connectivity, the HG15 supports GPON and EPON standards and uses an optical wavelength profile of transmit at 1310nm and receive at 1490nm. It supports a transmission distance of 20km max, with optical mode listed as Class B+ and optical power bandwidth listed as 0.5~5dBm. Wireless performance is supported by a 4×6 dBi antenna setup, Easy Client Setup via WPS, and security options including WEP, WPA/WPA2/WPA3. The device also includes features such as DHCP server, VPN pass-through (PPTP, L2TP, Ipsec pass-through), firewall functions (including IP/Port/MAC/URL filters and DMZ), and IPv4/IPv6 services.
Key Features
• AX1500 Wi‑Fi6
• VoIP
• XPON ONT
• Wireless frequency: 2.4GHz & 5GHz
• 4×1000Mbps RJ45 LAN ports
• 1×TEL port
• LED indicators: PWR, PON, LOS, LAN, WLAN, TEL
• 1×RST/WPS button
• WPS
• DHCP Server
• WAN connection support: PPPoE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
• Business type: TR069, Internet, IPTV, VoIP
• Quality Of Service: Bandwidth Control
• IP Version: IPv4, IPv6
• Services: DHCP, Dynamic DNS, IGMP Proxy, UPnP, MU-MIMO, QOS, Preset, Easymesh
• VPN pass-through: PPTP, L2TP, Ipsec pass-through
• Firewall: ALG, IP Filter, Port Filter, MAC Filter, URL Filter, Port Forwarding, DMZ, DDOS
• IPv6: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• TR069: ACS, Connection request
• VoIP features: Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm
• Antenna: 4×6 dBi
• Wireless security: 64/128-bit WEP, WPA / WPA2/ WPA3
• SSIDs: Main SSID at 2.4Ghz and 5Ghz
• 4 Guest SSIDs both at 2.4GHz and 5GHz
• Max terminal linked: 32 at both 2.4GHz and 5GHz
• Operation temperature: 0°c ~ 45°c
• Storage temperature: -40°c ~ 70°c
• Operation humidity: 10% ~ 95% (Non-condensing)
• Storage humidity: 5% ~ 90% (Non-condensing)
• Certification: CE, FCC, RoHS, Anatel
• Color: blue
• Application: Digital Data
• Supports routing mode and bridge mode access
• Local Web management and optical power monitors
• Optical mode: Class B+
• Optical wavelength: Transmit at 1310nm, Receive at 1490nm
• Transmission distance: 20km Max
• Bandwidth: 0.5~5dBm
• Wireless functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Beamforming, OFDMA, MU-MIMO
• Speed: Gigabit
• Data rate: Ax1500
• Wireless: 2.4G :20M/40M; 5G: 20M/40M/80M
• Wireless channels: 2.4G : CH1-CH13; 5G : CH36-CH48, CH149-CH165
• 11n 300M + 11ax 1201M
• Transmission power: 2.4G: <25.5 dBm (EIRP); 5G: <22.5 dBm (EIRP)
• Return loss: -50 dB
• Interconnection: not compatible with APC
Specifications
• Model/reference: NETWORK L29
• Product name in description: HG15
• Wireless standard: Wi‑Fi6
• Data Rate: Ax1500
• Speed: Gigabit
• Frequency: 2.4 & 5Ghz
• Antenna: 4
• Antenna details: 4×6 dBi Antenna
• IEEE Standards: IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, IEEE 802.3Z
• PON Standards: GPON: ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4
• PON Standards: EPON: IEEE 802.3 ah
• GPON throughput: Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
• EPON throughput: Upstream 1.244Gbps Max, Downstream 1.244Gbps Max

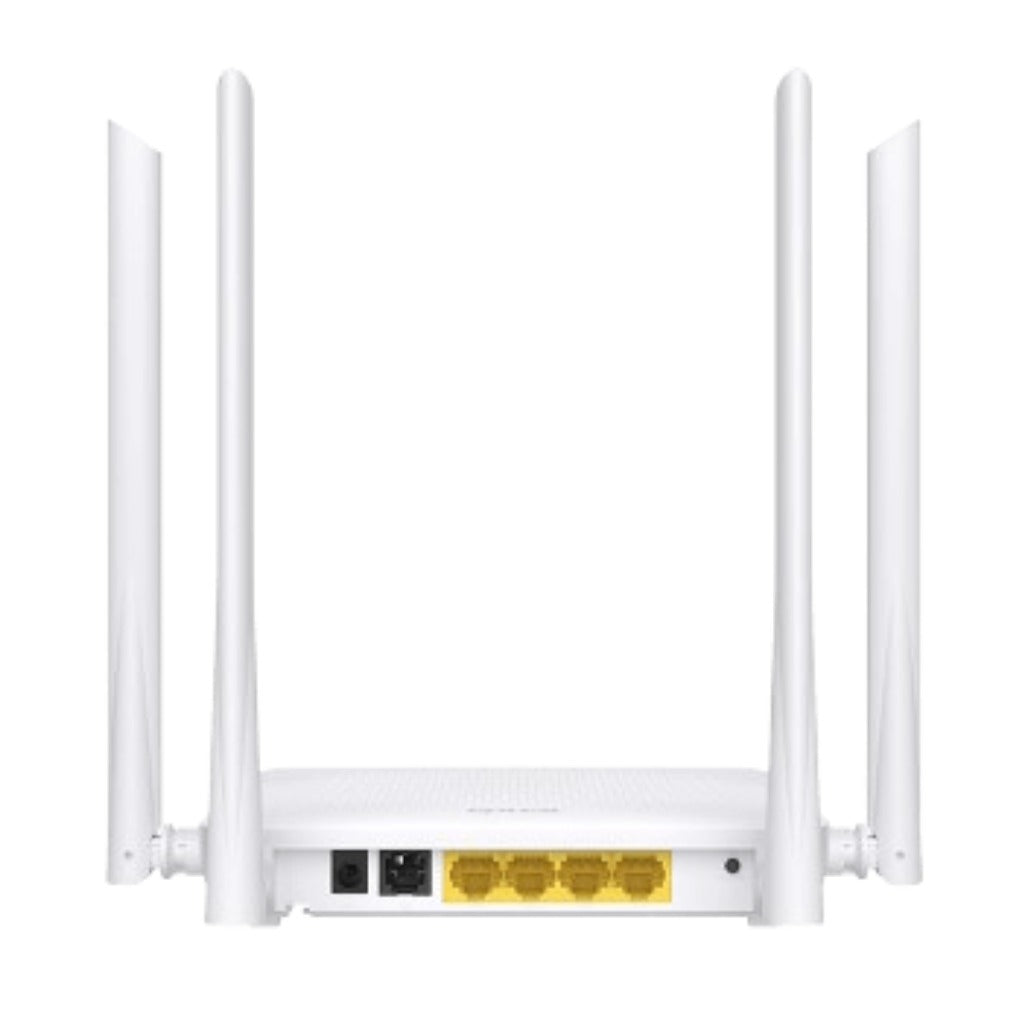

• Interfaces: 1 *SC/APC or SC/UPC (optional) Port
• Interfaces: 4 *1000Mbps RJ45 LAN Ports
• Interfaces: 1 *TEL Port
• LED Indicator: PWR, PON, LOS, LAN, WLAN, TEL
• Button: 1 *RST/WPS Button
• Optical wavelength: Transmit at 1310nm, Receive at 1490nm
• Optical mode: Class B+
• Bandwidth: 0.5~5dBm
• Transmission Distance: 20km Max
• Optical power (listed as): RX Power -28~-8dBm
• End face: Flat 0 degree
• Return loss: -50 dB
• Insertion loss: slightly lower
• Interconnection: not compatible with APC
• Frequency: 2.4GHz & 5GHz
• Channel range: 2.4G : CH1-CH13; 5G : CH36-CH48, CH149-CH165
• Wireless bandwidth: 2.4G :20M/40M; 5G: 20M/40M/80M
• PHY rates listed: 11n 300M + 11ax 1201M
• Transmission power: 2.4G: <25.5 dBm(EIRP); 5G: <22.5 dBm(EIRP)
• Software: DHCP Client List, Address Reservation, DHCP Relay, Server, Client, DHCP Client List
• WAN connection options: PPPoE, Dynamic IP, Static IP, Bridge
• WAN connections: Support Multiple WAN Connection
• Services: DHCP, Dynamic DNS, IGMP Proxy UPnP, MU-MIMO, QOS, Preset, Easymesh
• VPN pass-through: PPTP, L2TP, Ipsec Pass-through
• Firewall: ALG, IP Filter, Port Filter, MAC Filter, URL Filter, Port Forwarding, DMZ, DDOS
• IPv6: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• TR069: ACS, Connection request
• VoIP features: Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm
• External Power Supply: DC 12V /1.5A
• Power consumption: ≤18w
• Interfaces (power): 1 *DC Power Port
• External power (power adapter details): 1*DC Power
• Dimension: 220.8×141.9×31mm (L×W×H)
• Certification: CE, FCC , RoHS, Anatel
• Color: blue
• Application: Digital Data
• Supports routing mode and bridge mode access
• Easy Client Setup: WPS
• Package contents: 1*HG15
• Package contents: 1* Power adapter
• Package contents: 1* User manual
• Package contents: 1* RJ45 cable
• Package contents: 1*RJ11 cable
• Reference: NETWORK L29
• TX Power: (listed as)
• RX Power: -28~-8dBm
