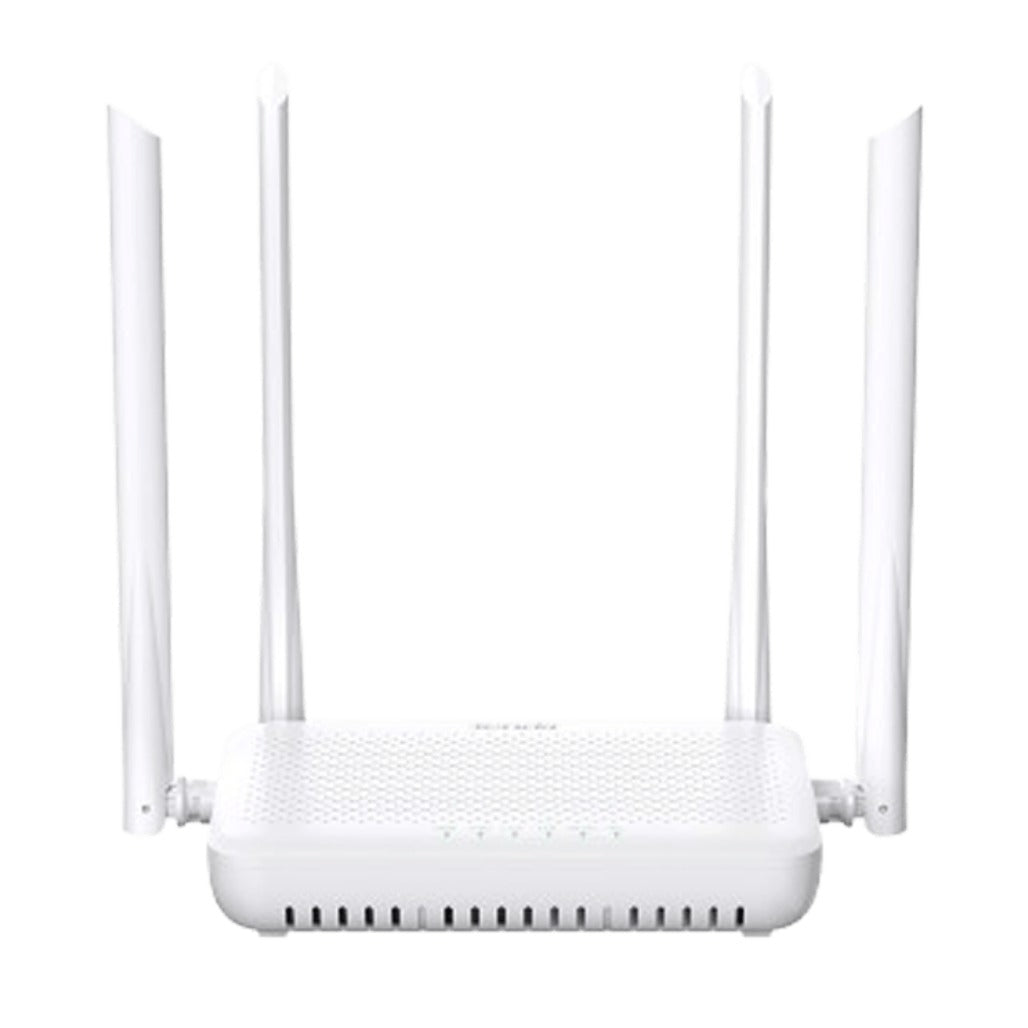

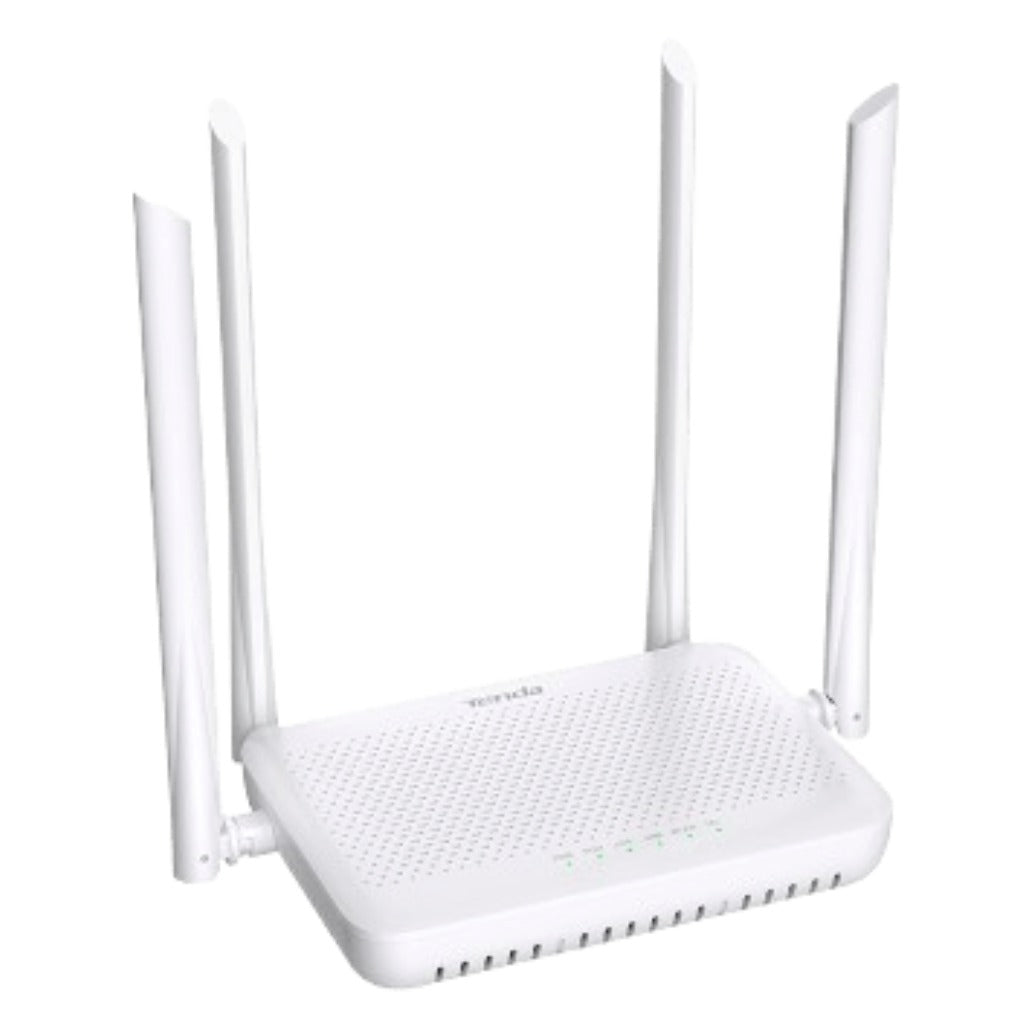

The Tenda HG15 AX1500 Wi-Fi6 VoIP XPON ONT is designed for AX1500 Wi-Fi6 performance on both 2.4GHz and 5GHz wireless frequencies, with 4 antennas and gigabit networking through its 4 x 1000Mbps RJ45 LAN ports. It includes VoIP capabilities and supports TR069 business features, including Internet, IPTV, and VoIP. With local web management and optical power monitors, this XPON ONT solution provides status visibility using the PWR, PON, LOS, LAN, WLAN, and TEL LED indicators. For wireless setup, it supports WPS and can offer multiple SSIDs, including a Main SSID on 2.4G and 5G and 4 Guest SSIDs across both bands. Built around PON standards for GPON and EPON, the HG15 supports transmission up to 20km max, with defined transmit and receive optical wavelengths (Transmit at 1310nm, Receive at 1490nm). It supports key network functions such as DHCP server features (Server/Client/DHCP Client List/Address Reservation/DHCP Relay), WAN connection options (PPPoE, Dynamic IP, Static IP, Bridge, and support for multiple WAN connection), and IPv4 and IPv6. Security and routing controls include firewall features such as ALG, IP/Port/MAC/URL filtering, port forwarding, DMZ, and DDOS, along with VPN pass-through (PPTP, L2TP, Ipsec Pass-through). The device operates in a 0°C to 45°C environment and is powered by an external DC power supply (DC 12V / 1.5A).
Key Features
• AX1500 Wi-Fi6 VoIP XPON ONT
• Frequency: 2.4GHz & 5GHz
• WPS
• 4 antennas (4 * 6 dBi antenna)
• 1 * SC/APC or SC/UPC (optional) port
• 4 * 1000Mbps RJ45 LAN Ports
• 1 * TEL Port
• LED Indicator: PWR, PON, LOS, LAN, WLAN, TEL
• 1 * RST/WPS Button
• Optical Mode: Class B+
• Optical Wavelength: Transmit at 1310nm, Receive at 1490nm
• Transmission Distance: 20km Max
• Bandwidth control
• IP Version: IPv4, IPv6
• DHCP Server functions: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
• WAN connection: PPPoE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
• Business Type: TR069, Internet, IPTV, VoIP
• Services: DHCP, Dynamic DNS, IGMP Proxy, UPnP, MU-MIMO, QOS, Preset, Easymesh
• VPN Pass-through: PPTP, L2TP, Ipsec Pass-through
• Firewall: ALG, IP Filter, Port Filter, MAC Filter, URL Filter, Port Forwarding, DMZ, DDOS
• IPv6: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• TR069: ACS, Connection request
• VoIP features: Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm
• Wireless security: 64/128-bit WEP, WPA / WPA2/ WPA3
• SSIDs: Main SSID at 2.4Ghz and 5GHz
• 4 Guest SSIDs Both At 2.4GHz and 5GHz
• Max Terminal Linked: 32 at both 2.4GHz and 5GHz
• Wireless functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Beamforming, OFDMA, MU-MIMO
• Supports routing mode and bridge mode access
• Local Web management and optical power monitors
Specifications
• Model: HG15
• Reference: NETWORK L81
• Data Rate: Ax1500
• Speed: Gigabit
• Wireless: Ax1500 wifi 6
• Frequency: 2.4 & 5Ghz
• Antenna: 4
• 2.4G : CH1-CH13
• 5G : CH36-CH48, CH149-CH165
• 2.4G :20M/40M
• 5G: 20M/40M/80M
• 11n 300M + 11ax 1201M
• Transmission Power: 2.4G: <25.5 dBm(EIRP)
• Transmission Power: 5G: <22.5 dBm(EIRP)
• Optical Mode: Class B+
• Optical Wavelength: Transmit at 1310nm, Receive at 1490nm
• Transmission Distance: 20km Max
• Bandwidth: 0.5~5dBm
• Bandwidth Control
• Optical power monitor: supported
• Optical Mode optical parameters: Class B+
• GPON standards: ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4
• EPON standards: EPON: IEEE 802.3 ah
• IEEE standards: IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z

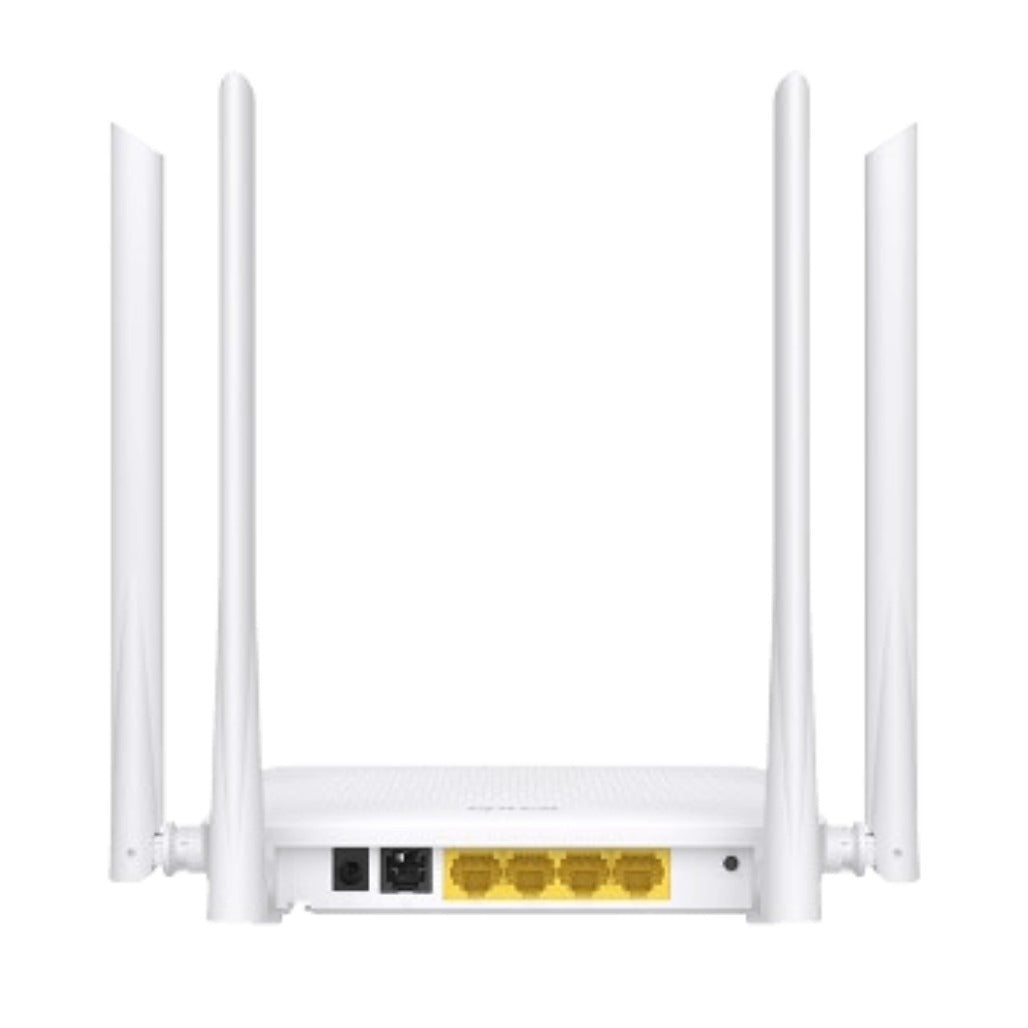

• Interfaces: 1 * SC/APC or SC/UPC (optional) Port
• Interfaces: 4 *1000Mbps RJ45 LAN Ports
• Interfaces: 1 *TEL Port
• LED Indicator: PWR, PON, LOS, LAN, WLAN, TEL
• Button: 1 * RST/WPS Button
• External Power Supply: DC 12V /1.5A
• Power Consumption: ≤18w
• Optical wavelength details: Transmit at 1310nm, Receive at 1490nm
• TX Power / RX Power: 28~-8dBm
• Color: Green
• End face: Angled 8 degree
• Return loss: -60 dB or better
• Insertion loss: slightly higher
• Application: Analog/Video/RF/FTTX
• Interconnection: not compatible with UPC
• Supports: routing mode and bridge mode access
• Software: DHCP Server (Server, Client, DHCP Client List, Address Reservation, DHCP Relay)
• WAN Connection: PPPoE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
• Business Type: TR069, Internet, IPTV, VoIP
• Services: DHCP, Dynamic DNS, IGMP Proxy UPnP, MU-MIMO, QOS, Preset, Easymesh
• VPN Pass-through: PPTP, L2TP, Ipsec Pass-through
• Firewall: ALG, IP Filter, Port Filter, MAC Filter, URL Filter Port Forwarding, DMZ, DDOS
• IPv6: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• TR069: ACS, Connection request
• VoIP: Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm
• VoIP frequency: 2.4GHz & 5GHz
• Wireless security: 64/128-bit WEP, WPA / WPA2/ WPA3
• SSIDs: Main SSID at 2.4Ghz and 5GHz
• Guest SSIDs: 4 Guest SSIDs Both At 2.4GHz and 5GHz
• Max Terminal Linked: 32 at both 2.4GHz and 5GHz
• Wireless functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Beamforming,OFDMA, MU-MIMO
• Environment: Operation Temperature 0°c ~ 45°c
• Environment: Storage Temperature
• Environment: Operating Humidity 10% ~ 95% (Non-condensing)
• Environment: Storage Humidity 5% ~ 90% (Non-condensing)
• Certification: CE, FCC , RoHS，Anatel
• Dimension: 220.8×141.9×31mm (L×W×H)
• Package Contents: 1*HG15
• Package Contents: 1* Power adapter
• Package Contents: 1* User manual
• Package Contents: 1* RJ45 cable
• Package Contents: 1* RJ11 cable
• Interface power: 1 *DC Power
• GPON capacity: Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
• EPON capacity: Upstream 1.244Gbps Max, Downstream 1.244Gbps Max
• Wireless frequency: 2.4GHz & 5GHz
• Data rate/technology: Ax1500
• Wireless radio: Enable/Disable Wireless Radio
• WPS: WPS
