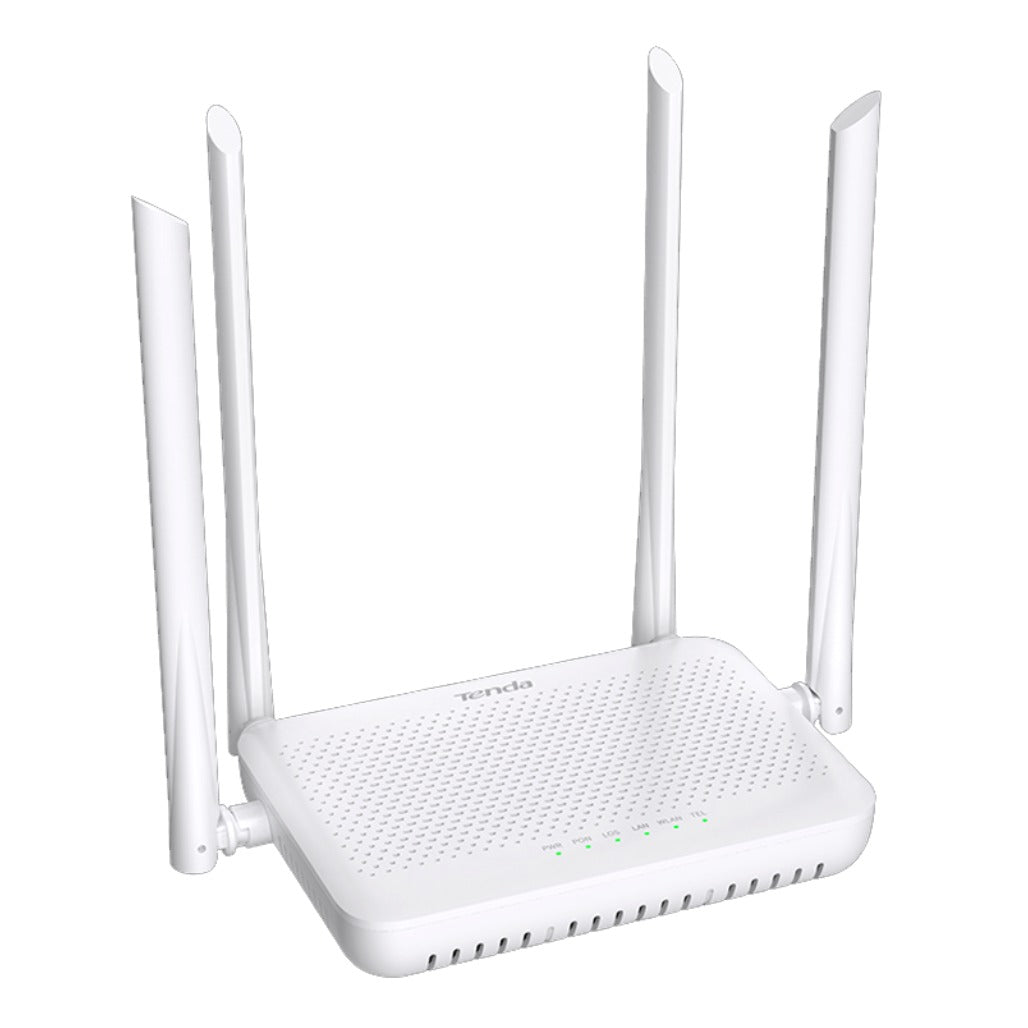

Built around xPON standards, the HG10 lists both GPON and EPON support with upstream and downstream maximum rates provided for each. It also includes optical specifications such as transmit at 1310nm, receive at 1490nm, and a transmission distance of 20km max. The unit supports optical power monitoring and local web management per the description. For network management and security controls, it provides options such as firewall features (ALG, IP/Port/Mac/URL filtering, port forwarding, DMZ, DDOS) and VPN pass-through (PPTP, L2TP, Ipsec pass-through). For setup and daily use, it includes LED indicators (PWR, PON, LOS, LAN, WLAN, TEL) and a WPS/RESET button.
Key Features
• AC1200 dual-band Wi‑Fi xPON ONT
• Frequency: 2.4GHz & 5GHz
• 4 *1000Mbps RJ45 LAN ports
• 1 *TEL port
• Main SSID at 2.4GHz and 5GHz
• 4 Guest SSIDs both at 2.4GHz and 5GHz
• Max terminal linked: 32 at both 2.4GHz and 5GHz
• 4 * 5 dBi antenna
• WPS
• DHCP Server
• WAN connection support: PPPoE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
• Business type: TR069, Internet, IPTV, VoIP
• Quality of Service: Bandwidth Control
• IP version: IPv4, IPv6
• Services: DHCP, Dynamic DNS, IGMP Proxy, UPnP, MU-MIMO, QOS, Preset, Easymesh
• VPN pass-through: PPTP, L2TP, Ipsec Pass-through
• Firewall: ALG, IP Filter, Port Filter, Mac Filter, URL Filter, Port Forwarding, DMZ, DDOS
• IPv6: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• TR069: ACS, Connection request
• VoIP features listed: Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm
• Wireless functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
• Wireless security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryption, Wireless MAC Filtering
• Supports routing mode and bridge mode access
• Local Web management and optical power monitors
Specifications
• Model/identifier: HG10
• IEEE Standards: IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
• PON Standards: GPON (ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4)
• PON Standards: EPON (IEEE 802.3 ah)

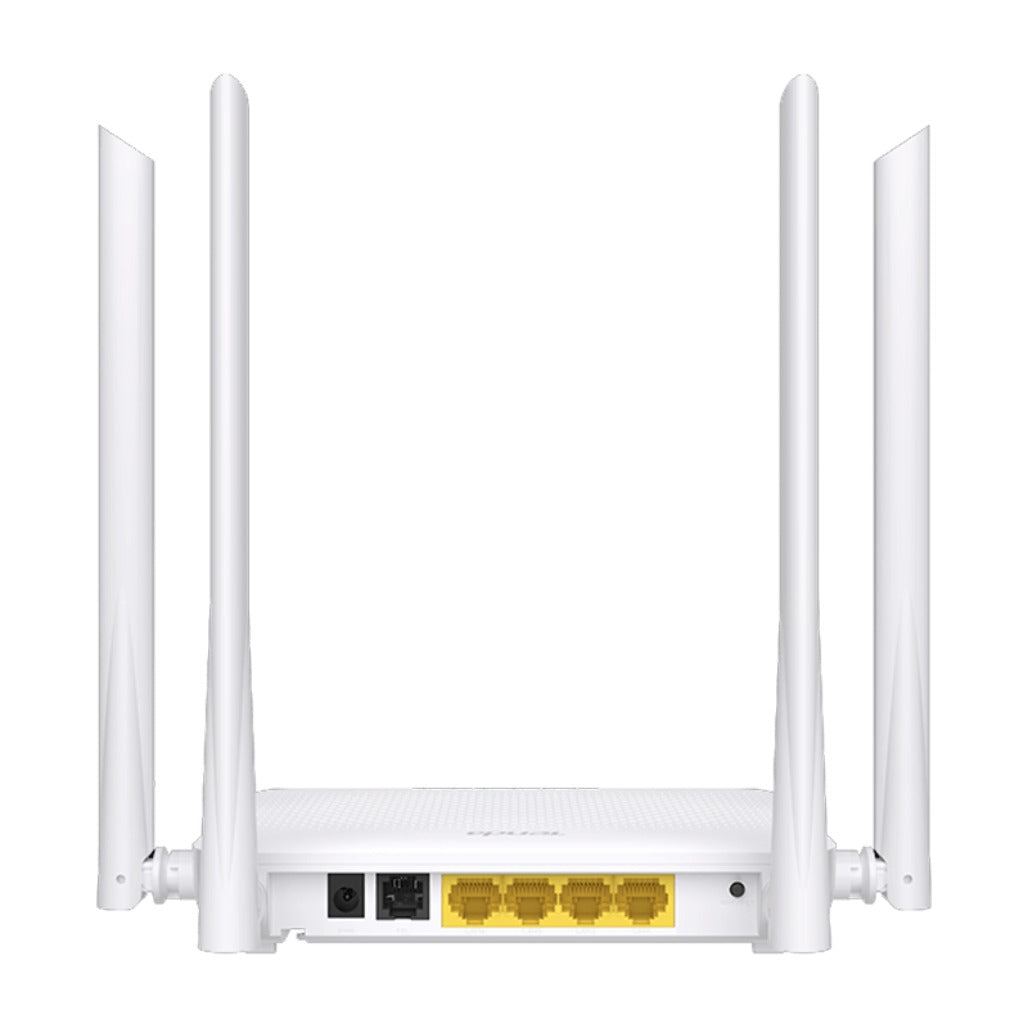

• Interfaces: 1 *SC/APC or SC/UPC (optional) Port
• Interfaces: 4 *1000Mbps RJ45 LAN Ports
• Interfaces: 1 *TEL Port

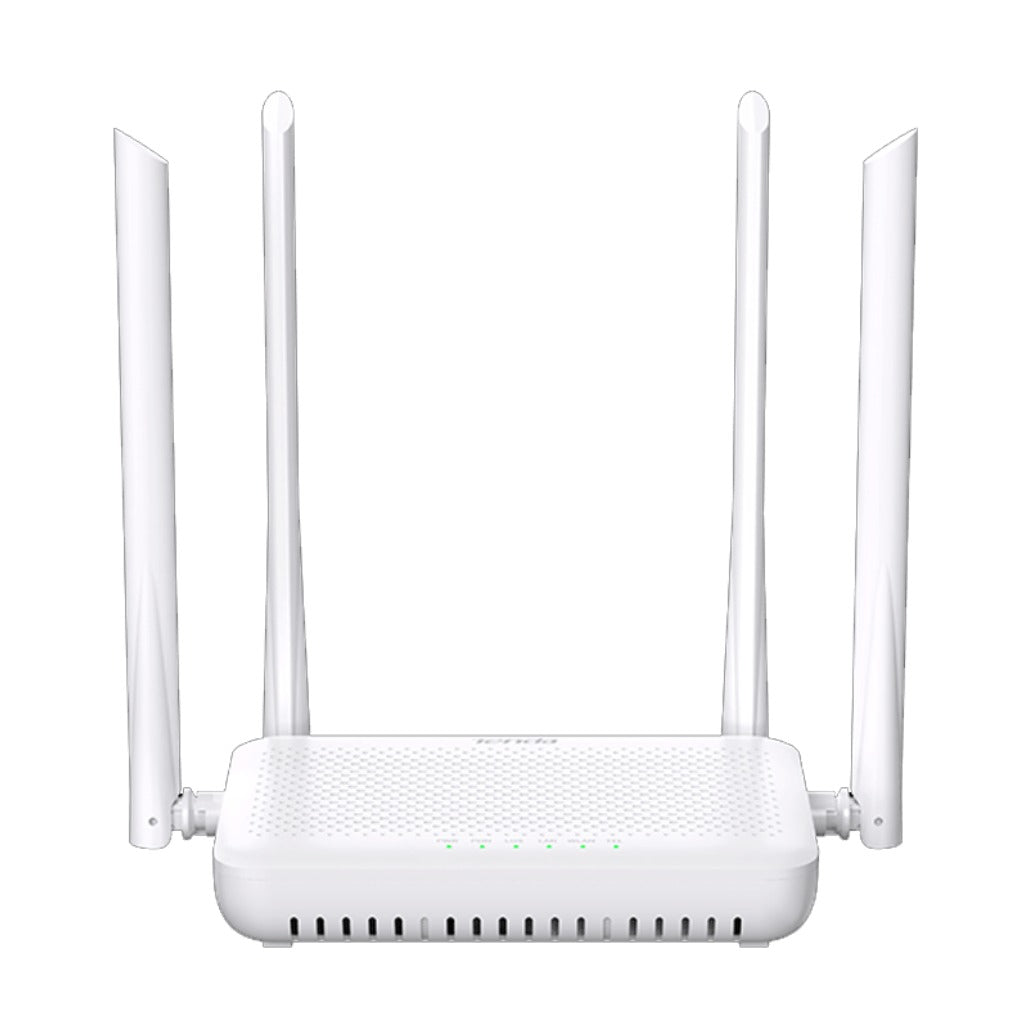

• LED indicator: PWR, PON, LOS, LAN, WLAN, TEL
• Button: 1 *WPS/RESET Button
• Optical Mode: Class B+
• Optical Wavelength: Transmit at 1310nm; Receive at 1490nm
• Transmission Distance: 20km Max
• Bandwidth: 0.5~5dBm
• Optical power: TX Power and RX Power listed; TX/RX value: 28~-8dBm
• Frequency: 2.4GHz & 5GHz
• Channel Range: 2.4G: CH1-CH13; 5G: CH36-CH48, CH149-CH165
• Wireless: AC1200
• Speed/Data rate: 11n 300M + 11ac 867M
• Wireless band bandwidth options: 2.4G: 20M/40M; 5G: 20M/40M/80M
• Transmission power: 2.4G: <20 dBm (EIRP); 5G: <23 dBm (EIRP)
• Wireless security/encryption: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Wireless security filtering: Wireless MAC Filtering
• Wireless functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
• Operating temperature: 0°c ~ 45°c
• Storage temperature: 40°c ~ 70°c
• Operating humidity: 10% ~ 95% (Non-condensing)
• Storage humidity: 5% ~ 90% (Non-condensing)
• Certification: CE, RoHS, Anatel
• External power supply (listed): DC 9V /0.6A
• External power supply (listed): DC 12V /1.0A
• Power consumption: ≤12w
• Color: blue
• Antenna: 4x 5dBi antennas
• End face: Flat 0 degree
• Return loss: -50 dB
• Insertion loss: slightly lower
• Application: Digital Data
• Interconnection: not compatible with APC
• Supports routing mode and bridge mode access
• WAN connection: PPPoE, Dynamic IP, Static IP, Bridge, Support Multiple WAN Connection
• Services listed: DHCP, Dynamic DNS, IGMP Proxy, UPnP, MU-MIMO, QOS, Preset, Easymesh
• VPN pass-through: PPTP, L2TP, Ipsec Pass-through
• IPv6 functions: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• TR069: ACS, Connection request
• VoIP features listed: Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm
• GPON performance: Upstream 1.244Gbps Max; Downstream 2.488Gbps Max
• EPON performance: Upstream 1.244Gbps Max; Downstream 1.244Gbps Max
• Interfaces (power): 1 *DC Power Port
• Dimension: 220.8×141.9×31mm (L×W×H)
• Package contents: 1* HG10
• Package contents: 1* Power adapter
• Package contents: 1* User manual
• Package contents: 1* RJ45 cable
• Package contents: 1* RJ11 cable
• Reference: NETWORK L32
• Data rate reference: AC1200
• Speed reference: Gigabit
• Frequency reference: 2.4 & 5Ghz
• Antenna reference: 4
• (Notes from provided content: “Interconnection: not compatible with APC” and “1 *SC/APC or SC/UPC (optional) Port” are both included as stated.)
