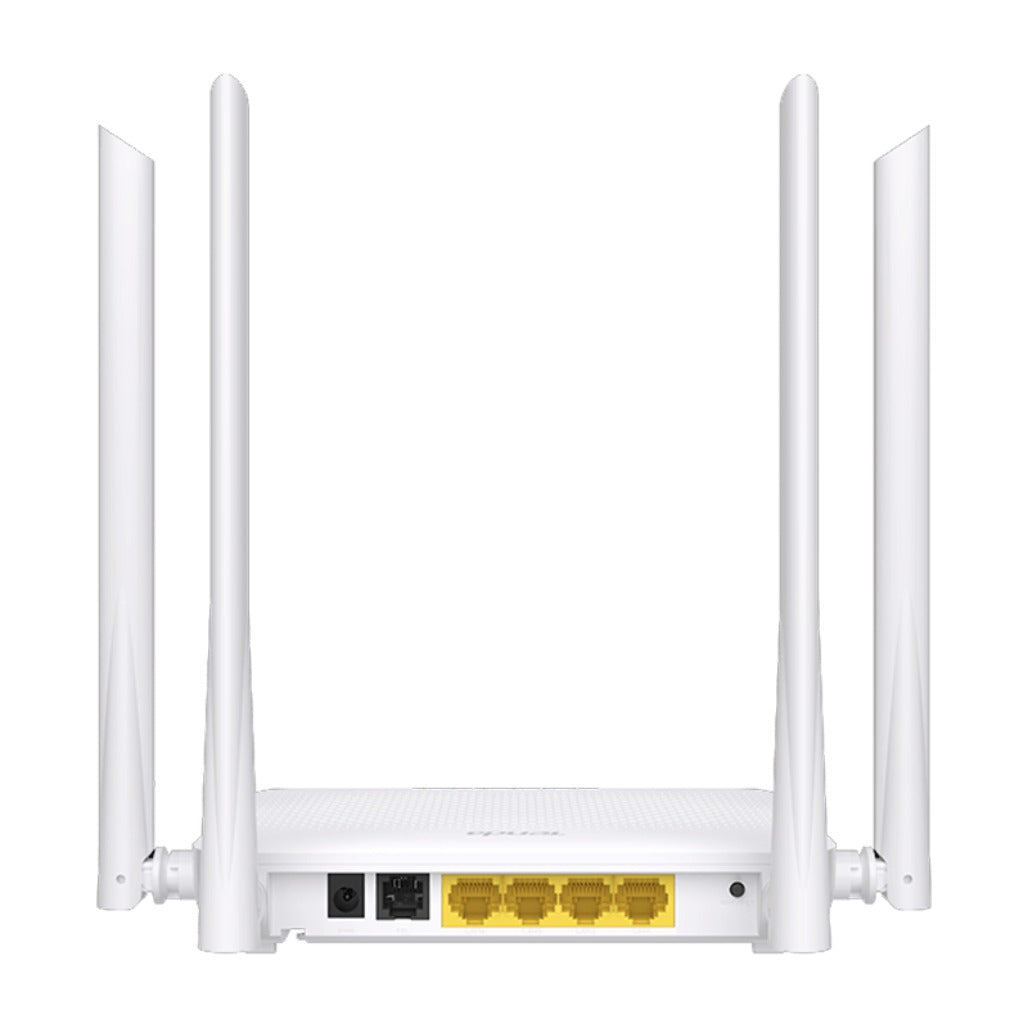

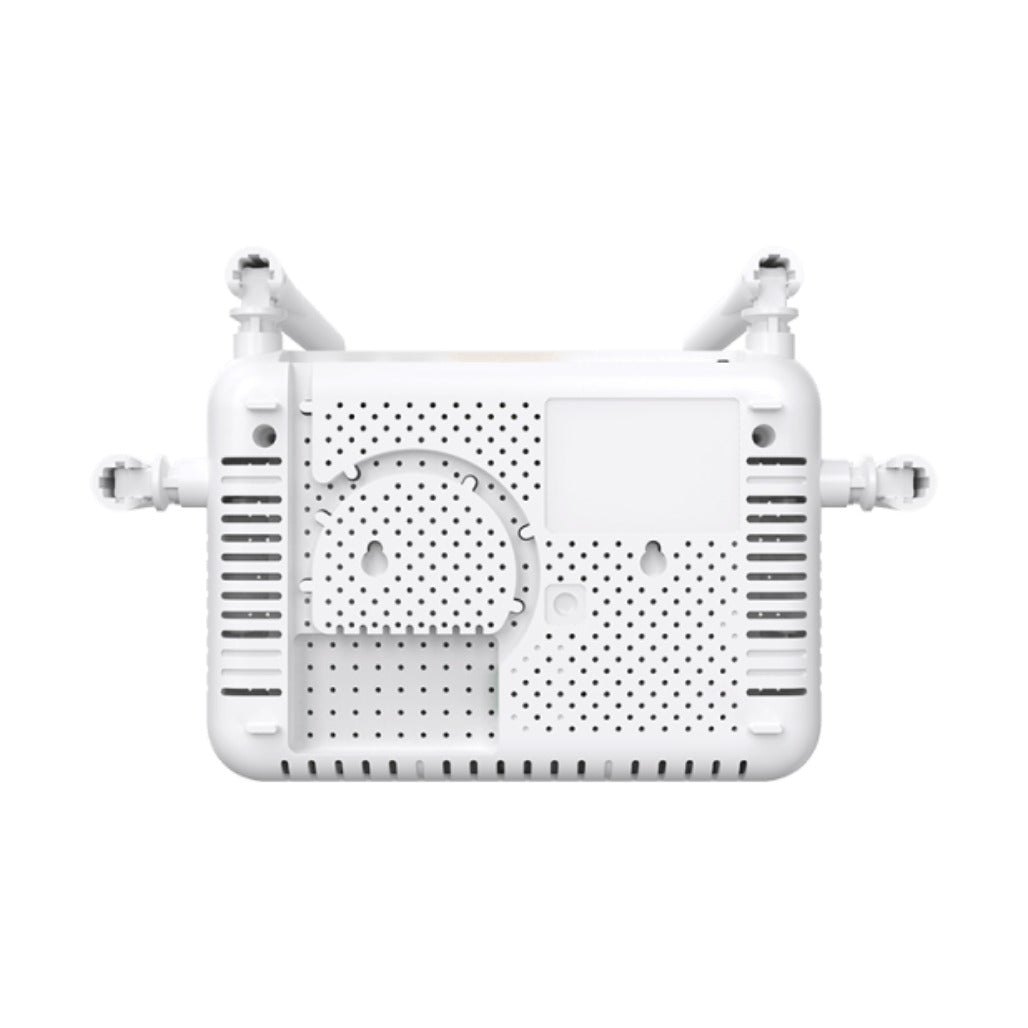

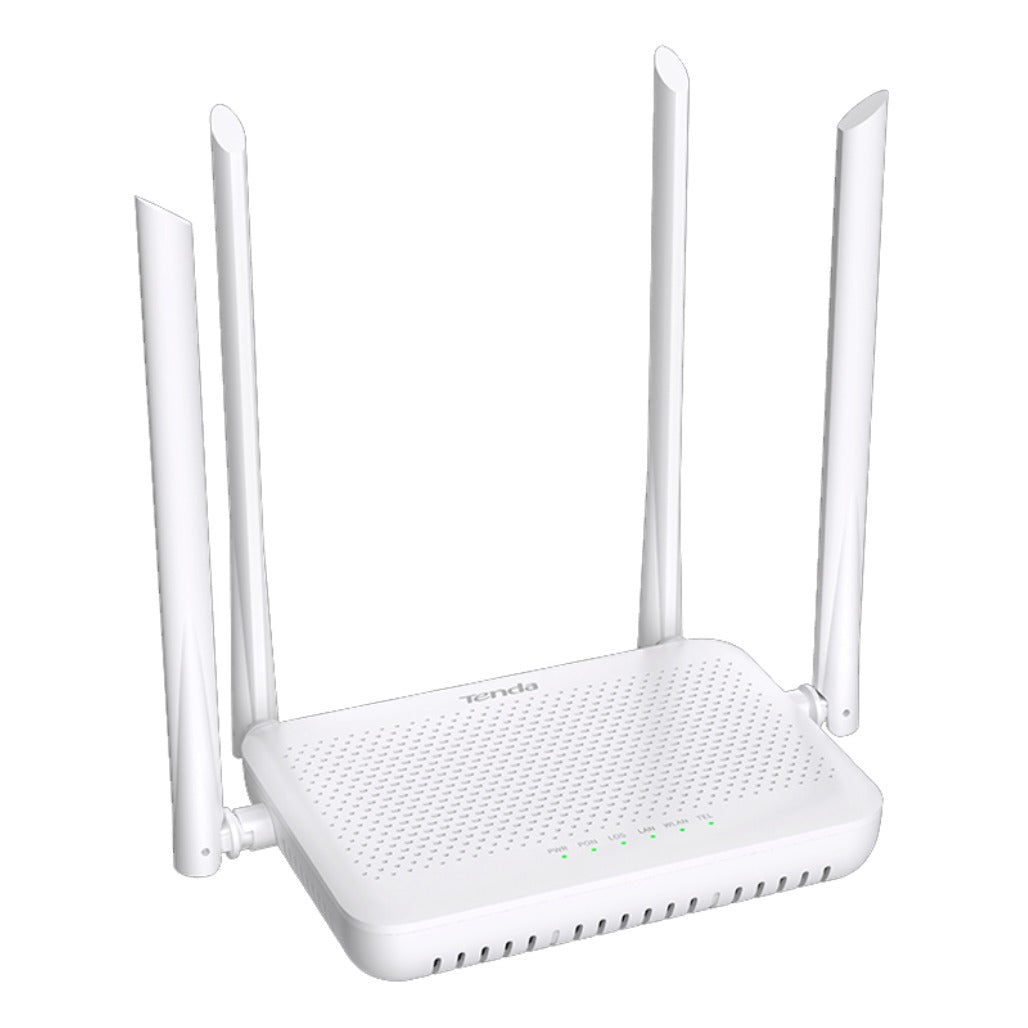

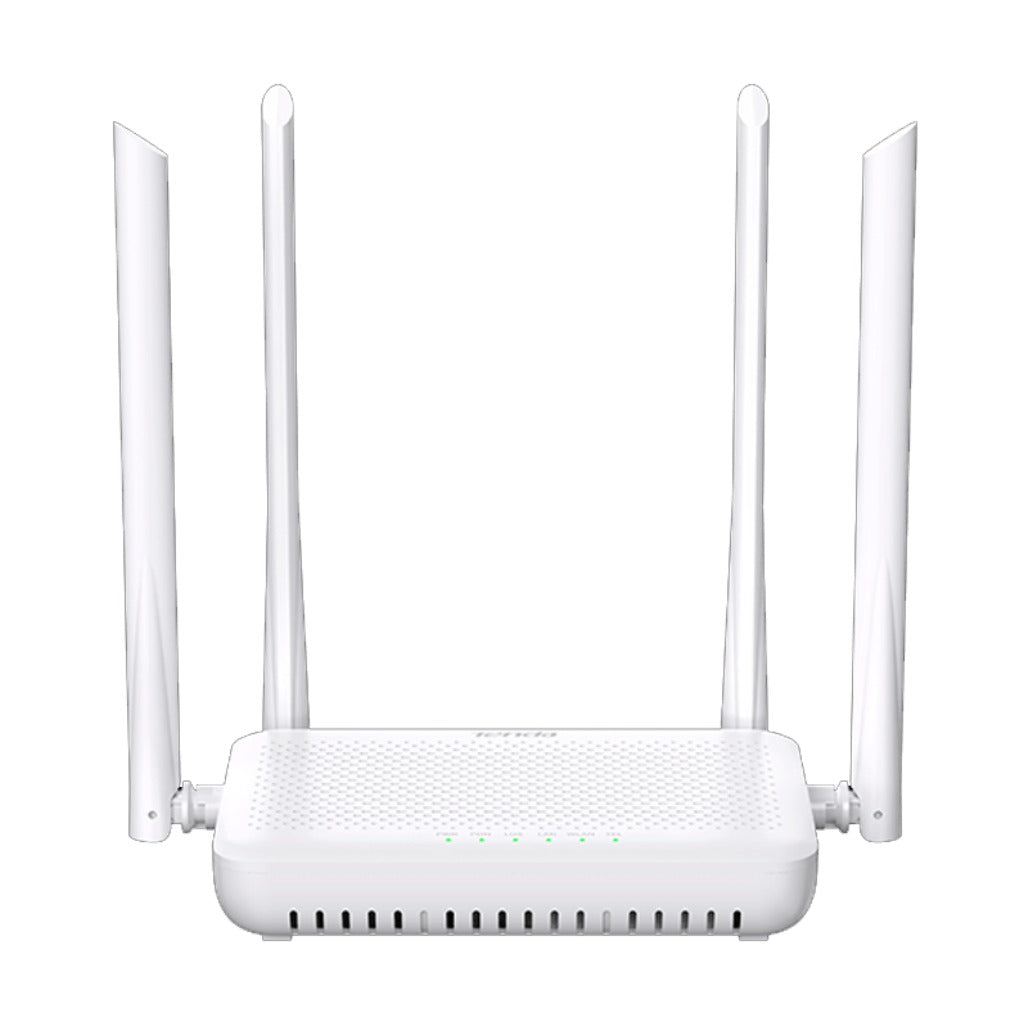

The Tenda HG10 APC xPON ONT is an AC1200 dual-band device for 2.4GHz & 5GHz wireless use, with gigabit networking through 4 x 1000Mbps RJ45 LAN ports. It includes an SC/APC or SC/UPC (optional) port for optical connectivity and features LED indicators for PWR, PON, LOS, LAN, WLAN, and TEL. With 4 x 5 dBi antennas and Max Terminal Linked up to 32 at both 2.4GHz and 5GHz, it’s built for multi-device home or business-style networking where Wi‑Fi performance and wired LAN connectivity both matter. The device supports routing mode and bridge mode access, and it offers local web management and optical power monitors. Connectivity and network behavior are supported by documented WAN connection options including PPPoE, Dynamic IP, Static IP, and Bridge, along with multiple WAN connection support. It supports DHCP server features and DHCP relay functions, plus services such as Dynamic DNS, IGMP Proxy, UPnP, MU-MIMO, and QoS with bandwidth control. For IP support, it lists IPv4 and IPv6, including DHCPv6 and MLD Proxy/MLD Snooping. For security and control, it includes options such as ALG, IP/Port/Mac/URL filtering, port forwarding, DMZ, and DDOS, as well as VPN pass-through modes for PPTP, L2TP, and IPsec. The HG10’s optical operation specifies transmit at 1310nm and receive at 1490nm, with a transmission distance up to 20km max.
Key Features
• AC1200 Dualband Wi‑Fi xPON ONT
• Frequency: 2.4GHz & 5GHz
• 4 x 1000Mbps RJ45 LAN Ports
• 1 x SC/APC or SC/UPC (optional) port
• 1 x TEL Port
• 4 x 5 dBi antennas
• Max Terminal Linked: 32 at both 2.4GHz and 5GHz
• WPS/RESET Button: 1
• LED Indicator: PWR, PON, LOS, LAN, WLAN, TEL
• DHCP Server functions: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
• WAN Connection support: PPPoE, Dynamic IP, Static IP, Bridge (Support Multiple WAN Connection)
• Services: DHCP, Dynamic DNS, IGMP Proxy, UPnP, MU‑MIMO, QOS, Preset, Easymesh
• VPN Pass-through: PPTP, L2TP, Ipsec Pass-through
• Firewall controls: ALG, IP Filter, Port Filter, Mac Filter, URL Filter, Port Forwarding, DMZ, DDOS
• QoS: Bandwidth Control
• IP Version: IPv4, IPv6
• IPv6 services: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• TR069: ACS, Connection request
• VoIP: Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm
• Optical mode: Class B+
• Optical wavelength: Transmit at 1310nm, Receive at 1490nm
• Transmission Distance: 20km Max
• Optical power range: 0.5~5dBm
• External power supply listed: DC 9V / 0.6A; also external power supply DC 12V / 1.0A
Specifications
• Model/Reference: Reference: NETWORK L31
• Product type: APC xPON ONT
• Wireless standard/data rate: Wireless: AC1200
• Speed: Gigabit
• Frequency: 2.4 & 5Ghz (2.4GHz & 5GHz)
• Antenna count: 4
• Antenna: 4 x 5 dBi antennas
• SSIDs: Main SSID at 2.4GHz and 5GHz; 4 Guest SSIDs both at 2.4GHz and 5GHz
• Max Terminal Linked: 32 at both 2.4GHz and 5GHz
• Wireless radio features: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
• Wireless security: 64/128-bit WEP; WPA/WPA2; WPA-PSK/WPA2-PSK Encryption; Wireless MAC Filtering
• Wireless channel range: 2.4G: CH1-CH13; 5G: CH36-CH48, CH149-CH165
• Supported bandwidth/channel modes: 2.4G: 20M/40M; 5G: 20M/40M/80M
• 2.4G data rates: 11n 300M
• 5G data rates: 11ac 867M
• Transmission power: 2.4G: <20 dBm (EIRP); 5G: <23 dBm (EIRP)
• Interfaces: 1 x SC/APC or SC/UPc (optional) Port; 4 x 1000Mbps RJ45 LAN Ports; 1 x TEL Port; 1 x DC Power Port
• LED Indicator: PWR, PON, LOS, LAN, WLAN, TEL
• Button: 1 x WPS/RESET Button
• Optical mode: Class B+
• Optical wavelength: Transmit at 1310nm; Receive at 1490nm
• Return loss: -60 dB or better
• Transmission distance: 20km Max
• Bandwidth/Power listing: 0.5~5dBm
• TX/RX power values listed: TX Power; RX Power: -28~-8dBm
• GPON standards: ITU G.984.1, ITU G984.2, ITU G984.3, ITU G984.4
• EPON standards: IEEE 802.3 ah
• IEEE standards listed: IEEE 802, 802.1Q, 802.10, IEEE 802.11, 802.3U, 802.3Z
• Bandwidth rates (GPON): Upstream 1.244Gbps Max, Downstream 2.488Gbps Max
• Bandwidth rates (EPON): Upstream 1.244Gbps Max, Downstream 1.244Gbps Max
• External power supply: DC 9V /0.6A (listed); DC 12V /1.0A (listed)
• Power consumption: ≤12w
• Business type/services: TR069, Internet, IPTV, VoIP
• VPN pass-through: PPTP, L2TP, Ipsec Pass-through
• Firewall features: ALG, IP Filter, Port Filter, Mac Filter, URL Filter, Port Forwarding, DMZ, DDOS
• IPv6 features: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• VoIP features: Main Proxy, Black Proxy, SIP Advanced, Forward Mode, Speed Dial, Dial Plan, Codec, Hotline, DND, Alarm
• Optical/connection note: Interconnection: not compatible with UPC
• End face: Angled 8 degree
• Insertion loss: slightly higher
• Environment: Operation Temperature: 0°c ~ 45°c; Storage Temperature; Operating Humidity: 10% ~ 95% (Non-condensing); Storage Humidity: 5% ~ 90% (Non-condensing)
• Additional environment temperature listed: 40°c ~ 70°c
• Color: Green
• Application: Analog/Video/RF/FTTX
• Certification: CE, RoHS, Anatel
• Dimension: 220.8×141.9×31mm (L×W×H)
• Package contents: 1 x HG10, 1 x Power adapter, 1 x User manual, 1 x RJ45 cable, 1 x RJ11 cable
• Reference: Reference: NETWORK L31
