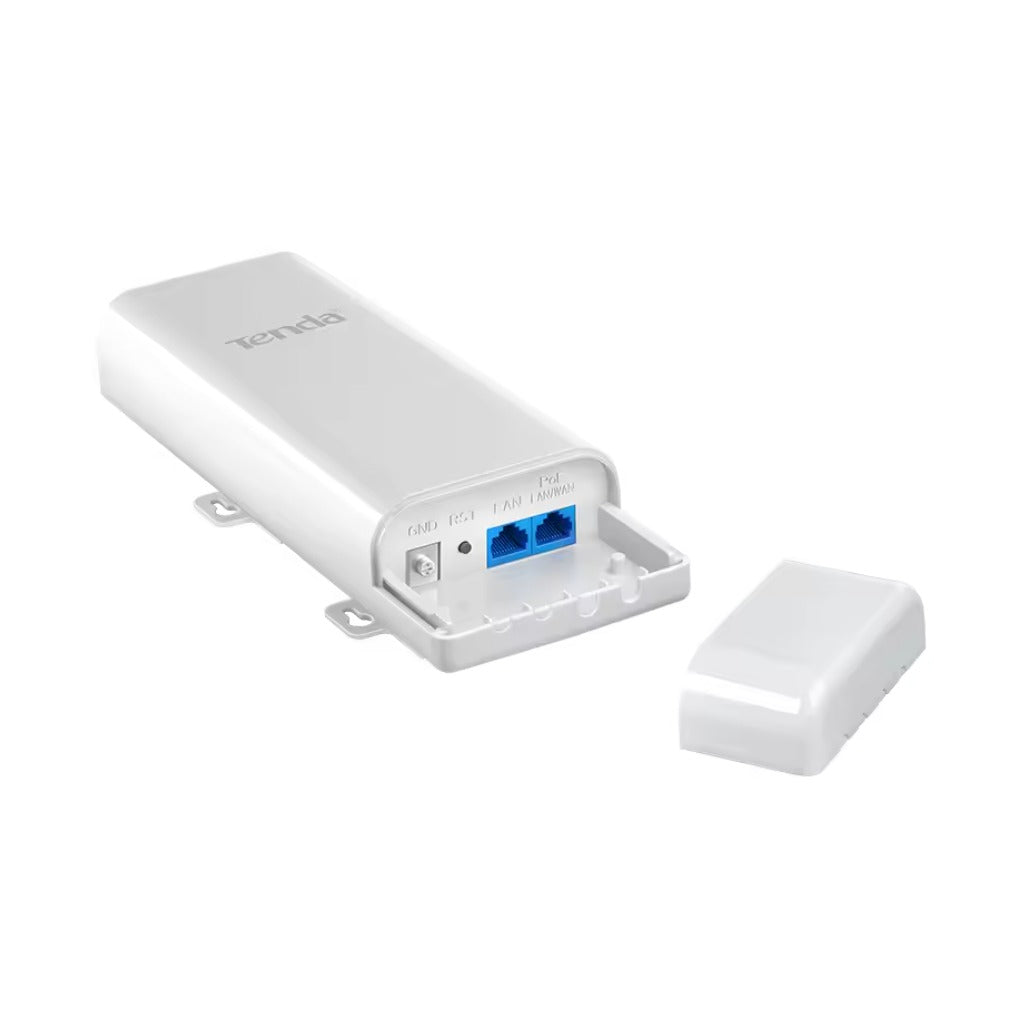

A Photo Of Tenda Point to Point O3 Poe N150 2.4Ghz Outdoor CPE

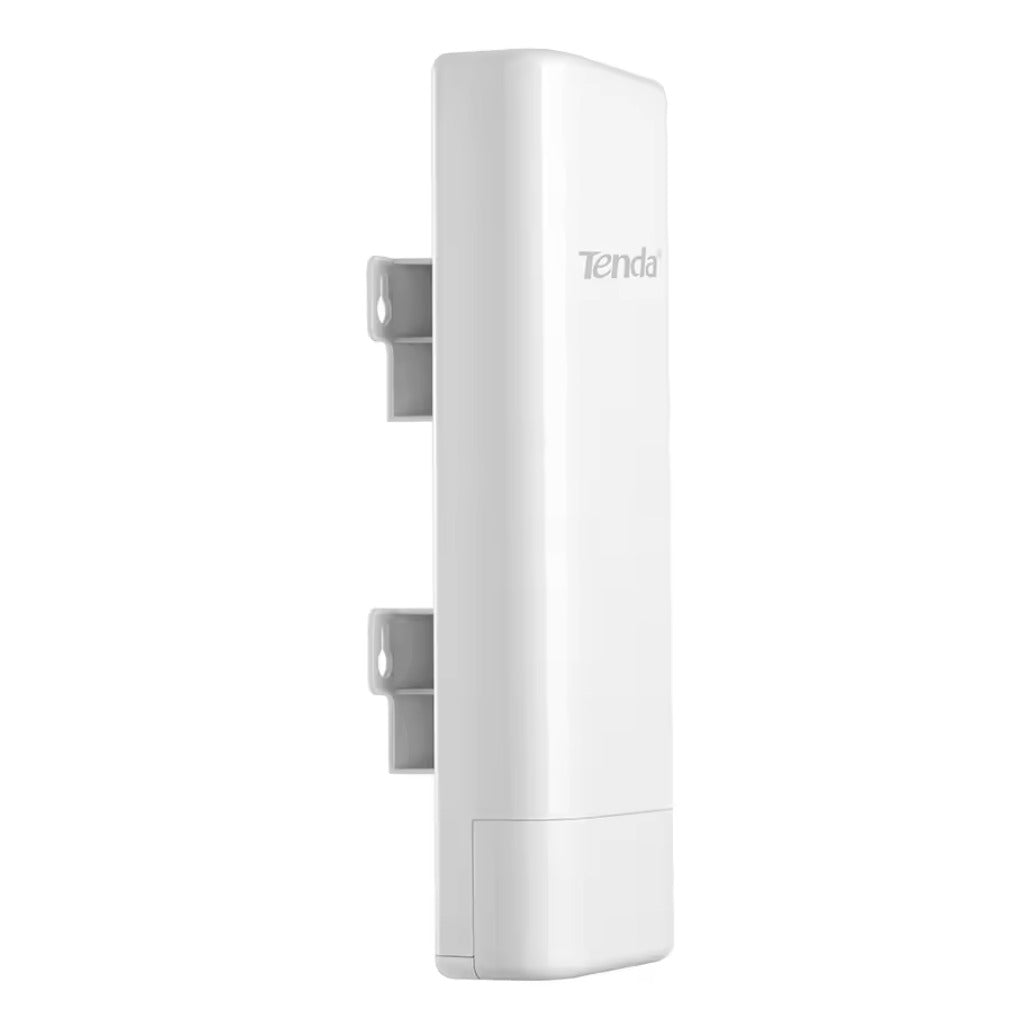

A Photo Of Tenda Point to Point O3 Poe N150 2.4Ghz Outdoor CPE

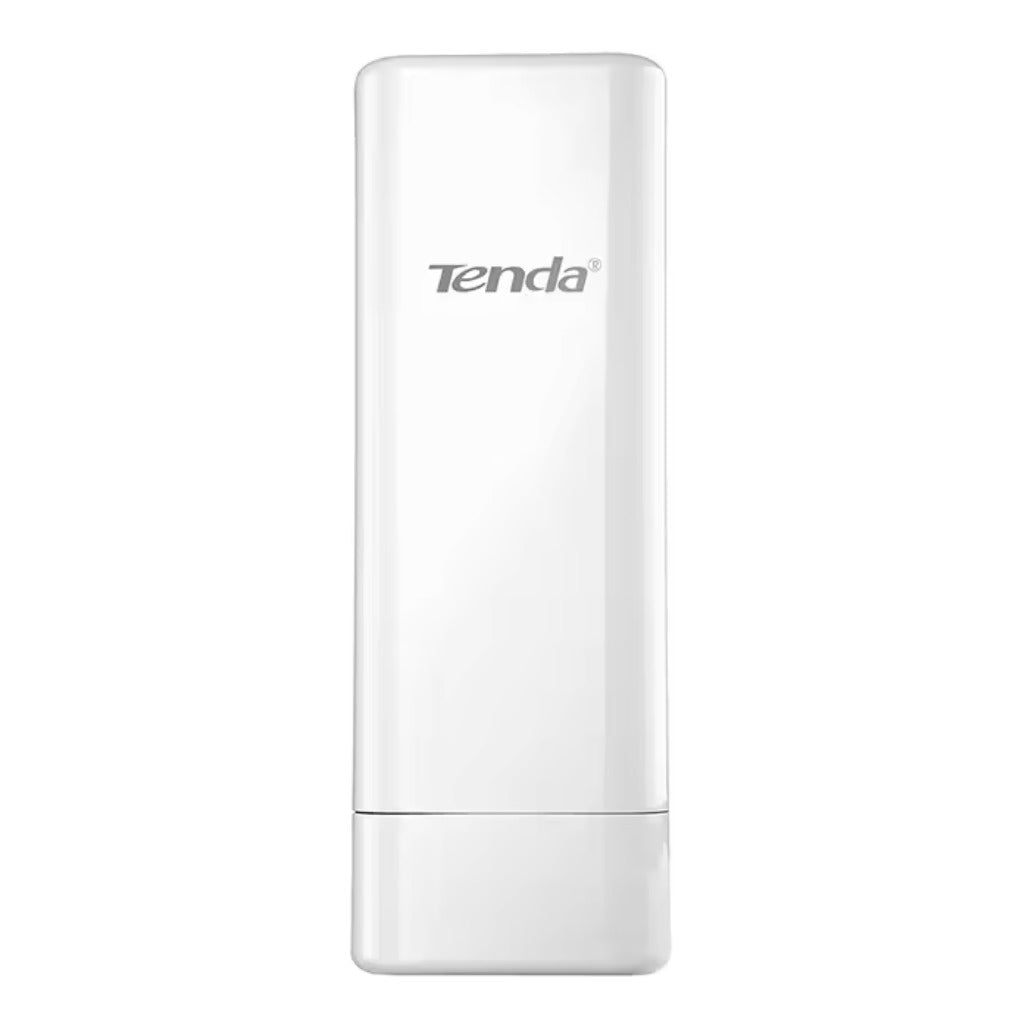

A Photo Of Tenda Point to Point O3 Poe N150 2.4Ghz Outdoor CPE

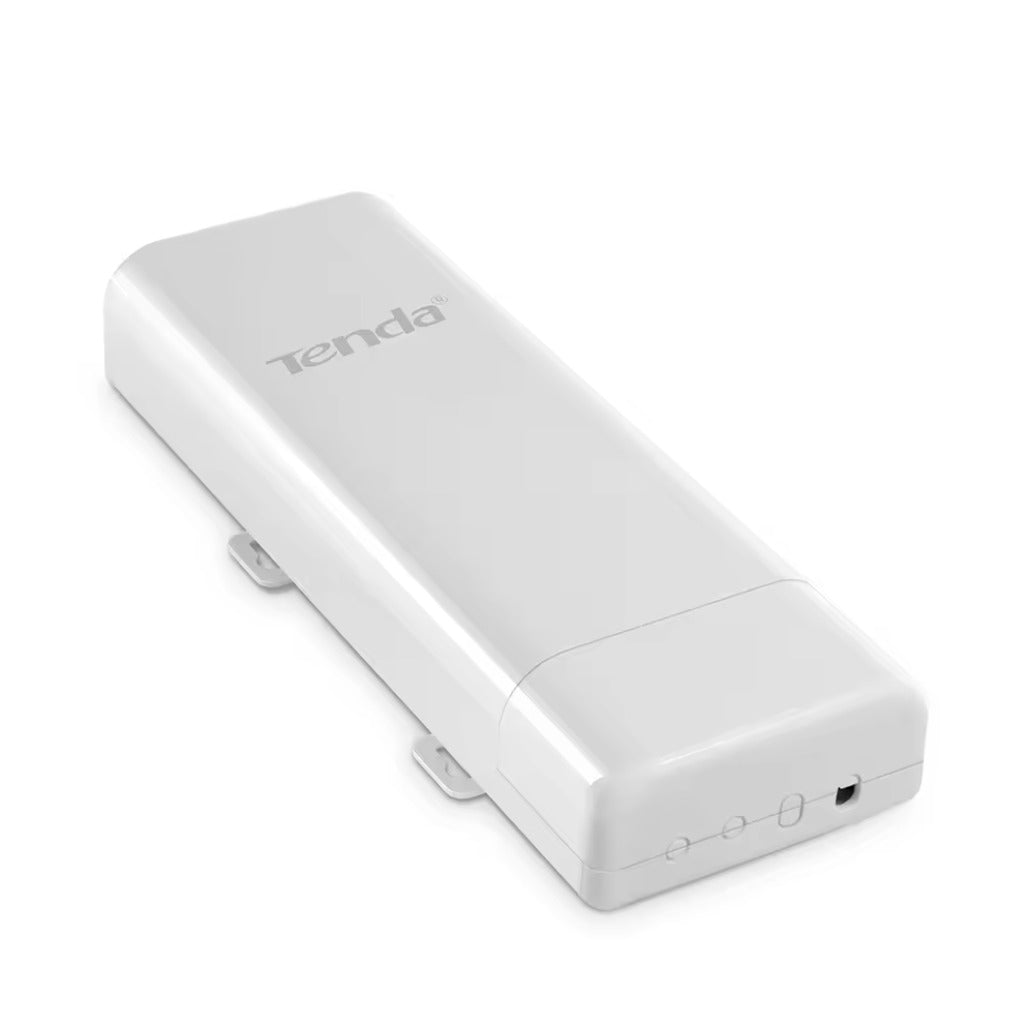

A Photo Of Tenda Point to Point O3 Poe N150 2.4Ghz Outdoor CPE

Tenda Point to Point O3 Poe N150 2.4Ghz Outdoor CPE

$45.00
$45.00
Subtotal: $45.00
Order on Whatsapp
Vendor: Tenda
SKU: O3POE-R55-J
Availability: Many In Stock
Product Type: Accessories

Excluding VAT

Tenda Point to Point O3 Poe N150 outdoor CPE is designed for 2.4GHz wireless connectivity with IEEE 802.11b/g/n support. It offers a maximum wireless rate of 150Mbps with a 20/40MHz channel bandwidth and 2.4GHz frequency range, making it suitable for point-to-point and point-to-multipoint links. Deployment is supported via Pole Mount/Wall Mount, helping you place the unit where it fits your setup. The product is positioned for private ISP access or CCTV surveillance, with multiple operating modes including AP, Station, WISP, P2MP, WDS Repeater/Router, and additional bridging capabilities. Built with a 12dBi directional antenna and horizontal/horizontal beam angles listed as Horizontal: 60° and Vertical: 30°, it uses Passive power over Ethernet for power. The unit supports TDMA and includes features such as SSID Hidden and SSID Isolation, along with wireless security options including WEP and WPA families. Network management includes DHCP Server, VPN pass-through with PPTP and L2TP, remote web access, schedule reboot, and network diagnostics like Ping, Traceroute, and Signal Scan. For user access, it includes default login details (IP, username, and password) and supports features such as firmware upgrade and backup/restore configuration.
Key Features
• Frequency Range: 2.4GHz
• Compliant Standards: IEEE 802.11b/g/n
• Wireless: N150Mbps
• Deployment: Pole Mount/Wall Mount
• Application Scenarios: PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
• Operating mode: AP/Station/WISP/P2MP/WDS Repeater/Router
• TDMA
• SSID Hidden
• SSID Isolation
• Channel Bandwidth: 20/40MHz
• Channel Shift
• Weak Signal Client Limitation
• WMM Capable
• APSD Capable
• Transparent Bridge
• VLAN Tagging for SSID
• DHCP Server
• VPN Pass-Through
• PPTP,L2TP
• Remote Web access
• Schedule Reboot
• Page Timeout
• Ping Watchdog
• Dyndns
• noip, dyndns.org
• Network Diagnoses: Ping, Traceroute, Signal Scan
• Time and Date Setting
• Firmware upgrade
• Backup/Restore Configuration
• Username Managerment
• System Logs
• Managed By Controller
• PC Software: CPE Assistant
• Antenna Polarization: Horizational Polarization
• Antennas Gain: 12dbi
• Antenna Beamwidth: GND
• Reception Sensitivity: 11b 1Mbps -92dBm±1.5dBm; 11n MCS0: -92±1.5dBm; 11n MCS7: -72±1.5dBm
• Waterproof Level: IP65
• Lightning Protection: Passive PoE
• Interfaces: 2*10/100Mbps Ethernet Port
• Reset Button: 1*Reset Button
• LED Indicator: PoE/LAN,LED1,LED2,LED3
• Transmission Power: Adjustable power by 1dBm
• Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
Specifications
• Model: O3
• Reference: NETWORK L120
• Frequency: 2.4Ghz
• Wireless: Wifi 4
• Antenna: Internal
• Antenna Gain: 12dBi
• Antenna Beamwidth: GND
• Horizontal: 60°
• Vertical: 30°
• Data Rate: 150Mbps
• Maximum Wireless Rate: Horizontal: 60° Vertical: 30°
• Speed: 10/100
• Deployment: Pole Mount/Wall Mount
• Working Modes: AP/Station/WISP/P2MP/WDS Repeater/Router
• Power: Passive power over ethenet
• Power Method: Passive power over ethenet via PoE/LAN (+4,5pins - 7,8pins)
• Voltage range: 9-13.8V DC
• Power Consumption: 4.3W
• Waterproof Level: IP65
• Reset Button: 1*Reset Button
• LED Indicator: PoE/LAN,LED1,LED2,LED3
• Receiver Sensitivity: 11b 1Mbps -92dBm±1.5dBm; 11n MCS0: -92±1.5dBm; 11n MCS7: -72±1.5dBm
• Operating mode: AP/Station/WISP/P2MP/WDS Repeater/Router
• Channel Bandwidth: 20/40MHz
• Wireless Client isolation
• Wireless Access Control
• Wireless Security: 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
• Wireless Security: WPA&WPA2-PSK
• TDMA
• Transparent Bridge
• VLAN Tagging for SSID
• DHCP Server
• VPN Pass-Through: PPTP,L2TP
• Remote Web access
• Schedule Reboot
• Page Timeout
• Ping Watchdog
• Dyndns: noip, dyndns.org
• Network Diagnoses: Ping, Traceroute, Signal Scan
• Time and Date Setting
• Firmware upgrade
• Backup/Restore Configuration
• Username Managerment
• System Logs
• Managed By Controller
• PC Software CPE Assistant
• Default login IP: 192.168.2.1
• Default Login Username: admin
• Default Login Password:
• Certification: FCC/CE/RoHS
• Operation Temperature: 30℃ ~ 60℃
• Storage Temperature: -40℃ ~ 70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity:
• Dimension: 270*94.86*67.5mm
• Package Contents: 1*2.4GHz 11n 12dBi 150Mbps outdoor CPE O3; 1*PoE Injector; 1*Quick Installation Guide; 1*Power Adapter
