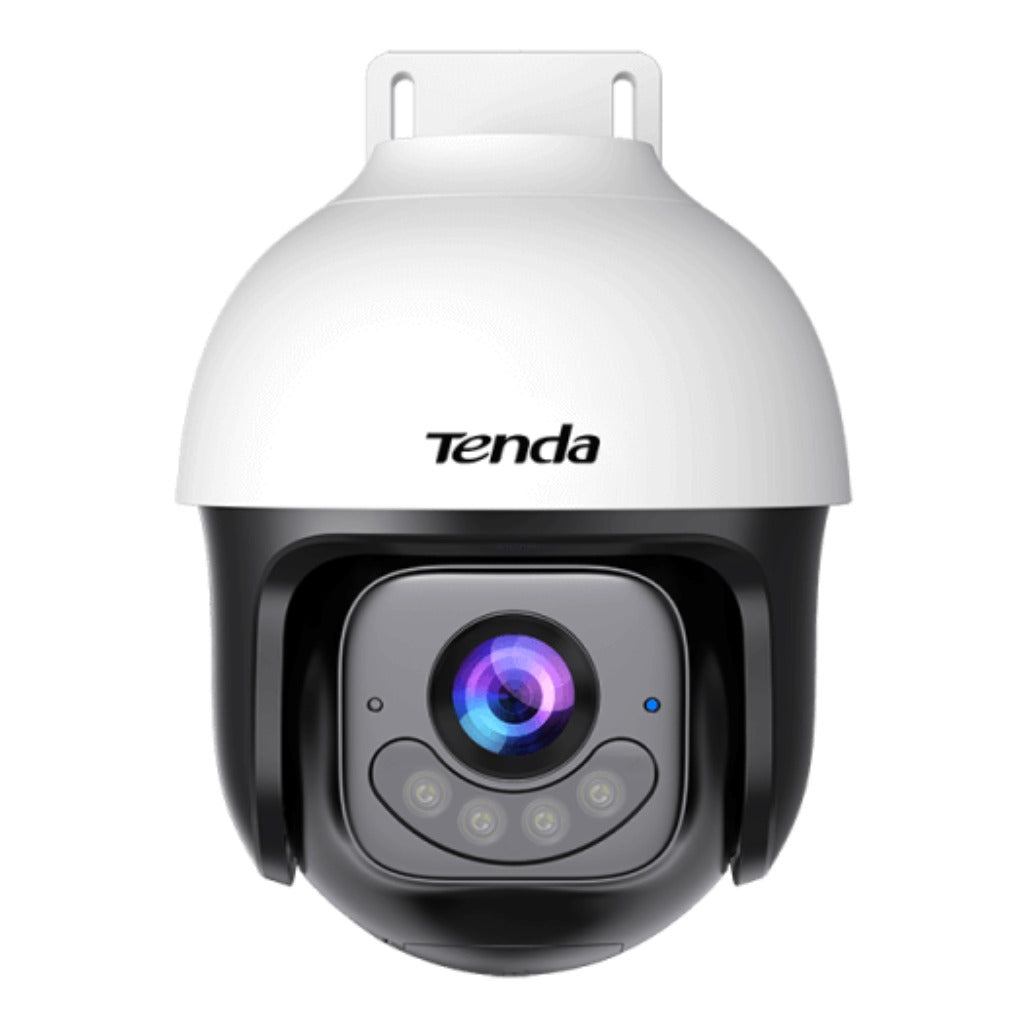

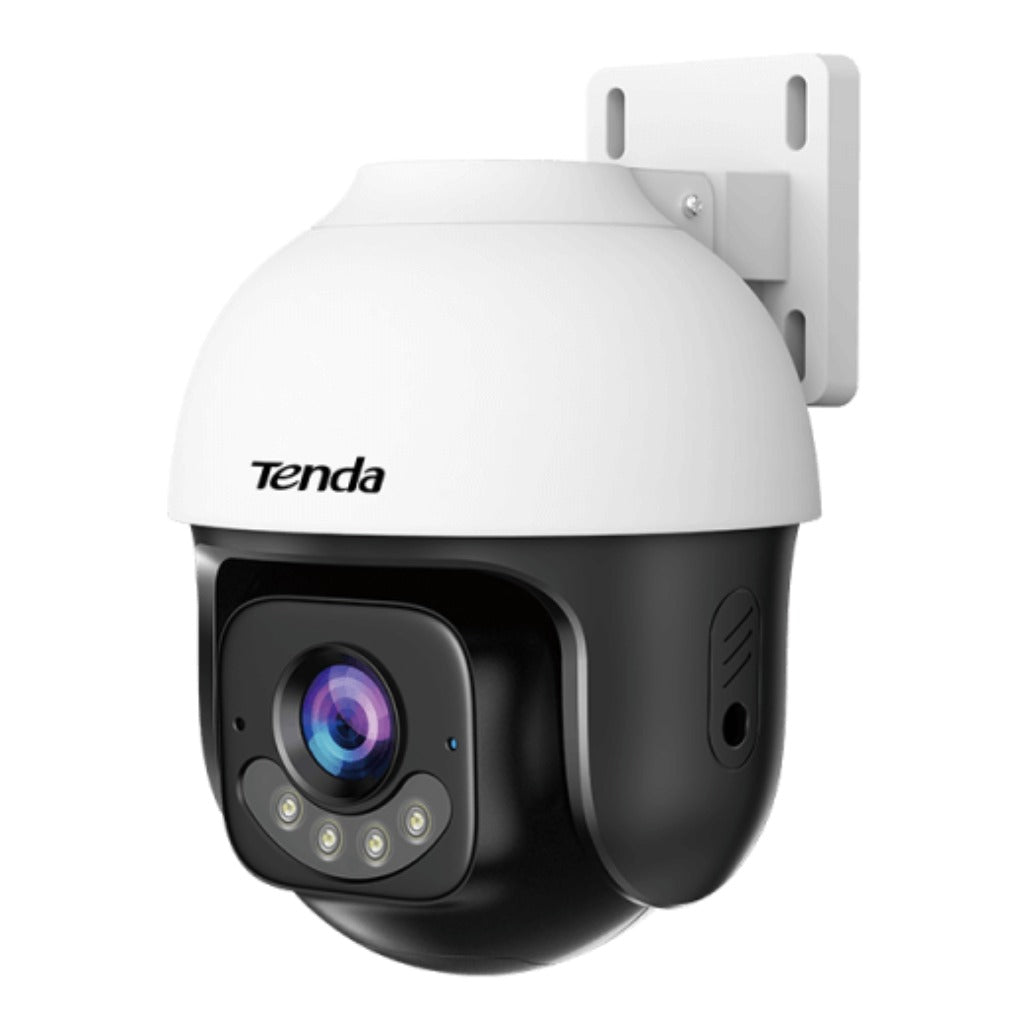

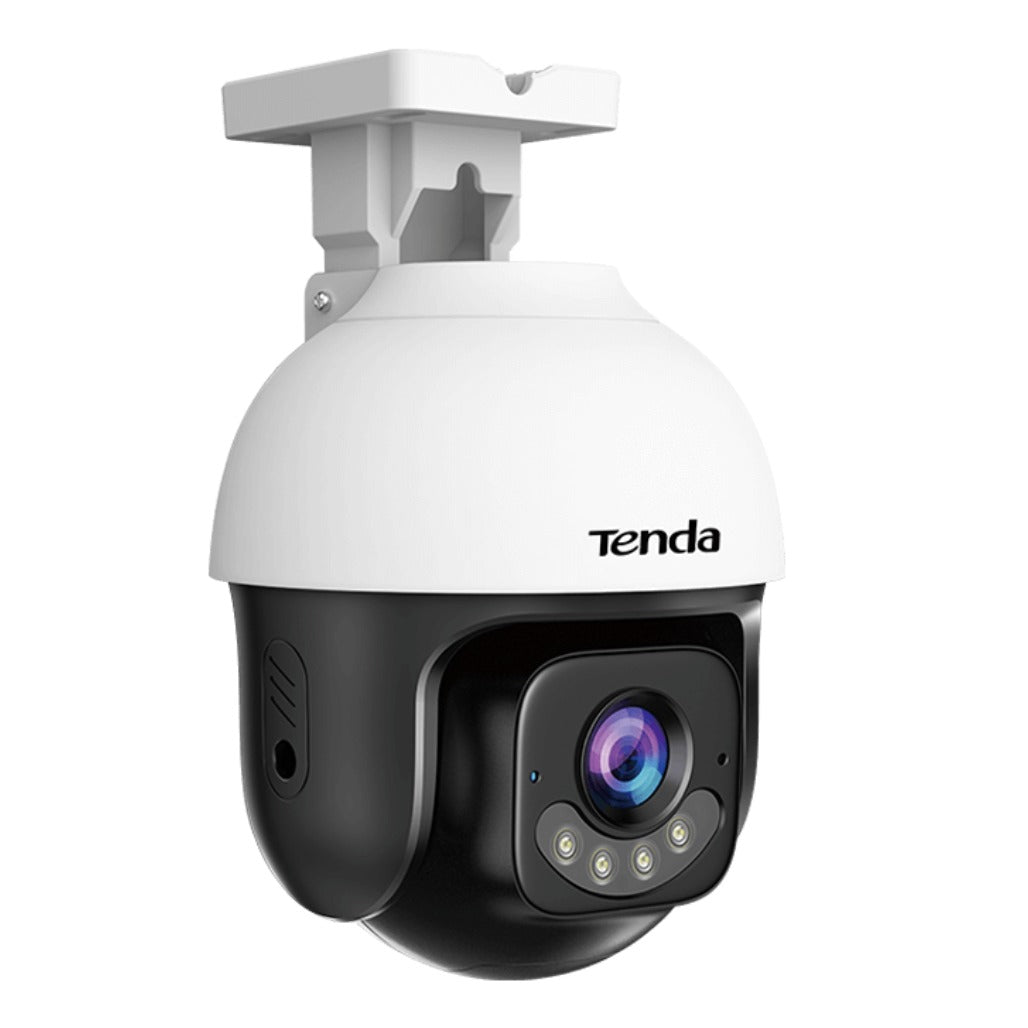

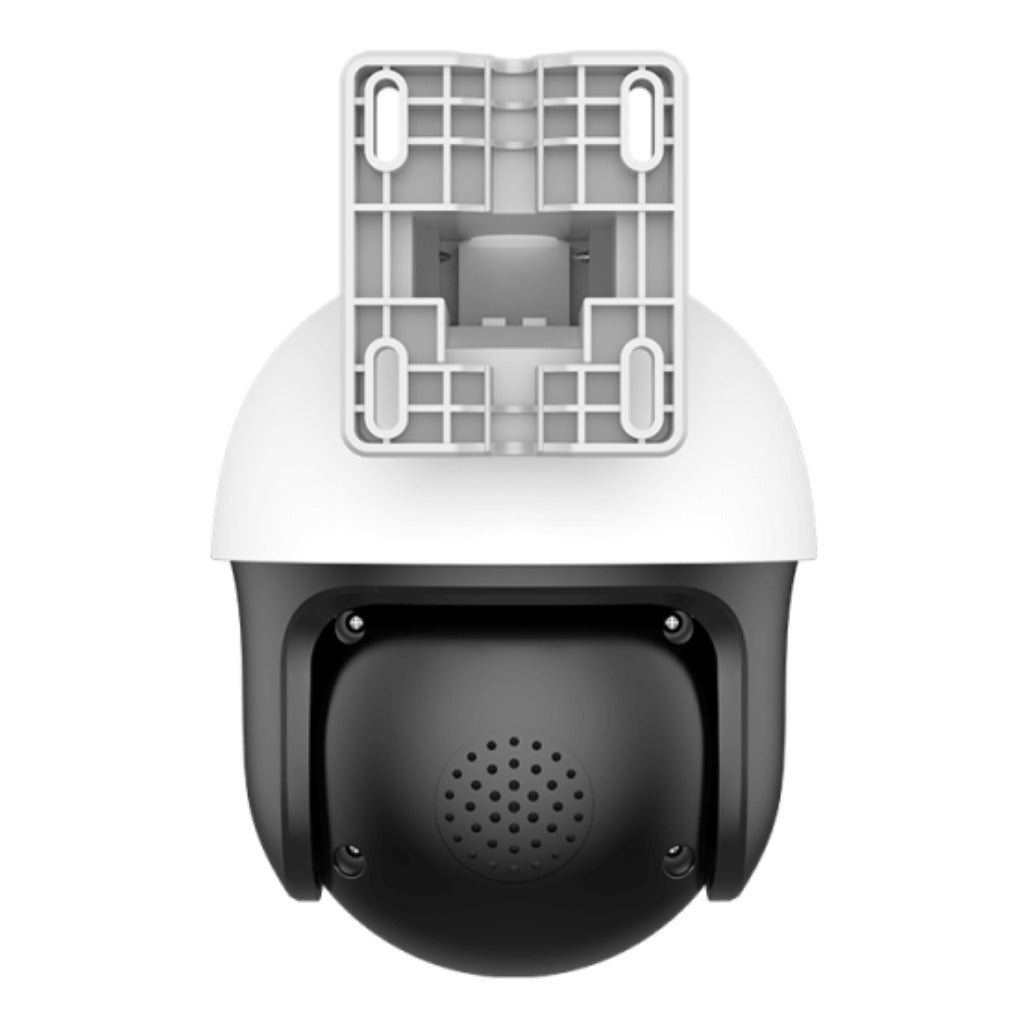

The Tenda CH7-WCA IP WiFi pan tilt camera is designed for outdoor use and features a 5MP image sensor with a 1/3 Progressive Scan CMOS sensor. It uses an ICR type day and night approach and includes a lens with an aperture of F1.6. For nighttime visibility, the camera offers supplementary light with 4 IR lights and 4 spotlights, plus IR wavelength at 850nm for night vision. The camera’s night vision and video pipeline include video encoding formats H.265 and H.264, with main stream resolutions listed across 2880 ×1620, 2560 ×1440, 2304 ×1296, 1920 × 1080, and 1280 × 720. The sub stream resolution is 640 × 360, with frame rate support of 1-30fps (default 20fps). For flexible monitoring, the camera supports pan and tilt movement with pan movement range 0°--355° and tilt movement range 0°--90°, including preset (6) and patrol options such as Panoramic Patrol and Preset Patrol. Motion and tampering detection are supported via smart detection, alongside human detection and vehicle detection, and smart linkage includes sound & light alert and human tracking. Audio options include audio encoding formats G.711A, G.711U, and AAC, with an audio sampling rate of 8 kHz, plus audio communication capabilities described with built-in MIC and adjustable microphone volume and built-in speaker. Connectivity options include an Ethernet port (1 RJ45, 10Mbps/100Mbps auto-negotiation) and Wi‑Fi using IEEE 802.11 b/g/n/ax with a 2.4GHz band (2412MHz–2472MHz, CH1–CH13). The device includes a built-in Micro SD card slot supporting up to 512GB storage and supports ONVIF and multiple network protocols including TCP/IP, UDP, HTTP, HTTPS, DHCP, DNS, DDNS, RTSP, and WebSockets.
Key Features
• 5MP Wi-Fi6
• Day and Night (ICR type)
• Focal length: 4mm
• Smart Full-Color Switching
• 4 IR Lights and 4 Spotlights
• Supplementary Light Distance: not stated
• IR wavelength: 850nm
• Night vision mode: not stated (listed under video)
• Video encoding format: H.265, H.264
• Main stream resolutions: 2880 ×1620, 2560 ×1440, 2304 ×1296, 1920 × 1080, 1280 × 720
• Sub stream resolution: 640 × 360
• Frame rate: 1-30fps (Default 20fps)
• Bit rate: 512kbps -- 4096kbps
• Bit rate control: CBR, VBR
• Audio encoding format: G.711A, G.711U, AAC
• Audio sampling rate: 8 kHz
• Image enhancement: DWDR, BLC, HLC, 3D DNR
• Privacy mask: 4 Areas
• Ethernet port: 1 RJ45, 10Mbps/100Mbps auto-negotiation
• ONVIF Support
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
• Client: TDSEE (mobile phone), TDSEE STUDIO (PC)
• Web browser: Chrome, Edge, Opera
• Pan movement range: 0°--355°
• Tilt movement range: 0°--90°
• Preset: 6
• Patrol: Panoramic Patrol, Preset Patrol
• Internal antenna
• Wireless standard: IEEE 802.11 b/g/n/ax
• Transmission rate: up to 287Mbps
• Channel width: 20/40 MHz
• Modulation: DSSS/OFDM/OFDMA
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Motion detection
• Tampering detection
• Human detection
• Vehicle detection
• Smart linkage: Sound&light Alert, Human Tracking
• DIY Audio: 3 Customized Audios
• Built-in MIC, adjustable microphone volume
• Storage: Built-in Micro SD Card Slot, up to 512GB
• LED indicator
• Plastic
• Smart integration: Amazon Alexa
• Protection level: IP65
• Installation method: Wall Mounting, Ceiling Mounting, Pole Mounting
• Certification: CE, RoHS, FCC, RCM, UKCA
• Installation template: Mounting Bracket
• Mounting accessories kit
• Waterproof kit
• Quick installation guide
• Up to 30 m/100 ft (depending on environment)
• Smart Mode, Full Color Mode, Black & White Mode
• Two-way Audio, Voice Input
• Wi‑Fi frequency band: 2.4GHz: 2412MHz-2472MHz (CH1-CH13)
• Transmit power: 2.4GHz: <0.1W(EIRP)
• Audio output: Built-in Speaker, 83 dBA (Alarm sound at 1 meter), adjustable sound level
• Dual color (red & blue)
• Power: 12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug
• Material: Plastic
• Product dimension: 146mm x 120mm x 120mm (5.7'' × 4.7'' × 4.7'' )
• Package dimension: 251 mm x 167 mm x 131 mm (9.9'' × 6.6'' × 5.2'' )
• Product weight: 370g (0.82lb)
• With package weight: 820g (1.81lb)
• Operating temperature: -10°C ~ 45°C (14°F ~ 113°F)
• Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating humidity: 10% ~ 95% RH (non-condensing)
• Storage humidity: 3% ~ 95% RH (non-condensing)
• Package contents: Power Adapter (cord length: 3m)
Specifications
• Reference: NETWORK L192
• Mobile App: Yes
• CAM Type: Outdoor
• Power: DC
• Image Sensor: 1/3 Progressive Scan CMOS sensor
• Day and Night: ICR type
• Lens aperture: F1.6
• FOV: Horizontal FOV: 79.1°, Vertical FOV: 43.3°, Diagonal FOV: 94.9°
• Illuminator: Supplementary Light
• Supplementary Light: 4 IR Lights, 4 Spotlights
• IR Wavelength: 850nm
• Supplementary Light Distance: not stated
• Night Vision Mode: Video
• Video Encoding Format: H.265, H.264
• Main Stream Resolution: 2880 ×1620, 2560 ×1440, 2304 ×1296, 1920 × 1080, 1280 × 720
• Sub Stream Resolution: 640 × 360
• Frame Rate: 1-30fps, Default 20fps
• Bit Rate: 512kbps -- 4096kbps
• Bit Rate Control: CBR, VBR
• Audio Encoding Format: G.711A, G.711U, AAC
• Audio Sampling Rate: 8 kHz
• Image Enhancement: DWDR, BLC, HLC, 3D DNR
• Privacy Mask: 4 Areas
• Ethernet Port: 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port
• ONVIF Support
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets
• Client: TDSEE (mobile phone), TDSEE STUDIO (PC)
• Web Browser: Chrome, Edge, Opera
• Pan Movement Range: 0°--355°
• Tilt Movement Range: 0°--90°
• Preset: 6
• Patrol: Panoramic Patrol, Preset Patrol
• Antenna: Internal antenna
• Wireless Standard: IEEE 802.11 b/g/n/ax
• Transmission Rate: up to 287Mbps
• Channel Width: 20/40 MHz
• Modulation: DSSS/OFDM/OFDMA
• Frequency Band: 2.4GHz: 2412MHz-2472MHz (CH1-CH13)
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Alarm Smart Detection: Motion Detection, Tampering Detection, Human Detection, Vehicle Detection
• Smart Linkage: Sound&light Alert, Human Tracking
• DIY Audio: 3 Customized Audios
• Interface: Built-in MIC, adjustable microphone volume
• Storage: Built-in Micro SD Card Slot, Up to 512GB
• Reset Button: not stated
• LED Indicator
• General: Plastic
• Smart Integration: Amazon Alexa
• Protection Level: IP65
• Installation Method: Wall Mounting, Ceiling Mounting, Pole Mounting
• Certification: CE, RoHS, FCC, RCM, UKCA
• Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating Humidity: 10% ~ 95% RH (non-condensing)
• Storage Humidity: 3% ~ 95% RH (non-condensing)
• Installation Template: Mounting Bracket
• Mounting Accessories Kit
• Waterproof Kit
• Quick Installation Guide
• Distance: Up to 30 m/100 ft (depending on environment)
• Smart Mode: Smart Mode, Full Color Mode, Black & White Mode
• Audio: Two-way Audio, Voice Input
• Audio Input: not stated
• Audio Output: Built-in Speaker, 83 dBA (Alarm sound at 1 meter), adjustable sound level
• Supplementary Light: Dual Color (red & blue)
• Power: 12 V DC, 1A, Ø5.5mm&Ø2.1mm Power Plug
• Material: Plastic
• Product Dimension: 146mm x 120mm x 120mm (5.7'' × 4.7'' × 4.7'' )
• Package Dimension: 251 mm x 167 mm x 131 mm (9.9'' × 6.6'' × 5.2'' )
• Product Weight: 370g (0.82lb)
• With Package Weight: 820g (1.81lb)
• Package Contents: Power Adapter (cord length: 3m)
• Reference/Reference field: NETWORK L192
