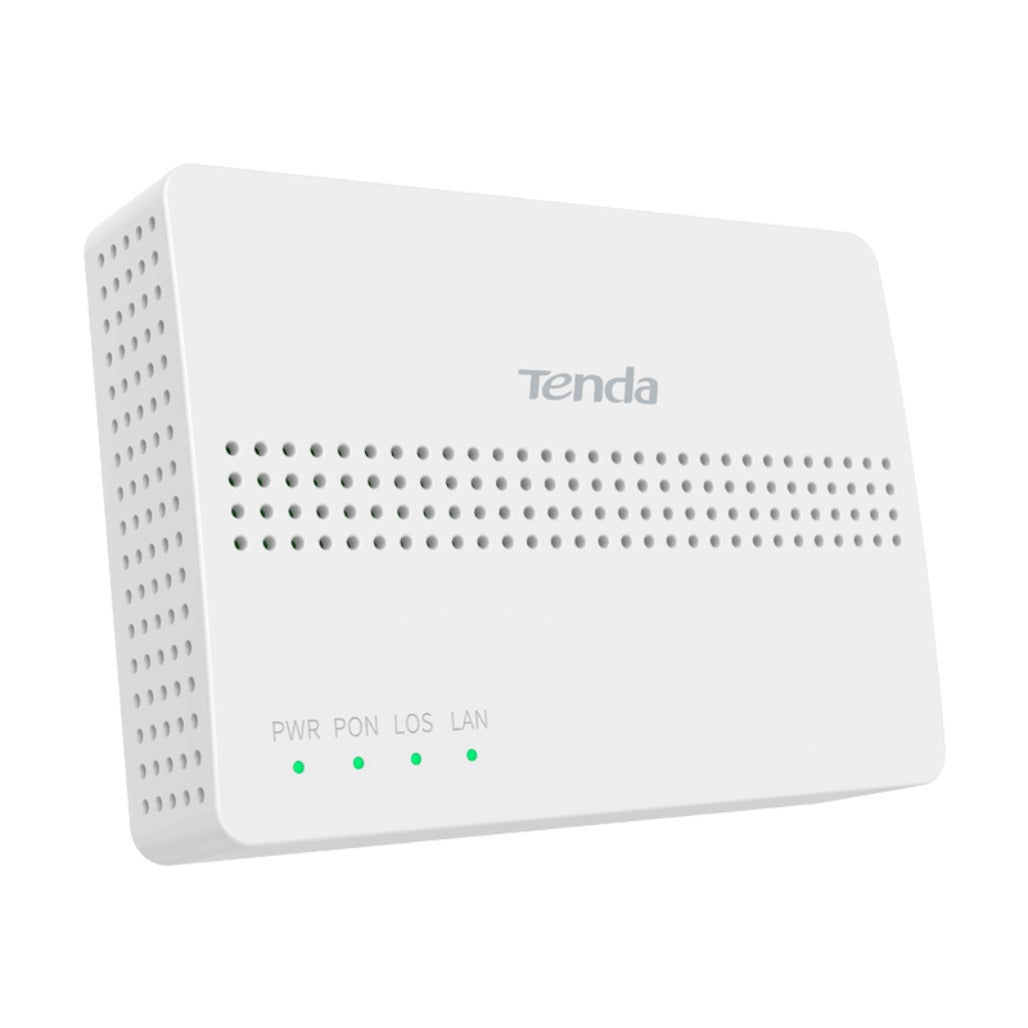

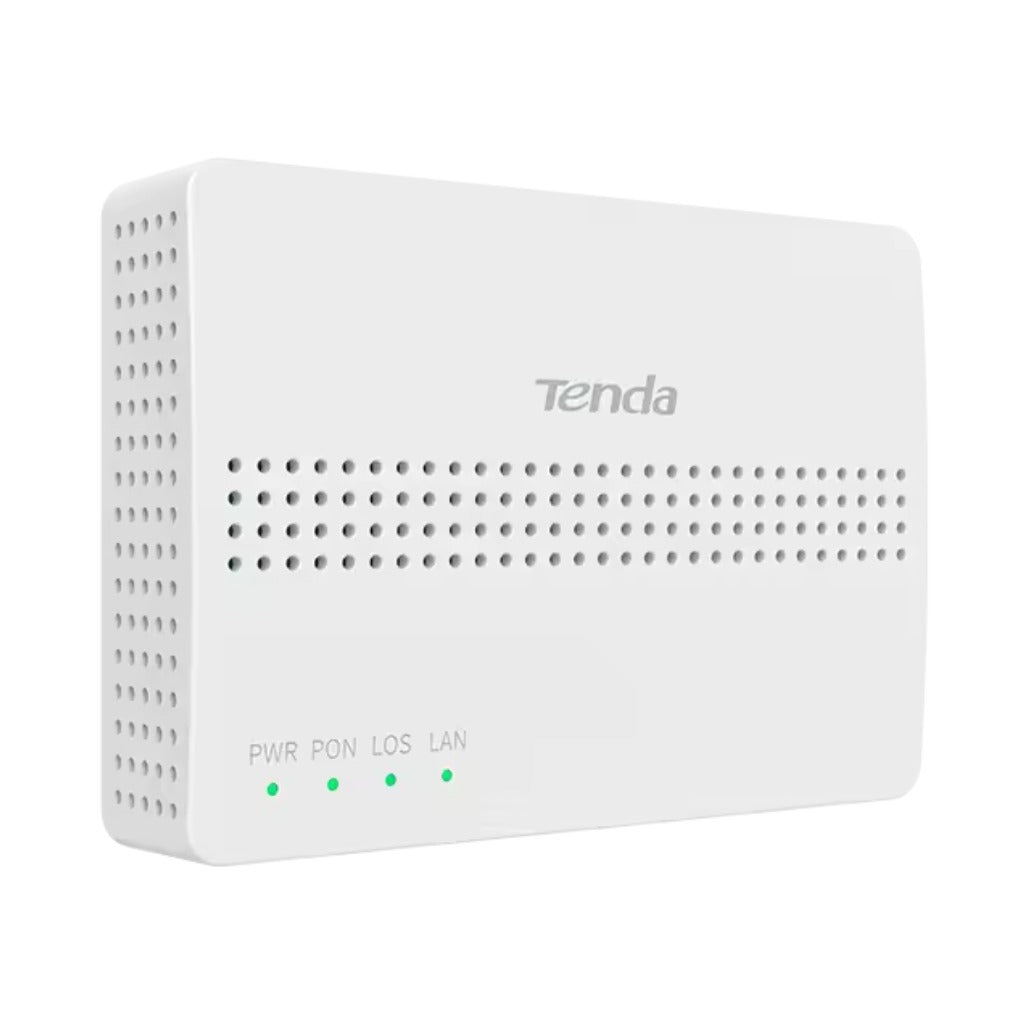

Tenda Gpon Single Port Xpon ONT Gigabit HG1-APC is an XPON ONT designed for business internet access. It provides 1*SC/APC XPON port and 1*1000Mbps RJ45 LAN port, along with 1*DC port for external power. The optical specifications include transmit at 1310nm and receive at 1490nm, with a transmission distance of 20km max. For performance, it supports upstream 1.25Gbps max and downstream 2.5Gbps max. With routing mode and bridge mode access support, it can fit different WAN connection setups such as PPPoE, Dynamic IP, and Static IP. For management and networking features, this ONT includes DHCP Server capabilities, including DHCP relay and DHCP client list functions with address reservation. It supports DHCP and Dynamic DNS services, along with firewall options such as ALG, IP filter, Port filter, Mac filter, URL filter, Port forwarding, and DMZ. IPv4 and IPv6 are supported, including Radvd, DHCPv6, MLD Proxy, and MLD Snooping. Operationally, it runs at an operation temperature of 0°C ~ 45°C, and operating humidity of 10% ~ 90% (non-condensing). For diagnostics and troubleshooting, it offers Ping, Ping6, Tracert, and Tracert6, while certification includes CE, FCC, RoHS, and Anatel.
Key Features

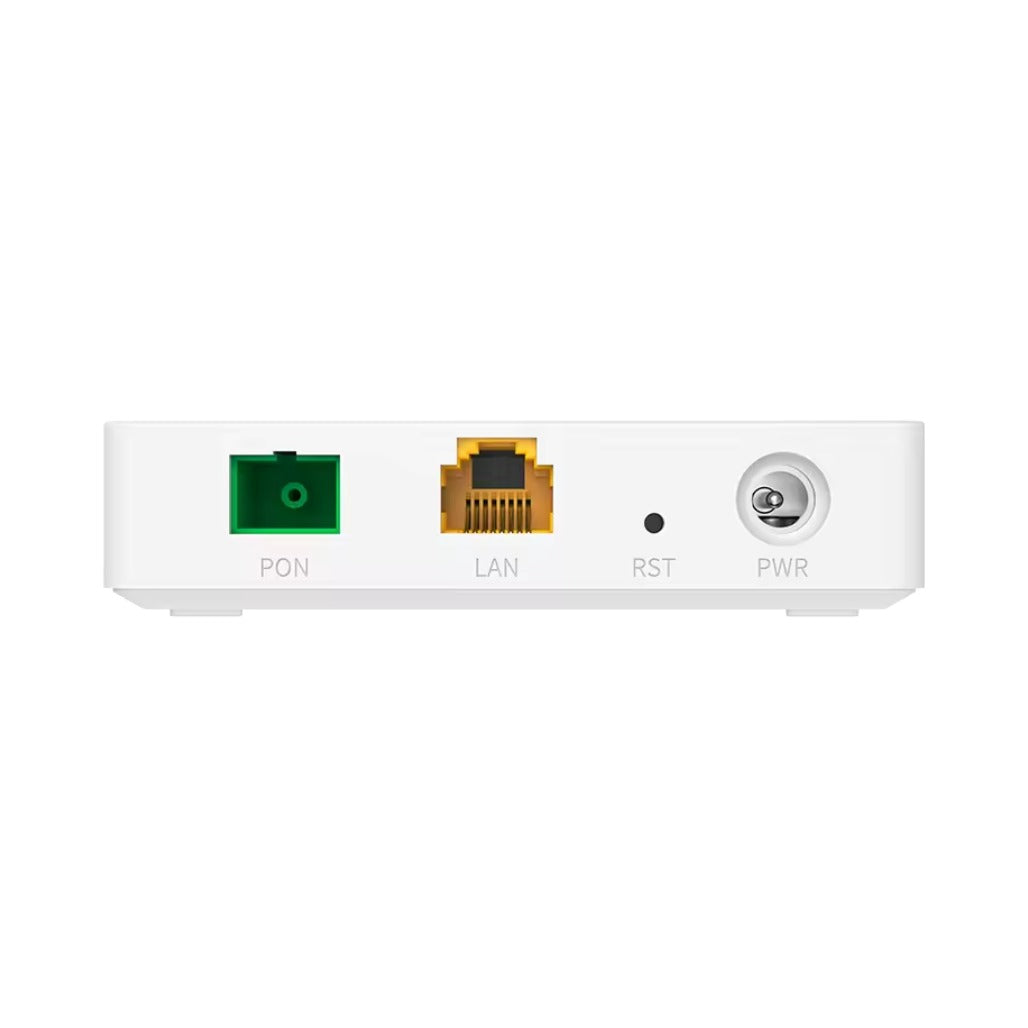

• 1*SC/APC XPON Port
• 1*1000Mbps RJ45 LAN Port
• 1*DC Port
• Optical Mode: Class B+
• Optical Wavelength: Transmit at 1310nm, Receive at 1490nm
• Transmission Distance: 20km Max
• Bandwidth: Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
• Power: DC 9V / 0.6A
• Power Consumption: ≤5.4W
• Supports routing mode and bridge mode access
• Local Web management and optical power monitors
• WAN Connection: PPPoE, Dynamic IP, Static IP, Bridge
• DHCP Server: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
• Services: DHCP, Dynamic DNS
• Firewall: ALG, IP Filter, Port Filter, Mac Filter, URL Filter, Port Forwarding, DMZ
• IP Version: IPv4, IPv6
• IPv6: Radvd, DHCPv6, MLD Proxy, MLD Snooping
• Diagnostics: Ping, Ping6, Tracert, Tracert6
• Certification: CE, FCC, RoHS, Anatel
• Mobile App: Yes
• Speed: Gigabit
Specifications
• Reference: NETWORK L35
• TX Power: 28~-8dBm
• RX Power: (value listed as) 28~-8dBm
• End face: Angled 8 degree
• Return loss: -60 dB or better
• Insertion loss: slightly higher
• Color: Green
• Application: Analog/Video/RF/FTTX
• Interconnection: not compatible with UPC
• Interfaces: 1*SC/APC XPON Port, 1*1000Mbps RJ45 LAN Port, 1*DC Port
• Transmission Distance: 20km Max
• Bandwidth: Upstream 1.25Gbps Max, Downstream 2.5Gbps Max
• External Power Supply: DC 9V / 0.6A
• Supports routing mode and bridge mode access
• Local Web management and optical power monitors
• Power Consumption: ≤5.4W
• Wireless: 40°C ~ 70°C
• Operation Temperature: 0°C ~ 45°C
• Storage Temperature: (not specified)
• Operating Humidity: 10% ~ 90% (Non-condensing)
• Storage Humidity: 5% ~ 90% (Non-condensing)
• Package Contents: 1*HG1, 1* Power adapter, 1* Quick install guide
• Power: DC
• Speed: Gigabit
• Mobile App: Yes
