Versatile AI cameras for securing any location
Around the clock surveillance
See clearly at night with four high-power IR LEDs that provide 30 meters of night vision range.
Detailed video recordings in all lighting conditions
Ensure security despite high contrast light conditions with High Dynamic Range (HDR), which provides detailed images in both shadows and bright spots.
Enhance your surveillance with camera-based AI
Be proactive with surveillance. AI features empower security staff to watch over multiple locations more efficiently.
People and Vehicle Detection
Protect against loitering and boost security with cameras that leverage AI to distinguish people and vehicles from other moving objects with high accuracy.
Intrusion Detection
Identify trespassers without maintaining dedicated staff on site. Draw virtual borders to automatically receive alerts when people or vehicles cross.
Instant Search
Investigate incidents quickly after they happen. Instant Search lets operators search for activities of interest within a certain area.
Effortless setup and access from anywhere
With hassle-free setup and on-the-go access, these cameras are suitable for single-site small business installations and sprawling multi-site deployments alike.
Optimized for Surveillance Station
BC500 and TC500 are designed to work in perfect harmony with Surveillance Station.
Easy setup, configuration, and firmware updates
No Surveillance Station device licenses required
Streamlined setup and configuration
Simply connect and go. All camera settings, including image quality and network configuration, can be modified directly in Surveillance Station.
Stay in the know with DS cam
DS cam is the powerful companion mobile app for Surveillance Station, available for free on iOS and Android.
Easily stay on top of security
Receive notifications sent to your phone the moment events are triggered. Quickly review the events of the day with a few taps.
See the action live
Watch up to 6 live feeds at the same time. If an event catches your eye, take a snapshot for a closer look.
Define detection zones
Select specific areas to monitor for accurate and relevant alerts.
Reliability and security you can depend on
Integrated safeguards ensure surveillance availability, data security, and privacy.
Enterprise-grade reliability and availability
Edge storage to increase system reliability
In case of network failure, these cameras can failover to a MicroSD card, increasing system reliability and ensuring continuous recording.
Add redundancy to your deployment
Surveillance Station Centralized Management System (CMS) provides efficient management for multi-site deployments along with footage backup and automatic failover protection to ensure continuous and uninterrupted surveillance.
Archive your videos offsite
Easily perform automated offsite archival with Archive Vault. Archive recordings from small-scale recording servers to larger off-site servers to add redundancy and enable longer footage retention.
Simultaneously record to the cloud
Add an additional layer of protection to your critical footage with C2 Surveillance. In the event your server is stolen or destroyed, your videos will remain accessible in the cloud.
From recording to archiving, your video is protected
Effortless firmware updates
Set custom update schedules to keep cameras up to date with the latest security patches while avoiding downtime during critical periods.
Privacy masking and watermarks
Conceal sensitive areas from being recorded and directly watermark live feeds to deter and track unauthorized recordings.
Encrypt your recordings
Lock recordings away using separate encryption keys to prevent unauthorized access in case the recording server or administrative credentials are compromised.
HTTPS and SRTP support
Encrypt your video streams to ensure the security and privacy of your transfers.
Hardware Specs
Hardware Specifications |
TC500 |
|
Optical |
Image Sensor |
1/2.7" |
IR LED wavelength |
850 nm |
|
Max. IR distance |
30m (98.4ft) (0.001lux) |
|
Shutter Speed |
1/16000 s to 1/30 s |
|
Day & Night |
Automatically removable infrared-cut filter |
|
Lens |
Lens type |
Fixed Focal |
Focal Length |
2.8 mm |
|
Field of View |
110° H, 56° V, 132° D |
|
DORI |
D: 60m, O: 24m, R: 12m, I: 6m |
|

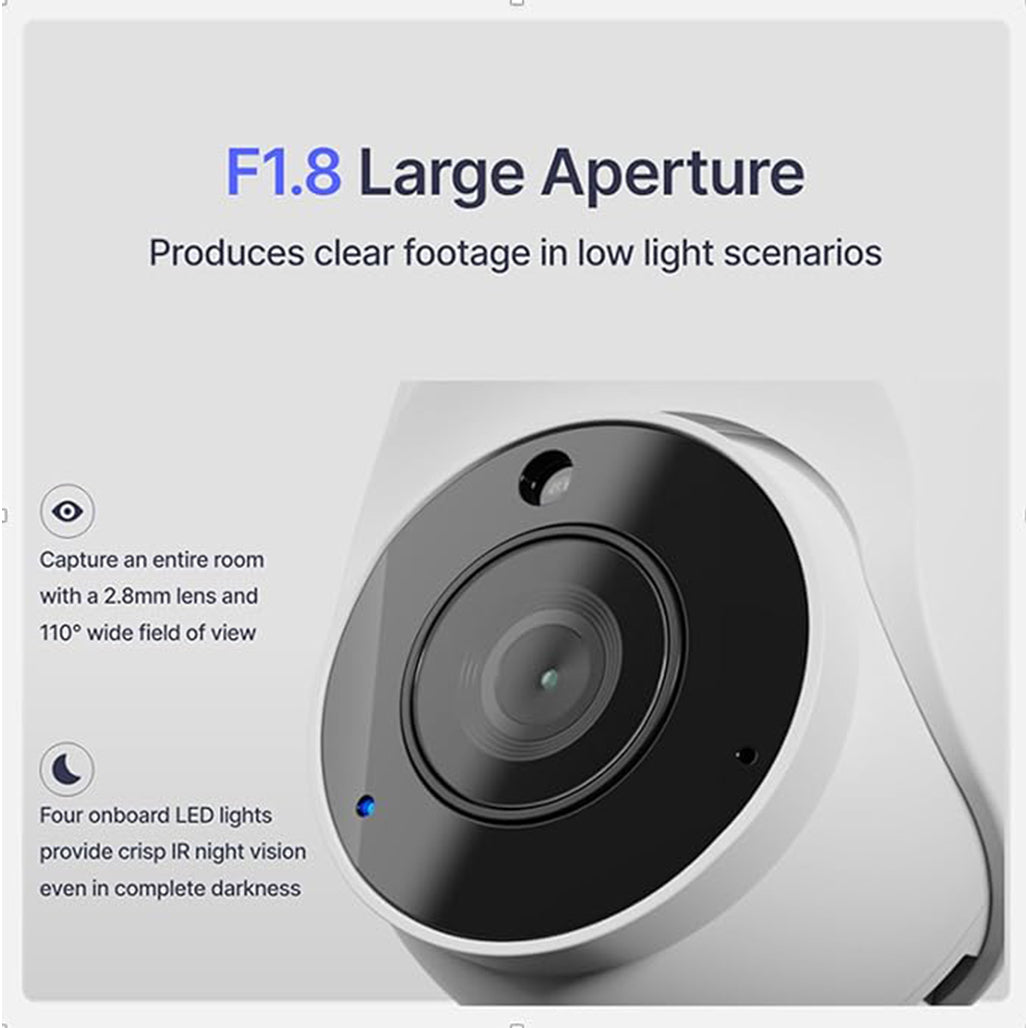

Aperture |
F1.8 |
|
Video |
Max. video resolution |
2880x1620 @ 30 FPS |
Multi-exposure HDR |
Yes |
|
DNR |
· 3DNR · 2DNR |
|
Audio |
Microphone |
|
I/O |
Ethernet |
RJ45 10M/100M Ethernet port X 1 |
Reset |
Yes |
|
On-Board Storage |
Micro SD card slot X 1 |
|
Power Supply |
IEEE 802.3af Type 1 Class 3 or 12V DC |
|
Note |
· Compatible DC power adapter: 12V/1A (Ø2.1mm) · The product does not include a PoE switch or a 12V DC power adapter. Please purchase separately. |
|
General |
Form Factor |
Turret |
Dimension |
Ø97 × 88 mm (Ø3.82 x 3.46”) |
|
Weight |
387 g (0.85 lbs) |
|
Temperature |
Operating Condition |
Starting temperature:-30°C to 50°C (-22°F to 122°F) |
Storage Condition |
Storage temperature:-40°C to 60°C (-40°F to 140°F) |
|
Certification |
· FCC · CB · IC · CE · UKCA · BSMI · VCCI · RCM · KC · JATE |
|
Environment |
· REACH Compliant · WEEE Compliant · ROHS Compliant |
|
Waterproof |
IP67 |
|
Vandal |
IK10 |
|
NDAA Compliant |
Yes |
|
TAA Compliant |
Yes |
|
Packaging Content |
· Main Unit X 1 · Installation guide X 1 · Screw pack X 1 · RJ45 cap cover X 1 |
Software Specifications |
TC500 |
|
Video & Audio |
Main Stream |
2880x1620 @ 30 FPS |
Sub Stream |
1920×1080 @ 15 FPS |
|
Video Format |
· H.264 · H.265 |
|
Bitrate Control |
· VBR · MBR |
|
Audio Compression |
G.711 |
|
Audio Denoise |
Yes |
|
Image Adjustment |
· Brightness · Contrast · Sharpness · Saturation · White Balance · Exposure Control · High Dynamic Range (HDR) · 3D/2D Noise Reduction · 50/60 Hz Flicker Reduction · Day/Night mode · Overlay |
|
Day/Night Mode |
· Auto · Day · Night · Schedule |
|
Video Orientation |
· Mirror · Flip · Rotation (0°, 90°, 180°, 270°) |
|
Privacy Mask |
· Removeable/Unremovable mode · Up to 5 zones |
|
Max RTSP Connections |
4 |
|
Analytics |
Event Analytics |
· Audio Detection · Tampering Detection · Motion Detection |
People & Vehicle |
· People Detection · Vehicle Detection · Crowd Detection · Loitering Detection |
|
Intrusion |
One way or Two way |
|
Instant Search |
· Motion · Vehicle · People |
|
Security |
IP Filter |
· Auto Block · Allow/Block list |
Connection Management |
Yes |
|
Firmware Update |
· Automatically update to the important version · Automatically update to the latest version · Manual upload |
|
Signed Firmware |
Yes |
|
HTTPS |
Yes |
|
SRTP |
Yes |
|
Storage Management |
Storage |
SD Card & Synology NAS |
SD Card Recording Mode |
· Event Analytics · Disconnected with NAS |
|
Note |
SD Card capacity under 128GB is tested by Synology |
|
Camera Web Interface |
Liveview |
Yes |
Network |
· Auto Block · Allow/Block list · Connection Management · Fixed IP/DHCP |
|
System |
· Reset · Restart · Manual Firmware Upgrade · DST · Time Zone |
|
Camera Log Export |
Yes |
|
Protocol Support |
HTTP, HTTPS, TLS v1.2, TCP/IP, UDP, IPv4, UPnP, RTSP, NTP, DHCP, SSL, RTP, SRTP |
|
Supported Browsers |
Google Chrome |
|
Supported Language |
English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 |
|
Software Requirement |
Surveillance Station |
Surveillance Station 9.1 or higher |
Surveillance Station Client |
Surveillance Station Client version 2.1.0 or higher |
|
DS Cam |
· Android DS cam 3.7.0 or higher · iOS DS cam 5.6.0 or higher |
|
Camera Tool |
1.0.0 |
|
Note |
Built-in Surveillance Device License |
