The TS-932PX-4G network attached storage system is designed for fast data access, flexible drive configurations, and efficient network performance in modern IT environments. A 64-bit ARM quad-core processor is utilized to support reliable multitasking, while integrated encryption and floating-point processing are provided for secure and consistent file operations. High-speed connectivity is enabled through dual 10GbE SFP+ ports and dual 2.5GbE ports, allowing large files and concurrent workloads to be handled smoothly.

A hybrid 9-bay design is implemented to support both 3.5-inch and 2.5-inch SATA drives, making capacity scaling and SSD acceleration achievable without complexity. Expandable DDR4 memory is supported to accommodate growing workloads, while hot-swappable drive bays are included to reduce downtime during maintenance. Compact tower construction, efficient cooling, and controlled power consumption are combined to ensure dependable operation in professional and advanced home environments.

Key Features

High-Speed Network Connectivity
Dual 10GbE SFP+ ports and dual 2.5GbE ports are provided to ensure high bandwidth and low latency. Faster file transfers and improved multi-user access are achieved, making the system suitable for virtualization, backup, and media workflows.

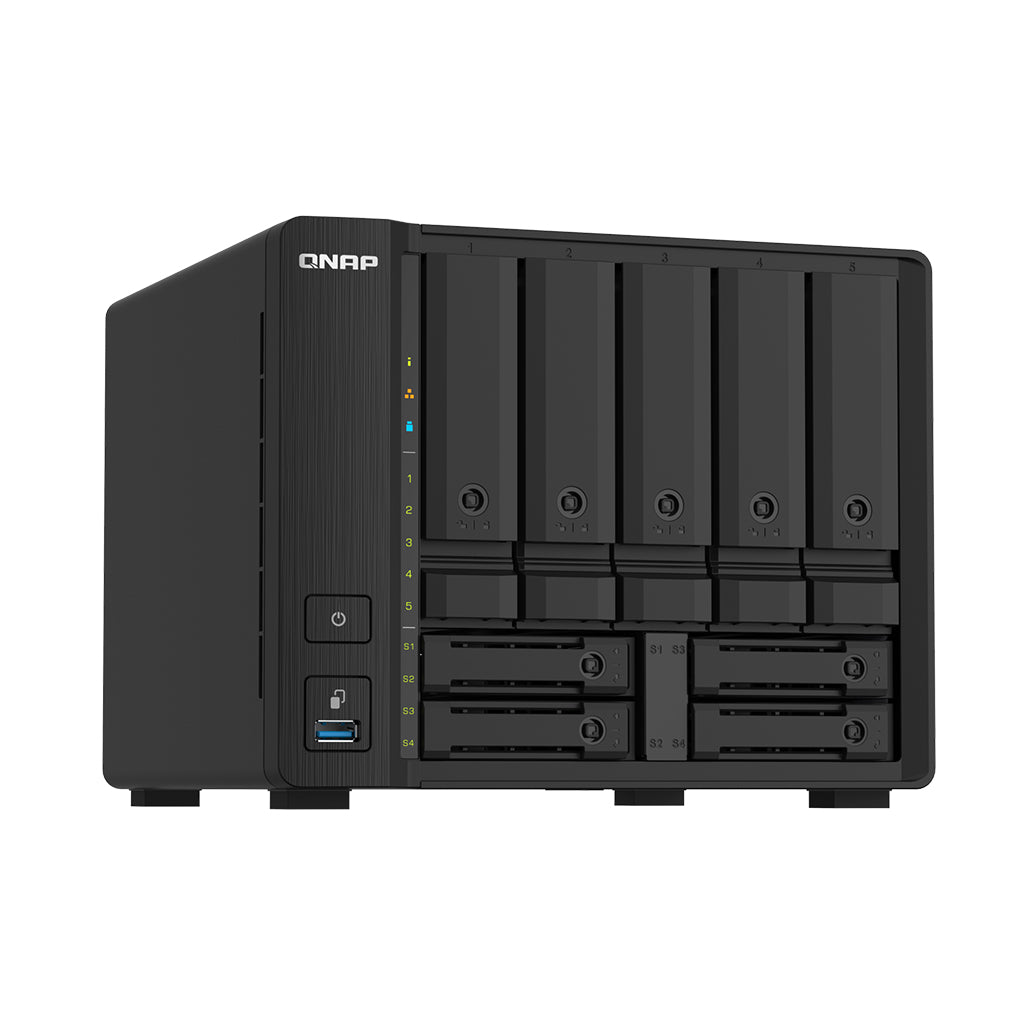

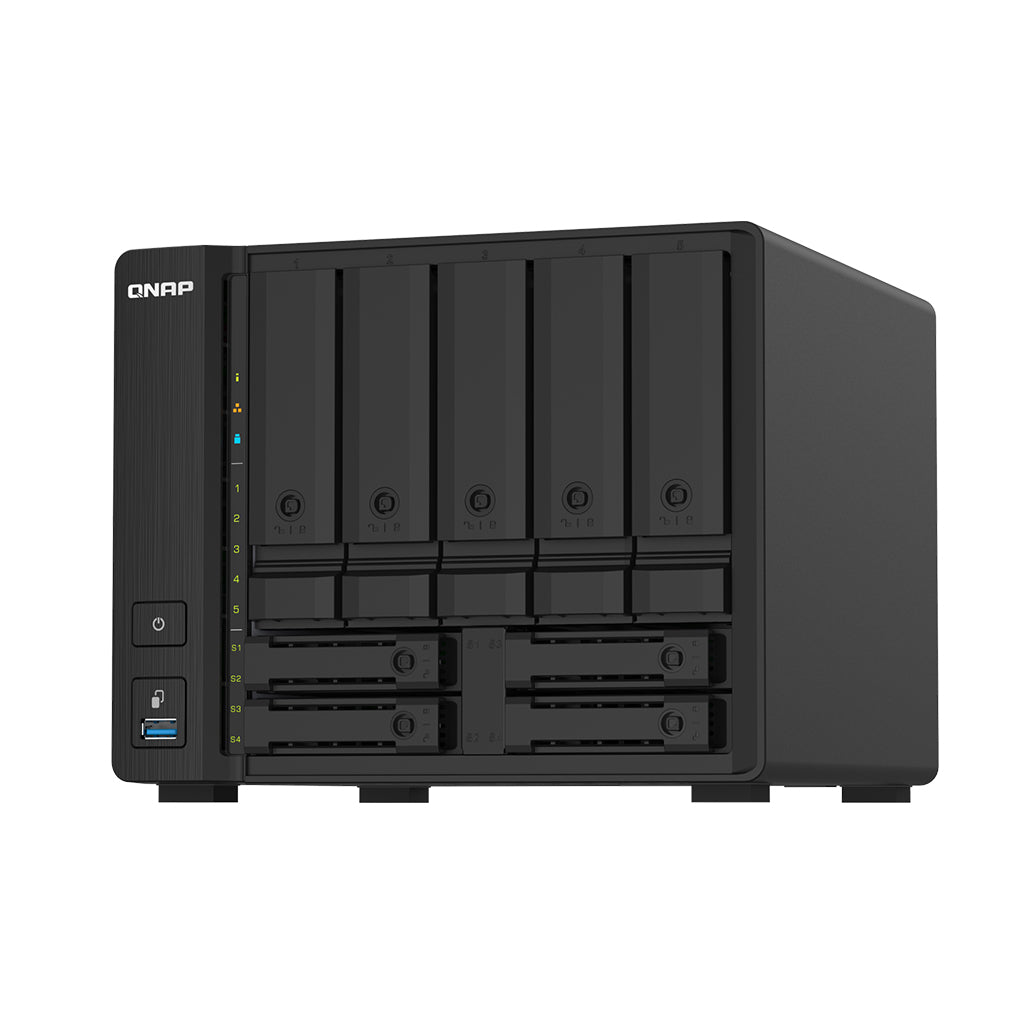

Flexible 9-Bay Storage Architecture

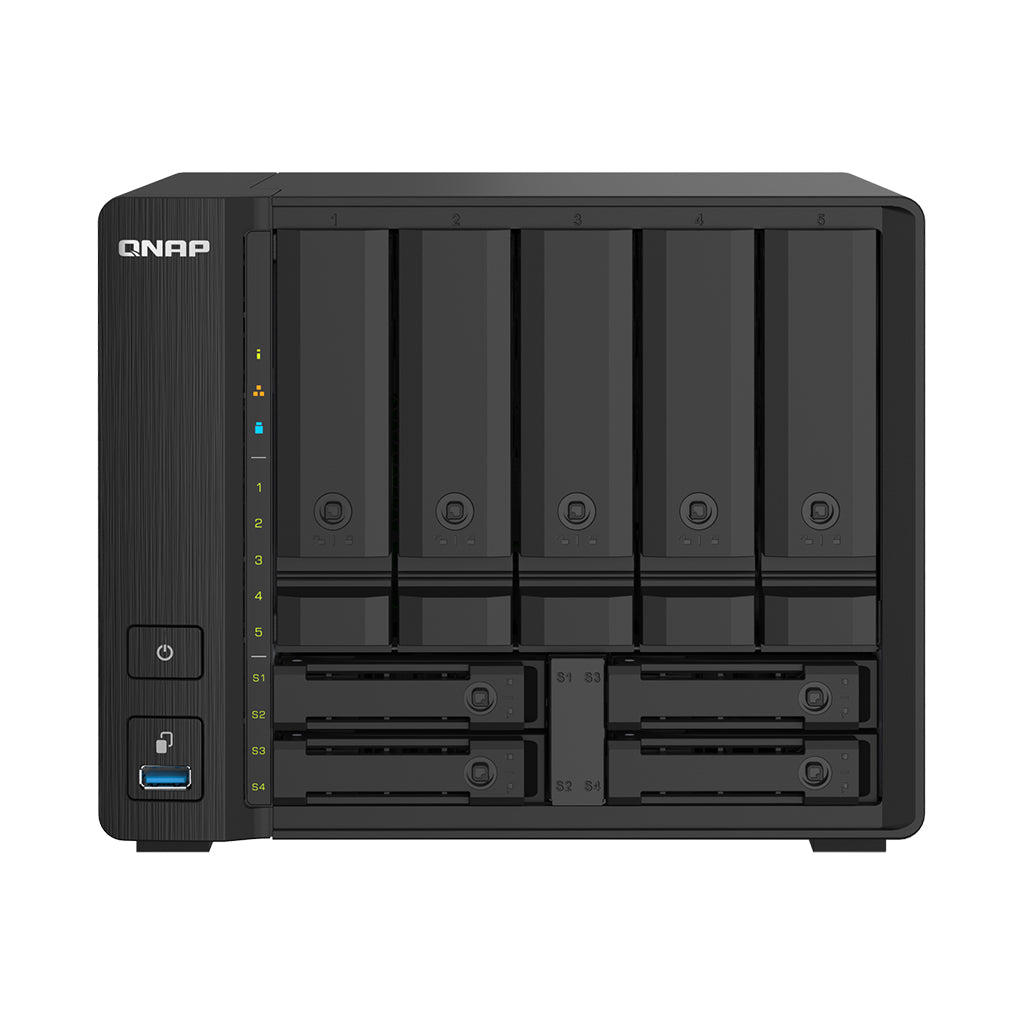

Five 3.5-inch bays and four dedicated 2.5-inch bays are included, allowing a mix of high-capacity hard drives and performance-focused SSDs. SSD cache acceleration support is enabled to improve read and write performance for frequently accessed data.

Efficient ARM Quad-Core Processing
An AnnapurnaLabs Alpine AL324 ARM Cortex-A57 quad-core processor running at 1.7GHz is used to deliver stable performance with lower power consumption. Encryption and floating-point processing capabilities are integrated to support secure and accurate data handling.

Expandable DDR4 Memory
4 GB of DDR4 SODIMM memory is installed, with support for expansion up to 16 GB. Increased memory capacity is made available for heavier multitasking, higher concurrent connections, and demanding applications.

Reliable System Design and Management
Hot-swappable drives, voice prompts or buzzer alerts, LED status indicators, and physical control buttons are included to simplify monitoring and maintenance. Dual boot OS protection via onboard flash memory is implemented to improve system reliability.

Specifications

• Model: TS-932PX-4G

• CPU: AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 4-core 1.7GHz processor

• CPU Architecture: 64-bit ARM

• Floating Point Unit: Supported

• Encryption Engine: Supported

• System Memory: 4 GB SODIMM DDR4

• Maximum Memory: 16 GB (1 × 16 GB)

• Memory Slot: 1 × SODIMM DDR4

• Flash Memory: 512 MB (Dual boot OS protection)

• Drive Bays:

  • 5 × 3.5-inch + 4 × 2.5-inch SATA 6Gb/s

• Drive Compatibility:

  • 3.5-inch bays:

    • 3.5-inch SATA hard disk drives

    • 2.5-inch SATA hard disk drives

    • 2.5-inch SATA solid state drives

  • 2.5-inch bays:

    • 2.5-inch solid state drives

• Hot-Swappable: Supported

• SSD Cache Acceleration Support: Supported

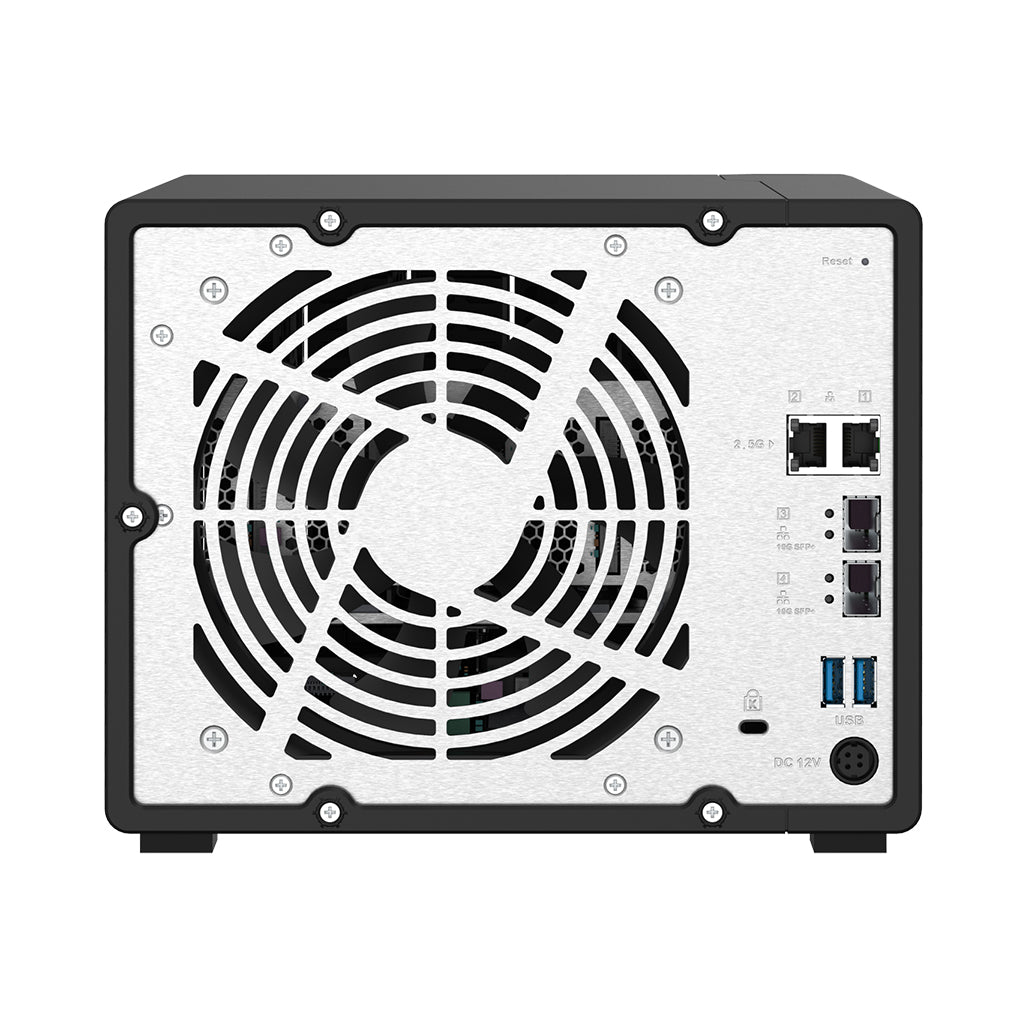

• 2.5 Gigabit Ethernet Ports: 2 (2.5G / 1G / 100M / 10M)

• 10 Gigabit Ethernet Ports: 2 × 10GbE SFP+

• Wake on LAN (WOL): Supported on 2.5GbE port only

• Jumbo Frame: Supported

• USB Ports: 3 × USB 3.2 Gen 1

• Form Factor: Tower

• LED Indicators: System Status, LAN, USB, HDD1–5, SSD1–4

• Buttons: Power, Reset, USB Copy

• Dimensions (H × W × D): 176.5 × 224.6 × 224.1 mm

  • Dimensions do not include foot pad (foot pad may be up to 30 mm / 1.18 inches high depending on model)

• Weight (Net): 4.66 kg

• Weight (Gross): 5.2 kg

• Operating Temperature: 0 – 40 °C (32°F – 104°F)

• Storage Temperature: −20 – 70 °C (−4°F – 158°F)

• Relative Humidity: 5–95% RH non-condensing, wet bulb: 27 °C (80.6°F)

• Power Supply Unit: External, 120 W, AC 100 to 240 V

• Power Consumption (Disk Standby Mode): 23.833 W

• Power Consumption (Operating Mode, Typical): 43.003 W

  • Tested with drives fully populated

• Fan: 1 × 140 mm, 12VDC

• System Warning: Voice prompts or buzzer

• Kensington Security Slot: Supported

• Standard Warranty: 2 years

• Max. Concurrent CIFS Connections (with Max. Memory): 700

Conclusion

The TS-932PX-4G is positioned as a versatile and performance-focused NAS solution where high-speed networking, flexible storage expansion, and dependable system design are required. A balance between capacity, speed, and efficiency is delivered through its hybrid drive layout, multi-gigabit connectivity, and expandable memory support, making it well-suited for growing data environments and sustained multi-user workloads.
