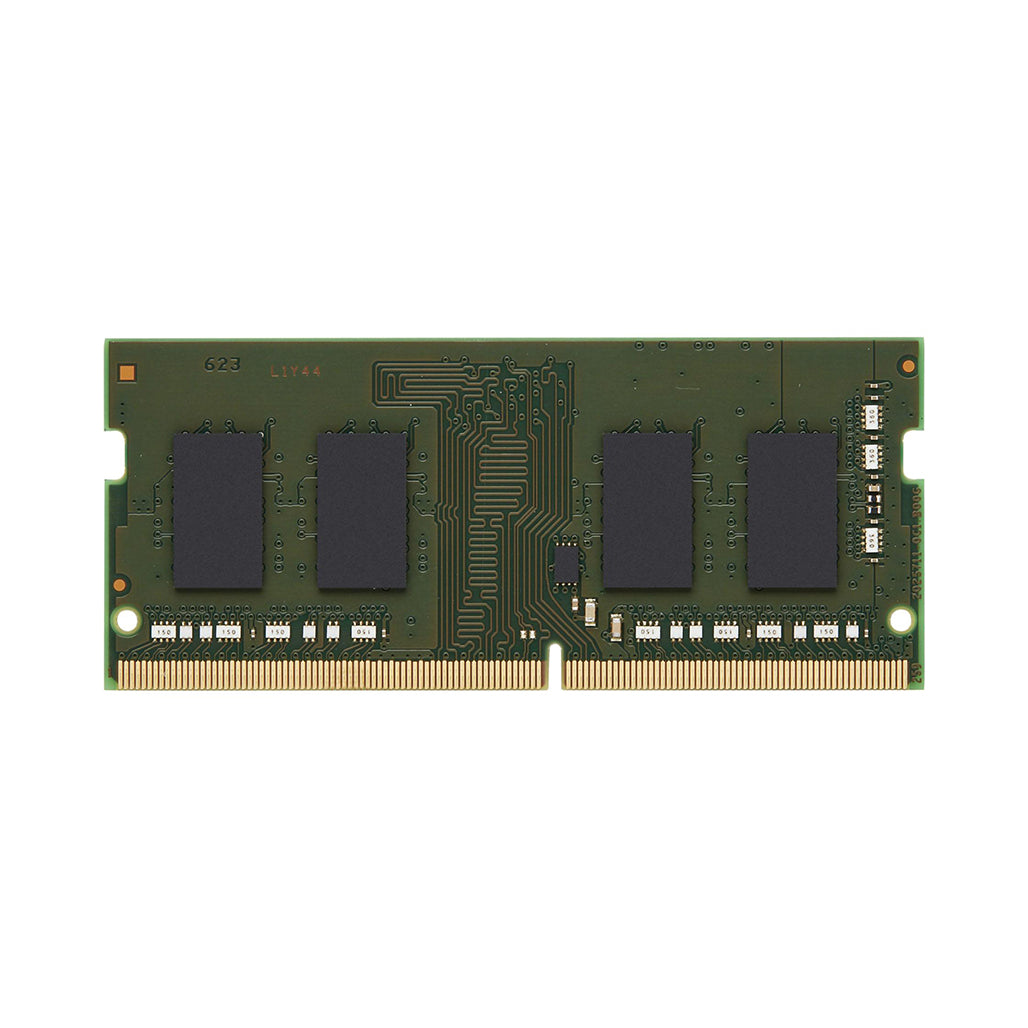

Designed for enhanced laptop performance and seamless multitasking, the Kingston KVR32S22S6/8 (8GB) and KVR32S22D8/16 (16GB) DDR4-3200 CL22 SODIMM RAM modules deliver reliable and power-efficient memory upgrades. Engineered with JEDEC-compliant DDR4 technology and operating at 3200MHz, both modules support improved bandwidth and responsiveness across everyday computing tasks. Whether upgrading a single laptop or deploying bulk memory across multiple systems, these Kingston ValueRAM modules provide dependable speed and stability.

The 8GB single-rank module and the 16GB dual-rank module have been built using premium FBGA components and follow a 260-pin SODIMM format, ideal for laptops, mini-PCs, and compact workstations. With gold contact fingers, on-die termination, and low-power auto self-refresh features, they are optimized for performance while keeping power consumption minimal. Additionally, support for fly-by topology and burst length adjustments makes them suitable for intensive applications and high-demand usage scenarios.

Key Features Explained:

• JEDEC-Standard DDR4-3200 MHz CL22: Ensures industry-standard timing (22-22-22) for stable and compatible performance across systems.

• 1Rx16 & 2Rx8 Configurations: The 8GB module features a single-rank layout for efficient performance in basic setups, while the 16GB module uses a dual-rank design to support higher multitasking capacity.

• Advanced Power Efficiency: Operated at 1.2V (VDD, VDDQ) with low-power auto self-refresh (LPASR), reducing power draw in laptops and portable devices.

• Reliable Data Integrity: Features like Data Bus Inversion (DBI), on-die VREFDQ calibration, and SPD EEPROM improve memory accuracy and system stability.

• Modular Design for Compatibility: Gold contact fingers and 260-pin SODIMM form factor ensure seamless integration into a wide range of laptop models.

• RoHS & Halogen-Free Compliance: Adheres to global environmental standards for safer and more sustainable computing components.

Technical Specifications:

Kingston KVR32S22S6/8 – 8GB Module

• Capacity: 8GB

• Configuration: 1Rx16, 1G x 64-bit

• Memory Type: DDR4 SDRAM

• Speed: 3200MT/s (PC4-3200)

• CAS Latency (CL): 22 cycles

• Component: Four 1G x 16-bit FBGA

• Timing: 22-22-22

• Voltage: 1.2V (VDD, VDDQ), 2.5V (VPP), 2.2V–3.6V (VDDSPD)

• Internal Banks: 8 (2 groups of 4)

• Operating Temperature: 0°C to +85°C

• Storage Temperature: -55°C to +100°C

• PCB Height: 30.00mm

• Compliance: RoHS, Halogen-Free

Kingston KVR32S22D8/16 – 16GB Module

• Capacity: 16GB

• Configuration: 2Rx8, 2G x 64-bit

• Memory Type: DDR4 SDRAM

• Speed: 3200MT/s (PC4-3200)

• CAS Latency (CL): 22 cycles

• Component: Sixteen 1G x 8-bit FBGA

• Timing: 22-22-22

• Voltage: 1.2V (VDD, VDDQ), 2.5V (VPP), 2.2V–3.6V (VDDSPD)

• Internal Banks: 16 (4 groups of 4)

• Operating Temperature: 0°C to +85°C

• Storage Temperature: -55°C to +100°C

• PCB Height: 30.00mm

• Compliance: RoHS, Halogen-Free

Conclusion:
The Kingston KVR32S22S6/8 and KVR32S22D8/16 DDR4 3200MHz SODIMM memory modules have been designed to provide dependable speed, compatibility, and power efficiency for laptop upgrades. These modules support smooth multitasking, fast data access, and reliable performance under varying workloads, making them an ideal solution for both casual and professional users. With durable construction, JEDEC compliance, and environmentally conscious design, long-term value is ensured across a wide range of mobile computing environments.
