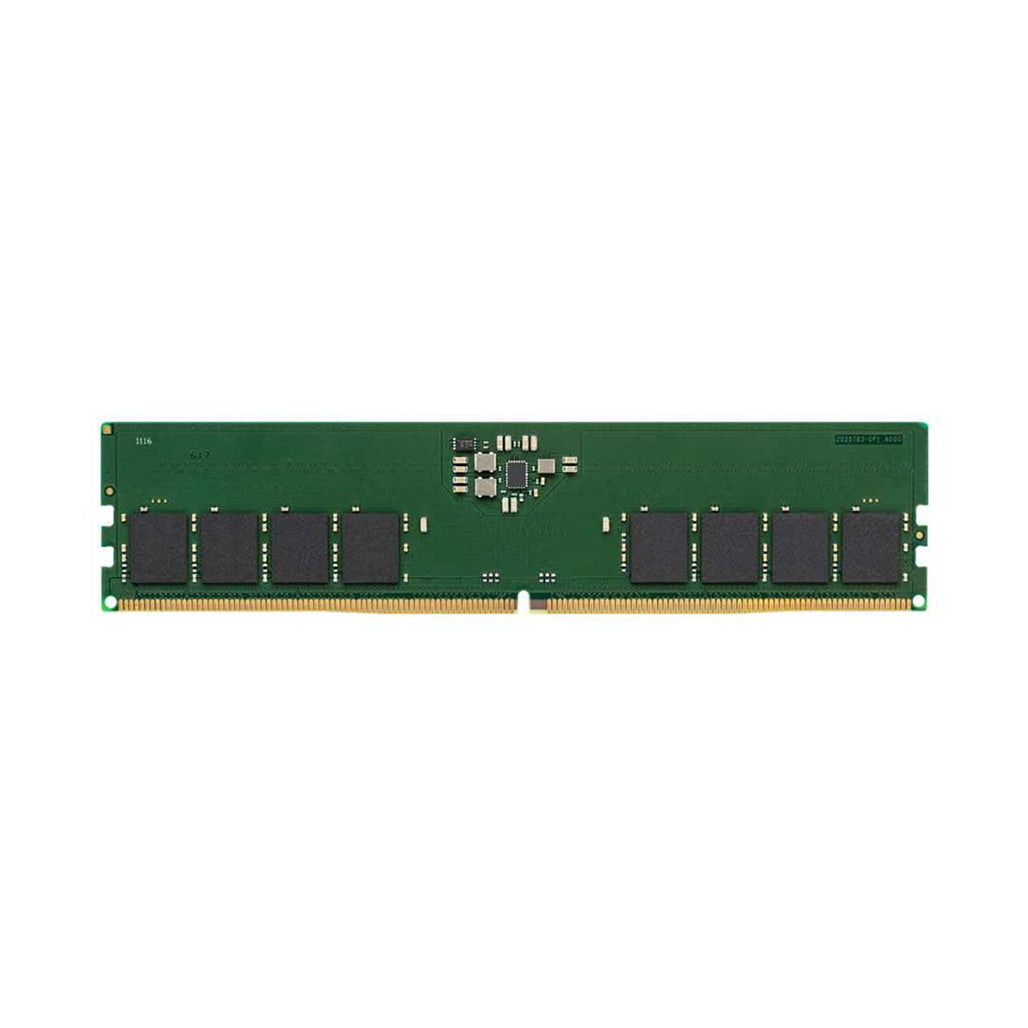

Designed for seamless compatibility and enhanced system responsiveness, the Kingston KVR56U46BS8-16 16GB DDR5 RAM module offers powerful memory performance for desktop computers. Built on the advanced DDR5 technology platform, this 288-pin DIMM provides reliable speeds of 5600MT/s with low latency CL46 timing. Ideal for system builders and PC users seeking consistent performance, the module is manufactured using eight 2G x 8-bit FBGA components to ensure dependable output across demanding multitasking environments. Its on-die ECC (Error Correction Code) enhances data integrity and stability, making it suitable for both everyday use and heavy workloads.

Equipped with JEDEC-standard timing of 46-45-45 at 1.1V, this memory module is engineered for power efficiency while supporting high data rates. A compact form factor with a height of 1.23” (31.25mm) allows for easy integration into a wide range of system builds, including space-constrained desktop cases. With gold-plated contact fingers, RoHS compliance, and halogen-free construction, the KVR56U46BS8-16 is optimized for long-term durability and environmentally responsible performance. Whether upgrading an existing system or building a new setup, this module delivers consistent speed, efficient operation, and thermal reliability.

Key Features:

• DDR5-5600 Memory Technology:
  Built to deliver improved bandwidth and performance over DDR4, the DDR5-5600 specification allows for faster data access, reduced latency, and increased multitasking capabilities.

• JEDEC-Standard Timing & Voltage Efficiency:
  Operates with standard DDR5 latency settings of 46-45-45 at 1.1V, helping to reduce energy consumption without compromising on speed or responsiveness.

• On-Die ECC Support:
  Integrated error correction ensures stable and accurate data transmission, reducing system crashes and improving overall reliability, especially during extended use.

• Compact and Durable Design:
  With a 31.25mm height and 288-pin configuration, the module fits securely into most modern desktops, while the gold contact fingers enhance connectivity and resistance to wear.

• Environmentally Compliant:
  Manufactured under RoHS standards and free of halogens, the memory module is designed to meet sustainability goals and reduce electronic waste.

Specifications:

• Model: KVR56U46BS8-16

• Capacity: 16GB

• Organization: 1Rx8 (2G x 64-bit)

• Technology: DDR5 SDRAM

• Speed: 5600MT/s (PC5-5600)

• Latency: CL46 (46-45-45)

• Voltage Requirements:

  • VDD = 1.1V (Typical)

  • VDDQ = 1.1V (Typical)

  • VPP = 1.8V (Typical)

  • VDDSPD = 1.8V to 2.0V

• Pin Count: 288-Pin DIMM

• Component Configuration: Eight 2G x 8-bit FBGA ICs

• PCB Height: 1.23” (31.25mm)

• ECC: On-Die ECC

• Compliance: RoHS Compliant, Halogen-Free

• Thermal Ratings:

  • Operating Temperature: 0°C to +85°C

  • Storage Temperature: -55°C to +100°C

• Cycle Timings:

  • CL(IDD): 46 cycles

  • Row Cycle Time (tRCmin): 48ns (min.)

  • Refresh Command Time (tRFCmin): 295ns (min.)

  • Row Active Time (tRASmin): 32ns (min.)

• UL Rating: 94 V - 0

Conclusion:
The Kingston KVR56U46BS8-16 16GB DDR5 memory module has been crafted to deliver dependable speed, low latency, and enhanced system stability in modern computing environments. Through efficient power usage, robust build quality, and advanced features like on-die ECC and JEDEC-compliant timings, this module meets the demands of performance-focused users while supporting long-term reliability and environmental standards.
