A high-performance 4G LTE Cat 6 WiFi router is provided for stable, fast, and flexible internet connectivity across home, office, surveillance systems, exhibitions, and mobile environments such as RV setups. Advanced LTE-Advanced technology with carrier aggregation is supported, allowing improved mobile broadband speeds and stronger network efficiency in areas where fixed-line internet is limited or unavailable.

Dual-band Wi-Fi 5 (AC1200) performance is delivered through combined 2.4 GHz and 5 GHz wireless bands, ensuring smooth streaming, gaming, and multi-device connectivity. Reliable coverage is enabled through detachable cellular antennas and beamforming technology, while seamless network management is enhanced through app-based control, cloud access, VPN support, and Mesh integration for extended coverage across larger spaces.

Key Features

• High-speed 4G LTE Cat 6 connectivity with up to 300 Mbps download performance
• Carrier Aggregation (2CA) enabled for improved mobile broadband efficiency
• Dual-band Wi-Fi 5 (AC1200) with combined speeds up to 1167 Mbps
• Dual Nano SIM slots for flexible network switching and redundancy
• Four Gigabit Ethernet ports with WAN/LAN configuration support
• Detachable high-gain cellular antennas for improved signal reception
• Advanced VPN support including WireGuard, OpenVPN, IPsec, and ZeroTier
• Mesh networking support for expanded wireless coverage
• Cudy App and Cloud Control enabled for remote management
• Built-in firewall, QoS, parental controls, and device management tools
• Multiple operation modes including Router, WISP, and Cellular mode

Specifications

Model Version: LT700 1.0
CPU: CPU Details: 880 MHz Dual-Core, MIPS1004Kc
Memory/Storage: Flash/ROM: 16 MB (128 Mbit) NOR
DDR/RAM: 128 MB (1 Gbit) DDR3

Cellular:
Cellular Standards: 4G LTE Cat. 6
Cellular Antennas: 4× Detachable
Detachable Cellular Antennas Connector: SMA Female
SIM Options: 2× Nano SIM Slots
Available Versions: EU, US
EU Version Cellular: Suitable Region: Europe, Middle East, Africa
Max DL Speed: 300 Mbps (LTE-FDD), 226 Mbps (LTE-TDD)
Max UL Speed: 50 Mbps (LTE-FDD), 28 Mbps (LTE-TDD)
Advanced: DL 2CA, DL 2×2 MIMO
Cellular Bands: LTE-FDD: B1/3/5/7/8/20/28/32
LTE-TDD: B38/40/41
WCDMA: B1/3/5/8

US Version Cellular:
Suitable Region: United States, Canada
Max DL Speed: 300 Mbps (LTE-FDD), 226 Mbps (LTE-TDD)
Max UL Speed: 50 Mbps (LTE-FDD), 28 Mbps (LTE-TDD)
Advanced: DL 2CA, DL 4×4 MIMO
Cellular Bands: LTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71
LTE-TDD: B41/48

Wireless:
5 GHz Wi-Fi Speed: 867 Mbps
2.4 GHz Wi-Fi Speed: 300 Mbps
5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO)
Wi-Fi Antennas: 2× Fixed
Beamforming: True
FEM or PA/LNA:
5 GHz: 2× Internal
2.4 GHz: 2× Internal
Range Performance: Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.

Wall Performance:
Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')

Interfaces:
Physical Buttons:
WPS Button
Reset Button
Gigabit RJ45 Ports: 4
Ethernet Notes: 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
LED:
Power
Internet
Wi-Fi
Cellular
Power Interfaces: DC Jack

Power:
Power Methods: DC
Power Input: 12V⎓1A
Power Adapter in the Box: Input: 100-240V~, 50/60Hz
Output: 12V⎓1A
Max Power Consumption (W): 11.2W
Idle Power Consumption (W): 3.6W

Reliability:
EMC: ESD: Contact: 4kV; Air: 8kV
Environment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Certifications: FCC, CE

Mechanical:
Dimension: Main Part: 253×152.5×48.2 mm / 9.96×6×1.9 inches
Antenna:
Product Weight: 536 g (18.91 oz.)

Installation:
Desktop
Wall-mount

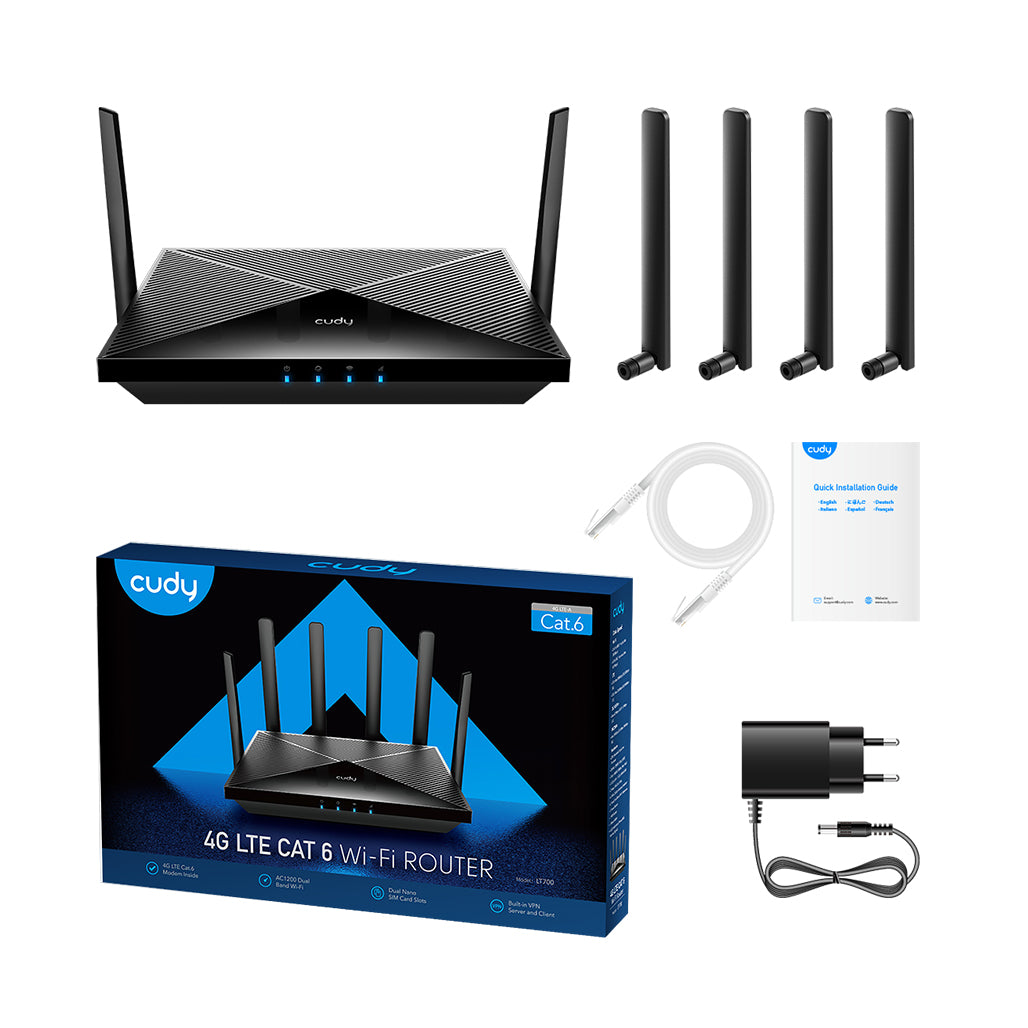

Package Content:
LT700
Detachable Antennas
Power Adapter
Ethernet Cable
Installation Guide

Ordering Information:
Retail Package Weight: EU: 991 g (34.96 oz.) / US: 990 g (34.92 oz.)
Retail Package Dimension: 393×250×60 mm / 15.47×9.84×2.36 inches
Units per Carton: 10
Carton Net Weight: EU: 9.9 kg (21.83 lbs) / US: 9.9 kg (21.83 lbs)
Carton Gross Weight: EU: 11.0 kg (24.25 lbs) / US: 10.8 kg (23.81 lbs)
Carton Dimension: 40.8×33×52.5 cm / 16.06×12.99×20.67 inches

Wireless (Extended):
Wi-Fi Standards: Wi-Fi 5
Max Wi-Fi Modulation: 256-QAM
Wi-Fi Efficiency: MU-MIMO
Wi-Fi Efficiency Note: MU-MIMO available on 5 GHz
Max Capacity: 128
Recommended Client Upper Limit: 50
Max Wi-Fi Channel Width: 80 MHz
Wi-Fi Security: WPA/WPA2/WPA3
Guest Network: 2.4 GHz, 5 GHz
WPS: True

General:
Operation Modes:
Cellular Router
Wi-Fi Router
WISP
Mesh: Cudy Mesh Main
Mesh Backhaul:
Wireless Backhaul
Wired Backhaul
Cellular APN:
Band Select (Band Lock)
Cellular Mode Select
Data Roaming
APN Profile
Manual APN Profile
MBN
MTU Value
Cellular Mode:
4G Only
Auto
WAN Mode:
DHCP
Static IP
PPPOE
Internet Failover Sequence:
WAN
WISP
Cellular

Network:
QoS: Per-User Rate Limiting
DHCP:
Address Reservation
DHCP Client List
Server
IP Versions: IPv4/IPv6
IPv6 Protocols:
Relay
Dynamic (SLAAC/DHCPv6)
Static (Fixed IP)
Passthrough
464XLAT
MAP-E
DS-Lite
IPTV/VLAN:
Bridge
Tag VLAN
TTL Customization:
Extend
Spoof
Custom
IGMP:
IGMP Proxy
IGMP Snooping

Forwarding:
Port Forwarding
Port Triggering
UPnP
DMZ
Firewall:
SPI Firewall
DoS Protection
Block PING
Application Layer Gateway:
IPSec Passthrough
L2TP Passthrough
PPTP Passthrough
FTP Passthrough
TFTP Passthrough
H323 Passthrough
SIP Passthrough
RTSP Passthrough

Utilities:
VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
DNS Options: DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS
DNS over TLS Providers: Cloudflare, Google, Quad9, Custom
Wake on LAN: True
Online Detection: True

Management:
Parental Controls: Profiles Settings, Offline Time, Online Time, Pause the Internet, Web Filter
All Devices Management: Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding
Per-Devices Management: Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
Content Management: Domain Filter, IP Filter

System:
Local Control Method: Config Web Page, App Control
Remote Control Method: Config Page via HTTPS, App Control, TR069/TR098/TR111/TR143/TR181
Firmware Upgrade: Local Update, App (Over the Air), Online Update
Diagnostic Tools: Diagnosis, Ping, Traceroute, NSLookup, System Log
Languages: English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese

Reliability (Extended):
Timed Reboot
Backup and Restore

Dashboard Panel:
Internet Status
Mesh Status
Devices Management
Cellular Status
SMS Send and Receive
WAN Status
LAN Status
WISP Status
Wi-Fi Status
VPN Status
DHCP Server Status
System Version

Charts:
Mesh Topology
Cellular Speed
Internet Speed
WISP Speed
Wi-Fi Speed

Conclusion

Stable and high-speed connectivity is consistently delivered through advanced LTE Cat 6 technology combined with dual-band Wi-Fi 5 performance. Flexible deployment is supported through multiple operation modes, dual SIM redundancy, and wide compatibility across regions, making the device suitable for demanding networking environments.

Strong network control, extensive security features, and professional-grade VPN support are provided, ensuring secure, scalable, and reliable internet access across various use cases including home networking, business deployment, and mobile connectivity scenarios.
