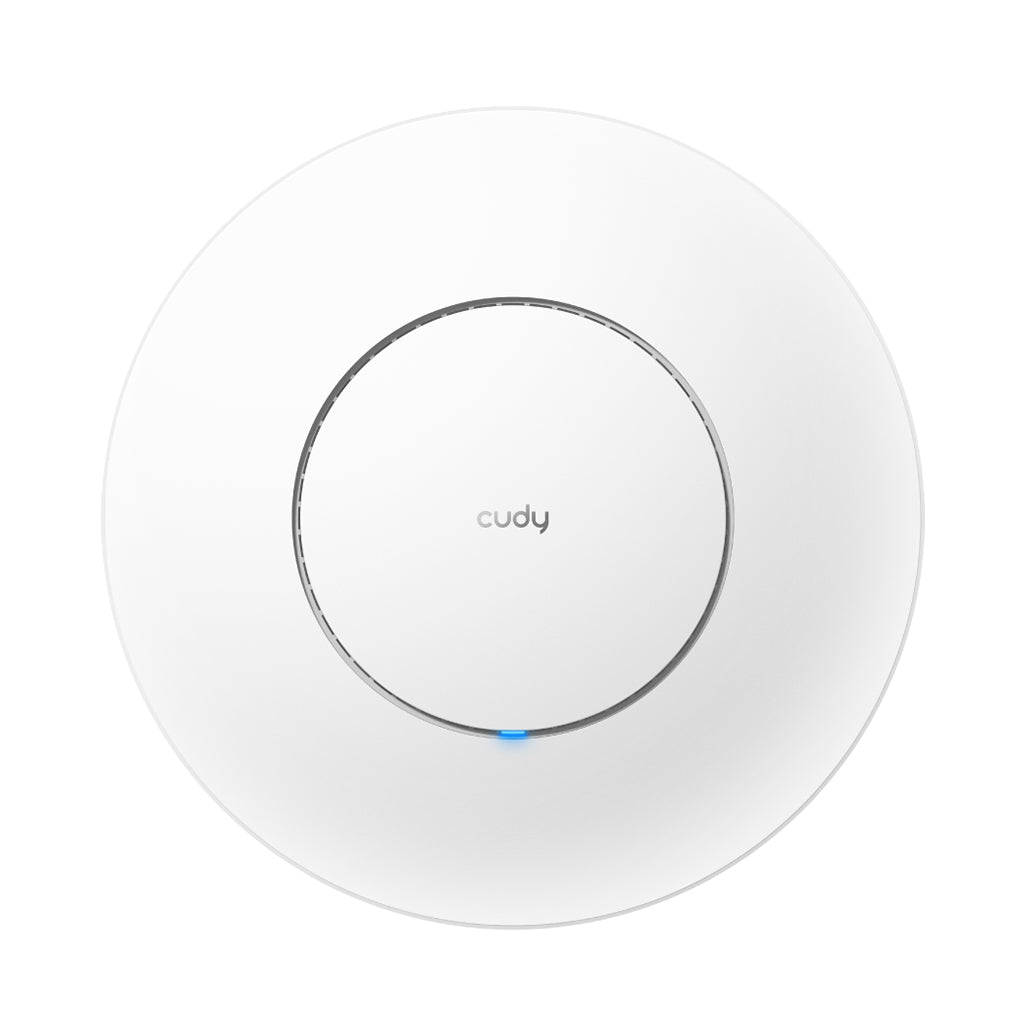

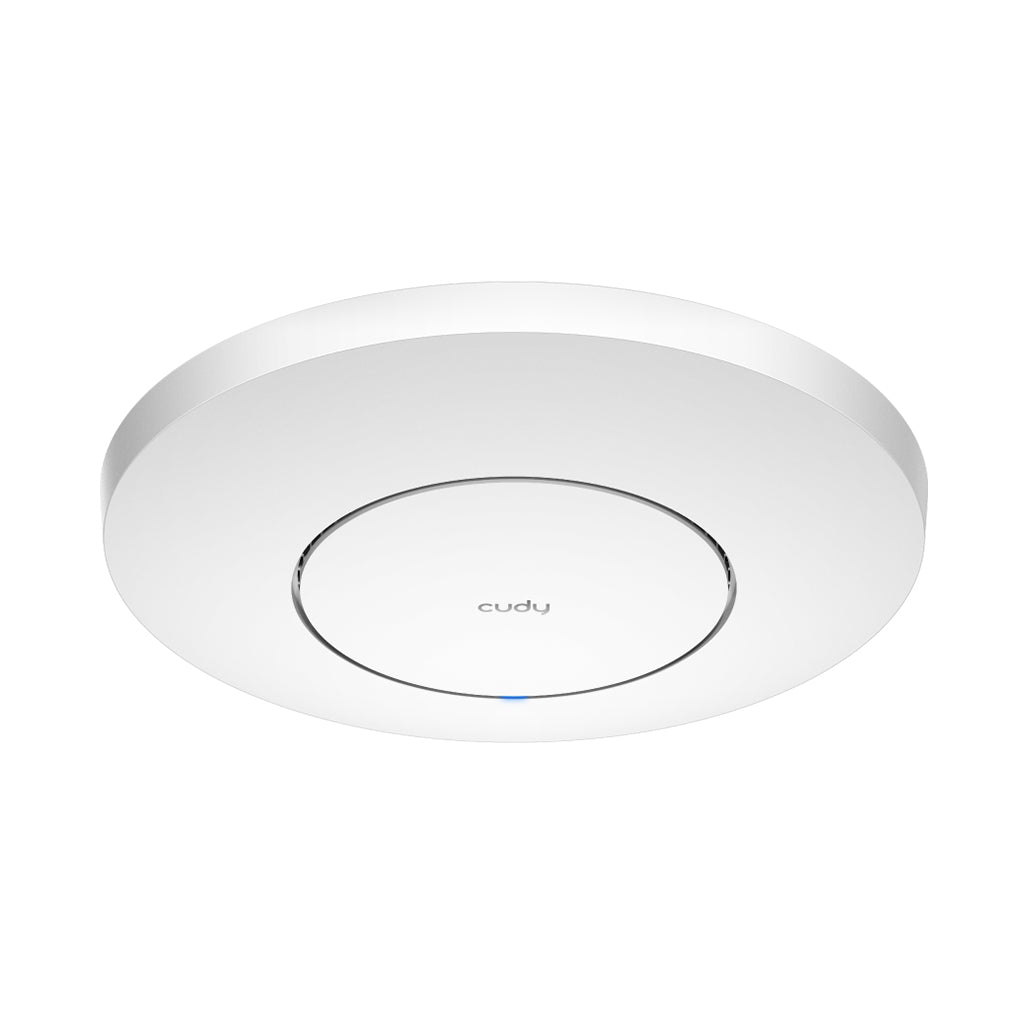

Cudy AX3000 2.5G Wi-Fi 6 Access Point

$65.00
$75.00
$65.00
Subtotal: $65.00
Order on Whatsapp
Vendor: Cudy
SKU: AP3000-SD26-K
Availability: Many In Stock
Product Type: Wireless Routers

Excluding VAT

The Cudy AX3000 2.5G Wi‑Fi 6 Access Point has been designed for high-density wireless environments that require fast, stable, and secure connectivity. Built with advanced Wi-Fi 6 technology, a powerful 1.3 GHz dual-core processor, and 512 MB DDR4 RAM, this enterprise-grade access point delivers smooth wireless performance for hotels, transportation hubs, offices, lecture halls, classrooms, and commercial deployments. Dual-band AX3000 wireless speeds of up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz are supported for high-speed streaming, cloud applications, online conferencing, and large-scale device connectivity.

A shielded 2.5GbE PoE input port has been integrated to support faster wired backhaul performance while reducing network bottlenecks. With support for OFDMA, MU-MIMO, Beamforming, and 160 MHz channel width, improved wireless efficiency and stronger coverage can be achieved even in crowded environments. Up to 150 connected devices are recommended, while coverage areas of up to 130 m² (1,400 ft²) can be supported depending on the deployment environment and wall materials.

Comprehensive management and networking features have also been included, making the AP3000 suitable for professional and scalable deployments. Multi-AP management via the Cudy AP Controller, VLAN support, captive portal, VPN server/client support, QoS, IPv6 compatibility, and advanced firewall protection have been provided to ensure secure and flexible network administration.

Key Features

AX3000 Dual-Band Wi-Fi 6 Performance

Combined wireless speeds of up to 3000 Mbps are supported with 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, allowing faster downloads, smoother streaming, and reduced latency.

High-Performance Hardware

A 1.3 GHz dual-core CPU, 512 MB DDR4 RAM, and 256 MB NAND storage have been integrated for stable performance in demanding multi-user environments.

Shielded 2.5GbE PoE Port

A shielded 2.5 Gigabit Ethernet port with PoE input support has been included to provide faster wired connectivity and simplified installation using a single Ethernet cable.

Enterprise Wi-Fi 6 Technologies

OFDMA, MU-MIMO, BSS Color, Beamforming, and 1024-QAM modulation are supported to improve network efficiency, coverage, and device handling capacity.

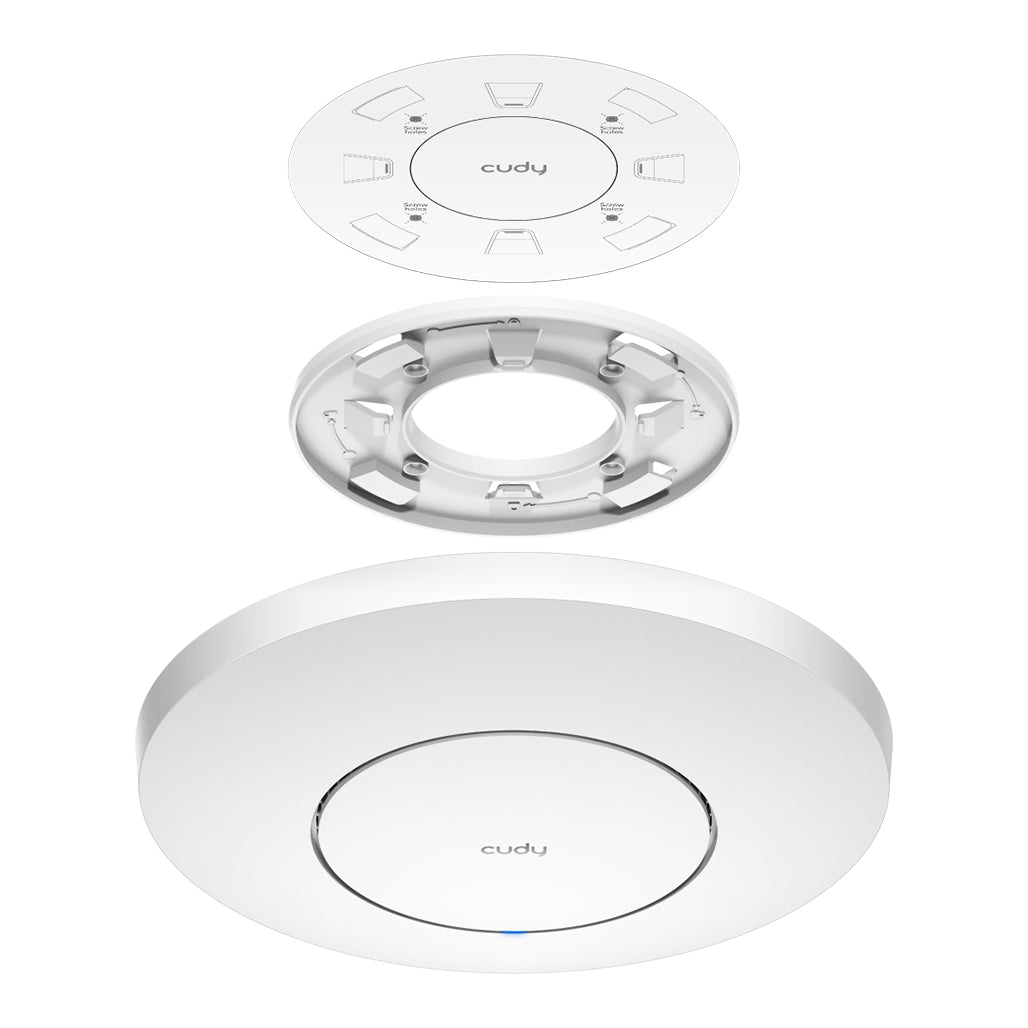

Flexible Deployment Options

Wall-mount and ceiling-mount installation methods are supported, making the access point suitable for offices, hotels, classrooms, restaurants, and public venues.

Multi-AP Centralized Management

Multiple access points can be managed through the Cudy AP Controller for simplified monitoring, firmware updates, and network administration.

Advanced Security & VPN Support

WPA/WPA2/WPA3 security protocols, SPI firewall, DoS protection, VPN server/client support, and DNS over TLS are supported for secure networking.

Smart Reliability Features

Timed reboot scheduling, hardware watchdog protection, backup and restore tools, and diagnostic utilities have been included for stable long-term operation.

Specifications

Hardware

  • Model Version: AP3000 1.0
  • CPU: 1.3 GHz Dual-Core CPU
  • Flash/ROM: 256 MB NAND
  • RAM: 512 MB DDR4

Wireless Performance

  • Wi-Fi Standard: Wi-Fi 6
  • Max Wi-Fi Speed:
    • 5 GHz: 2402 Mbps
    • 2.4 GHz: 574 Mbps
  • 5 GHz Streams: 3 Spatial Streams
  • 2.4 GHz Streams: 2 Spatial Streams
  • Antennas: 5× Internal
  • FEM/PA/LNA:
    • 5 GHz: 3× External
    • 2.4 GHz: 2× External
  • Beamforming: Supported
  • Max Wi-Fi Modulation: 1024-QAM
  • OFDMA: Supported
  • MU-MIMO: Supported
  • BSS Color: Supported
  • Max Capacity: 256 Devices
  • Recommended Connected Devices: 150
  • Max Channel Width: 160 MHz
  • Wi-Fi Security: WPA/WPA2/WPA3
  • Multi-SSID: 8 SSIDs with VLAN Support

Coverage & Range

  • Coverage Area: Up to 130 m² (1,400 ft²)
  • Max Wireless Range: Up to 200 m (656 ft)
  • Wall Performance:
    • Two wooden walls under 10 cm thickness
    • One concrete wall under 20 cm or two concrete walls under 10 cm thickness

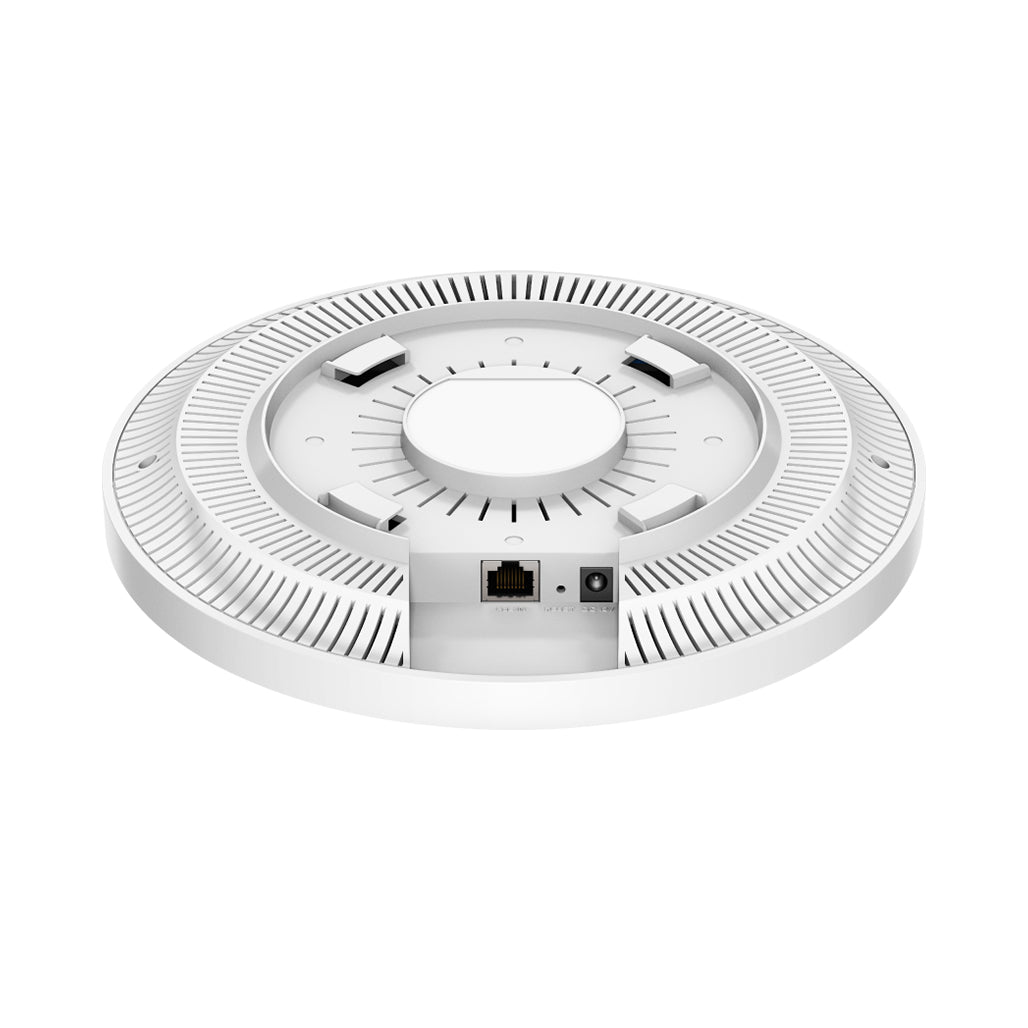

Ports & Interfaces

  • 1× Shielded 2.5GbE RJ45 Port
  • DC Power Jack
  • Reset Button
  • System LED

Power

  • Power Methods:
    • DC Power
    • 802.3at/af PoE
    • Passive PoE
  • DC Input: 12V⎓1.5A
  • Passive PoE Input: 48–57V⎓
  • Maximum Power Consumption: 12W
  • Idle Power Consumption: 6.1W

Operation Modes

  • Wi-Fi Router
  • Access Point
  • Range Extender
  • WISP
  • Client Mode
  • Cudy Mesh Support

Mesh & Backhaul

  • Wireless Backhaul
  • Wired Backhaul
  • Multi-Band Backhaul

Network Features

  • IPv4 & IPv6 Support
  • VLAN Tagging
  • QoS Per-User Rate Limiting
  • DHCP Server & Address Reservation
  • Port Forwarding
  • UPnP
  • DMZ
  • IGMP Proxy & Snooping
  • TTL Customization

Security Features

  • SPI Firewall
  • DoS Protection
  • MAC Filtering
  • IP/MAC Binding
  • Block PING
  • Domain & IP Filtering

VPN Features

  • VPN Server:
    • WireGuard
    • OpenVPN
    • IPsec
    • Zerotier
    • PPTP
    • L2TP
  • VPN Client:
    • WireGuard
    • OpenVPN
    • IPsec
    • Zerotier
    • PPTP
    • L2TP

Management & Monitoring

  • Multi-AP Management via Cudy AP Controller
  • Web & App Management
  • Remote HTTPS Configuration
  • TR069/TR098/TR111/TR143/TR181 Support
  • Timed Reboot
  • Backup & Restore
  • Diagnostic Tools:
    • Ping
    • Traceroute
    • NSLookup
    • System Log

Environment

  • Operating Temperature: -10°C to 60°C
  • Storage Temperature: -40°C to 70°C
  • Operating Humidity: 10%–90% Non-Condensing
  • Storage Humidity: 5%–90% Non-Condensing

Certifications

  • FCC
  • CE

Physical Specifications

  • Installation: Wall-Mount / Ceiling-Mount
  • Dimensions: Φ231.9 × 57.1 mm
  • Weight: 489.6 g

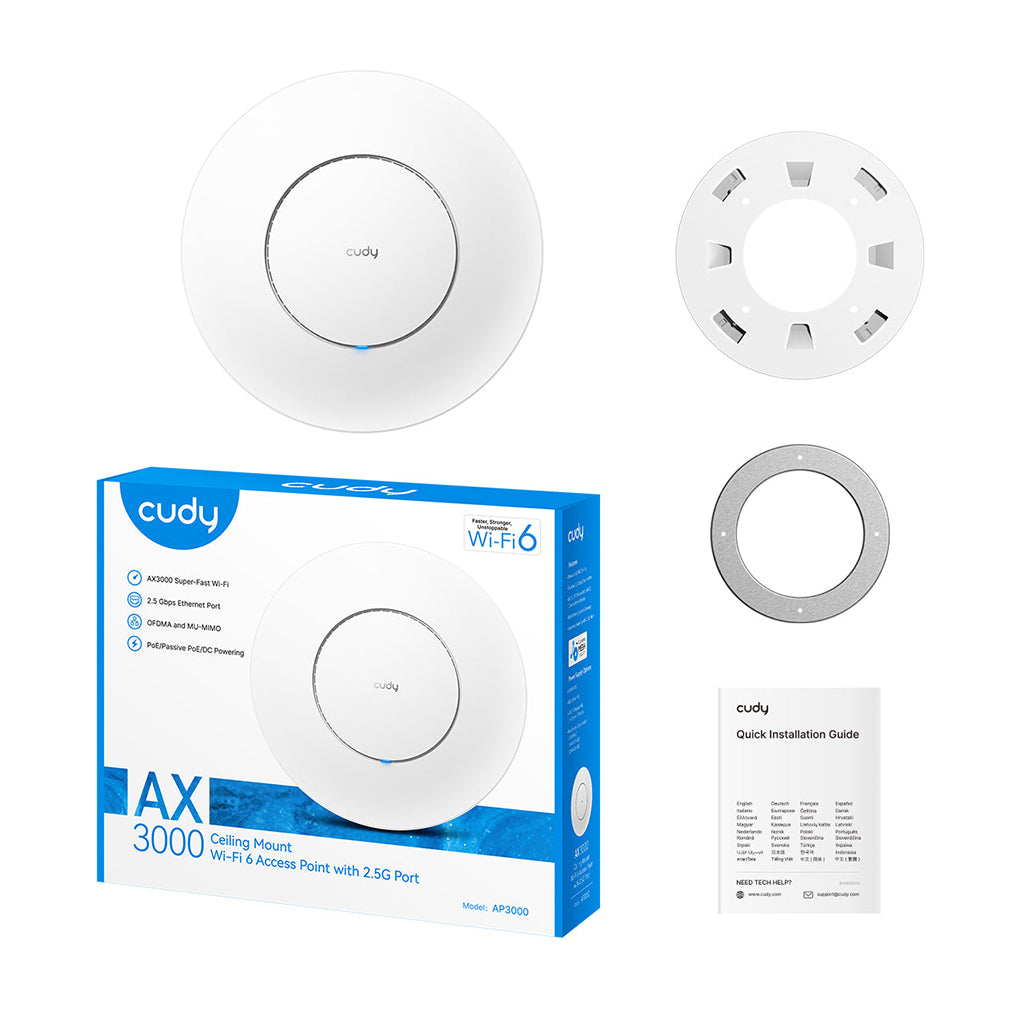

Package Contents

  • AP3000 Access Point
  • Mounting Kit
  • Installation Guide
  • PoE Adapter (_P Model Only)
  • Ethernet Cable (_P Model Only)

Compatible Accessories

  • POE400H 1.0
  • POE200H 1.0
  • POE52-30W 1.0
  • POE48-18W 1.0

Conclusion

The Cudy AX3000 2.5G Wi‑Fi 6 Access Point has been engineered to provide reliable high-speed wireless networking for demanding business and commercial environments. With enterprise-grade Wi-Fi 6 performance, centralized management capabilities, advanced VPN support, flexible deployment options, and a high-speed 2.5GbE PoE connection, dependable coverage and stable connectivity can be maintained across large multi-device networks.
