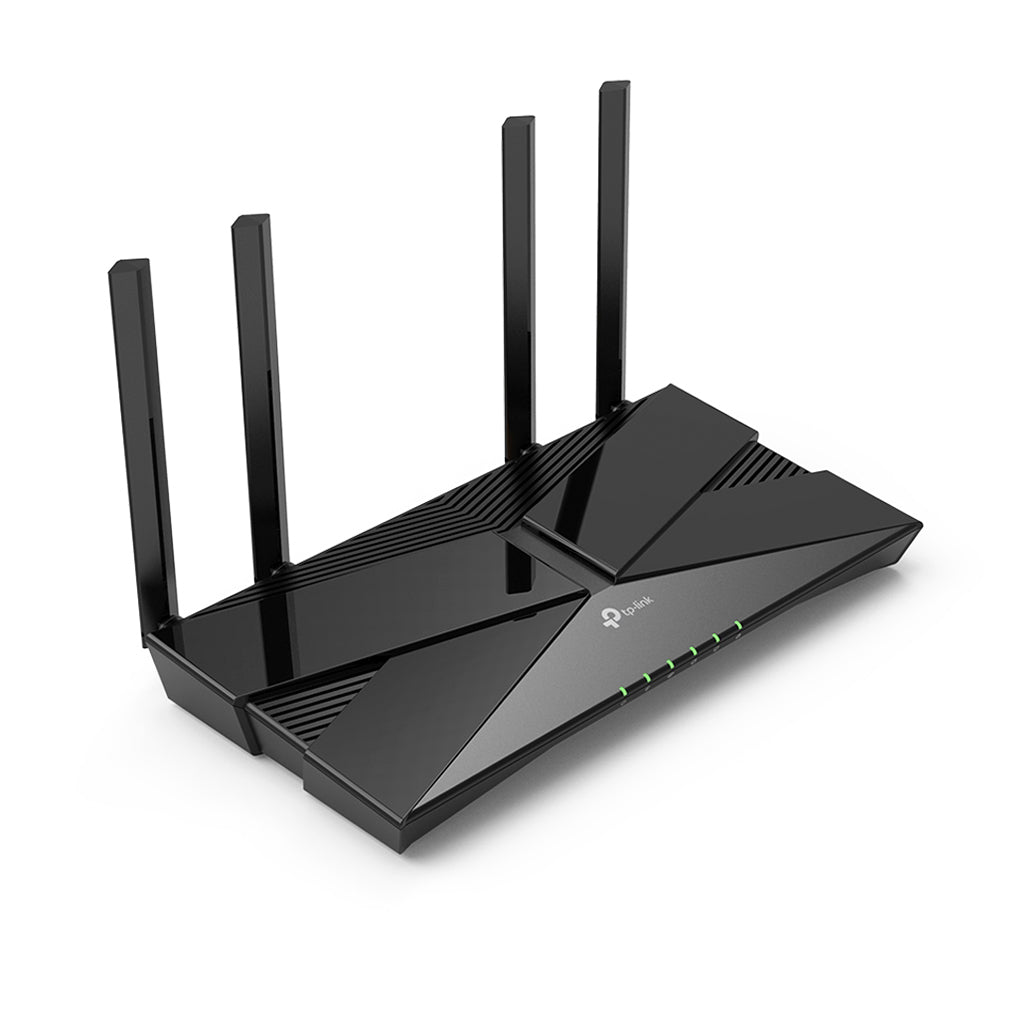

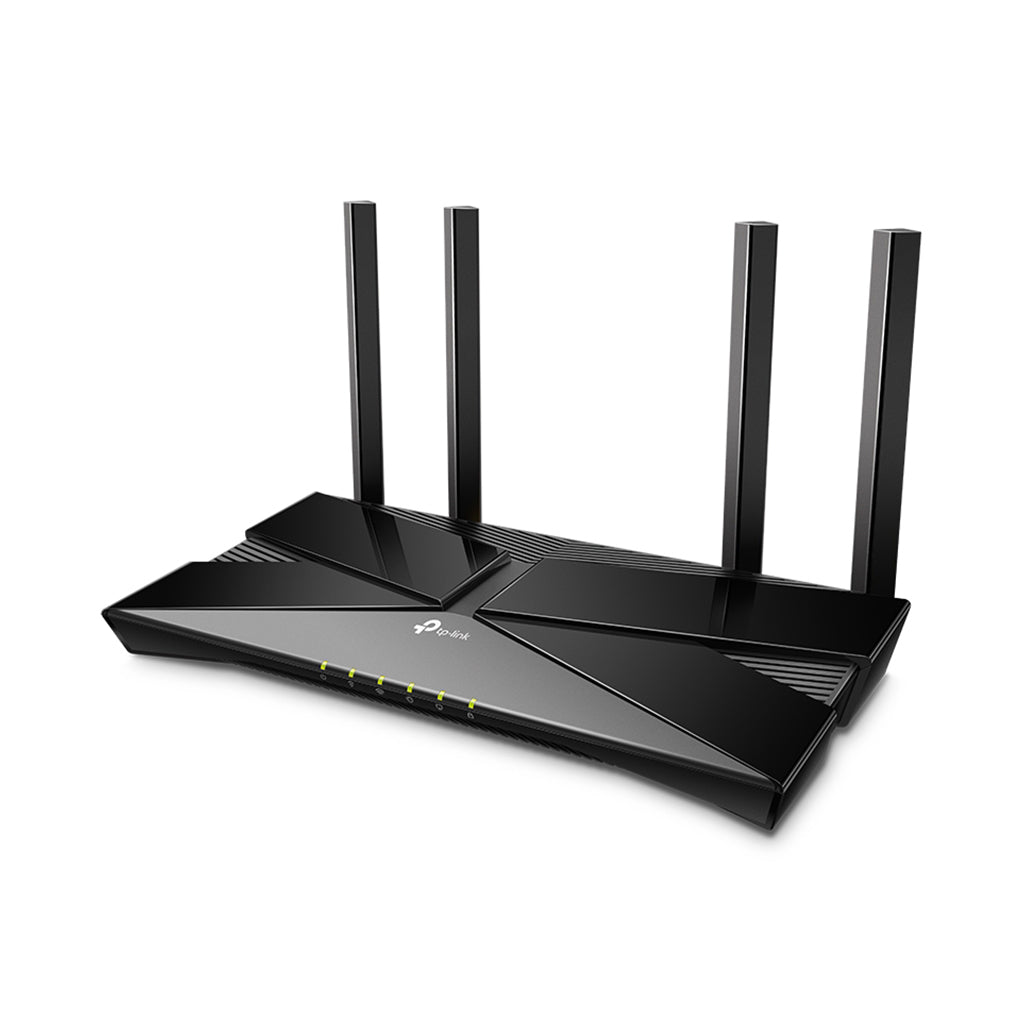

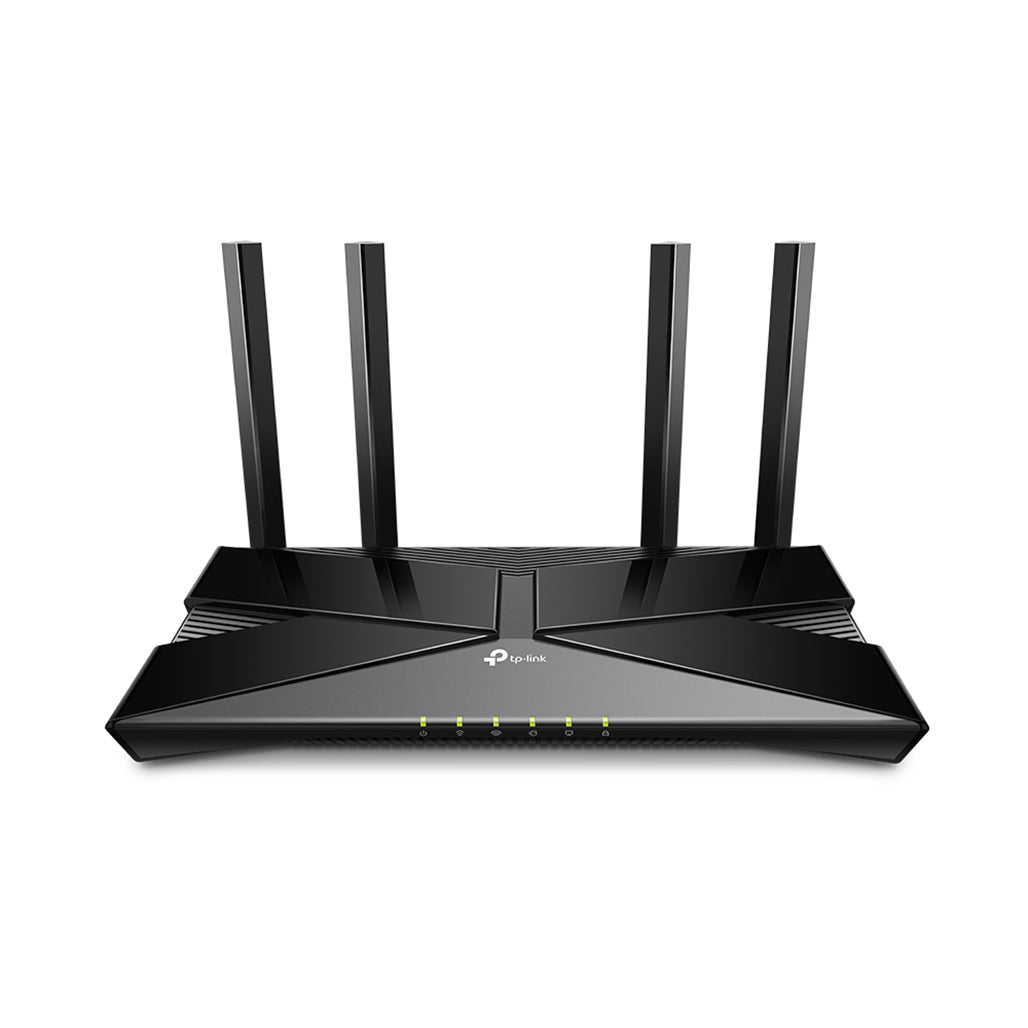

TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router

• Super-Fast 1.8 Gbps Wi-Fi – Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.^†
• Connect More Devices – Communicates with more devices using OFDMA while simultaneously reducing lag.^‡
• Broader Coverage – Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.^§
• Next-Gen Platform – The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption.^△
• Parental Controls – Enjoy the most versatile yet free parental controls features among all routers, including URL blocking, profile management, pausing, and more.
• Works with Most ISPs – Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
• EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage*****
• Easy Setup – Set up your router in minutes with the powerful TP-Link Tether App.
• Backward Compatible – Supports all previous 802.11 standards Wi-Fi devices.

WiFi 6 Upgrades Everything

The latest generation of WiFi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.

Super-Fast WiFi 6

Transfer HD movies in 10 seconds. WiFi 6's 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broader bandwidth while streaming content on multiple devices.

Connect More, Stay Fast

Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.

WiFi Coverage Throughout Your Home

4× high-performance external antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.

Flexibly Create Whole Home Mesh WiFi

If you have any dead zones at home, just add another EasyMesh-compatible devices to further form your whole home mesh WiFi. No more searching for a stable connection.

WPA3—The Next Level of Cybersecurity

The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.

Universal ISP Support

Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.

Easy Setup and Use

Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX23 in minutes.
The Tether app allows you to manage network settings from any Android or iOS device.

Protect Your Children

Block inappropriate content for your children, and customize a time range for better online habits.

Easy Firmware Upgrade

Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.

Specifications

WIRELESS

Standards

Wi-Fi 6


• IEEE 802.11ax/ac/n/a 5 GHz

• IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

AX1500


• 5 GHz: 1201 Mbps (802.11ax)
• 4 GHz: 574 Mbps (802.11ax)

WiFi Range

2-3 Bedroom Houses

• 4× Fixed High-Performance Antennas

• Multiple antennas form a signal-boosting array to cover more directions and large areas


Beamforming


• Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity

High

Dual-Band


• Allocate devices to different bands for optimal performance




Airtime Fairness

• Improves network efficiency by limiting excessive occupation



4 Streams


• Connect your devices to more bandwidth

Working Modes

• Router Mode

• Access Point Mode

SECURITY

Network Security

• SPI Firewall

• Access Control

• IP & MAC Binding

• Application Layer Gateway

Guest Network

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network

VPN Server

• OpenVPN

• PPTP

WiFi Encryption

• WPA
• WPA2

• WPA3

• WPA/WPA2-Enterprise encryptions

HARDWARE

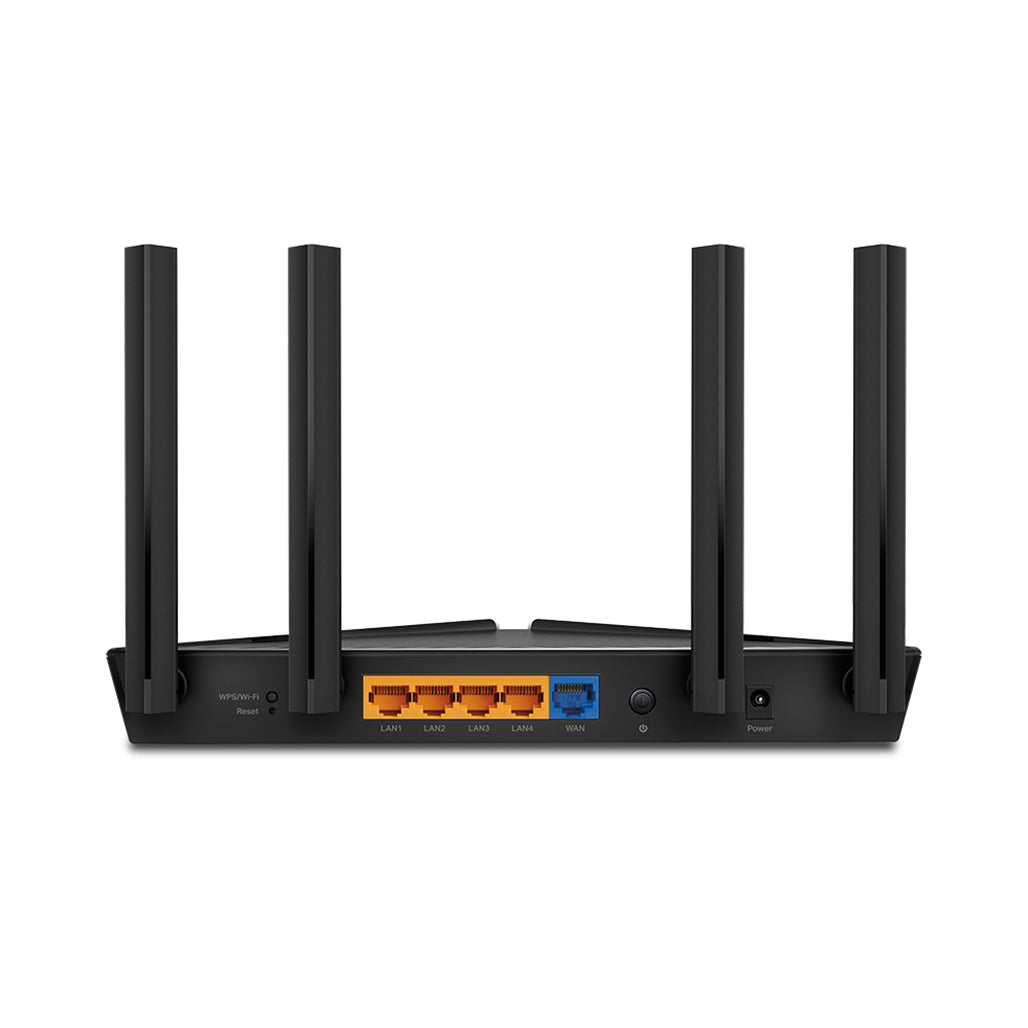

Ethernet Ports

• 1× Gigabit WAN Port

• 4× Gigabit LAN Ports

Buttons

• WPS/Reset Button
• Power on/off Button
• Reset Button

Power

• 12 V ⎓5 A

SOFTWARE

Protocols

• IPv4

• IPv6

EasyMesh

• Mesh networking creates smooth, fast, stable roaming. Archer AX23 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.

Parental Controls

• URL Filtering

• Time Controls

WAN Types

• Dynamic IP

• Static IP

• PPPoE
• PPTP
• L2TP

Quality of Service

• QoS by Device

Cloud Service


• OTA Firmware Upgrade

• TP-Link ID

• DDNS

NAT Forwarding

• Port Forwarding

• Port Triggering

• DMZ

• UPnP

IPTV

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN

DHCP

• Address Reservation

• DHCP Client List

• Server

DDNS

• TP-Link

• NO-IP

• DynDNS

Management

• Tether App

• Webpage


OTHER

System Requirements

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

• Cable or DSL Modem(if needed)
• Subscription with an internet service provider (for internet access)

Certifications

• FCC, CE, RoHS

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)

• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power

CE:


• <20dBm(2.4 GHz)

• <23dBm(5.15 GHz~5.25 GHz)


FCC:


• <30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

WiFi Reception Sensitivity

EU Version

5G

• 11a 6Mbps: -96dbm
• 11a 54Mbps:-75dbm
• 11ac VHT20_MCS0: -95dbm
• 11ac VHT20_MCS8: -71dbm
• 11ac VHT40_MCS0: -92dbm
• 11ac VHT40_MCS9: -66dbm
• 11ac VHT80_MCS0: -89dbm
• 11ac VHT80_MCS9:-62dbm
• 11ax HE20_MCS0:-95dbm
• 11ax HE20_MCS11: -64dbm
• 11ax HE40_MCS0: -92dbm
• 11ax HE40_MCS11: -60dbm
• 11ax HE80_MCS0: -89dbm
• 11ax HE80_MCS11:-59dbm

2.4G

• 11g 6Mbps:-96dbm
• 11g 54Mbps:-75dbm
• 11n HT20_MCS0:-95dbm
• 11n HT20_MCS7:-75dbm
• 11n HT40_MCS0:-92dbm
• 11n HT40_MCS7: -72dbm
• 11ac VHT20_MCS0:-95dbm
• 11ac VHT20_MCS8:-72dbm
• 11ac VHT40_MCS0:-92dbm
• 11ac VHT40_MCS9: -67dbm
• 11ax HE20_MCS0:-95dbm
• 11ax HE20_MCS11: -65dbm
• 11ax HE40_MCS0: -92dbm
• 11ax HE40_MCS11: -62dbm

US Version
5G

• 11a 6Mbps: -96dbm
• 11a 54Mbps:-75dbm
• 11ac VHT20_MCS0: -95dbm
• 11ac VHT20_MCS8: -71dbm
• 11ac VHT40_MCS0: -92dbm
• 11ac VHT40_MCS9: -66dbm
• 11ac VHT80_MCS0: -89dbm
• 11ac VHT40_MCS9:-62dbm
• 11ax HE20_MCS0:-95dbm
• 11ax HE20_MCS11: -64dbm
• 11ax HE40_MCS0: -92dbm
• 11ax HE40_MCS11: -60dbm
• 11ax HE80_MCS0: -89dbm
• 11ax HE80_MCS11:-59dbm


2.4G

• 11g 6Mbps:-96dbm
• 11a 54Mbps:-75dbm
• 11ac VHT20_MCS0:-95dbm
• 11ac VHT20_MCS8:-72dbm
• 11ac VHT40_MCS0:-92dbm
• 11ac VHT40_MCS9: -67dbm
• 11ax HE20_MCS0:-95dbm
• 11ax HE20_MCS11: -65dbm
• 11ax HE40_MCS0: -92dbm
• 11ax HE40_MCS11: -62dbm

PHYSICAL

Dimensions (W×D×H)

• 2 × 5.3 ×1.5 in
• (260.2 × 135.0 × 38.6 mm)

Package Contents

• Wifi Router Archer AX23
• Power Adapter

• RJ45 Ethernet Cable

• Quick Installation Guide
