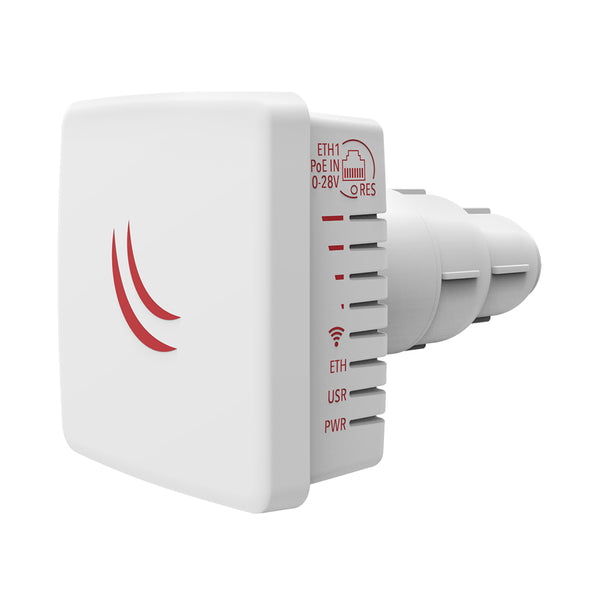

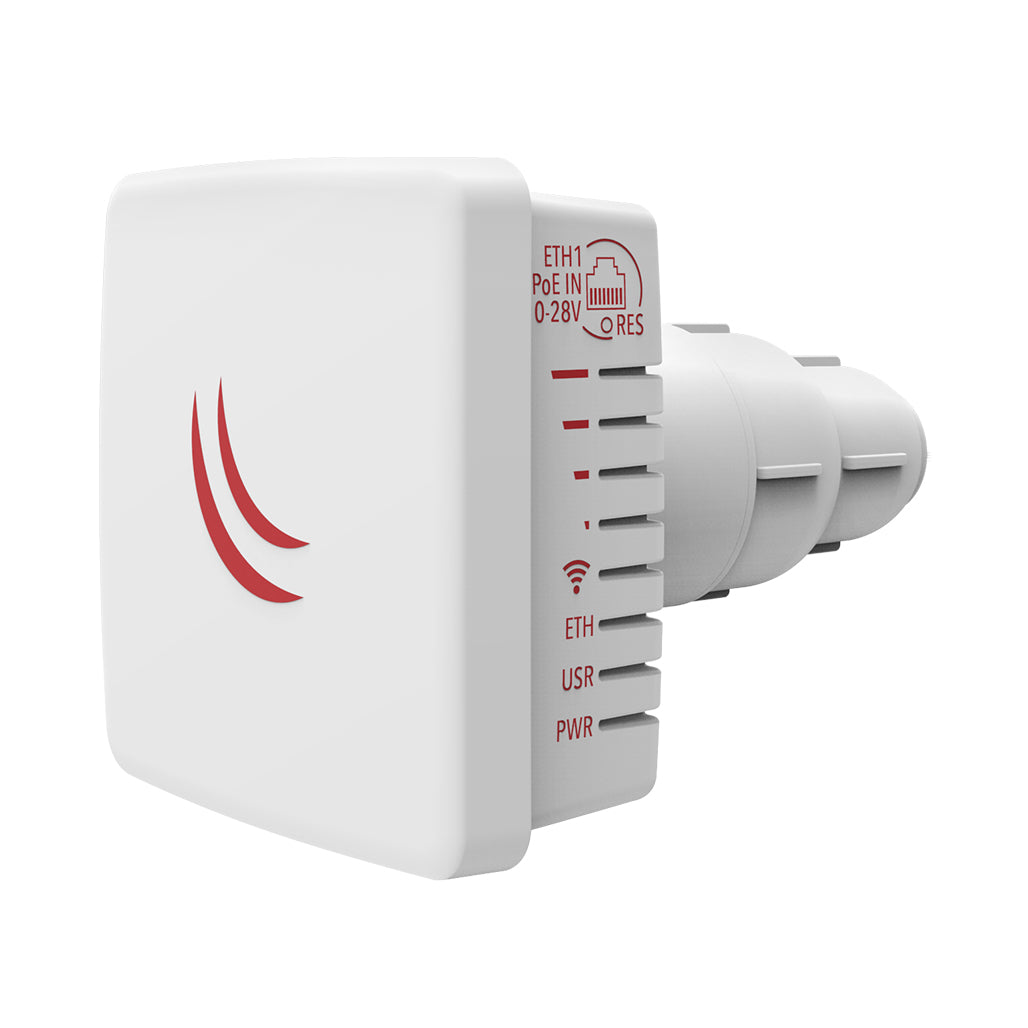

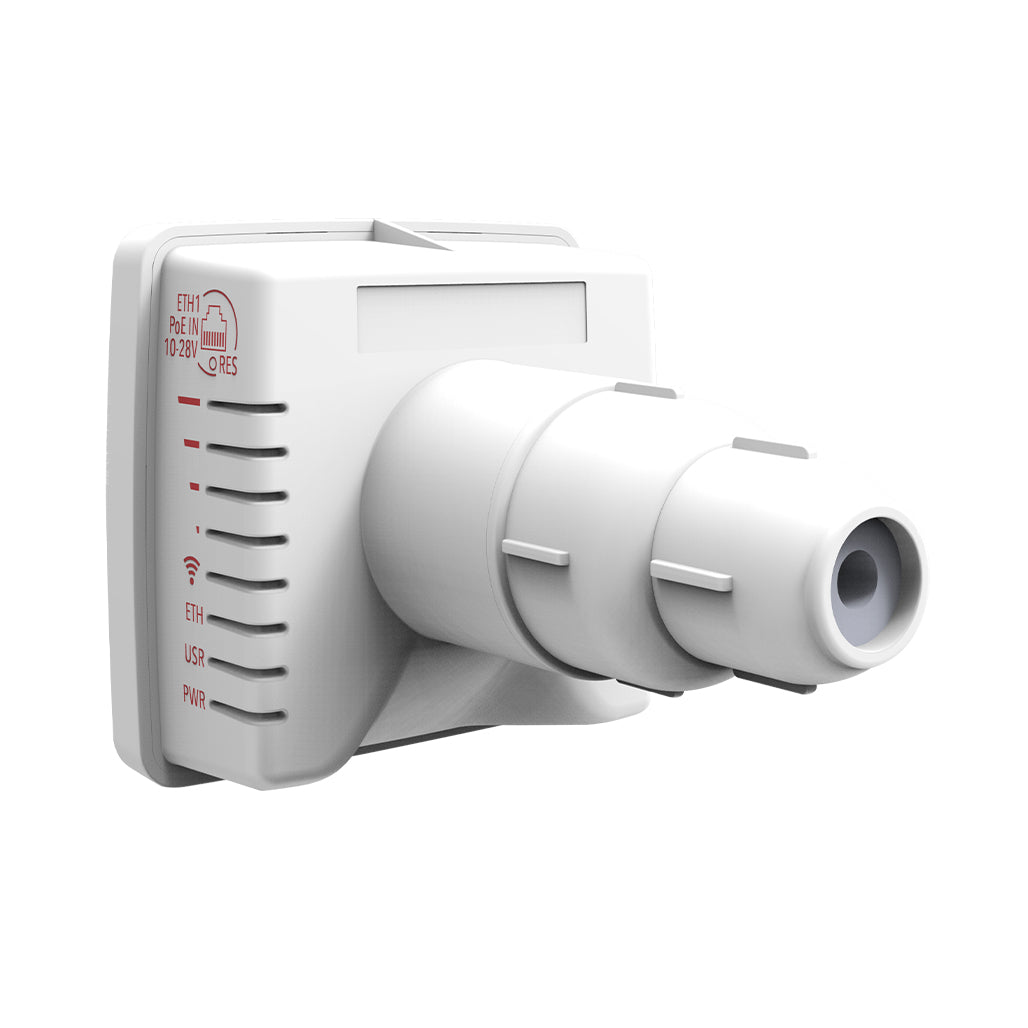

The LDF (Lite dish feed) is an outdoor wireless system with a built in antenna, meant to be installed on satellite offset dish antennas. The dish will act as a reflector, amplifying the signal.

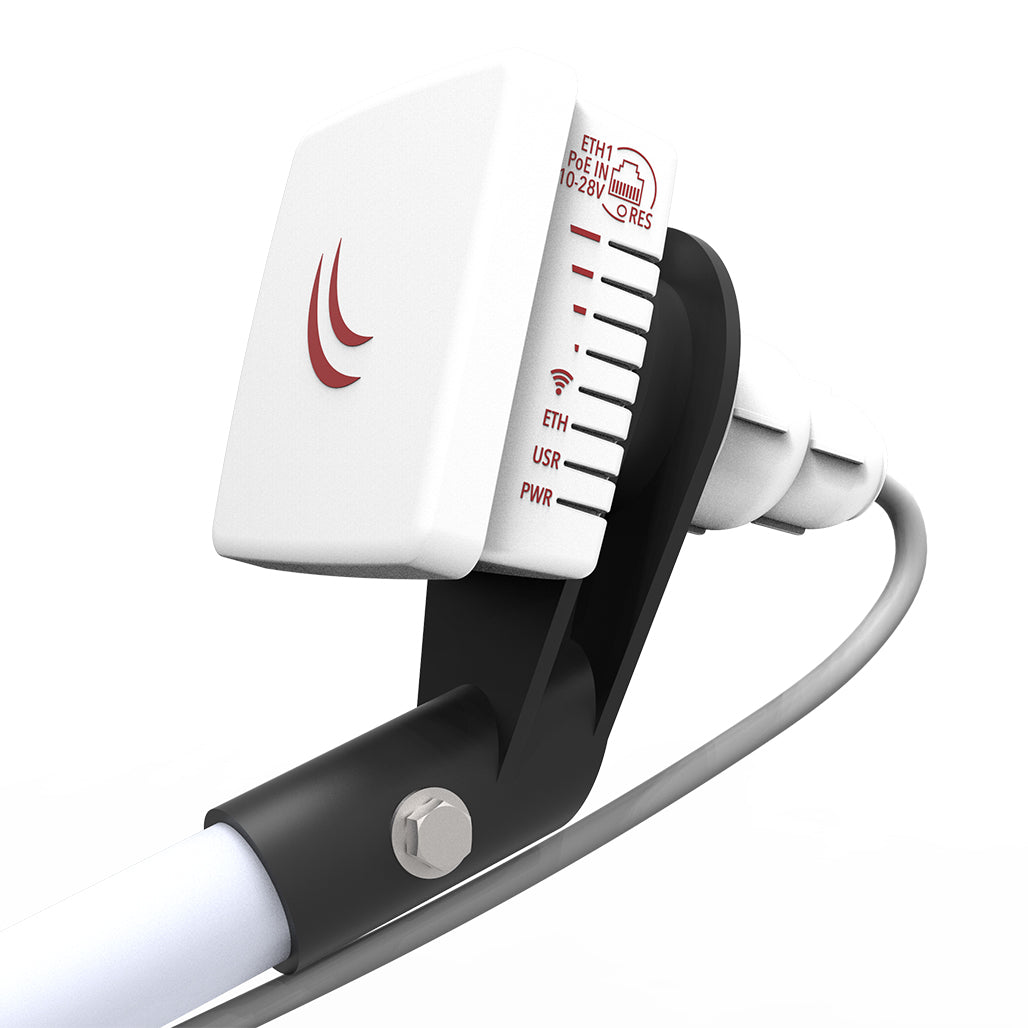

This means you can use any available satellite TV dish with an offset mount to quickly deploy powerful long range wireless links. The offset mount is universal at 40 mm diameter, and the LDF can easily be placed inside it. Since the LDF itself is a tiny little package, it makes shipping and deployment simple and low cost.
Using large enough dishes, it is possible to obtain antenna amplification of 30 dBi or more. All it takes is to find a spare satellite dish with an offset mount, and put your LDF device. Please refer to the user manual for the antenna list that is approved for use. The device comes preinstalled with RouterOS and is ready to use.
Details | |
---|---|
Product code | RBLDF-2nD |
Architecture | MIPSBE |
CPU | QCA9533 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 84mm x 84mm x 115mm |
RouterOS license | 3 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 100'000 hours at 25C |
Tested ambient temperature | -40°C to 70°C |
Details | |
---|---|
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 7 W |
Cooling type | Passive |
PoE in | Passive PoE |
PoE in input Voltage | 10-28 V |
Details | |
---|---|
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Antenna gain dBi for 2.4 GHz | 10 |
Wireless 2.4 GHz chip model | QCA9533 |
Wireless 2.4 GHz generation | Wi-Fi 4 |
Details | |
---|---|
10/100 Ethernet ports | 1 |
Details | |
---|---|
Certification | CE, FCC, IC, EAC, ROHS |
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 26 | -100 |
11MBit/s | 26 | -93 |
6MBit/s | 28 | -94 |
54MBit/s | 24 | -78 |
MCS0 | 28 | -94 |
MCS7 | 23 | -75 |
