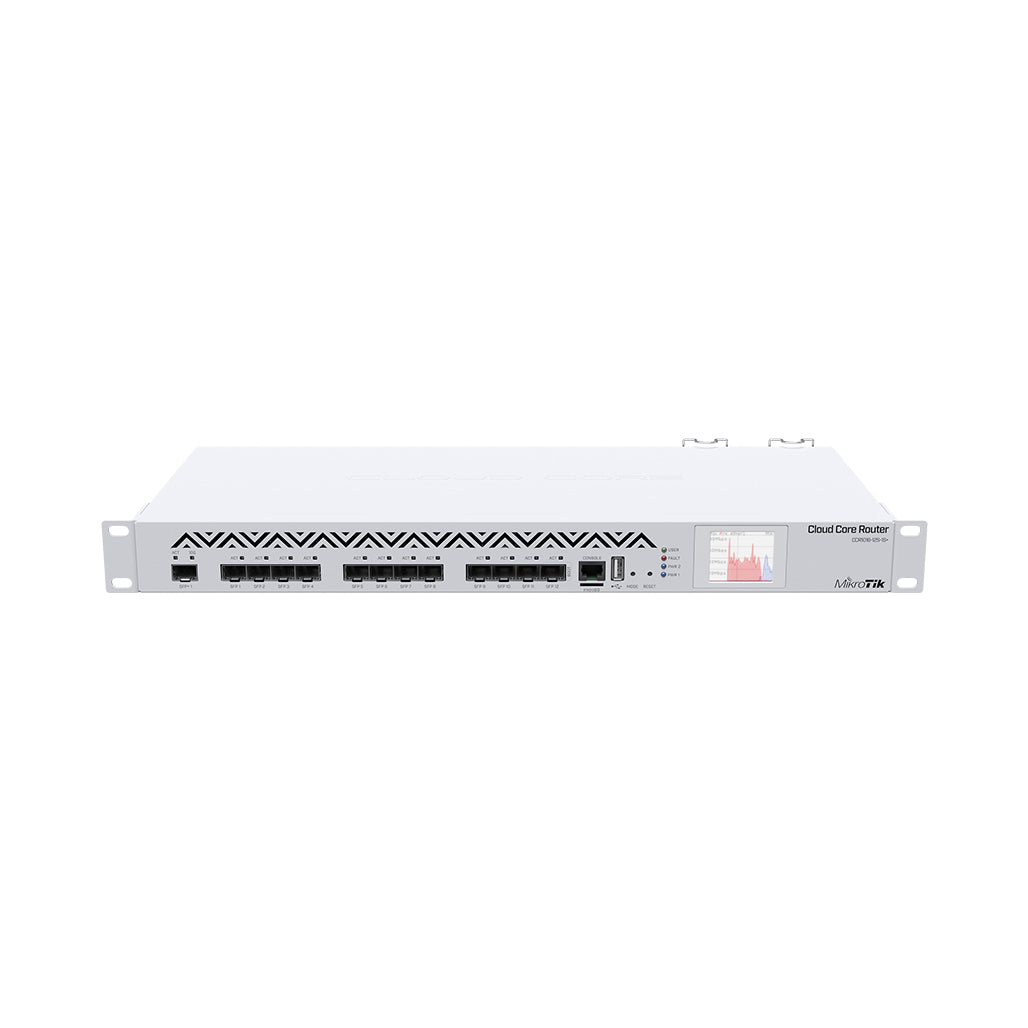

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.

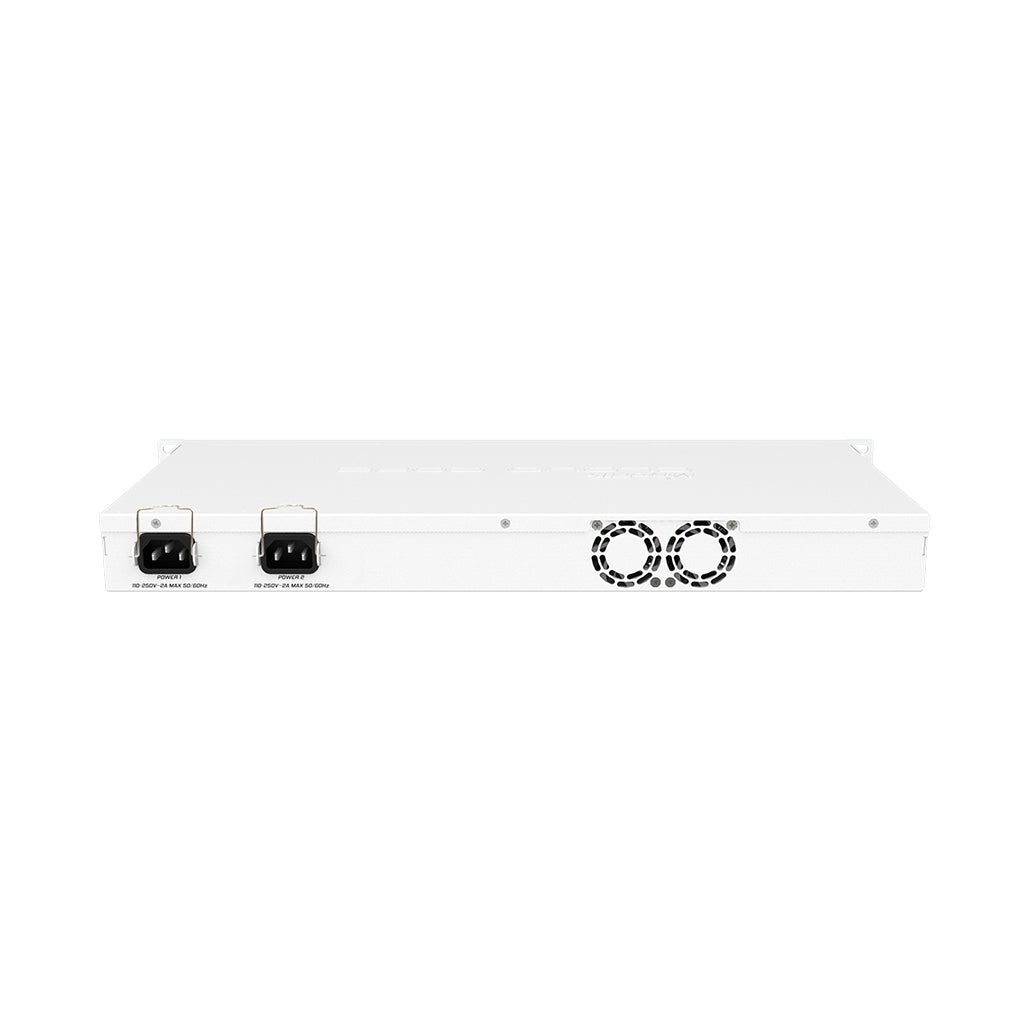

The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.
Details | |
---|---|
Product code | CCR1016-12S-1S+ |
Architecture | TILE |
CPU | TLR4-01680 |
CPU core count | 16 |
CPU nominal frequency | 1.2 GHz |
Dimensions | 443 x 197 x 44 mm |
RouterOS license | 6 |
Operating System | RouterOS |
Size of RAM | 2 GB |
Storage size | 128 MB |
Storage type | NAND |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -20°C to 60°C |
IPsec hardware acceleration | Yes |
Details | |
---|---|
Number of AC inputs | 2 |
AC input range | 100-240 |
Max power consumption | 47.5 W |
Max power consumption without attachments | 34 W |
Cooling type | 2 fans |
Details | |
---|---|
SFP DDMI | Yes |
SFP ports | 12 |
SFP+ ports | 1 |
Details | |
---|---|
Memory card type | microSD |
Memory Cards | 1 |
Serial console port | RJ45 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Details | |
---|---|
CPU temperature monitor | Yes |
PCB temperature monitor | Yes |
Mode button | Yes |
Beeper | Yes |
Details | |
---|---|
Certification | CE, EAC, ROHS |
IP | IP20 |
